WEIPU M16 Panel Socket — Rugged Industrial Panel Connector
The WEIPU M16 Panel Socket is a professional-grade panel connector designed for reliable, repeatable signal and power connections in demanding industrial environments. Built to ensure uninterrupted operation and minimal maintenance, this panel socket offers a secure mounting interface, robust contact integrity, and proven resistance to contamination and vibration—so engineers and installers can specify with absolute confidence.
Engineered for Uncompromising Reliability
Secure Mechanical Design
The M16 panel socket features a precision-machined mating face and a reinforced flange to prevent loosening under vibration or thermal cycling. Precision tolerances guarantee consistent contact alignment and low insertion force, reducing wear over repeated mating cycles and extending service life.
Environmental Protection
Seals and materials are chosen to resist moisture, dust, and industrial contaminant exposure. While specific ingress ratings vary by configuration, WEIPU’s product platform includes IP-rated solutions up to IP69K—reflecting the company’s ability to produce connectors that withstand high-pressure washdown and harsh outdoor conditions when required.
Professional-Grade Performance
Electrical Integrity and Durability
Contacts are manufactured from corrosion-resistant alloys and finished for low contact resistance and long-term stability. The socket supports dependable signal and low-to-medium power transmission with consistent conductivity across extended duty cycles—minimizing downtime and the need for recalibration or replacement.
Installation Confidence
Mounting provisions and clear polarity markings ensure quick, error-free installation on panels and enclosures. Available screw or snap-mount variants simplify retrofit and new-design integration, lowering assembly time and reducing field service calls.
Built for Peace of Mind
Backed by Proven Manufacturing and Certification
WEIPU was founded in 1996 and is a global leader in high-reliability industrial connectors and a principal drafter of the GB/T 11918-2014 national standard. With nearly 30 years of expertise and a manufacturing campus expanded to 80,000 m² in 2025, WEIPU supports scale and quality with an annual capacity of 55 million units. Our product range spans over 70,000 specifications and serves 30,000+ customers in 130 countries.
Quality Systems and Rapid Response
Production and design adhere to strict industry standards, supported by IRIS (Rail Transit) and IATF 16949 (Automotive) level processes where applicable. WEIPU’s vertically integrated R&D and manufacturing enable fast OEM/ODM turnaround—prototypes in 7–15 days and a 24-hour rapid response model—so project timelines and compliance needs are met without compromise.
For engineering support, custom configurations, or technical datasheets for the M16 panel socket, contact WEIPU via our website or speak directly with our sales team at salse01@weipu-group.com or +86-020-80501102. WEIPU’s proven history, certifications, and one-stop solutions ensure the M16 panel socket is a low-risk, high-confidence choice for medical, renewable energy, rail, and industrial automation applications.
Picture Show
Our Certifications
ISO-Certification
CE-Certification
CCC-Certification
If you have any questions about our goods or services, please feel free to contact us.
Q&A
What is the WEIPU M16 Panel Socket and why is it described as a rugged industrial panel connector?
The WEIPU M16 Panel Socket is a compact, panel-mount circular connector designed for industrial use where reliable signal and power connections must withstand harsh conditions. It features a robust housing, positive locking, protected contact cavities, and options for environmental sealing to resist dust, water ingress and mechanical stress. Backed by WEIPU’s nearly 30 years of connector expertise and vertical R&D/production, the M16 Panel Socket is engineered for long service life in industrial, automation, and mobile equipment applications.
Is the WEIPU M16 Panel Socket compatible with standard M16 circular connectors and how do I ensure correct mating?
Yes—WEIPU M16 Panel Sockets are produced to fit the M16 circular connector footprint, but compatibility depends on matching gender (socket/plug), contact arrangement and keying. To ensure proper mating, confirm the exact pin count and wiring diagram, check mechanical keyway orientation, and compare part drawings or request a sample. If you have an existing connector, send photos or part numbers to our technical team so we can verify fit and recommend the correct mating plug.
What environmental protections and industry certifications are available for the WEIPU M16 Panel Socket?
WEIPU offers M16 Panel Socket variants with robust environmental protections typical of our product range, including sealed options that meet high ingress protection levels (e.g., IP67 to IP69K in applicable designs). WEIPU is a principal drafter of GB/T 11918-2014 and holds elite certifications such as IRIS (rail transit) and IATF 16949 (automotive), demonstrating our compliance with stringent industry safety and quality standards. For specific certified variants and test reports for an M16 model, contact our sales or technical team to obtain datasheets and certification documentation.
Can WEIPU customize M16 Panel Sockets or provide fast prototypes for my project?
Yes. WEIPU provides OEM/ODM services and a fast-prototyping capability—prototypes can be delivered typically within 7–15 days depending on complexity. Our vertically integrated production and 80,000 m² facility support large-scale manufacturing and rapid turnaround. For customization (special pinouts, housings, seals, or labeling), submit your requirements and drawings to sales (salse01@weipu-group.com) or call +86-020-80501102; our team offers a 24-hour rapid response to evaluate feasibility and provide quotations.
How should I specify electrical and mechanical requirements when ordering an M16 Panel Socket (pinout, current rating, mounting and installation)?
Provide a clear specification including required pin count and layout, maximum current and voltage per contact, desired mating gender, panel thickness and cutout dimensions, environmental rating (e.g., IP level), and any special materials or plating. For installation, include recommended torque for mounting screws, gland type for cable sealing, and strain-relief needs—our datasheet will list mechanical drawings and installation notes. If you don’t have full details, send intended application details (signals/power, ambient temperature, vibration, chemical exposure) to our technical team and we will recommend the proper M16 Panel Socket variant and supply datasheets, drawings, and samples upon request.

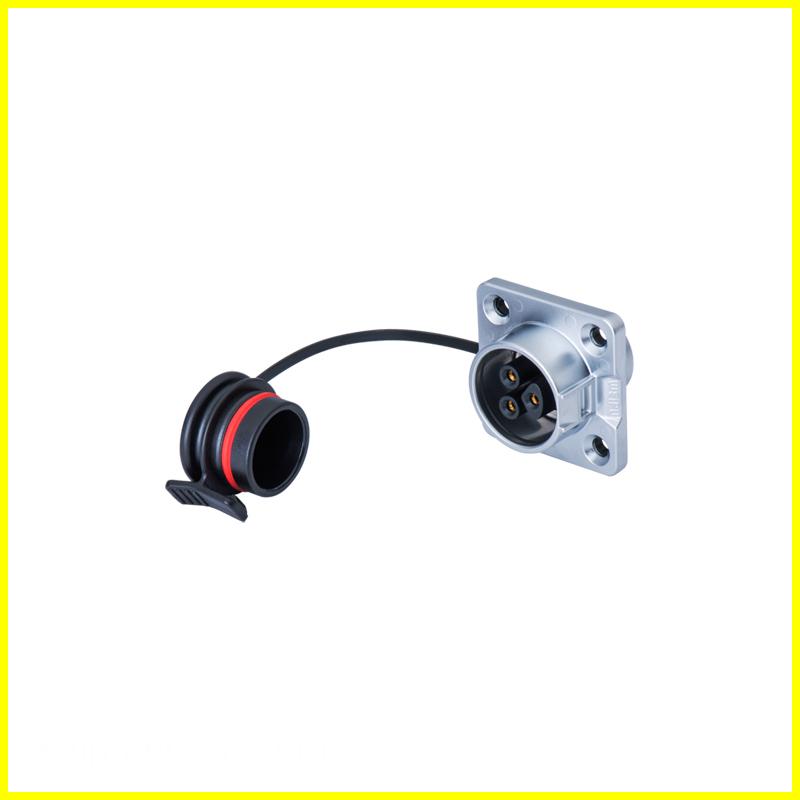

WEIPU WK16-Z square flange mounting socket belongs to WK16 M16 circular connector series, equipped with a fixed dust cap connected by lanyard to avoid loss during use. It adopts metal housing with IP67 dustproof and waterproof performance, non-shielded standard version, compatible with all WK16 cable plugs including TE and TEP models. Widely used in industrial automation, new energy machinery and testing equipment for power & signal transmission, supporting multiple pin layouts of 2P to 9P.
The WEIPU SA Series Push-Pull Industrial Connector offers robust IP67 waterproof protection with durable anodized aluminum housing. This circular connector ensures secure, reliable connections in harsh environments, making it ideal for demanding industrial applications. Trusted quality by WEIPU.
Here is a product detailed page description for your corporate website: WEIPU SF Series: High-quality industrial circular push-pull connectors. Featuring robust IP67 protection, these reliable connectors ensure secure, fast connections for demanding applications. Get better results in challenging situations.
