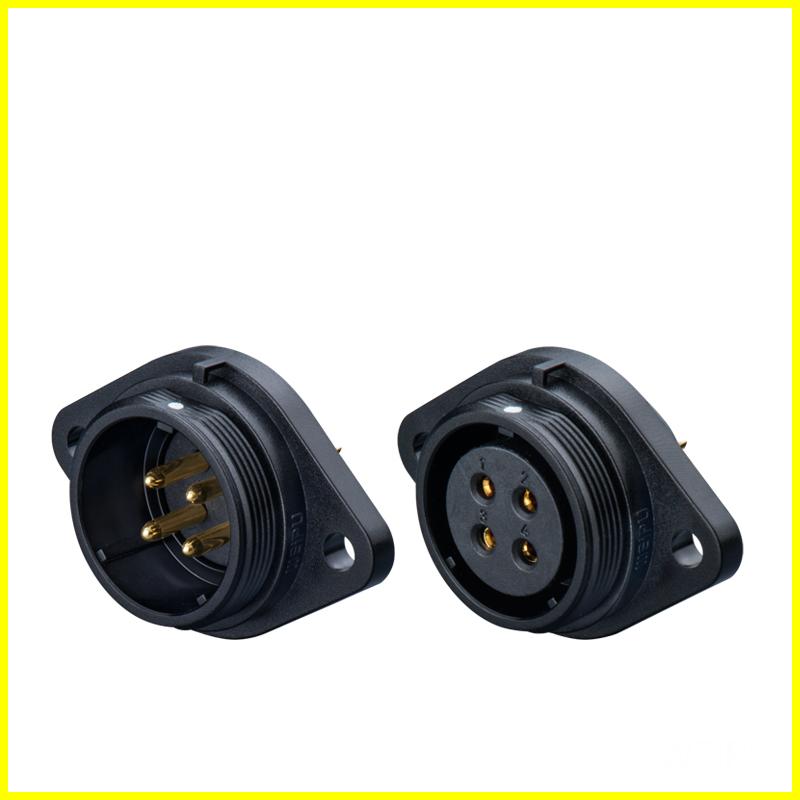

WEIPU SP2513 Front Nut Panel Connector — Industrial-Grade Panel Mount Connector
The WEIPU SP2513 front nut panel connector is a precision panel-mount circular connector designed for mission-critical industrial applications where uptime, safety, and predictable performance matter. Built to minimize installation risk and deliver consistent electrical and mechanical integrity, this connector offers reliable sealing, secure front-nut mounting, and service-ready durability that professionals depend on.
Engineered for Uncompromising Reliability
Robust Mechanical Design
SP2513-series construction focuses on mechanical security: a front nut ensures firm panel locking that resists vibration and accidental loosening. Materials and plating options are selected to resist corrosion and wear, translating into long service life and fewer maintenance interventions. For integrators, that means reduced downtime and predictable lifecycle costs.
Environmental and Sealing Assurance
Sealing features deliver protection against dust, water ingress, and environmental exposure, providing peace of mind for outdoor, factory-floor, and rail applications. The connector's design aligns with WEIPU's high standards for ingress protection and field longevity, reducing failure risk in harsh conditions.
Professional-Grade Performance
Electrical Safety and Consistency
Engineered to maintain steady contact resistance and reliable mating cycles, this panel mount connector supports consistent signal and power delivery in control, instrumentation, and power distribution systems. Quality contacts and secure termination reduce the chance of heat-related issues and intermittent faults.
Manufacturing Traceability and Quality Control
Produced in WEIPU facilities operating under rigorous quality systems, the SP2513 panel mount units benefit from process control, traceability, and batch testing. WEIPU is a principal drafter of the GB/T 11918-2014 national standard and holds elite industry certifications including IRIS (rail transit) and IATF 16949 (automotive), ensuring production meets stringent global safety and reliability benchmarks.
Built for Peace of Mind with WEIPU Support
Proven Expertise and Global Capacity
Founded in 1996, WEIPU has nearly 30 years of focused experience in high-reliability industrial connectors, supporting over 70,000 specifications and serving more than 30,000 customers across 130 countries. With a scaled facility footprint and annual capacity capable of millions of units, WEIPU delivers consistent supply and low risk of interruption for large projects and OEM programs.
Service, Customization, and Certifications
WEIPU’s vertically integrated R&D and manufacturing enable rapid prototype delivery and OEM/ODM customization, supporting Industry 4.0 deployments and specialized requirements. Certified solutions include high ingress protection (IP69K), high-current options, and medical-grade components designed for sterilization processes. For procurement and technical inquiries contact WEIPU at https://www.weipu-group.com/, email salse01@weipu-group.com, or phone +86-020-80501102.
Choosing the WEIPU SP2513 front nut panel connector means selecting a connector backed by documented manufacturing standards, global certification, and an established service network—minimizing implementation risk and maximizing long-term reliability for professional installations.
Detailed display
Certifications
ISO-Certification
ISOTS-221632017Certification
TUV-Certification
If you have any questions or concern, please contact us.
FAQ
What is the WEIPU SP2513 front nut panel connector and where is it used?
The WEIPU SP2513 front nut panel connector is an industrial-grade panel-mount circular connector designed to provide secure, sealed connections for machinery, control cabinets, sensors, and field equipment. Its front-nut locking mechanism ensures a robust mechanical connection to panels while preserving environmental sealing, making it well suited for manufacturing, automation, renewable energy, transportation and other harsh-environment applications.
What are the key features and specifications of the SP2513 front nut panel connector?
Key features include a front-nut panel-mount design for easy and reliable panel installation, a rugged metal locking nut and corrosion-resistant materials for long service life, and selectable sealing options to meet industrial ingress protection needs. WEIPU offers this series with multiple contact arrangements and termination styles to suit signal and power requirements. As a product from WEIPU—founded in 1996 and a principal drafter of GB/T 11918-2014—the SP2513 benefits from rigorous quality systems, global certifications and scalable manufacturing backed by a facility footprint of 80,000 m² and an annual capacity of 55 million units.
How do I install the SP2513 front nut panel connector correctly?
Installation is straightforward: cut the correct-size panel hole per the connector drawing, insert the connector body through the panel from the rear, and secure the connector with the front nut from the front side, ensuring the sealing washer or O-ring is correctly positioned for a tight seal. Use recommended tightening practice—avoid over-torquing—and follow the manufacturer’s wiring procedure for the chosen termination (crimp, solder or screw). For mission-critical applications, WEIPU recommends following the detailed datasheet and installation guide or contacting technical support for panel cutout drawings and torque specs.
What environmental and reliability performance can I expect from this connector?
The SP2513 series is engineered for industrial reliability: robust mechanical construction, effective sealing against dust and moisture, and materials chosen for corrosion and wear resistance. WEIPU products are developed under strict quality standards and hold certifications such as IRIS (Rail Transit) and IATF 16949 (Automotive), reflecting the company’s focus on high-reliability connectivity. Depending on the variant, you can select ingress protection options and terminations that match your application’s temperature, vibration and sealing requirements—consult the product datasheet for specific environmental ratings.
How can I order, customize, or get technical support for the SP2513 front nut panel connector?
WEIPU offers OEM/ODM customization, fast prototyping (typical prototype turnaround 7–15 days), and 24-hour rapid response for technical inquiries. To discuss custom pin layouts, materials, sealing levels or volume pricing, contact WEIPU’s sales team via salse01@weipu-group.com or by phone at +86-020-80501102. Additional product information, datasheets and ordering options are available at https://www.weipu-group.com/. As a global supplier with 70,000+ specifications and service to 30,000+ customers in 130 countries, WEIPU can support sample orders and scale production to meet industrial demand.
WEIPU SP2513 IP68 front nut circular connector provides stable wiring and excellent dustproof & waterproof performance, widely used in automation machinery, outdoor power and harsh industrial wiring scenarios.
