WEIPU Square Flange Connector — Professional Flange-Mount Industrial Connector
WEIPU Square Flange Connector is a flange-mounted panel connector engineered for mission-critical industrial use, providing durable sealing, secure mechanical retention, and consistent electrical performance backed by WEIPU’s nearly 30 years of connector expertise and global quality certifications.
Engineered for Uncompromising Reliability
Sealing and Environmental Protection
Designed to maintain reliable connections in harsh environments, this flange connector is compatible with WEIPU sealing options, including IP69K-rated configurations where required. The flange mounting creates a stable, low-movement interface that minimizes ingress and reduces the risk of contact degradation over time.
Mechanical Durability and Vibration Resistance
Robust flange fastening and precision manufacturing prevent loosening under shock and vibration commonly found in rail, renewable energy, and industrial automation installations. The connector’s mounting geometry distributes mechanical loads to protect contact integrity and panel assemblies.
Consistent Electrical Performance
Precisely produced contact interfaces deliver repeatable mating cycles and low contact resistance to secure signal and power continuity. Material selection and controlled manufacturing processes reduce the likelihood of corrosion and ensure predictable long-term performance.
Professional-Grade Performance
Manufactured to Industrial Standards
WEIPU was founded in 1996 and is a principal drafter of the GB/T 11918-2014 national standard. Our vertically integrated production and independent R&D ensure each square flange connector benefits from rigorous process control. WEIPU holds elite certifications such as IRIS for rail transit and IATF 16949 for automotive quality systems, demonstrating adherence to demanding global safety and reliability benchmarks.
Scale, Customization, and Rapid Response
With an 80,000 m2 facility and an annual capacity of 55 million units, WEIPU supports a broad portfolio of more than 70,000 connector specifications. We provide OEM/ODM services, 24-hour rapid response, and prototype delivery in 7–15 days, enabling quick validation and deployment of tailored flange-mount solutions for medical, smart manufacturing, and energy projects.
Proven in Mission-Critical Applications
WEIPU’s technology benchmarks include offerings with IP69K protection, high-current options within our portfolio, and medical-grade solutions resistant to autoclave processes at industry-validated temperatures. Our global footprint serves 30,000+ customers in 130 countries, making WEIPU a trusted partner for dependable connectivity where failure is not an option.
Built for Peace of Mind
Why Choose WEIPU
Choosing a WEIPU square flange connector means selecting a vendor with decades of experience, recognized standard-setting authority, and certified manufacturing discipline. Our combination of precision engineering, scalable production, and dedicated support minimizes buyer risk and shortens time to market.
Contact and Support
For specification guidance, customization, or ordering information, visit https://www.weipu-group.com/ or contact WEIPU sales at salse01@weipu-group.com or +86-020-80501102. Our team will help match the right flange-mount connector to your application and performance requirements.
Detailed display
Certificate display
CCC-Certification
UL-Certification
TUV-Certification
FAQ
What is a WEIPU Square Flange Connector and what applications is it best suited for?
The WEIPU Square Flange Connector is a flange-mount industrial connector designed for secure panel installation and high-reliability signal, power, and data connections. Its square flange form factor simplifies mounting on control panels, enclosures, and machinery. Typical applications include rail and transit systems, medical equipment, renewable energy inverters, factory automation, and outdoor instrumentation where robust, sealed panel connections are required.
What are the key technical features and performance specifications of the Square Flange Connector?
WEIPU Square Flange Connectors offer high ingress protection (up to IP69K), high-current variants (capacities up to 800A for heavy-duty lines), and medical-grade solutions that withstand 134°C autoclaving. They are available in multiple contact arrangements and materials for signal, power, and mixed use. WEIPU’s vertically integrated design and QA processes ensure consistent performance across thousands of specifications, backed by industry certifications and national-standard expertise.
How do I install and ensure a reliable seal for a Square Flange Connector on my panel?
Installation follows a straightforward process: cut the panel opening per the connector’s datasheet, place the integrated gasket between connector flange and panel, align the connector, and fasten with the specified screws or captive nuts. Ensure wiring and polarity follow the provided wiring diagram and apply recommended torque values from the datasheet. Proper gasket seating and screw torque are critical to achieve the connector’s rated IP protection—consult WEIPU engineering drawings or request a sample if you need panel templates or installation support.
Can WEIPU customize Square Flange Connectors, and what are typical lead times for prototypes and production?
Yes—WEIPU provides OEM/ODM customization across contact layouts, shell finishes, sealing options, and cable interfaces. With independent R&D and rapid prototyping capability, WEIPU delivers prototypes in 7–15 days and supports fast-response technical communication (24-hour rapid response). Large-scale production capacity (annual 55 million units) means competitive lead times and scalable supply for volume orders.
How does WEIPU ensure reliability and compliance, and where can I get support or order samples?
WEIPU’s connectors are developed under rigorous quality systems and industry certifications (including IRIS for rail transit and IATF 16949 for automotive). WEIPU was a principal drafter of GB/T 11918-2014 and operates a vertically integrated facility (80,000 m²) supporting robust testing and traceability. For technical support, samples, or quotations for Square Flange Connectors, contact WEIPU via the website https://www.weipu-group.com/, email salse01@weipu-group.com, or phone +86-020-80501102.

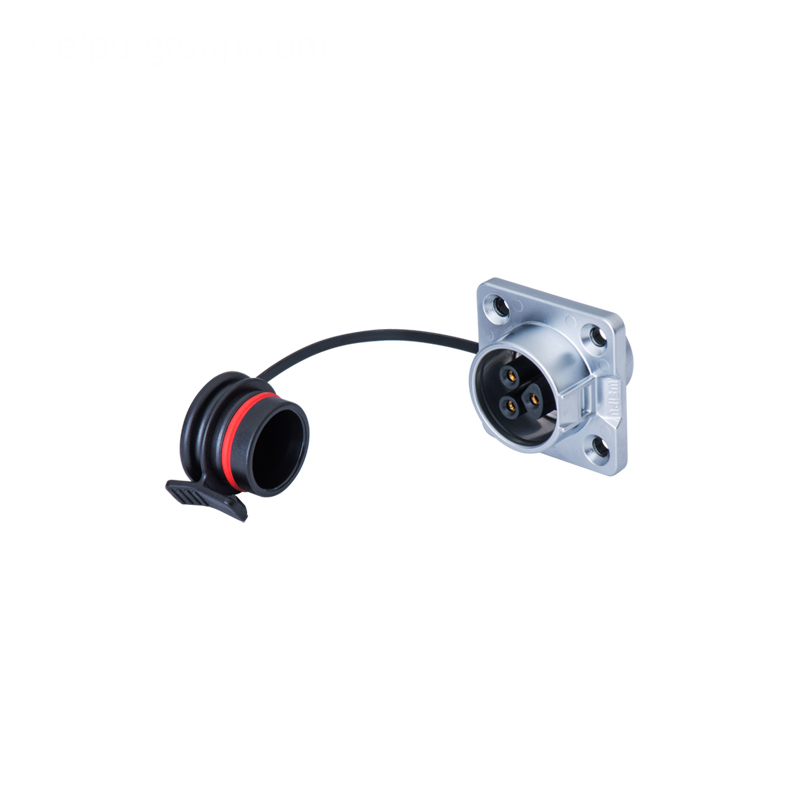

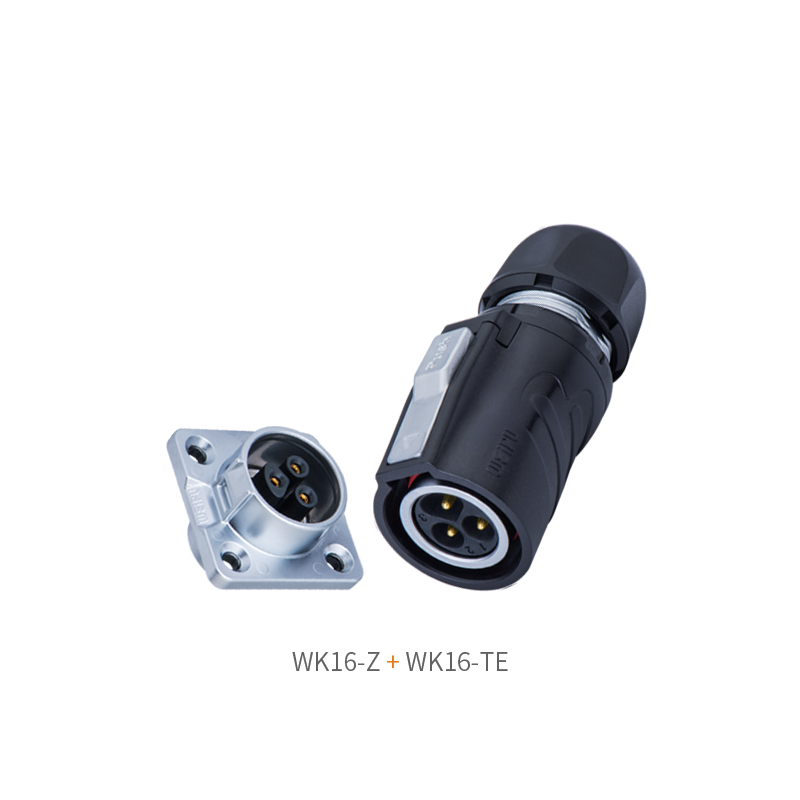

WEIPU WK16-Z square flange mounting socket belongs to WK16 M16 circular connector series, equipped with a fixed dust cap connected by lanyard to avoid loss during use. It adopts metal housing with IP67 dustproof and waterproof performance, non-shielded standard version, compatible with all WK16 cable plugs including TE and TEP models. Widely used in industrial automation, new energy machinery and testing equipment for power & signal transmission, supporting multiple pin layouts of 2P to 9P.
The WEIPU SA Series Push-Pull Industrial Connector offers robust IP67 waterproof protection with durable anodized aluminum housing. This circular connector ensures secure, reliable connections in harsh environments, making it ideal for demanding industrial applications. Trusted quality by WEIPU.
Here is a product detailed page description for your corporate website: WEIPU SF Series: High-quality industrial circular push-pull connectors. Featuring robust IP67 protection, these reliable connectors ensure secure, fast connections for demanding applications. Get better results in challenging situations.
