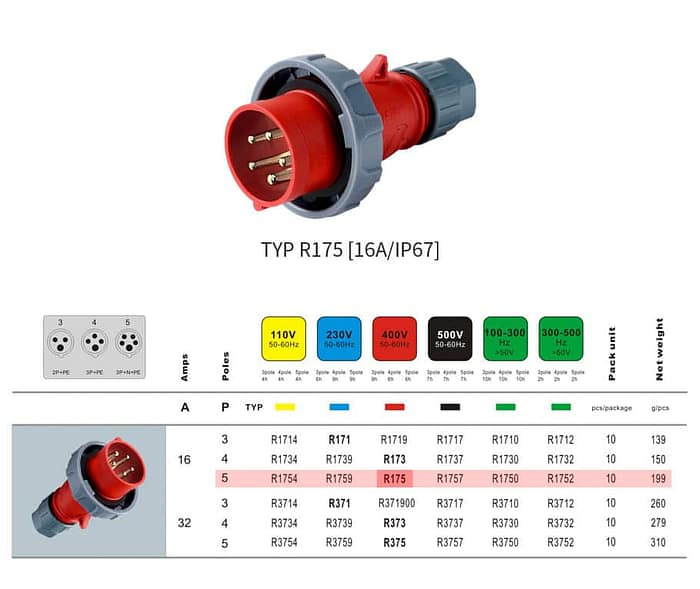

WEIPU TYPR175 16A 5-Pin Industrial Plug Socket (IP67)
The WEIPU TYPR175 is a professional 16A 5-pin industrial plug socket built for mission-critical power connections—providing proven IP67 ingress protection, consistent 16A current handling and a secure five-pin interface that professionals rely on for uninterrupted operation.
Engineered for Uncompromising Reliability
Sealed IP67 Protection
Designed to meet IP67 standards, the TYPR175 prevents dust ingress and withstands temporary immersion in water. The sealed construction reduces fault risk in wet, dusty, or outdoor settings so your systems keep running without surprise failures.
Secure 5-Pin Contact System
The five-pin layout provides dedicated lines for power and grounding, ensuring stable connections and predictable electrical performance. The connector’s mating design minimizes contact movement and arcing risk, translating into long-term signal integrity and lower maintenance cycles.
Consistent 16A Current Handling
Rated for 16A operation, the TYPR175 delivers dependable current capacity for a wide range of industrial equipment. This rating helps guarantee consistent power delivery under normal operational loads and reduces the risk of overheating during continuous use.
Professional-Grade Performance
Durability That Lowers Operational Risk
Every TYPR175 socket is engineered to reduce wear points and prevent premature failure. The result is a connector that stands up to frequent mating cycles and harsh handling—helping you avoid costly downtime and unplanned replacement.
Fit for Harsh Environments
Whether deployed in manufacturing, renewable-energy arrays, rail-side equipment, or outdoor instrumentation, the TYPR175 provides the environmental robustness required by professional installations. Its sealed interface keeps contaminants out, protecting downstream electronics and control systems.
Built for Peace of Mind
Manufactured by an Industry-Leading Partner
WEIPU, founded in 1996, is a global leader in industrial connectors and a principal drafter of the GB/T 11918-2014 national standard. With nearly 30 years of expertise and global certifications including IRIS and IATF 16949, WEIPU’s vertically integrated production and independent R&D deliver traceable quality and predictable supply.
Global Capacity and Support
WEIPU’s 80,000 m² facility and annual capacity of 55 million units support reliable delivery for projects of any size. We offer OEM/ODM services, 24-hour rapid response and prototype turnaround in 7–15 days—providing practical, fast support when timelines matter.
How to Order / Contact
Choose the TYPR175 for a low-risk, professional-grade solution when you need a 16A 5-pin industrial plug socket with IP67 protection. For sales and technical assistance visit https://www.weipu-group.com/ or contact salse01@weipu-group.com | +86-020-80501102.
Detailed display
Certificate display
ISO-Certification
UL-Certification
CE-Certification
Frequently Asked Questions
What is the WEIPU TYPR175 16A 5-Pin Industrial Plug Socket (IP67) and what are its key specifications?
The WEIPU TYPR175 16A 5-Pin Industrial Plug Socket (IP67) is a rugged circular connector designed for reliable power distribution in harsh industrial environments. Key specifications include a 16 A current rating, 5 contact positions (commonly L1, L2, L3, N, PE for three-phase or other 5-wire configurations), IP67 ingress protection (dust-tight and temporary immersion), robust thermoplastic/hardened housing, and secure locking mechanism for vibration-resistant mating. As the manufacturer, WEIPU—founded in 1996 and a principal drafter of GB/T 11918-2014—produces this connector to meet high-reliability requirements for industrial, renewable energy, and smart manufacturing applications. For quick reference and SEO: 16a 5pin industrial plug socket typr175-ip67.
Is this connector suitable for outdoor or wet environments, and what does IP67 mean in practice?
Yes. The TYPR175’s IP67 rating means the connector is fully dust-tight and can withstand temporary immersion in water up to 1 meter for short periods—making it suitable for outdoor use, wash-down areas, and moderate marine exposure when correctly mated and sealed. Note that IP67 is not the same as IP69K (high-pressure, high-temperature washdown); if your application requires aggressive cleaning (e.g., high-pressure steam), please consult us for IP69K or medical-grade alternatives. WEIPU’s production and testing follow strict quality controls (IATF 16949, IRIS), ensuring reliable environmental sealing when installed per the datasheet instructions.
How do I wire and install the 16A 5-pin TYPR175 plug socket correctly?
Installation should follow the connector’s wiring diagram and local electrical codes. Typical guidance: 1) Identify pins (L1/L2/L3, N, PE) according to the datasheet and use appropriate wire gauge for 16 A (consult local code for exact AWG/mm²). 2) Strip and terminate conductors with proper ferrules or crimp terminals; avoid loose strands. 3) Insert conductors into the contacts and secure per the specified torque values (refer to product datasheet). 4) Ensure O-rings/seals are properly seated and the mating connector is fully engaged and locked to maintain IP67 protection. If you need panel cutout dimensions, gland size, or a wiring diagram, contact our technical team or download the product drawing from our website.
What materials, reliability, and certifications back the TYPR175 product line?
WEIPU designs TYPR-series connectors using high-reliability materials—copper alloy contacts with protective plating and rugged thermoplastic or engineered polymer housings—selected for corrosion resistance, electrical performance, and mechanical durability. Our products are developed through independent R&D and produced in a vertically integrated facility with extensive testing (mechanical mating cycles, IP protection tests, electrical endurance). WEIPU holds elite certifications including IRIS (rail transit) and IATF 16949 (automotive), and we were a principal drafter of GB/T 11918-2014, underscoring our compliance with stringent global safety standards. These credentials support the connector’s suitability for mission-critical systems.
How can I purchase, customize, or get technical support for the TYPR175 16A 5-pin connector?
WEIPU offers standard SKUs and OEM/ODM customization with fast response times. We provide 24-hour rapid support, prototypes in 7–15 days, and large annual capacity from our 80,000 m² facility. To request a quote, custom tooling, datasheets, or technical assistance, contact our sales team at salse01@weipu-group.com or +86-020-80501102, or visit https://www.weipu-group.com/. Please provide application details (operating voltage/current, environment, mating connector, quantity, and any certification needs) so our engineers can recommend the optimal solution.
