WEIPU WA22J4TL2 3+PE Male Cable Connector — Industrial Grade
WEIPU WA22J4TL2 3+PE Male Cable Connector Overview
The WA22J4TL2 3+PE male cable connector from WEIPU delivers dependable power and grounding for industrial equipment. Designed for demanding environments, this male connector combines a compact footprint with robust contacts, easy assembly, and long service life. It is ideal for factory automation, renewable energy systems, medical devices, and smart manufacturing installations.
Key Features
- 3+PE configuration for secure three-phase power plus protective earth
- Durable metal and high-strength polymer housing for mechanical protection
- Reliable contacts to ensure stable conductivity and low contact resistance
- Quick and intuitive cable assembly for fast onsite installation
- Suitable for repeated mating cycles and industrial workloads
Technical Benefits
The WA22J4TL2 is engineered for reliability. It provides consistent electrical performance under vibration and temperature changes, reducing downtime and maintenance cost. WEIPU applies rigorous quality control and materials selection to guarantee contact stability and corrosion resistance. For projects requiring traceable standards and supply reliability, this connector meets industry expectations for high-reliability components.
Why Choose WEIPU
Founded in 1996, WEIPU is a global leader in industrial connectors and a principal drafter of the GB/T 11918-2014 national standard. With nearly 30 years of experience, WEIPU supports customers worldwide with a vertically integrated production system and independent R&D. Our certifications include IRIS for rail transit and IATF 16949 for automotive, confirming compliance with strict global safety requirements. WEIPU offers IP69K protection options and high-current solutions, along with fast OEM/ODM prototypes delivered in 7 to 15 days.
Applications
- Industrial automation and control cabinets
- Renewable energy inverters and power distribution
- Medical equipment power connections requiring reliability
- Robotics, CNC machines, and factory floor devices
- Outdoor and harsh environment power installations
Ordering and Support
For ordering, custom assembly, or technical specifications of the WA22J4TL2 3+PE male cable connector, contact WEIPU sales directly. Our global support team provides fast responses and one-stop solutions for prototypes, samples, and bulk production.
Contact
Website: https://www.weipu-group.com/ Email: salse01@weipu-group.com Phone: +86-020-80501102
Trust and Performance
Choosing the WA22J4TL2 3+PE male cable connector means selecting proven design and manufacturing quality. WEIPU delivers connectors that help reduce installation time, improve system uptime, and meet the safety and performance expectations of mission-critical applications.

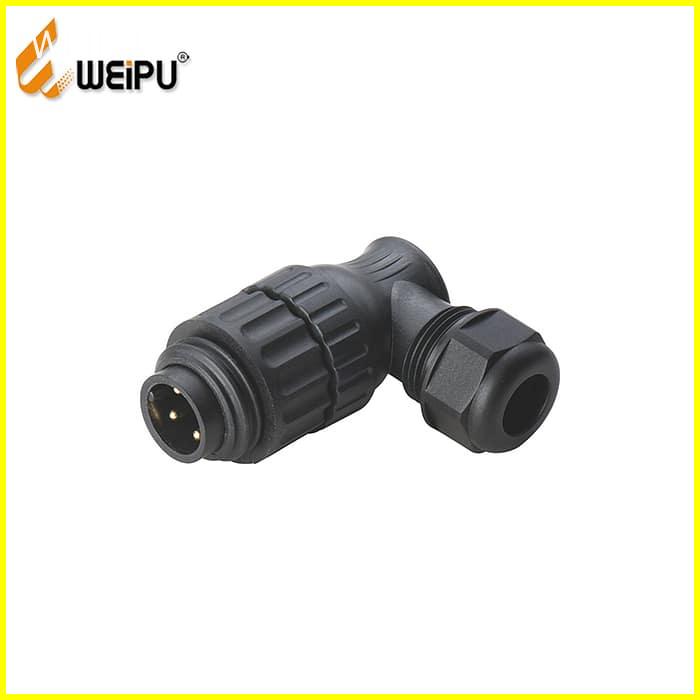

Product Image
Certifications
ISOTS-221632017Certification
ISO-Certification
CE-Certification
Frequently Asked Questions
What is the advantage of the M23X Series' ultra-high insulation resistance (>10¹³mΩ)?
The ultra-high insulation resistance can effectively isolate electrical signals between different circuits, avoid mutual interference, and ensure the accuracy of signal transmission in precision control scenarios. At the same time, it can greatly reduce the risk of electrical leakage and short circuit, improving the safety of equipment operation and protecting the personal safety of operators.
What is the function of the 3+PE contact configuration?
The 3+PE contact configuration includes 3 contacts for transmitting power or signals and 1 PE (protective earth) contact. The PE contact is connected to the equipment shell and the earth, forming a protective earth loop. When the equipment has electrical leakage, the leakage current can be quickly discharged to the earth through the PE contact, avoiding electric shock hazards to operators and protecting the safety of equipment and personnel.
What is the advantage of silver-plated contacts for audio transmission?
Silver plating has lower contact resistance than other platings (e.g., gold plating), which can minimize audio signal loss and distortion, ensuring the high-fidelity transmission of sound quality, which is more suitable for audio signal transmission needs.
Can TYPE171 series be used for high-power equipment above 16A?
No. The rated current of TYPE171 series is 16A. Using it for high-power equipment above 16A will cause the contacts to overheat, leading to connection failure, and even fire and other safety hazards.
About other questions pls contact me directily.
