WEIPU WK16-Z Square Flange Mount Socket for Reliable Industrial Connectivity
The WEIPU WK16-Z square flange mount socket gives industrial equipment designers a dependable way to bring a connector interface directly to a panel or enclosure. Its flange-mounted format helps keep connection points aligned and accessible, reducing clutter around internal wiring and making routine inspection or replacement more straightforward. For automation equipment, control cabinets, machinery, and custom assemblies, it provides a practical foundation for a clean and maintainable connector layout.
Designed for Efficient Panel Integration
Clean, Stable Mounting
A square flange helps the socket sit neatly against a prepared mounting surface. This is valuable when equipment requires repeatable connector positioning, a professional external finish, and a connection point that can be reached without opening the entire machine. The design is especially useful for builders who want to standardize panel interfaces across multiple units or simplify installation during production.
Supports Easier Maintenance
Industrial downtime is expensive. A dedicated panel-mounted socket can make cable connection and disconnection more convenient for service teams, while keeping the interface visible and organized. Instead of routing every cable through an improvised opening, engineers can create a defined connection area that supports clearer wiring practices and faster troubleshooting.
Built for Industrial Connector Applications
Flexible Use Across Equipment
This connector format can be considered for factory automation, production machinery, instrumentation, transportation equipment, energy systems, and other industrial assemblies that require a panel-mounted interface. Final suitability depends on the complete mating connector, contact arrangement, electrical rating, enclosure design, and environmental requirements of the application. WEIPU can help customers confirm the correct configuration before purchasing.
Dependable Manufacturing Support
WEIPU has developed industrial connectors since 1996 and serves more than 30,000 customers across 130 countries. As a principal drafter of the GB/T 11918-2014 national standard, the company brings substantial experience to connector design and manufacturing. Its expanded 80,000 m² facility supports an annual capacity of 55 million units and a portfolio exceeding 70,000 specifications, including circular, heavy-duty, and CEE connectors.
Why Choose WEIPU
Independent research and development, vertically integrated production, and certifications including IRIS for rail transit and IATF 16949 for automotive demonstrate WEIPU’s commitment to consistent quality and demanding industry requirements. The company also develops solutions featuring IP69K protection, high-current connectivity up to 800A, and medical connectors designed to withstand 134°C autoclaving, where applicable to the selected product family.
For custom projects, WEIPU provides OEM and ODM support, 24-hour response service, and prototype delivery in 7–15 days. To verify dimensions, mating compatibility, ratings, or customization options for this socket, contact WEIPU at salse01@weipu-group.com or +86-020-80501102. With nearly 30 years of experience, WEIPU is ready to support reliable connectivity for smart manufacturing, renewable energy, medical equipment, and mission-critical industrial systems.
Product Images
Certificate display
ISO-Certification
TUV-Certification
UL-Certification
If you have any other questions, please write email to us or call us , we will reply you as soon as possible.
Frequently Asked Questions
What is the WEIPU WK16-Z square flange mount socket used for?
The WEIPU WK16-Z square flange mount socket is designed for reliable industrial connectivity where a fixed, panel-mounted connection is required. Its square flange format supports stable installation on equipment panels, control cabinets, machinery, and other industrial systems. It can help simplify wiring, improve connection organization, and support dependable signal or power transmission when correctly matched with the appropriate plug and cable assembly.
What are the key benefits of the WK16-Z square flange mount socket?
Key benefits include a space-efficient square flange mounting design, secure panel installation, and suitability for demanding industrial environments. The socket is part of WEIPU’s broader industrial connector portfolio, which is developed around durability, dependable performance, and application flexibility. For exact contact configuration, rated voltage, current, protection level, and compatible accessories, customers should confirm the latest technical datasheet with WEIPU before ordering.
How should the WK16-Z square flange mount socket be installed?
Installation should be performed by qualified personnel according to the product drawing and wiring instructions. In general, the socket is positioned in the correctly sized panel cutout, secured through its flange mounting points, and wired using compatible contacts, conductors, and backshell or cable components. Before commissioning, check terminal assignments, tightening torque, cable preparation, grounding requirements, and the mating connector. The completed assembly should also be inspected for mechanical security and sealing performance where environmental protection is required.
Is the WK16-Z square flange mount socket suitable for harsh industrial applications?
The WK16-Z square flange mount socket is intended for industrial connectivity, but suitability depends on the complete connector assembly and operating conditions. Temperature, vibration, moisture, dust, chemicals, current load, mating cycles, and installation method should all be evaluated. WEIPU develops high-reliability connector solutions and supports demanding sectors including rail transit, automotive, renewable energy, medical equipment, and smart manufacturing. Request the official specifications to verify whether the socket meets your required IP rating and electrical performance.
How can I select and purchase the correct WK16-Z square flange mount socket?
Provide WEIPU with your application details, including the required number of contacts, electrical rating, cable type, mounting dimensions, environmental conditions, mating connector, quantity, and certification requirements. WEIPU, founded in 1996, offers more than 70,000 connector specifications and supports OEM/ODM projects through independent R&D and vertically integrated manufacturing. The company serves customers in more than 130 countries and offers rapid technical response. For product confirmation, samples, or quotation, contact WEIPU at salse01@weipu-group.com or +86-020-80501102, or visit https://www.weipu-group.com/.

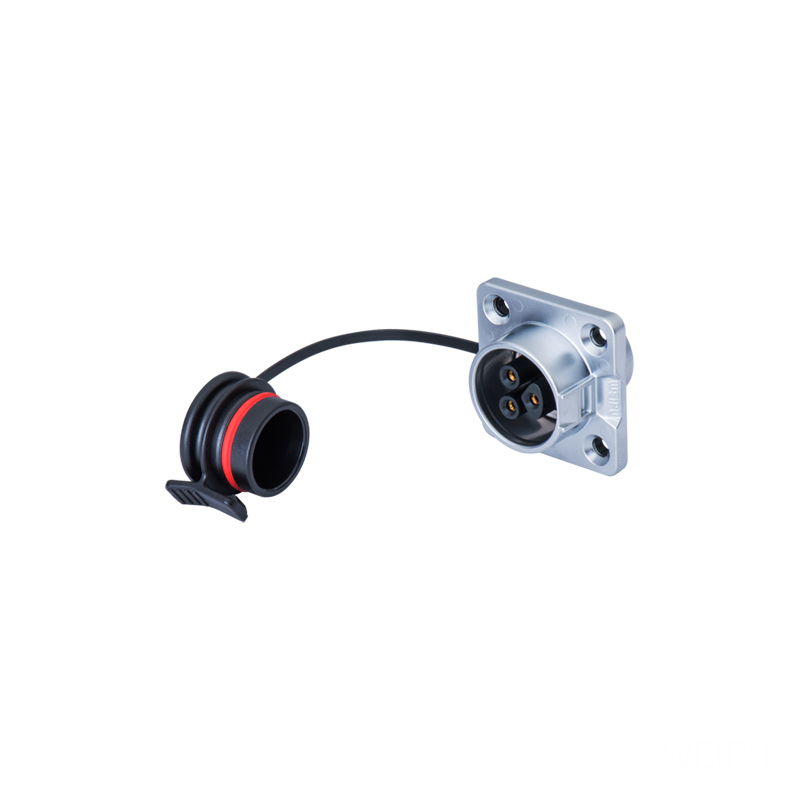

WEIPU WK16-Z is a standard non-shielded square flange mounting socket belonging to WEIPU WK series push-pull circular connectors.
It adopts PPE + zinc alloy housing, reaching V0 flame retardant grade and IP67 dustproof & waterproof rating.

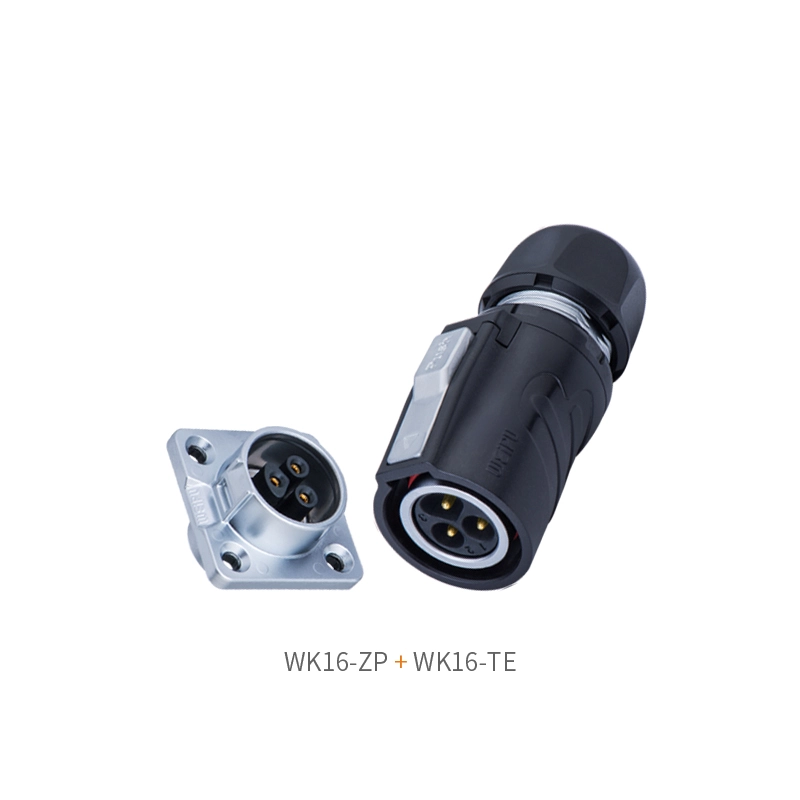

Fixed by four-hole square flange for stable equipment panel installation, fully compatible with WK16-TE cable plugs.
Suitable for conventional power and signal transmission in industrial automation, new energy devices and testing instruments without strict anti-interference requirements.
