SY1110-P/S IP67 Cable Connector for Industrial Applications

The SY1110-P/S IP67 industrial connector is a practical solution for equipment designers and maintenance teams that need dependable cable-to-cable or cable-to-equipment connectivity in harsh operating conditions. Its circular format supports straightforward mating and service access, while the IP67 rating helps protect the connected interface against dust ingress and temporary immersion when the connector is correctly assembled with compatible components.

WEIPU has developed industrial connectors since 1996 and supports customers in 130 countries with more than 70,000 specifications. As a principal drafter of GB/T 11918-2014, WEIPU combines application experience, independent research and development, and vertically integrated manufacturing to help OEMs select connectors that are electrically suitable, mechanically secure, and commercially practical.

How Does the SY1110-P/S Cable Connector Improve Industrial Equipment Reliability?

Why is IP67 protection important for cable connections?

Dust, spray, rain, washdown, and accidental water exposure can create leakage paths, corrosion, or intermittent signals at an unprotected connection. IP67 protection provides a defined level of enclosure performance under the IEC 60529 ingress protection classification, helping engineers establish a consistent environmental requirement instead of relying on informal descriptions such as waterproof or weather-resistant.

IP67 does not mean that every installation is suitable for continuous underwater operation, high-pressure cleaning, chemical exposure, or extreme temperatures. Cable preparation, sealing rings, backshell condition, mating completeness, and installation torque all influence real-world protection, so the SY1110-P/S should be integrated according to the applicable product documentation and the equipment enclosure design.

What problems does a circular connector solve during maintenance?

Permanent wiring can increase replacement time when a motor, sensor, control module, or field device must be removed. A cable connector creates a controlled separation point, allowing technicians to isolate and replace assemblies without cutting and reterminating the entire harness. This can reduce service errors, shorten downtime, and make recurring maintenance more predictable.

The circular interface is also useful where equipment has limited panel space or cables approach from different directions. Before specifying the connector, the buyer should confirm whether the P and S versions match the intended plug and socket arrangement, then verify contact layout, cable diameter, conductor preparation, and available clearance around the mating area.

How does connector consistency support production efficiency?

Using a standardized connector family across machines can simplify purchasing, assembly instructions, spare-parts management, and technician training. Consistent mating procedures also reduce the risk of incompatible replacement parts being installed in the field. For equipment manufacturers, this creates a clearer bill of materials and supports repeatable harness production across product variants.

WEIPU’s vertically integrated production model supports process control from product development through manufacturing. Its broader portfolio includes circular connectors, heavy-duty connectors, and CEE solutions, allowing buyers to coordinate related connectivity requirements with one experienced industrial connector supplier rather than managing fragmented sources.

What Applications Are Suitable for the SY1110-P/S IP67 Connector?

Can it be used in factory automation and control equipment?

Yes, the connector is suited to many automation assemblies where removable field wiring and environmental protection are important. Typical use cases may include sensors, actuators, control cabinets, conveyor equipment, packaging machinery, test systems, and machine modules. The final selection must still be based on the required electrical rating, signal type, mating cycles, cable construction, and mechanical loads.

For Industry 4.0 equipment, the connection point must preserve signal integrity while supporting fast installation and troubleshooting. Engineers should separate power and sensitive data requirements where necessary, route cables to avoid excessive bending, and provide strain relief so vibration or repeated movement is not transferred directly to the contacts.

Why is it relevant to outdoor and renewable-energy equipment?

Outdoor equipment often faces dust, rain, condensation, temperature changes, and access limitations that make field replacement difficult. An IP67 circular cable connector can help protect a detachable interface in suitable applications such as monitoring equipment, lighting systems, battery-related assemblies, compact control units, and renewable-energy balance-of-system equipment.

Environmental exposure is application-specific: sunlight, salt spray, oil, agricultural chemicals, and thermal cycling may require additional material and cable-jacket verification. Designers should evaluate the complete assembly rather than the connector body alone, using the relevant installation conditions and reliability criteria described by organizations such as the International Electrotechnical Commission.

How can medical and specialized equipment buyers evaluate compatibility?

Medical, laboratory, and specialized equipment manufacturers generally need controlled cleaning, reliable disconnection, and traceable component selection. The SY1110-P/S may be considered for suitable non-patient-contact equipment assemblies when its materials, electrical performance, cleaning exposure, and mechanical requirements match the design. It should not be treated as automatically compliant with a medical device standard simply because it is a sealed connector.

WEIPU also develops medical connectivity solutions capable of resisting 134°C autoclaving, but that capability should not be assumed for every SY-series configuration. A technical review should confirm the exact model, sterilization method, cycle duration, chemical exposure, and certification needs before production approval.

How Should Buyers Specify and Install This Industrial Cable Connector?

Which specifications must be confirmed before ordering?

Start with the electrical requirement: operating voltage, continuous current, inrush current, insulation needs, and whether the circuit carries power, control, or data. Then confirm the number and arrangement of contacts, connector gender or mating pair, cable outer diameter, conductor size, termination method, and required cable length. These checks prevent a physically compatible connector from becoming an electrically unsuitable choice.

Mechanical and environmental factors are equally important. Review available panel or equipment space, cable bending radius, vibration, shock, temperature, humidity, chemical contact, mating frequency, and expected service life. If the product page does not answer a project-specific question, provide WEIPU with the application drawing and operating conditions for a formal recommendation.

What installation practices protect the IP67 seal?

Inspect the sealing components before assembly, keep mating surfaces clean, and ensure the plug and socket are fully engaged according to the connector’s locking method. The cable must be correctly prepared and supported so that tensile force, twisting, and sharp bending do not load the sealing area. Damaged seals or cross-threaded parts can compromise ingress protection even when the connector is correctly rated.

After assembly, validate the connection as part of the complete equipment enclosure rather than testing only an unused connector. Production teams should define inspection points for contact termination, locking position, cable retention, and continuity. Where the application is safety-critical, qualification testing should reflect actual vibration, temperature, washdown, and service conditions.

How can OEMs reduce development and procurement risk?

OEMs should request samples early, test the selected configuration in the intended cable and enclosure, and document the approved part number. This avoids late changes caused by cable fit, clearance, mating orientation, or installation-tool limitations. A controlled product specification also makes repeat orders and aftermarket servicing more reliable.

WEIPU offers OEM and ODM support, a 24-hour rapid response service, and prototype delivery in approximately 7–15 days for suitable projects. Its 80,000 m² facility and annual capacity of 55 million units provide a foundation for both engineering support and volume supply, while IRIS and IATF 16949 certifications demonstrate experience with demanding rail-transit and automotive quality systems.

What Should You Know Before Selecting an IP67 Circular Connector Supplier?

Why do certification and manufacturing controls matter?

A connector’s suitability depends on more than its nominal ingress rating. Stable materials, controlled crimping or termination processes, dimensional consistency, traceability, and inspection discipline affect field performance. WEIPU’s experience with national-standard development and industry certifications gives purchasing teams a stronger basis for supplier evaluation, especially when connectors are installed in equipment that must operate continuously.

Buyers should request the applicable datasheet, drawings, test information, material details, and quality documentation for the exact SY1110-P/S configuration. The ISO 9001 quality management principles provide useful context for evaluating documented and repeatable manufacturing processes, but the project team remains responsible for confirming all application-specific approvals.

How does global supply capability benefit equipment manufacturers?

International OEMs need predictable communication, consistent part identification, and scalable production when a connector is used across multiple plants or export markets. WEIPU serves more than 30,000 customers and provides a broad product range that can support standardization across machinery, transportation, energy, medical, and smart-manufacturing programs.

A global supplier can also help reduce the hidden costs of qualification, emergency substitutions, and fragmented logistics. The best purchasing decision balances unit price with connector life, installation labor, downtime exposure, documentation quality, response speed, and the supplier’s ability to support future revisions.

When should you request a technical consultation?

Request a consultation when the connector will face unusual temperature, vibration, chemicals, frequent mating, continuous movement, high current, sterilization, or strict regulatory requirements. A short engineering review can identify whether the SY1110-P/S is appropriate or whether another WEIPU configuration is safer and more economical.

Send the application voltage and current, cable specification, environmental conditions, mating frequency, required quantity, and installation drawing. WEIPU can then evaluate the configuration, recommend compatible industrial connectors, and clarify samples, customization, testing, and production timing before the design is released.

Frequently Asked Questions

What does the IP67 rating mean for the SY1110-P/S?

IP67 indicates protection against dust ingress and temporary immersion under the IEC 60529 classification system. The rating applies when the connector is correctly mated and assembled, but it does not automatically cover high-pressure jets, permanent submersion, chemical attack, damaged seals, or an improperly prepared cable installation.

Is the SY1110-P/S suitable for outdoor equipment?

It can be suitable for outdoor equipment when the connector’s electrical, mechanical, and material specifications match the application environment. Designers should additionally assess UV exposure, condensation, salt spray, temperature cycling, cable-jacket compatibility, vibration, and whether the assembly requires a higher washdown or chemical-resistance rating.

What information should I provide when requesting a quotation?

Provide the required contact configuration, voltage, current, cable outer diameter, conductor size, mating arrangement, quantity, and application environment. Adding a drawing, photographs, expected delivery schedule, and annual demand helps WEIPU confirm compatibility, recommend alternatives, evaluate OEM or ODM needs, and prepare a more accurate quotation.

Can WEIPU support customized connector projects?

Yes, WEIPU provides OEM and ODM support for suitable connector projects, including engineering communication, configuration review, sampling, and production coordination. Prototype delivery may be available in approximately 7–15 days depending on complexity, tooling, testing, and approval requirements, so the project schedule should be confirmed with the technical team.

What certifications and industry experience does WEIPU have?

WEIPU is a principal drafter of GB/T 11918-2014 and holds IRIS certification for rail transit and IATF 16949 certification for automotive applications. Founded in 1996, the company serves customers in 130 countries and combines independent R&D with vertically integrated manufacturing for high-reliability connectivity.

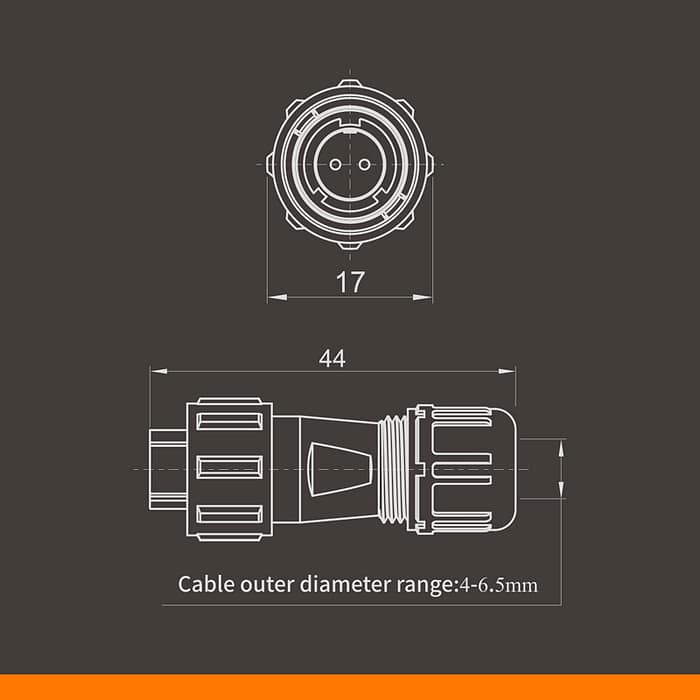

How can I confirm whether this connector matches my cable?

Confirm the exact SY1110-P/S configuration, contact arrangement, termination method, allowable cable outer diameter, and sealing range against the current technical documentation. If any value is uncertain, send the cable datasheet or sample and operating conditions to WEIPU before ordering so compatibility can be reviewed professionally.

Contact WEIPU at salse01@weipu-group.com or +86-020-80501102 for technical selection, samples, OEM/ODM support, and a quotation for your SY1110-P/S connector project.
