UNDERSTANDING THE KEY DIFFERENCES BETWEEN WEIPU HEAVY-DUTY CONNECTORS AND STANDARD CIRCULAR CONNECTORS

WEIPU Heavy-Duty Connectors Overview

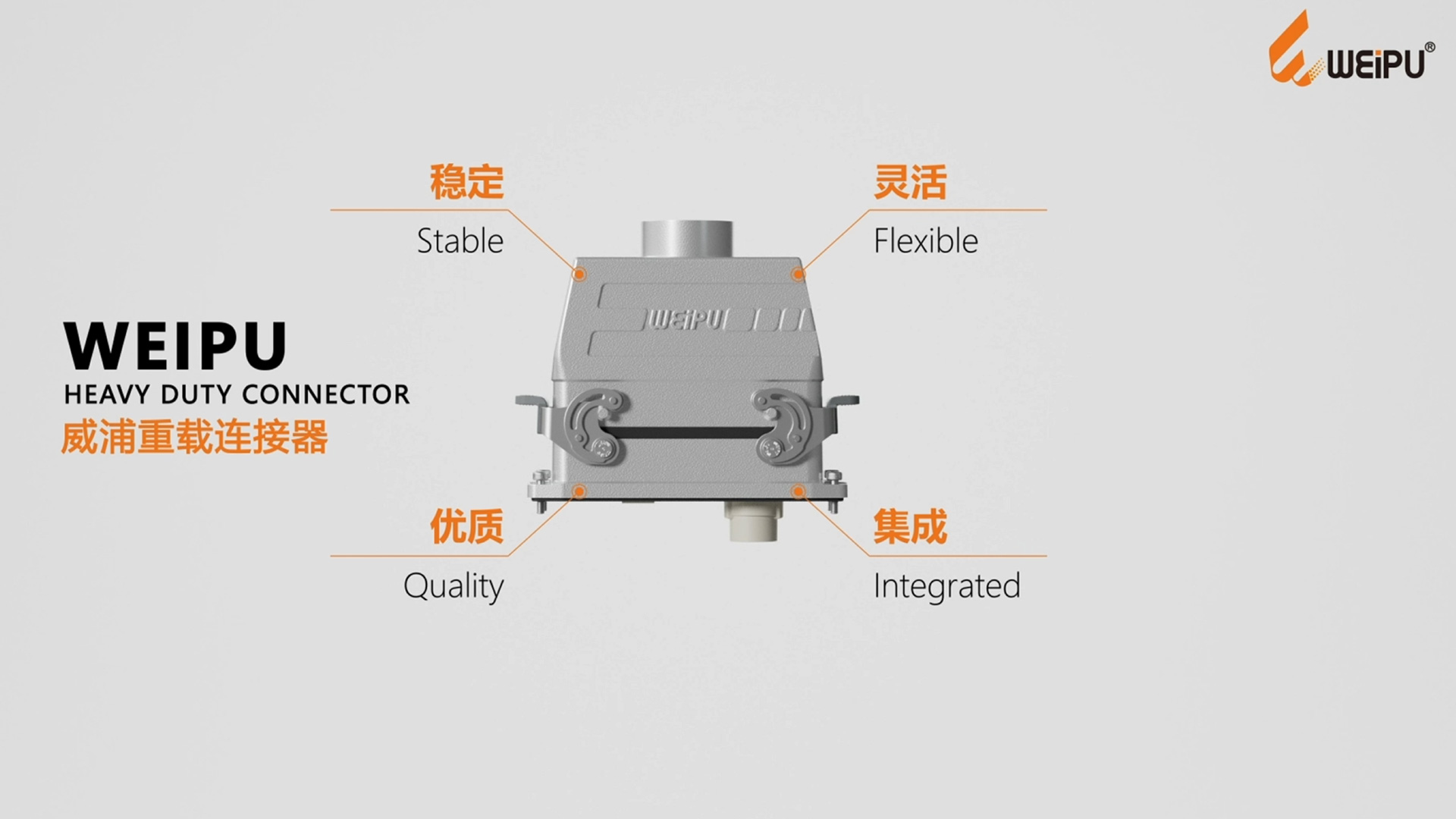

WEIPU heavy-duty connectors are engineered for complex industrial environments that demand multi-functional integration and flexible configuration. Their core advantage lies in modular combination capability, which allows integrating multiple functional modules into one connector to meet diverse connection scenarios.

These connectors support flexible configuration of network, signal, power, and pneumatic modules within a single unit. Depending on specific project requirements, customers can freely select and combine different modules—for example, integrating power modules (up to 200A) for high-current transmission, signal modules for precise data transfer, network modules for high-speed communication, and pneumatic modules for gas circuit connection. Constructed with robust aluminum alloy or high-strength engineering plastic housing, they feature IP65-IP69K waterproof and dustproof ratings, and can withstand extreme conditions like high vibration, corrosion, and temperature fluctuations (-40℃ to 125℃). Suitable for metallurgy, port machinery, new energy equipment, and large-scale intelligent production lines, they realize "one connector for multiple needs" and simplify system wiring significantly.

WEIPU Standard Circular Connectors Overview

WEIPU standard circular connectors are cost-effective, single-functional solutions designed for basic connection needs. Unlike heavy-duty connectors, they adopt an integrated structure without modular combination capability, and each connector’s function is pre-fixed (only for power transmission, signal transfer, or simple data communication).

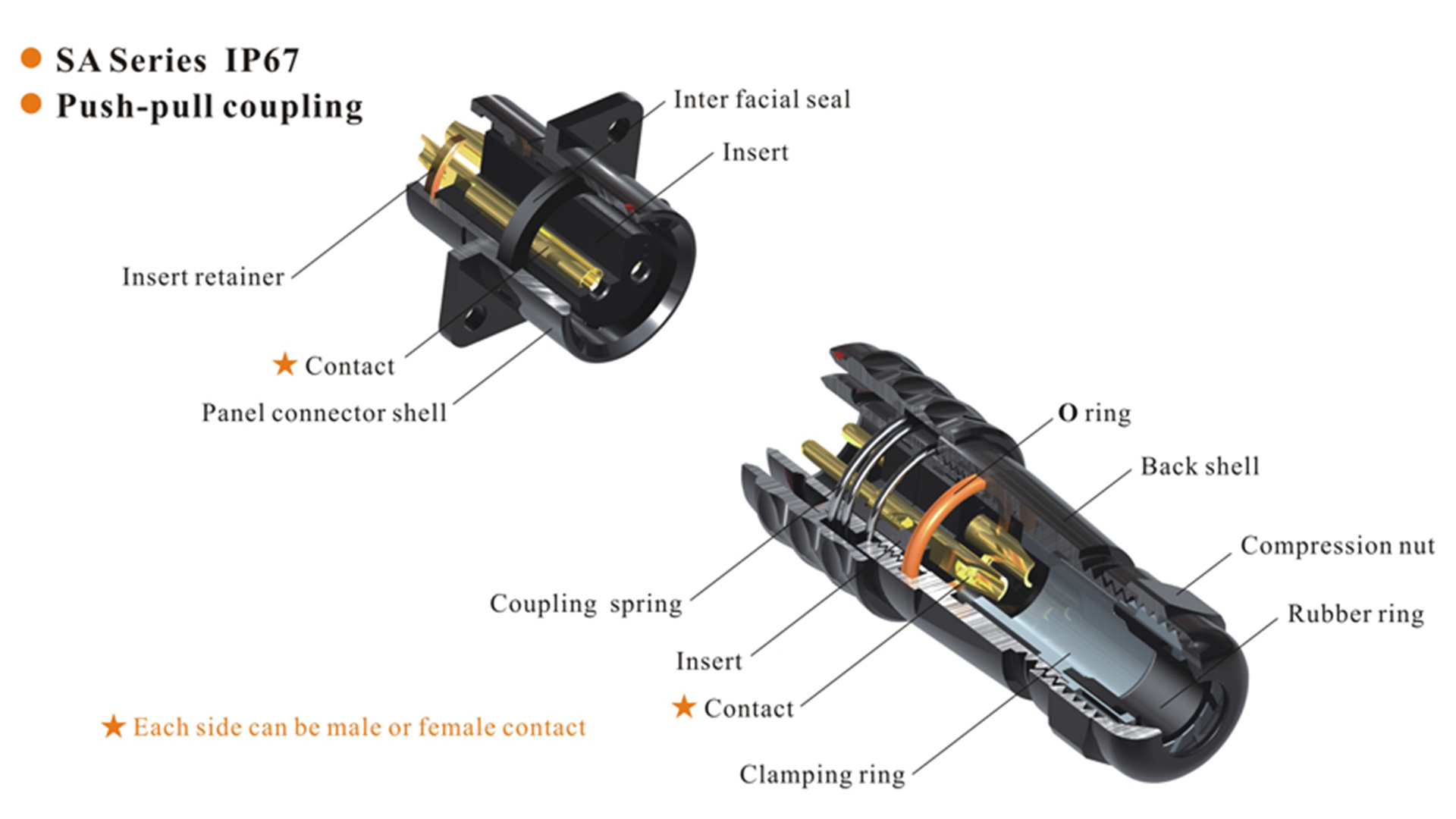

These connectors feature a compact circular design and are equipped with a variety of reliable locking mechanisms to adapt to different scenarios: including threaded connection (strong locking force, excellent vibration resistance, suitable for long-term fixed installation), snap-in connection (quick plugging/unplugging without tools, improving assembly efficiency), and push-pull connection (easy operation, smooth plugging feel, suitable for operation in narrow spaces). With IP65-IP67 waterproof ratings, they have a relatively simple structure and stable performance, making them suitable for scenarios with single connection requirements, such as indoor control cabinets, ordinary sensors, and small electrical equipment. Available in various pin configurations (2-37 pins) and current specifications, they meet basic industrial connection needs at a cost-efficient price point. However, they lack flexibility in function expansion—multiple connectors are required to realize simultaneous transmission of power, signal, and network in complex systems.

WEIPU Heavy-Duty Connectors Application

The application process of WEIPU heavy-duty connectors focuses on modular assembly and flexible matching:

1. Clarify functional requirements (power, signal, network, pneumatic) and select corresponding modules.

2. Assemble the selected modules into the connector housing according to the wiring layout, ensuring compatibility between modules.

3. Wire each module independently (adopt crimp or solder contacts according to module type) and conduct insulation and continuity tests.

4. Install the assembled connector on equipment (panel-mounted or cable-mounted) and lock it firmly to ensure sealing and stability.

Ideal for large-scale equipment and complex system integration, they simplify wiring management, reduce installation space, and facilitate later maintenance—users can replace or add modules without disassembling the entire connection system.

WEIPU Standard Circular Connectors Application

WEIPU standard circular connectors adopt a concise and fixed application process, with specific steps slightly varying by locking mechanism:

1. Select the connector model with the corresponding locking mechanism according to fixed function (power/signal), specifications (current/pin number), and application scenario (threaded connection for vibrating environments, snap-in/push-pull connection for frequent plugging scenarios).

2. Strip the cable sheath and terminate the wires to the connector contacts using standard tools.

3. Insert the contacts into the integrated housing and verify proper latching.

4. Complete installation according to the corresponding locking method: threaded connection requires rotating and tightening to the sealing position, snap-in connection requires pressing until a "click" locking sound is heard, and push-pull connection requires pushing along the guide groove to the locking position.

Suitable for scenarios with simple connection needs, they are easy to install and cost-effective. However, in complex systems requiring multiple functions, multiple connectors need to be installed separately, leading to increased wiring complexity and occupied space.

Conclusion

WEIPU heavy-duty connectors and standard circular connectors are designed for different industrial connection needs, with the core difference lying in modular combination capability. Heavy-duty connectors excel in complex scenarios by integrating network, signal, power, and pneumatic modules into one unit—supporting free configuration based on customer needs and realizing "one connector for multiple scenarios". Standard circular connectors, on the other hand, with diverse locking mechanisms, fixed structure, and cost-effectiveness, are more suitable for simple, single-functional connection needs.

Choose WEIPU heavy-duty connectors if your project requires flexible function combination, space-saving installation, or later expansion capability (e.g., large-scale production lines, integrated equipment). For basic, fixed connection needs (e.g., ordinary sensors, small electrical devices), select standard circular connectors with the appropriate locking mechanism based on scenario requirements. With WEIPU’s 25+ years of expertise in industrial connectors, both types comply with international standards (IEC, UL, CE) and undergo rigorous testing. Explore WEIPU’s full range of connector products to find the perfect match for your application, and leverage our custom module services to obtain exclusive solutions that enhance your project’s connectivity efficiency.
