Why Choose the WEIPU M23DK-Z Square Flange Receptacle (IP67) for Reliable Power Connections

The WEIPU M23DK-Z square flange receptacle is a purpose-built M23 circular power connector with female contacts and an IP67 ingress protection level designed for mission-critical power applications. This overview helps indexing by combining product-specific keywords (M23 connector, IP67, square flange receptacle, female contact) with practical selection and installation guidance tailored for global industrial and rail markets.

How to ensure your power connector survives harsh outdoor environments?

What environmental tests confirm an IP67 rating for connectors?

IP67 indicates dust-tight protection (6) and temporary immersion resistance to 1 meter for 30 minutes (7), verified through IEC/EN testing procedures described in the IP Code (Ingress Protection) definitions. For an M23 connector like the M23DK-Z, look for manufacturer test data showing repeated immersion, salt spray, and thermal cycling to validate field durability.

How does sealing and gasket design affect long-term durability?

Sealing geometry and elastomer selection determine life under vibration, UV, and chemical exposure; a robust square flange receptacle uses multi-lip gaskets and optimized compression to maintain a continuous IP67 barrier. Verify material compatibility with oils, coolants, and cleaning agents used in your site to prevent seal degradation over years.

What causes premature failure in outdoor connector deployments?

Premature failures usually stem from improper mating torque, contaminated contacts, or incorrect cable strain relief. The M23DK-Z’s square flange footprint enables secure mechanical mounting that reduces flexing at the interface, while specifying correct crimp or solder methods for the female contact lowers contact resistance and prevents overheating.

How to choose the right M23 power connector for high-current industrial systems?

What electrical parameters should be matched to your system?

Match voltage rating, current-carrying capacity, contact material, and contact resistance to your load profile. For power M23 connectors prioritize low contact resistance and tested current ratings; consult WEIPU datasheets and choose female contacts sized for continuous current and peak inrush conditions to prevent thermal build-up.

How to interpret mechanical and mounting options (square flange vs. panel mount)?

Square flange receptacles deliver secure panel fastening and straightforward seal compression—ideal for heavy-vibration applications in rail and industrial automation. Circular panel mounts may be compact but can be less resistant to torque; choose square flange styles like the M23DK-Z when mechanical retention and IP integrity are priorities.

How to validate contact termination and cable selection?

Confirm crimp tool specifications, conductor cross-section, and insulation type are compatible with the connector’s female contact design. Proper cable strain relief and gland selection maintain IP67 at the cable exit; WEIPU’s vertical integration and OEM support provide matched cable assemblies and termination guidance to reduce installation errors.

Why is the WEIPU M23DK-Z ideal for rail, automation, and renewable energy?

What certifications and standards support its reliability?

WEIPU’s manufacturing is backed by IATF 16949 automotive quality processes and IRIS rail-related credentials, demonstrating standardized production controls. Learn about the IATF 16949 automotive quality standard and why it matters for connectors in safety-critical systems.

How does WEIPU manufacturing scale and quality control reduce supply risk?

Founded in 1996, WEIPU operates an 80,000 m² facility with annual capacity up to 55 million units and vertically integrated production, enabling consistent part quality and rapid OEM/ODM ramp-up. That scale shortens lead times and improves traceability for long-term projects in rail and power distribution.

What real-world applications benefit from an M23DK-Z square flange receptacle?

Typical uses include traction converters, industrial drives, renewable-energy inverters, and automated machinery where robust power interconnects and IP67 protection are required. The M23DK-Z’s female contact design and square flange mounting offer reliable electrical continuity and mechanical retention under continuous operation.

How to install and maintain an M23DK-Z square flange receptacle to maximize uptime?

What are best-practice installation steps?

Prepare the panel cutout, verify gasket seating, and secure the square flange with specified torque values. Ensure correct orientation and full engagement of the locking mechanism, then perform continuity and insulation resistance checks before commissioning to detect wiring or contact issues early.

How often should connectors be inspected and replaced to avoid downtime?

Inspect connectors every 6–12 months in harsh environments, checking seals, contact resistance, and torque on mounting screws. Replace seals or connectors immediately if you detect corrosion, increased contact resistance, or compromised IP performance to prevent intermittent faults.

Can preventive maintenance extend connector lifespan?

Yes—regular cleaning with approved solvents, applying contact protectants where recommended, and verifying mechanical retention prolong service life. Keep installation records and part numbers to trace any field issues back to batch-level production data for corrective action.

For detailed specifications, termination instructions, and drawings for the M23DK-Z, consult the official WEIPU product page: WEIPU M23DK-Z square flange receptacle (IP67). For context on circular connector designs see the technical overview at the Circular connector encyclopedic article.

WEIPU’s nearly 30-year history and role as a principal drafter of the GB/T 11918-2014 national standard make its M23 series a dependable choice where compliance and lifecycle support matter. Contact WEIPU sales at salse01@weipu-group.com or +86-020-80501102 for quotes, custom assemblies, and sample turnaround in 7–15 days.

Frequently Asked Questions

• What is the ingress protection rating of the M23DK-Z?
  The M23DK-Z is rated IP67. This means it is dust-tight and can withstand temporary immersion to 1 m for 30 minutes per the IP Code.
• How do I verify compatibility with my panel cutout?

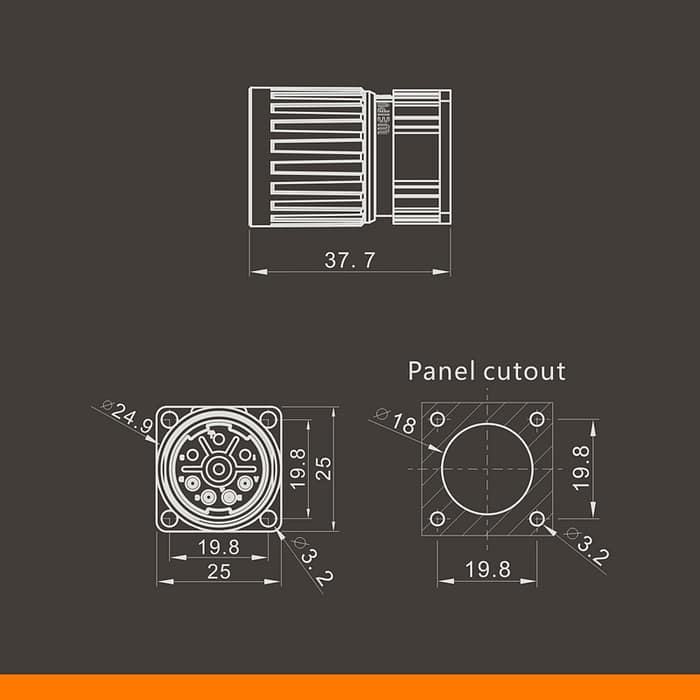

  Match the M23DK-Z square flange dimensions to your panel drawing and confirm screw hole spacing; refer to WEIPU dimensional drawings on the product page for exact measurements before cutting.
• Can the M23DK-Z withstand rail vibration and shock standards?
  Yes—the connector is designed for heavy-duty use and production follows rail-grade quality controls; for specific shock profiles, review WEIPU test reports tied to IRIS-relevant validations.
• How often should I inspect connectors in outdoor solar or wind installations?
  Inspect every 6 months under harsh exposure; more frequent checks (quarterly) are advised when salt spray or heavy pollution is present to ensure seal integrity and contact performance.
• Is the M23DK-Z available with custom cable assemblies?
  Yes—WEIPU offers OEM/ODM cable assemblies and termination options with prototype turnaround in 7–15 days to match specific conductor sizes and insulation requirements.
• What standards govern the connector’s manufacturing and quality?
  WEIPU operates under IATF 16949 and was a principal drafter of GB/T 11918-2014, ensuring standardized production and traceability across batches.

Need a quote or technical drawing for your project? Contact WEIPU sales: salse01@weipu-group.com or +86-020-80501102 for fast support and sample requests.
