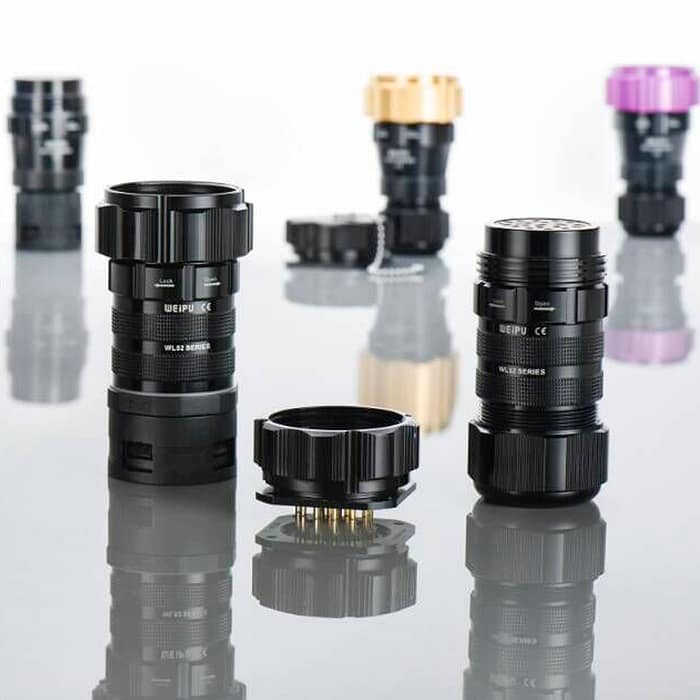

WEIPU WL52K19T: IP67 Circular Female Contact Connector with Clamping Nut for Rugged Industrial Applications

The WEIPU WL52K19T is a purpose-built circular connector engineered for rugged industrial environments that require secure mating, environmental sealing, and long-term reliability. This WT-series female contact connector with a clamping nut offers IP67 protection and a compact form factor to address common pain points in automation, rail, renewable energy, and outdoor instrumentation. For full product details, visit the official product page: WL52K19T female contact connector.

Industrial Connectivity: Challenges & Requirements

Environmental resilience and IP ratings

Many industrial installations face dust, water ingress, temperature swings, and mechanical stress. IP ratings such as IP67 (dust-tight and temporary immersion up to 1 m) are widely adopted to quantify protection levels—refer to the IP Code for details (IP Code (Wikipedia)). The WL52K19T’s IP67 sealing ensures dependable signal and power transmission in washdown areas, outdoor cabinets, and exposed machinery.

Vibration, shock and long-term reliability

Equipment in rail transit, industrial automation, and renewable energy endures high vibration and intermittent shocks. Connectors with sturdy shells, positive locking mechanisms (such as clamping nuts), and reliable female contacts minimize contact loss and maintenance downtime, crucial for mission-critical systems compliant with automotive and rail standards like IATF 16949 and IRIS.

Serviceability and cable retention

High cable retention and anti-rotation features reduce field failures. A clamping nut design provides an immediate tactile lock and facilitates assembly/disassembly during maintenance, improving mean time between failures (MTBF) and simplifying onsite servicing.

WL52K19T Product Overview and Key Advantages

Design and mechanical configuration

The WL52K19T is a WT-series circular connector configured with female contacts and a clamping nut to secure mating under mechanical stress. Its compact circular footprint allows for high-density installations where panel space is limited, while delivering robust mechanical retention when compared to push-fit solutions.

Sealing, materials and durability

Built to IP67 standards, the connector uses precision-molded insulating materials and corrosion-resistant shells to withstand moisture and particulate ingress. This translates to long service life in outdoor enclosures, marine-adjacent applications, and washdown environments in food or chemical plants.

Electrical performance and contact reliability

Female contacts in the WL52K19T provide low contact resistance and repeatable mating cycles, preserving signal integrity for sensors, actuators, or power feeds. For applications requiring strict electrical performance validation, connectors from established manufacturers like WEIPU adhere to industry electromechanical test regimes and manufacturing controls.

Application Scenarios and Integration Best Practices

Industrial automation and machinery

In factory automation, stable connections prevent process interruptions. Use the WL52K19T to connect field sensors, actuators, and servo systems where ingress protection and mechanical locking are crucial. Design tips: route cables with strain relief, use shielded cable where EMC is a concern, and torque clamping nuts per supplier guidelines to ensure consistent sealing.

Renewable energy and outdoor systems

Solar inverters, wind turbine auxiliary systems, and outdoor condition monitoring require IP-rated connectors that resist moisture and temperature cycles. The WL52K19T’s IP67 protection and robust housing minimize corrosion and water ingress risk—key when installing in outdoor junction boxes or exposed panels.

Rail transit and transportation

Rail applications demand connectors that meet high vibration and reliability thresholds. WEIPU’s competency in rail-grade solutions and IRIS-aligned manufacturing ensures products are suitable for rolling stock and wayside equipment. For system designers, validate environmental and shock specifications against relevant industry criteria and test reports.

Installation, Specification Guidance and Compliance

Choosing the right variant and mating parts

Select the appropriate shell size, contact arrangement, and cable gland for your WL52K19T deployment. Confirm voltage/current ratings and dielectric properties, and match the mating male connector or panel receptacle within the WT-series to guarantee correct mating dimensions and IP sealing.

Testing, standards and regulatory considerations

Design validation should include ingress, vibration, salt spray and contact resistance testing per recognized standards. Familiar standards and references include the IP Code documentation (IP Code) and international testing specifications from IEC/ISO/ISO-related standards resources (example IEC 60529: protection degrees). See IEC publication info for more technical guidance (IEC 60529 - Degrees of protection).

Procurement and lifecycle support

For high-volume or mission-critical projects, work with suppliers who provide traceability, extended qualification data, and rapid prototyping/OEM services. WEIPU’s vertically integrated production, near-30-year expertise, and capacity to deliver prototypes in days make it a strong partner for serialized deployments.

Why Choose WEIPU WL52K19T — Business Benefits

Trusted manufacturing pedigree

Founded in 1996, WEIPU is a global leader in high-reliability connectors and a principal drafter of the GB/T 11918-2014 standard. With IATF 16949 and IRIS certifications, WEIPU provides parts designed and produced under strict quality systems—critical for regulated sectors such as automotive and rail (IATF 16949).

One-stop solution and rapid response

WEIPU’s vertically integrated R&D and manufacturing enable OEM/ODM flexibility and fast prototype delivery (7–15 days), supporting quick design iterations and short time-to-market. Their broad portfolio (70,000+ specifications) and global footprint support complex supply chains and spare-part strategies.

Application-level ROI

Using robust connectors like the WL52K19T reduces downtime, maintenance costs, and failure-related safety risks. For operations managers, lower mean-time-to-repair (MTTR) and increased uptime directly impact operational efficiency and total cost of ownership (TCO).

Frequently Asked Questions (FAQ)

Q1: What does IP67 mean for this connector?

A: IP67 indicates the connector is fully protected against dust ingress and can withstand temporary immersion in water up to 1 meter. This level of sealing makes it suitable for outdoor and washdown environments. For more on IP ratings see the IP Code reference: IP Code.

Q2: Can the WL52K19T withstand high-vibration environments like rail?

A: Yes. The clamping nut and robust housing are designed to maintain mechanical retention under vibration and shock. For rail-specific projects, validate the connector against system-level standards and consult WEIPU for test data and IRIS-compliant components.

Q3: How do I select the correct mating part?

A: Match the WT-series mating shell, contact gender, and pin configuration. Confirm mechanical dimensions and sealing surfaces against the WEIPU product datasheet, and consider cable diameter and strain-relief options when ordering the clamping nut variant.

Q4: Is WEIPU able to provide custom wiring or assembly services?

A: Yes. WEIPU offers OEM/ODM services and rapid prototyping. For assembly, custom wiring harnesses, or volume requirements, contact WEIPU’s sales team to discuss lead times and qualifications.

If you need technical datasheets, certification documents, or a quotation, contact WEIPU Sales at salse01@weipu-group.com or call +86-020-80501102. For product ordering and specifications, view the full product page: WL52K19T female contact connector.
