WY-ZIB In-Line Receptacle IP65 — Robust Waterproof Circular Connector for Industrial Use

The WEIPU WY-ZIB series in-line receptacle with cable clamping plates (IP65) is a waterproof circular connector designed for demanding industrial environments. Optimized for inline cable routing, strain relief and secure environmental sealing, this solution supports seamless connectivity in outdoor, automation, and equipment applications. As a product from WEIPU—a certified leader in industrial connectors—WY-ZIB addresses corrosion resistance, ingress protection and installation efficiency to meet modern Industry 4.0 requirements and global quality standards.

Industrial Connectivity: Trends and Challenges

Increasing demand for sealed circular connectors

Industrial systems increasingly rely on compact circular connectors to deliver power and signal in confined spaces while resisting dust, water, and vibration. The importance of ingress protection (IP) ratings is highlighted across sectors; the internationally recognized IP code defines levels of environmental protection—refer to the IP Code for authoritative definitions (IP Code - Wikipedia). For machine builders, renewable energy installations, and outdoor instrumentation, IP65 or higher is often the minimum baseline.

Key pain points: sealing, strain relief, and installation time

Users commonly report cable slippage, connector loosening, and inadequate sealing under mechanical stress and temperature cycles. Effective cable clamping plates and robust strain relief reduce cable fatigue and connector failures—two common causes of field downtime. Products like the WY-ZIB series are designed to directly address these issues via secure cable clamping and an IP65 sealing strategy, reducing maintenance cycles and total cost of ownership.

Standards and reliability expectations

Buyers expect traceable quality backed by certifications and standards. WEIPU’s compliance with industry norms (including IATF 16949 for automotive-grade processes) and its role in drafting national standards gives customers confidence in connector longevity and manufacturing control. Learn more about IATF global oversight and certification requirements (IATF).

WY-ZIB Series Overview and Design Intent

What the WY-ZIB in-line receptacle is built for

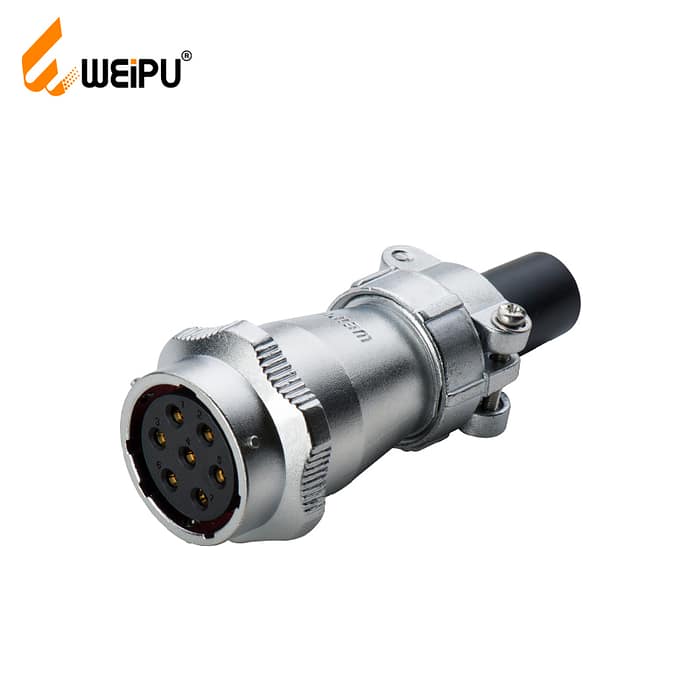

The WY-ZIB in-line receptacle with cable clamping plates is a circular connector engineered for inline cabling scenarios where a secure, waterproof junction is required without bulky housings. It integrates cable clamping plates for reliable strain relief and is rated IP65 for protection against dust ingress and low-pressure water jets, making it suitable for outdoor and industrial environments.

Primary construction and materials

High-reliability connectors depend on corrosion-resistant materials and precise molding. WY-ZIB uses durable polymer housings and elastomeric sealing gaskets to maintain IP65 protection. The cable clamping plates provide mechanical fixation that protects contact integrity from cable pull and vibration—important where continuous motion or thermal cycling is present.

Compatibility and modularity

As part of WEIPU’s waterproof circular connector family, the WY-ZIB series is designed to be compatible with mating circular connectors and panel-mounted counterparts, enabling flexible system design and quick field replacements. If you need to view the official product details, specifications and ordering options, see the WY-ZIB product page: WY-ZIB in-line receptacle.

Key Features & Technical Advantages

IP65 waterproofing and sealing performance

IP65 rating ensures protection from dust ingress and low-pressure water jets, a critical factor for outdoor installations and washdown environments. For background on ingress protection standards and testing methods, see the IP Code reference (IP Code - Wikipedia) and related IEC guidance at IEC.

Cable clamping plates for superior strain relief

Integrated cable clamping plates lock the cable in place to prevent conductor fatigue, intermittent contacts, and premature wear—common failure modes in industrial connectors. This mechanical advantage increases mean time between failures (MTBF) in vibrating or mobile applications.

Durability: vibration, corrosion and lifecycle

Engineered for industrial lifecycle demands, the WY-ZIB design minimizes micro-movement at contact interfaces and secures conductors under repeated mating cycles. Materials and plating optimize corrosion resistance for long-term outdoor or coastal use. For manufacturers, these attributes translate to fewer field failures and lower warranty costs.

Applications, Installation & Maintenance

Typical application scenarios

WY-ZIB connectors are ideal for industrial automation equipment, conveyor systems, outdoor sensors, lighting, renewable energy assets, and any inline cable routing requiring environmental sealing. Their compact, sealed in-line form factor suits panel-to-cable transitions and modular machine tool connections.

Best practices for installation

To secure optimal performance: (1) choose the correct cable diameter and insert it fully into the clamping plates, (2) tighten clamps to the recommended torque to avoid over-compression of the cable jacket, and (3) confirm the gasket is seated before mating. Proper sealing during assembly preserves IP65 integrity and prevents water ingress.

Routine inspection and troubleshooting

Periodically inspect cable clamps for signs of wear, check seals for hardening or cuts, and verify that mating interfaces remain clean and corrosion-free. If signal degradation occurs, inspect strain relief and contact condition before replacing the entire assembly—often a clamp or seal replacement is sufficient.

Why Choose WEIPU and WY-ZIB for Mission-Critical Projects

Proven manufacturing and certification pedigree

Founded in 1996, WEIPU is a global leader in high-reliability industrial connectors and was a principal drafter of the GB/T 11918-2014 national standard. With near-30 years of experience and certifications including IRIS and IATF 16949, WEIPU provides scalable, vertically integrated production and stringent quality controls to support mission-critical connectivity needs. For more on WEIPU’s standards and credentials, visit the company site WEIPU.

One-stop solution and rapid OEM/ODM support

WEIPU’s vertically integrated R&D and manufacturing enable rapid prototyping (7–15 days) and OEM/ODM customization for special application needs, including sealed medical connectors and high-current solutions—features that reduce development lead times and simplify supply chain management.

Lifecycle support and global reach

WEIPU serves 30,000+ customers across 130 countries with over 70,000 specifications. Combined with technical support and local distribution, choosing WY-ZIB ensures access to spares, documentation, and expert consultation to minimize downtime and support large-scale deployments.

FAQ — Frequently Asked Questions

Q: What does IP65 mean for WY-ZIB connectors?

A: IP65 indicates complete protection from dust ingress (6) and protection from low-pressure water jets (5). This makes the WY-ZIB suitable for outdoor use and many washdown scenarios, but not for prolonged immersion. For IP definitions, see the IP Code reference (IP Code - Wikipedia).

Q: Can WY-ZIB handle vibration and motion?

A: Yes. The cable clamping plates and secure contact design reduce micro-movement and conductor fatigue, improving resistance to vibration and motion commonly encountered in industrial machinery and mobile equipment.

Q: Is the WY-ZIB compatible with other WEIPU circular connectors?

A: WY-ZIB is part of WEIPU’s waterproof family and is designed to be compatible with mating circular connectors within the same series. Confirm mechanical and contact pin configurations when specifying replacements or system upgrades.

Q: How do I order or request technical support?

A: For ordering, custom quotes or technical support, contact WEIPU sales: email salse01@weipu-group.com or phone +86-020-80501102. You may also view product details and request a quote directly on the product page: WY-ZIB in-line receptacle.

Need tailored advice for your application? Contact our specialists for a free consultation—WEIPU supports fast prototyping, OEM/ODM customization, and global logistics to get your project connected with confidence.

References: IP Code definitions (IP Code - Wikipedia), electrical connector fundamentals (Electrical connector - Wikipedia), international standards and certification resources (IEC) and (IATF).
