Comparing Heavy Duty Connector Inserts: Screw vs. Crimp vs. Cage Clamp

In the world of industrial automation and harsh environments, the reliability of an electrical connection starts with the choice of termination. Selecting the right heavy duty connector inserts is critical for ensuring long-term conductivity and mechanical stability. Whether you prioritize ease of installation, vibration resistance, or long-term durability, understanding the differences between screw, crimp, and cage clamp technologies is essential for any electrical engineer or technician.

1. Screw Termination: The Classic Versatile Choice

Screw-type heavy duty connector inserts remain the most widely used in the industry. Their popularity stems from the fact that they require no specialized tools—only a standard screwdriver. This makes them ideal for on-site field wiring and repairs where accessibility is limited.

However, screw connections can be susceptible to loosening over time due to thermal expansion or mechanical vibration. To combat this, high-quality inserts utilize wire protection leaves to prevent the screw from damaging fine wire strands. While incredibly convenient, they are generally not the first choice for high-vibration automotive or rail applications.

2. Crimp Termination: High Performance and Consistency

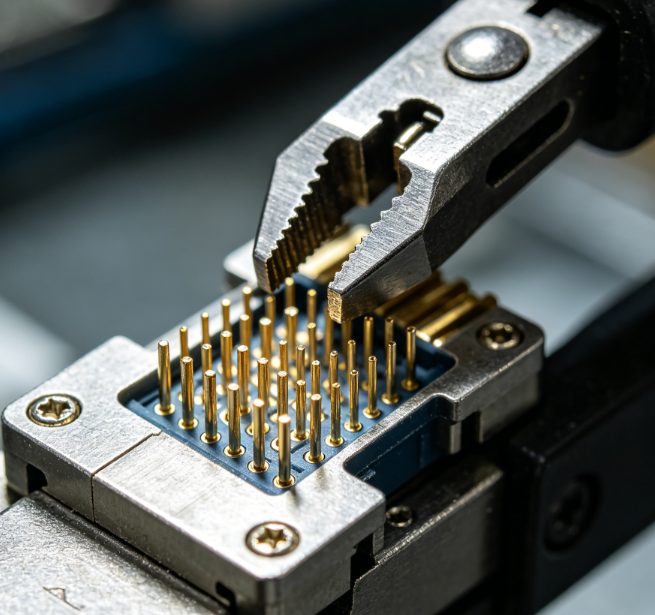

When it comes to mass production and high-reliability environments, crimp-type heavy duty connector inserts are the gold standard. This method creates a cold-weld connection between the wire and the contact, providing the lowest contact resistance and the highest mechanical strength.

Crimp connections are essentially gas-tight, meaning they are immune to atmospheric corrosion. This makes them perfect for industrial termination technologies where consistency is paramount. The only drawback is the requirement for specialized crimping tools and the fact that the connection is permanent; if a mistake is made, the contact must be replaced. For high-volume projects, the speed and reliability of crimping far outweigh the tool costs.

3. Cage Clamp: The Modern Vibration-Resistant Solution

Cage clamp (or spring-clamp) heavy duty connector inserts represent the modern middle ground. These inserts use a pre-stressed spring to hold the wire in place. This constant pressure ensures that the connection remains secure regardless of temperature fluctuations or constant movement.

The primary advantage of cage clamps is their maintenance-free nature. They provide excellent vibration-resistant electrical connections without the need for specialized crimping tools. This technology is increasingly favored in the renewable energy and railway sectors, where equipment is subjected to continuous oscillation. WEIPU, a leader in industrial interconnect solutions, offers a wide range of inserts that incorporate these advanced termination styles, ensuring their connectors meet the rigorous demands of global industrial standards while maintaining user-friendly assembly.

Conclusion

Choosing between screw, crimp, and cage clamp heavy duty connector inserts depends entirely on your specific application environment and production volume. For field maintenance, screw is king; for permanent, high-performance manufacturing, crimp is unbeatable; and for vibration-heavy environments requiring quick assembly, cage clamp is the ideal modern choice.
