High Current Industrial Connectors Explained: Current Rating, Heat and Reliability

Introduction

As industrial equipment becomes more powerful and automated, electrical systems must handle higher currents while maintaining stable and reliable power transmission.

Motors, automation equipment, energy storage systems and heavy machinery can all require connectors capable of carrying substantial electrical loads. In these applications, a connector is not simply a point where two cables meet. It becomes an important part of the overall power transmission system.

A high current industrial connector must manage several factors at the same time:

• Current capacity
• Contact resistance
• Heat generation
• Cable size
• Electrical insulation
• Mechanical stability
• Environmental protection
• Long-term connection reliability

If these factors are not properly matched, excessive temperature rise, contact degradation or connection failure can occur.

So, what makes a high current industrial connector reliable?

The answer starts with understanding how current rating, contact resistance and heat generation work together.

What Is a High Current Industrial Connector?

A high current industrial connector is an electrical connector designed to safely transmit relatively large amounts of current between cables, equipment, power distribution systems or industrial modules.

Unlike low-current signal connectors, high current connectors are primarily designed around power transmission and thermal management.

Their design typically considers:

• Contact size and geometry
• Conductor cross-section
• Contact material
• Plating
• Electrical insulation
• Thermal performance
• Mechanical locking
• Protection against environmental conditions

The required current rating depends on the application.

For example, a sensor may only require a small amount of current, while an industrial motor, power distribution unit or energy storage system may require hundreds of amperes.

WEIPU's product portfolio includes high-current connector solutions rated at 200A, 400A, 630A and 800A, providing different options for demanding industrial power applications.

Why Does Current Rating Matter?

The current rating indicates how much current a connector is designed to carry under specified operating conditions.

However, current rating should not be viewed as an isolated number.

A connector rated for a certain current must also operate within its specified:

• Temperature range
• Cable size
• Installation conditions
• Contact configuration
• Duty cycle
• Environmental conditions

For example, WEIPU's WH400A connector is rated at 400A and 600V, with a specified wire size of 185 mm². Its product specification also lists a contact resistance below 2.5 mΩ.

This illustrates an important principle:

Current capacity is the result of the complete connector system—not simply the size of the connector.

For engineers, the question should therefore not be:

"How many amps can this connector carry?"

It should be:

"Can this connector safely carry the required current under my actual operating conditions?"

Contact Resistance: A Small Value With a Big Impact

One of the most important technical parameters in a high current connector is contact resistance.

When two conductive contacts are mated, the connection is never perfectly resistance-free.

Even a small amount of resistance can generate heat when large current passes through the connection.

The relationship can be expressed as:

P = I²R

Where:

• P = power dissipated as heat
• I = current
• R = contact resistance

This means that as current increases, the effect of resistance becomes much more significant.

For example, if current increases by a factor of two, the heat generated by the same resistance increases by a factor of four.

That is why contact resistance becomes particularly important in high current industrial connectors.

WEIPU's WH400A product specification lists contact resistance of less than 2.5 mΩ, together with a 400A rated current.

This type of specification is much more meaningful than looking at current rating alone.

Heat Generation and Temperature Rise

Heat is one of the major challenges in high current power transmission.

A connector can technically meet its rated current but still experience excessive temperature rise if the actual installation conditions are unfavorable.

Potential causes include:

• High contact resistance
• Poor termination
• Undersized cable
• Insufficient heat dissipation
• Excessive ambient temperature
• Loose or unstable mating
• Continuous operation at high load

Over time, excessive heat can accelerate material aging and affect contact performance.

This can create a cycle:

Higher Resistance

↓

More Heat

↓

Contact Degradation

↓

Higher Resistance

↓

Further Heat Generation

For industrial equipment that operates continuously, preventing this cycle is critical.

This is why high current connector design must consider both electrical performance and thermal performance.

Reliable Power Transmission Is More Than Current Capacity

A high current connector does more than carry current from Point A to Point B.

It must maintain a stable electrical connection throughout its operating life.

A reliable power connection should provide:

Stable Electrical Contact

The contact interface should maintain low and consistent resistance during operation.

Secure Mechanical Connection

The connector should resist accidental loosening caused by vibration, movement or repeated operation.

Appropriate Cable Compatibility

The connector must be compatible with the required conductor size and termination method.

Environmental Protection

Industrial equipment may be exposed to dust, moisture, oil, vibration or outdoor conditions.

Long-Term Durability

The connection should continue to perform reliably over repeated mating cycles and extended operation.

WEIPU's industrial connector portfolio includes high-current products as well as connectors designed for demanding environments. Its industrial connector range includes IP67 high-current solutions and is positioned for applications including automotive, wind power and railway systems.

Where Are High Current Industrial Connectors Used?

High current connectors are used wherever industrial systems require reliable, detachable power connections.

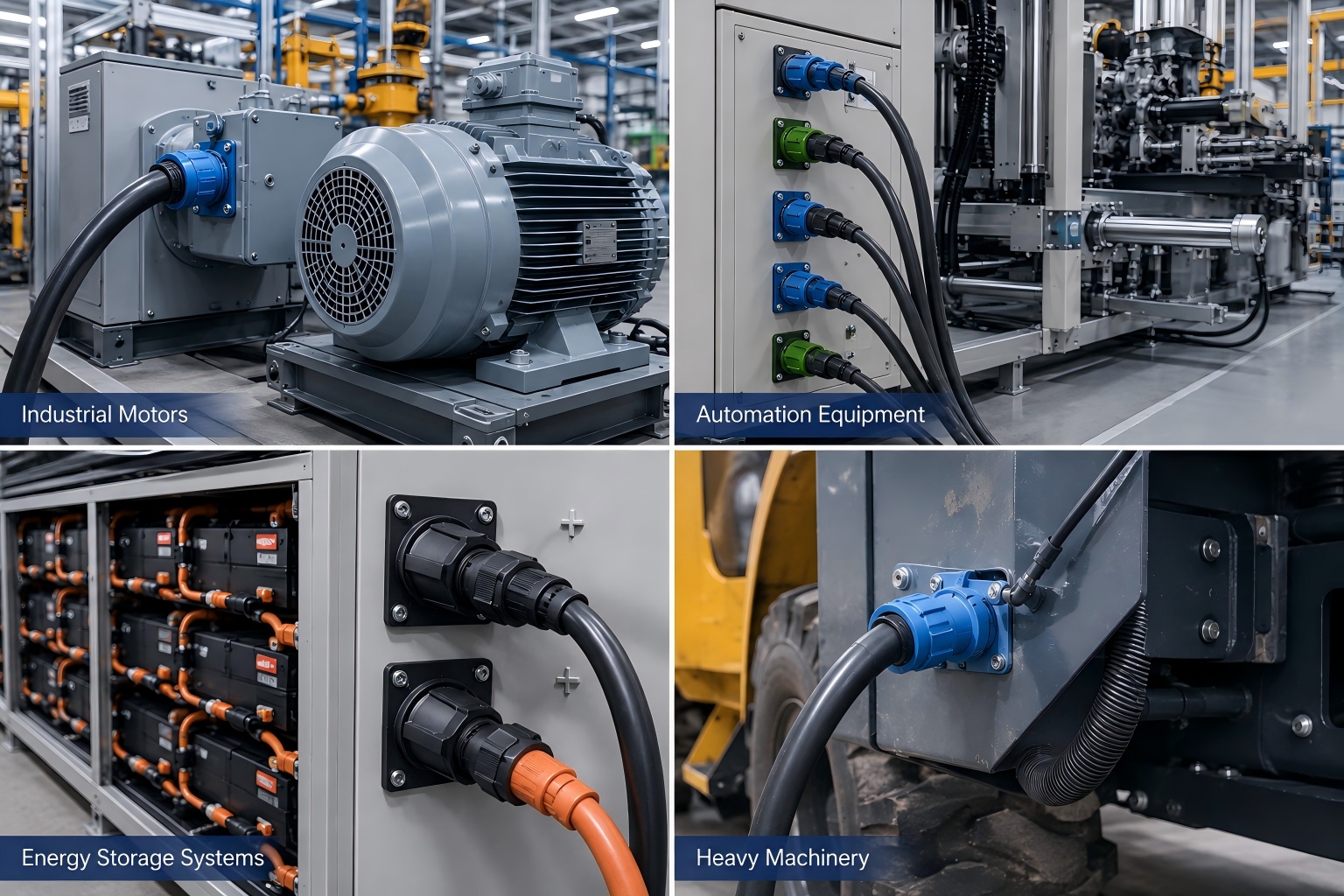

1. Industrial Motors

Industrial motors can require substantial electrical power, particularly in:

• Manufacturing equipment
• Conveyors
• Pumps
• Compressors
• Machine tools
• Automated production systems

A reliable power connector helps maintain stable electrical transmission between the power source, control equipment and motor system.

2. Automation Equipment

Modern automation systems often combine:

• Motors
• Drives
• Control cabinets
• Sensors
• PLC systems
• Power distribution
• Actuators

While many automation signals use low-current connectors, the power side of the system may require substantially higher current capacity.

This creates a practical distinction between:

Signal connectivity

and

Power connectivity

High current industrial connectors are primarily concerned with maintaining reliable power transmission to the equipment that performs the physical work.

For complex automation systems, heavy-duty connectors can also provide connections between control cabinets and field equipment.

3. Energy Storage Systems

Energy storage is another important application for high current connectors.

Battery and energy storage systems can involve significant DC currents during:

• Charging
• Discharging
• Power conversion
• Energy distribution

In these systems, connector selection must consider more than current rating.

Engineers may also need to evaluate:

• Voltage
• Temperature
• Cable size
• Contact resistance
• Protection requirements
• Mechanical locking
• Installation environment

This makes high current connector design particularly important for reliable energy transmission.

4. Heavy Machinery

Construction and heavy industrial machinery can operate under demanding mechanical conditions.

Equipment may experience:

• Vibration
• Shock
• Dust
• Moisture
• Temperature changes
• Frequent maintenance

A high current connector used in this environment needs both electrical capacity and mechanical robustness.

This is one reason high-current connector solutions are commonly associated with heavy-duty industrial equipment.

WEIPU's industrial connector portfolio specifically includes high-current solutions intended for demanding applications, with its high-current range covering 200A through 800A configurations.

What Should You Consider When Selecting a High Current Connector?

Selecting a high current connector should begin with the actual electrical and mechanical requirements of the application.

1. Rated Current

Start with the required operating current.

Do not simply select a connector based on the maximum possible current. Consider:

• Continuous current
• Peak current
• Duty cycle
• Ambient temperature
• Installation conditions

The connector's rated current should be appropriate for the real operating conditions.

2. Voltage Rating

Current is only one part of electrical performance.

The connector must also have an appropriate voltage rating for the system.

Consider:

• Operating voltage
• AC or DC application
• Insulation requirements
• Applicable standards
• Pollution level and installation environment

For example, WEIPU's WH400A product is specified at 600V AC and 400A rated current.

Always verify the exact specification of the selected model rather than assuming that all products in a series share the same ratings.

3. Contact Resistance

Low contact resistance is particularly important for high-current applications.

When comparing products, look beyond the headline current rating and check the manufacturer's specified contact resistance.

A lower and more stable contact resistance can help reduce resistive heat generation under load.

4. Cable Size

The connector must match the cable or conductor being used.

A mismatch between the connector and cable can compromise:

• Electrical performance
• Termination quality
• Mechanical stability
• Thermal performance

For example, the WH400A specification supports a 185 mm² wire size, demonstrating how high-current connector selection is closely linked to conductor size.

5. Temperature and Heat Dissipation

Consider the actual operating environment.

Ask:

• What is the ambient temperature?
• Is the connector enclosed?
• Is airflow available?
• Is the equipment operating continuously?
• Is the connector close to a heat source?

A connector that performs well in a controlled environment may require different considerations in a high-temperature industrial installation.

6. Mechanical Locking

A high-current connection should remain mechanically secure.

Depending on the application, engineers may consider:

• Screw coupling
• Locking mechanisms
• Dedicated locking buckles
• Mechanical retention

Vibration-heavy applications deserve particular attention to connector retention.

7. IP Protection

Industrial equipment may be exposed to:

• Water
• Dust
• Oil
• Cleaning processes
• Outdoor weather

If environmental protection is required, select a connector with an appropriate IP rating.

WEIPU's high-current connector range includes IP67 waterproof products, while its broader industrial connector portfolio includes products with protection levels extending to IP68 and IP69K depending on the series.

High Current Connector Selection: Common Mistakes to Avoid

Even experienced engineers can overlook several factors when selecting high-current connectors.

Mistake 1: Choosing Only by Current Rating

A 400A rating alone does not tell you whether a connector is suitable for your complete application.

Check current, voltage, temperature, cable size, environment and mechanical requirements together.

Mistake 2: Ignoring Contact Resistance

Two connectors with similar current ratings may have different contact resistance characteristics.

For high-current applications, this difference can affect temperature rise and long-term reliability.

Mistake 3: Ignoring the Installation Environment

A connector installed inside a protected cabinet has very different requirements from one installed on outdoor machinery.

Mistake 4: Oversizing Without Considering the System

Bigger is not automatically better.

The connector should be matched to:

• Electrical requirements
• Cable size
• Available installation space
• Mechanical structure
• Cost
• Maintenance requirements

Mistake 5: Treating the Connector as an Isolated Component

The connector, cable, termination, equipment and environment form one electrical and mechanical system.

A reliable connector cannot compensate for an unsuitable cable or poor termination.

WEIPU High Current Connector Solutions

WEIPU develops industrial connector solutions for applications requiring reliable power transmission under demanding operating conditions.

Its high-current product range includes 200A, 400A, 630A and 800A single-pin configurations, designed for applications such as automotive, wind power and railway systems. The range also incorporates features such as dedicated locking mechanisms and IP67 protection on the listed high-current solutions.

One example is the WH400A series, which provides 400A rated current, 600V AC rated voltage and a specified contact resistance below 2.5 mΩ. The product specification supports conductors up to 185 mm².

For applications that require different combinations of power, signal and mechanical protection, WEIPU also provides broader industrial connector solutions, including circular connectors, heavy-duty connectors and other industrial power connection products.

How to Build a More Reliable High Current Connection

A reliable high-current connection depends on the entire system.

A practical approach is:

1. Define the electrical load

Determine continuous and peak current requirements.

↓

2. Confirm voltage requirements

Check operating voltage and electrical safety requirements.

↓

3. Select the appropriate conductor

Match cable cross-section and termination requirements.

↓

4. Evaluate contact resistance

Check manufacturer specifications and expected temperature rise.

↓

5. Consider the environment

Evaluate temperature, moisture, dust, vibration and other conditions.

↓

6. Select the appropriate connector structure

Consider locking, mounting, mating method and maintenance requirements.

↓

7. Validate the complete connection

Test the connector, cable and termination as an integrated system.

This approach helps prevent a common mistake in connector selection: focusing on one specification while overlooking the rest of the system.

Conclusion

High current industrial connectors play an important role in modern industrial power transmission.

For applications such as industrial motors, automation equipment, energy storage systems and heavy machinery, connector reliability depends on much more than current capacity.

The key factors include:

• Current rating
• Voltage rating
• Contact resistance
• Heat generation
• Cable compatibility
• Mechanical locking
• Environmental protection
• Long-term reliability

In particular, current rating, contact resistance and temperature rise should be considered together.

As industrial systems become more powerful and automated, high-current connectivity becomes increasingly important to overall equipment reliability.

Choosing the right industrial connector is therefore not simply about finding a connector that can carry the required current. It is about selecting a connection system that can deliver power safely, consistently and reliably throughout the intended operating life.

Looking for a high current industrial connector for your application?
WEIPU provides high-current and industrial connector solutions for demanding power transmission applications. Share your current, voltage, cable size and operating environment with our engineering team to identify a suitable connector configuration.
