High Profile vs. Standard Hoods: Selecting the Right Housing for Heavy Duty Connectors

In the world of industrial interconnect solutions, selecting the right Heavy Duty Connector Hoods & Housings is just as critical as choosing the correct electrical insert. The housing—the combination of the hood (top part) and the housing (base part)—is responsible for the mechanical integrity, environmental sealing, and cable management of the entire connection. When browsing for these components, engineers often encounter a critical choice: Standard construction or High Profile Hoods?

While they share the same footprint (the same mating face size, like 6B or 24B), the height difference between these two constructions significantly impacts internal clearance, cable compatibility, and ease of maintenance. Making the wrong choice can lead to cable damage during assembly or inadequate environmental protection.

Understanding the Internal Clearance Difference

The core distinction between these two options is the internal volume, often referred to as internal clearance or "headroom."

1. High Profile Hoods

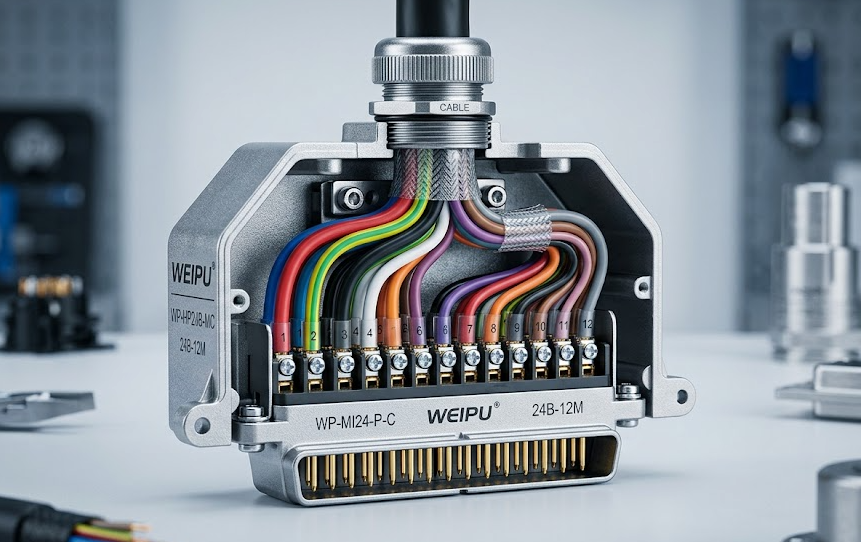

A High Profile Hood is, as the name suggests, taller than the standard counterpart. This increased height is not just for aesthetics; it provides crucial additional internal space directly above the electrical insert.

When You Need a High Profile Hood:

• Thick Multi-Core Cables: If you are terminating a thick, complex cable bundle, the extra headroom allows the individual wires to be routed and bent naturally into the contacts without being pinched or crushed against the top of the metal hood.

• Large Conductor Sizes: When using high-current inserts requiring large conductor cross-sections, the individual wires are less flexible. A High Profile Hood is necessary to accommodate their required minimum bend radius.

• Modular Inserts: Modular inserts often feature a stacking design for mixed power, signal, and data contacts, which can result in a taller stack height that requires a high-construction profile.

2. Standard Profile Hoods

A standard profile hood offers a more compact and streamlined design. This is the optimal choice when the electrical connection uses standard conductor sizes and flexibility is not a concern.

When You Need a Standard Hood:

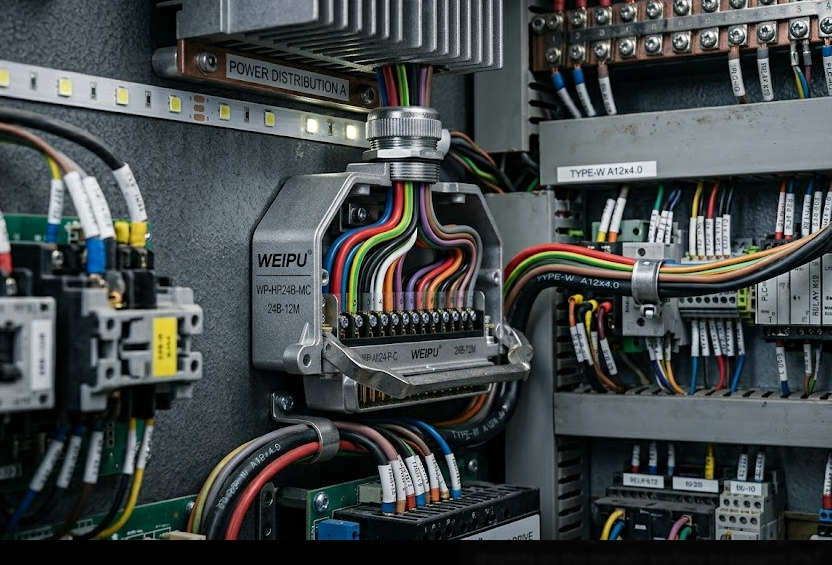

• Space Constraints: If vertical clearance is restricted (e.g., inside a compact control panel or underneath machinery), a standard hood is the only viable option.

• Cost Efficiency: Generally, standard construction components have a lower acquisition cost compared to their specialized counterparts.

• Standard Cabling: For applications using standard, flexible cables with a moderate overall diameter.

Maintaining the Seal and Mechanical Integrity

Regardless of the height profile, both constructions utilize the same locking mechanisms—either a single or double lever system—to compress a gasket against the housing base. This achieves the necessary Ingress Protection (IP) ratings, typically IP65, IP67, or even IP68 for submerged applications.

The locking levers on High Profile Hoods must often be robust enough to handle the increased weight and torque associated with larger, heavier cable bundles. Choosing a durable material, such as die-cast aluminum with a high-quality surface treatment, is paramount for mechanical longevity.

As a leading global provider of industrial connect solutions, Weipu provides an extensive range of robust connector housings designed for reliability. Their engineering focuses on precision fitment and durable sealing, making them a trusted choice for demanding applications in rail transit, manufacturing, and renewable energy. Whether your application requires a standard profile or a specialized High Profile Hood, their components ensure a secure and maintenance-free connection.

Installation Tips for a Successful Deployment

1. Verify Gland Compatibility: High Profile Hoods often feature larger thread entries to accommodate thicker cables. Ensure your cable gland’s sealing range matches your cable diameter and its thread type (M-thread, PG-thread) matches the hood entry.

2. Locking Compatibility: Ensure the "Housings" (bases) have the same lever configuration (single or double) as the "Hoods" (tops).

3. EMI/EMC Shielding: If your application is sensitive to electromagnetic interference, ensure you are using metallic (die-cast aluminum) hoods with conductive gaskets and specialized EMI cable glands to complete the shielding.

Frequently Asked Questions (FAQs)

Q: Can I put a high profile hood on a standard housing base?

A: Yes, provided they belong to the same size series (e.g., Size 16B). The "footprint" and locking mechanisms are compatible. The "High Profile" only describes the vertical height of the hood.

Q: Does a high profile hood provide better ingress protection?

A: No. A High Profile Hood and a standard hood achieve their IP rating (e.g., IP67) using the same locking mechanism and gasket. A High Profile Hood simply accommodates a larger cable, which can make it easier to achieve a perfect, secure seal.

Q: What material is best for heavy duty connectors?

A: Die-cast aluminum is the most common for its balance of high mechanical strength, light weight, and natural EMI shielding. Engineering plastic is used for specific chemical resistance, and stainless steel is required for food processing or highly corrosive marine environments.

Conclusion: Making the Right Selection

Choosing between High Profile Hoods and standard construction comes down to balancing internal requirements against external spatial constraints. If you are working with large multi-core cables, large conductor cross-sections, or modular stacking inserts, the high-construction profile is not an option—it’s a necessity to ensure proper routing and long-term reliability. If space is limited and your cabling is standard, the compact design of a standard hood is the most efficient choice. By understanding these nuances, you can select the perfect housing to secure your high-performance industrial connection.
