How to Properly Install a Front Nut Mount Receptacle

In the demanding world of industrial interconnectivity, the mechanical integrity of a panel interface is just as critical as the electrical specifications of the contacts. A secure mounting ensures that vibration, moisture, and environmental stress do not compromise system performance. The Front Nut Mount Receptacle is an industry-standard configuration favored for its accessibility and robust sealing capabilities. For engineers and assembly technicians, mastering the nuances of its installation is essential to ensuring a long-lasting, reliable connection in any control cabinet or equipment chassis.

Understanding the Front Nut Mount Receptacle Design

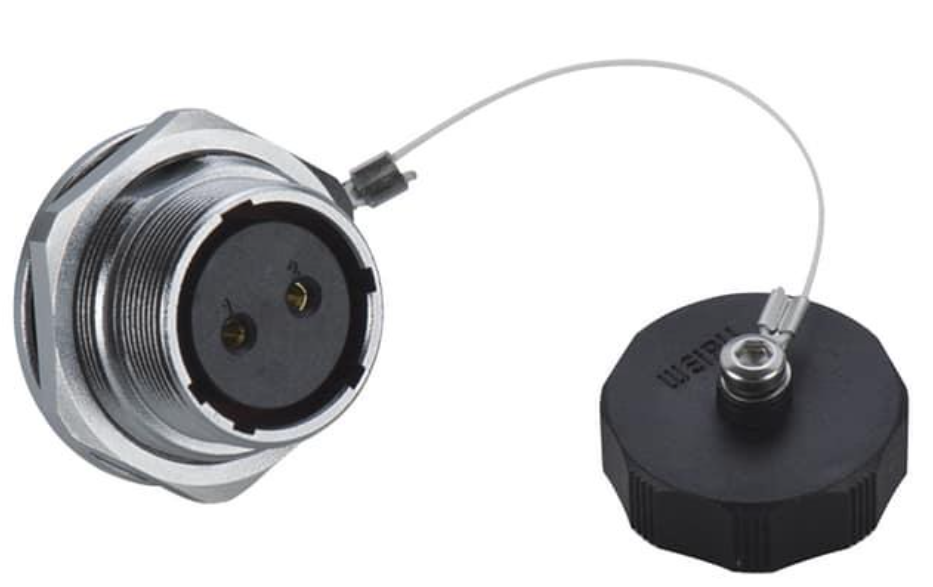

A Front Nut Mount Receptacle is defined by its ability to be secured from the exterior side of the panel. The connector body typically features a threaded housing that passes through the panel from the rear. A hex nut is then threaded onto the front-facing section of the housing, compressing a gasket against the internal surface of the panel. This design is highly effective for applications where internal access is restricted, or where the technician needs to perform final assembly or maintenance from the outside of the machine.

Essential Tools and Materials Required for Installation

To achieve a professional-grade installation, specific tools are required to meet engineering tolerances:

• Precision Punch or CNC Milling Tool: To create an accurate aperture in the panel substrate.
• Torque Wrench: To apply precise rotational force without damaging threads or over-compressing gaskets.
• Deburring Tool: To smooth out sharp edges that could compromise the seal.
• High-Quality Gaskets: Usually made of silicone or EPDM, often provided by manufacturers like Weipu to ensure environmental protection.

Step-by-Step Installation Guide for Front Nut Mount Receptacles

The reliability of a Front Nut Mount Receptacle depends heavily on a structured assembly process that prioritizes mechanical alignment and cleanliness.

Step 1: Accurate Panel Cut-out and Deburring

The foundation of a waterproof seal is the quality of the opening. It is critical to adhere strictly to the manufacturer-provided Panel Cutout Dimensions. Most industrial connectors utilize a "D-flat" or keyed cutout to prevent the connector from rotating during mating and unmating cycles. Once the hole is cut, debur the edges thoroughly; small metal burrs can puncture the gasket, leading to slow moisture leaks.

Step 2: Gasket Placement and Surface Alignment

Clean the panel surface with an industrial degreaser to remove oils or cutting fluid. Slide the sealing gasket onto the connector body from the rear. Ensure the gasket is seated flush against the internal flange of the connector, as any misalignment here will cause uneven compression later.

Step 3: Inserting the Receptacle into the Mounting Hole

Insert the Front Nut Mount Receptacle through the panel from the internal side toward the external face. Align the keyed flat of the housing with the flat edge of your panel cutout. This ensures that the connector is oriented correctly for the internal wiring harness and the external cable mating.

Step 4: Applying and Tightening the Front Hex Nut

From the front side of the panel, thread the hex nut onto the connector housing. It is best to start the nut by hand to ensure no cross-threading occurs. Use a socket or wrench to tighten the nut until it makes firm contact with the panel surface.

Critical Torque Specifications and Avoiding Overtightening

Applying the correct amount of force is where many installations fail. Referencing the technical data for your specific Panel Cutout Dimensions and material (plastic vs. metal) is vital. Over-tightening can strip the fine threads or "pinch" the gasket, causing it to squeeze out of the seal area and creating a gap for water ingress. Use a torque wrench calibrated to the manufacturer’s Nm (Newton-meter) specifications to ensure a repeatable, airtight seal.

Why Procurement Teams Prefer Front Nut Mount Designs

From a manufacturing and supply chain perspective, the Front Nut Mount Receptacle offers significant advantages in assembly line efficiency.

Ease of Front-Panel Accessibility

Maintenance teams can often replace or tighten the external nut without opening the entire electronic enclosure, reducing downtime during field repairs.

Reduced Assembly Time in Mass Production

Because the locking hardware is external, automated tools can be used to secure connectors quickly across a production run.

Compatibility with Pre-Wired Internal Assemblies

This configuration is ideal for modular manufacturing. Internal harnesses can be fully wired at a bench and then simply "dropped in" and secured to the chassis, a method that is a core reason why many designers utilize a Front Nut Mount Receptacle in high-volume industrial projects.

Ensuring IP-Rated Sealing and Waterproof Integrity

To achieve IP67 or IP68 ratings, the interface between the connector and the panel must be perfect. Following the correct Panel Cutout Dimensions ensures that the gasket is uniformly compressed against the panel wall. Since 1996, Weipu has focused on high-precision tolerances for these interfaces, ensuring that even in high-pressure washdown environments, the internal electronics remain completely dry.

Common Installation Mistakes to Avoid

The most frequent error is neglecting the "anti-rotation" feature of the cutout. If the hole is a simple circle rather than a keyed "D" shape, the connector will eventually spin when a user tries to unscrew a cable, potentially snapping internal wires. Additionally, applying a thread-locking compound is often unnecessary unless specified, as the gasket's natural compression provides enough tension to act as a lock.

Comparing Front Nut Mount vs. Rear Nut Mount Applications

The primary differentiator is the "mounting direction." Front-mount options are superior when the back of the panel is crowded with components, leaving no room for a wrench. Rear-mount options are usually selected for aesthetics or when a flush-mount look is required on the exterior of the device. However, for industrial durability, the front-access hex nut remains the dominant choice.

Maintenance and Inspection for Long-Term Connectivity

Check the tightness of the mounting nut every six months, especially in environments subject to thermal cycling or heavy mechanical vibration. If a gasket appears cracked or brittle due to age or chemical exposure, replace it immediately to prevent internal corrosion.

Conclusion: Professional Assembly for Reliable Industrial Performance

The Front Nut Mount Receptacle is a powerful component in the industrial designer's toolkit, offering a perfect balance of assembly speed and environmental protection. By adhering to engineering standards for panel preparation and torque application, you ensure that your connectivity infrastructure remains robust under the most demanding conditions.
