Industrial connectors operate in environments where temperature, vibration, moisture, chemicals, electrical loads, and mechanical stress can all affect performance. In these conditions, connector reliability is not determined by design alone. Material selection plays a critical role in electrical performance, mechanical strength, environmental resistance, and service life.

An industrial connector may use several different materials within a single assembly. The housing, contacts, contact plating, insulator, seals, and cable clamping components all perform different functions.

Choosing the right combination of materials can help prevent corrosion, overheating, insulation failure, mechanical damage, and signal degradation.

This article explains the most important industrial connector materials, how material choice affects connector reliability, and what engineers should consider when selecting connectors for demanding industrial applications.

Why Do Industrial Connector Materials Matter?

A connector is exposed to more than electrical current.

In an industrial environment, it may experience:

• Continuous vibration
• Mechanical shock
• High or low temperatures
• Moisture and water exposure
• Dust and contaminants
• Oil and chemicals
• Repeated mating and unmating
• High electrical current
• Electromagnetic interference
• Outdoor weather conditions

Different materials respond differently to these conditions.

For example, a metal housing may provide excellent mechanical strength and electromagnetic shielding, while an engineered plastic housing can offer lower weight and strong corrosion resistance.

Similarly, copper-based contacts provide good electrical conductivity, but their surface normally requires plating to improve corrosion resistance and long-term contact reliability.

Therefore, connector reliability depends on the interaction between multiple materials rather than a single material choice.

The Main Materials Used in Industrial Connectors

Industrial connectors typically contain several major material groups:

• Housing materials
• Contact materials
• Contact plating
• Insulating materials
• Sealing materials
• Cable protection and clamping materials

Each contributes differently to the connector's overall performance.

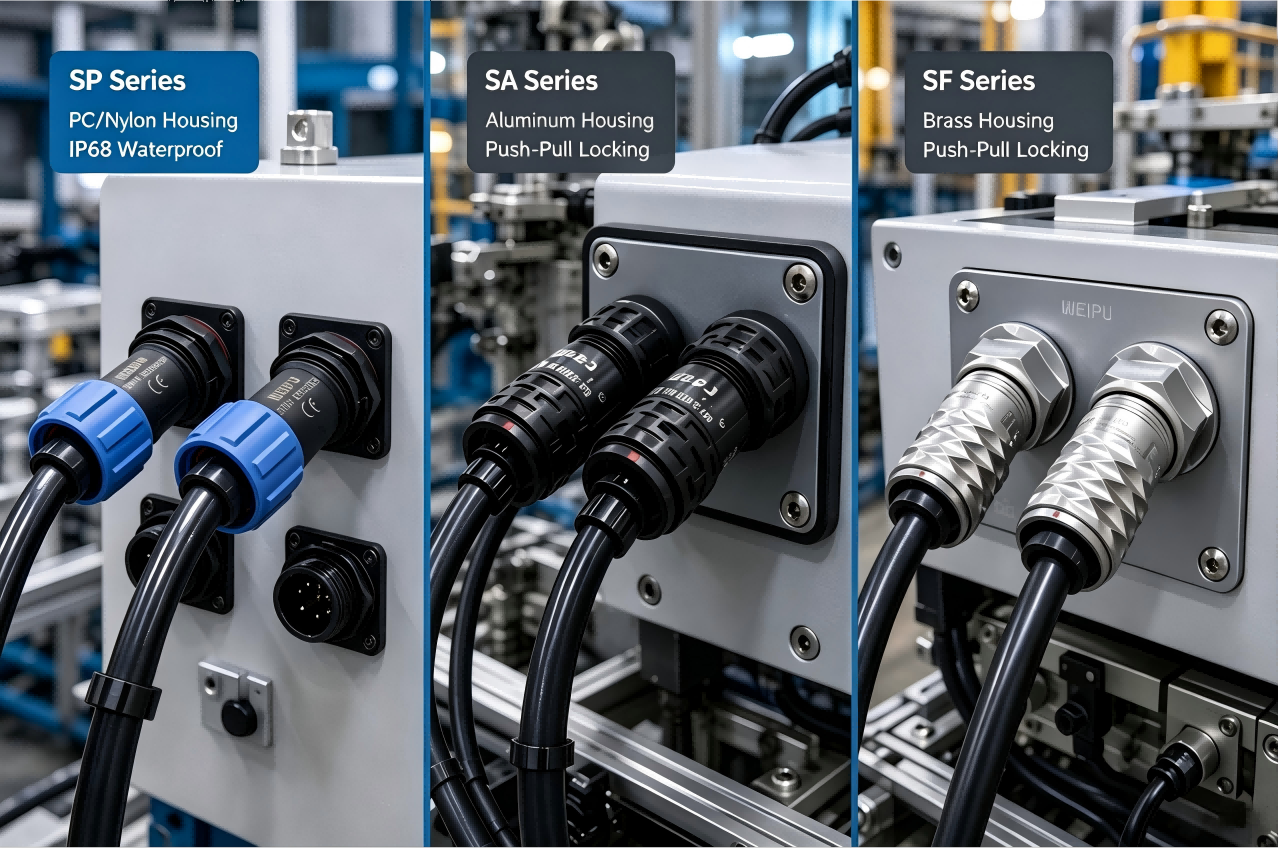

1. Connector Housing Materials

The housing protects the internal electrical components and provides the mechanical structure for mating, mounting, and cable connection.

Common housing materials include:

Metal housings

Metal housings are widely used in demanding industrial applications because they can provide:

• High mechanical strength
• Good impact resistance
• Strong vibration resistance
• Electromagnetic shielding
• Good heat dissipation
• Long mechanical service life

Aluminum alloys, zinc alloys, and other metal constructions can be selected depending on the application.

Metal housings are particularly useful for connectors installed on:

• Industrial machinery
• Control cabinets
• Automation equipment
• Motors
• Heavy machinery
• Railway equipment
• Outdoor industrial systems

However, metal selection must also consider corrosion protection and surface treatment.

Plastic housings

Engineering plastics are also widely used for industrial connectors.

Advantages can include:

• Lower weight
• Corrosion resistance
• Electrical insulation
• Flexible design options
• Cost efficiency
• Easier handling during installation

Plastic connectors can be particularly useful where weight, insulation, and corrosion resistance are important.

The correct material depends on the environment rather than simply whether metal or plastic is "better."

2. Contact Materials: The Core of Electrical Reliability

The contacts are responsible for transferring electrical current or signals between the mating connector halves.

Contact materials need to balance several properties:

• Electrical conductivity
• Mechanical strength
• Corrosion resistance
• Thermal performance
• Wear resistance
• Contact stability

Copper and copper alloys are commonly used because of their good electrical conductivity and mechanical properties.

However, the base contact material is only part of the equation.

The surface finish of the contact can have a significant influence on long-term performance.

3. Contact Plating and Contact Resistance

Even highly conductive contact materials can develop surface oxidation or corrosion under certain environmental conditions.

For this reason, industrial connector contacts are often plated.

Common plating materials include:

• Tin
• Nickel
• Gold
• Silver

The appropriate plating depends on the electrical, mechanical, and environmental requirements.

For example, a connector exposed to frequent mating cycles may require a contact surface designed to withstand repeated mechanical wear.

For applications where stable low contact resistance is particularly important, engineers should evaluate the complete contact system rather than looking only at the base metal.

Why does contact resistance matter?

When current flows through a connector, electrical resistance generates heat.

The basic relationship can be expressed as:

P = I²R

Where:

• P = power dissipated as heat
• I = current
• R = electrical resistance

This means that even a relatively small increase in contact resistance can become important at high current levels.

For high-current industrial applications, contact material, plating, contact pressure, conductor size, and thermal management should therefore be evaluated together.

4. Insulating Materials

The connector's insulating components separate conductive contacts and help prevent electrical short circuits.

Common insulating materials include engineered thermoplastics and thermosetting materials.

Important properties include:

• Electrical insulation performance
• Temperature resistance
• Mechanical stability
• Flame resistance
• Moisture resistance
• Dimensional stability

The insulating material must remain stable under the expected operating temperature and electrical conditions.

For industrial automation systems, this is particularly important because connectors may be installed close to motors, drives, power supplies, and other heat-generating equipment.

A material that performs well under normal room-temperature conditions may not provide the same reliability after long-term exposure to elevated temperatures.

5. Sealing Materials: Protection Against Water and Contaminants

For waterproof industrial connectors, sealing materials are critical.

The housing may be mechanically strong, but without an effective sealing system, moisture can eventually reach the electrical contacts.

Common sealing materials include elastomers such as:

• Silicone
• EPDM
• Nitrile-based materials
• Other application-specific rubber compounds

Material selection should consider:

• Operating temperature
• Water exposure
• Oil exposure
• Chemical exposure
• UV exposure
• Compression and recovery
• Long-term aging

This is particularly important for connectors used outdoors or in environments where water, oil, cleaning fluids, or industrial contaminants are present.

A connector's IP rating should therefore be considered together with the actual environmental conditions.

6. Cable Clamping and Strain Relief Materials

The connector does not only protect the electrical connection. It must also protect the cable.

Cable clamping and strain-relief components help prevent excessive mechanical force from being transferred to the electrical contacts.

Depending on the connector design, these components may use:

• Engineering plastics
• Rubber
• Metal
• Composite materials

A properly designed strain-relief system can help reduce the effect of:

• Cable pulling
• Bending
• Vibration
• Repeated movement
• Mechanical stress

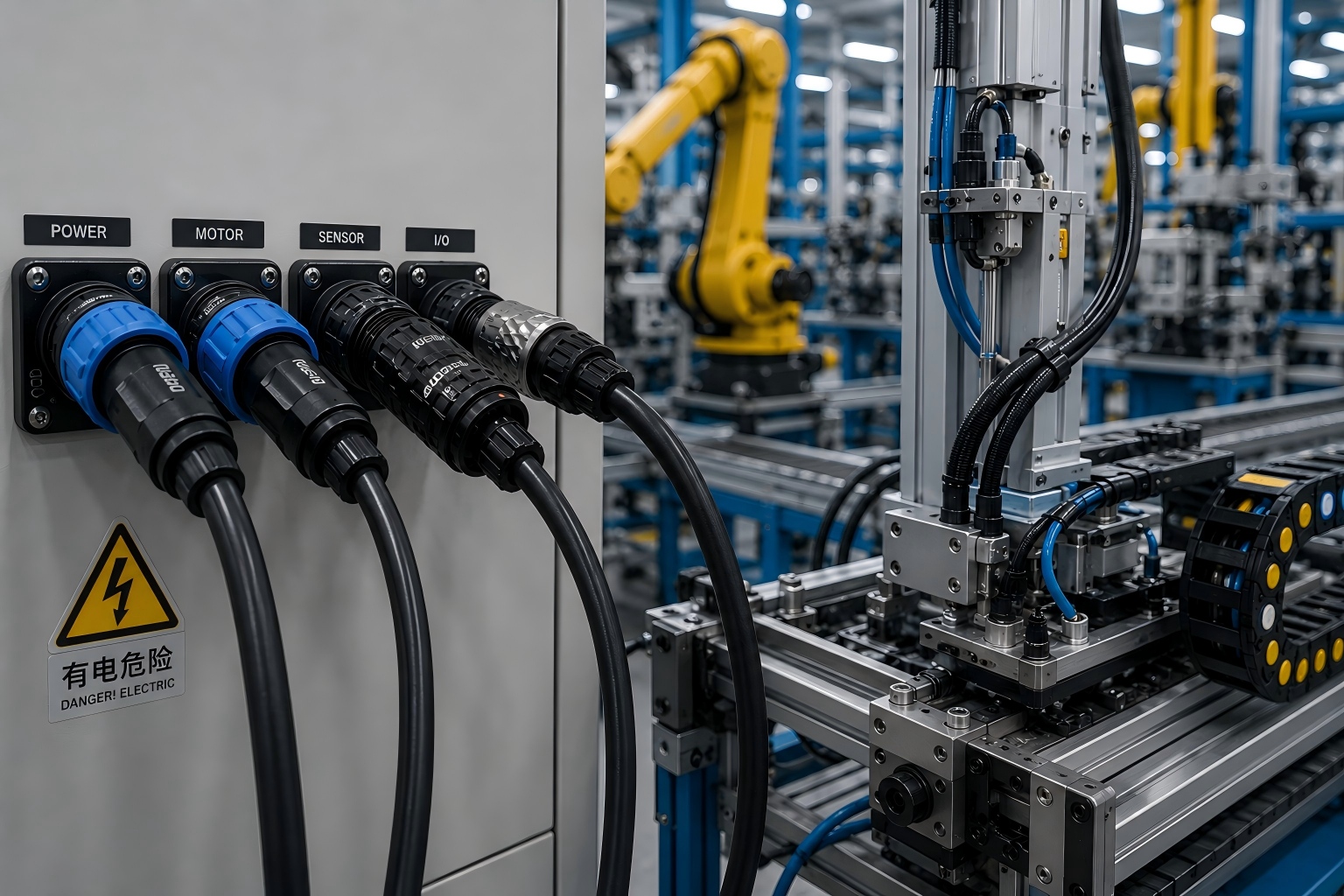

This becomes especially important on automated machinery and equipment where cables may move continuously.

How Material Choice Affects Industrial Connector Reliability

Material selection influences several major reliability factors.

1. Corrosion Resistance

Corrosion can increase contact resistance and eventually compromise electrical continuity.

Industrial connectors installed in humid, coastal, outdoor, or chemically exposed environments may require materials and surface treatments specifically selected for corrosion resistance.

Metal housing selection is especially important because mechanical strength alone does not guarantee long-term environmental durability.

2. Thermal Performance

High electrical current produces heat.

Connector materials affect how that heat is generated, transferred, and dissipated.

For power connectors, engineers should consider:

• Contact resistance
• Contact material
• Plating
• Housing material
• Cable size
• Ambient temperature
• Installation configuration

A connector with an appropriate current rating under laboratory conditions may perform differently when installed inside a hot control cabinet with limited airflow.

3. Vibration Resistance

Industrial machinery generates continuous vibration.

Vibration can gradually affect:

• Contact stability
• Locking mechanisms
• Cable connections
• Housing integrity
• Sealing performance

Material strength is therefore only one part of vibration reliability. The connector's mechanical structure and locking system also matter.

4. Temperature Resistance

Industrial connectors may operate near motors, drives, power electronics, heaters, or other high-temperature components.

Materials need to maintain their mechanical and electrical properties throughout the expected temperature range.

Temperature can affect:

• Insulation performance
• Seal elasticity
• Contact resistance
• Housing strength
• Connector dimensions

Therefore, engineers should evaluate the actual operating temperature, not simply the maximum temperature listed for one individual component.

5. Chemical and Environmental Resistance

Factories can contain:

• Oils
• Lubricants
• Cleaning agents
• Coolants
• Solvents
• Dust
• Salt
• Industrial chemicals

The connector material must be compatible with the substances it may encounter.

This is one reason why material selection should be based on the complete application environment rather than connector appearance or nominal specifications alone.

Material Selection for Different Industrial Applications

Different applications place different demands on connector materials.

This is why there is no single "best" connector material for every industrial application.

The correct choice depends on the combination of electrical load, mechanical stress, environmental exposure, and expected service life.

How WEIPU Approaches Industrial Connector Material Selection

For industrial connector manufacturers, material selection needs to be considered as part of the complete connector system.

WEIPU's industrial connector portfolio covers different application requirements, from compact circular connectors to heavy-duty industrial connection systems.

For example, WEIPU SA Series connectors can be introduced where compact industrial connectivity and secure connection are required.

For applications requiring environmental protection and reliable circular connections, the WEIPU SF Series can be linked here.

For applications requiring robust industrial connectivity, the WEIPU SP Series can provide another relevant product pathway.

For heavy-duty industrial equipment and control systems, the WEIPU HA24B Series is a natural internal-link destination.

---

---

How to Choose the Right Industrial Connector Material

When selecting an industrial connector, engineers should evaluate the following factors.

1. What current and voltage are required?

Power applications require careful evaluation of contact materials, plating, insulation, and thermal performance.

2. What environmental conditions will the connector experience?

Consider:

• Water
• Dust
• Oil
• Chemicals
• Salt
• UV exposure
• Temperature

3. How much vibration will the connector experience?

Robots, motors, production machinery, and mobile equipment may require stronger mechanical construction and reliable locking mechanisms.

4. How frequently will the connector be mated?

Frequently serviced equipment may require materials and contact systems designed for repeated mating cycles.

5. Is shielding required?

For applications involving industrial communication or sensitive signals, housing and shielding materials may influence electromagnetic compatibility and signal integrity.

6. What is the expected service life?

A low initial purchase price does not necessarily mean a lower total cost.

Material durability can influence:

• Maintenance frequency
• Replacement costs
• Production downtime
• Service labor
• Equipment availability

For critical industrial equipment, engineers should therefore evaluate the total lifecycle cost rather than connector unit price alone.

---

Material Selection Is Part of Connector Reliability

Industrial connector reliability is the result of multiple engineering decisions working together.

Housing materials influence mechanical protection.
Contact materials affect electrical performance.
Plating influences corrosion and contact stability.
Insulators provide electrical isolation.
Sealing materials protect against environmental contamination.
Cable clamping materials help protect the connection from mechanical stress.

The best industrial connector is therefore not simply the one with the strongest material or highest IP rating.

It is the connector whose materials, mechanical design, electrical characteristics, and environmental protection are matched to the application.

For industrial automation, robotics, energy systems, motors, heavy machinery, and other demanding applications, material selection should be considered early in the connector selection process.

---

Conclusion

Industrial connector materials directly influence reliability, durability, and electrical performance.

From metal housings and copper-alloy contacts to contact plating, insulating materials, and sealing compounds, every material serves a specific purpose.

For engineers selecting connectors for automation equipment, motors, robotics, energy storage, control cabinets, and heavy machinery, the key question is not simply:

• Which connector material is strongest?

It is:

Which combination of materials provides the right balance of electrical, mechanical, thermal, and environmental performance for the application?

Understanding this relationship makes connector selection more systematic and helps reduce premature failures, maintenance requirements, and unexpected downtime.
