Inside the Industrial Control Cabinet: How Reliable Connectivity Keeps Automation Systems Running

From PLCs and I/O Modules to Power, Signal, and Ethernet Connections

Modern automation systems depend on a network of controllers, sensors, drives, robots, and intelligent devices working together with minimal interruption.

At the center of many of these systems is the industrial control cabinet.

Inside a typical control cabinet, programmable logic controllers (PLCs), power supplies, I/O modules, relays, circuit protection devices, communication equipment, and other control components work together to manage the production process.

However, the reliability of an automation system does not depend only on the PLC or controller.

Every signal, power line, and communication path must also remain stable.

This makes connectivity inside and around the control cabinet an important part of industrial automation reliability.

From PLC wiring and I/O connections to field devices and Industrial Ethernet networks, the right connector architecture can simplify installation, improve maintenance, and reduce unexpected downtime.

What Is the Role of a Control Cabinet in Industrial Automation?

A control cabinet acts as the central control and distribution point of an automated machine or production line.

A simplified architecture looks like this:

                  Industrial Network
                         │
                         ↓
                ┌─────────────────┐
                │ Industrial      │
                │ Ethernet Switch │
                └────────┬────────┘
                         │
                         ↓
                ┌─────────────────┐
                │      PLC        │
                └────────┬────────┘
                         │
              ┌──────────┼──────────┐
              ↓          ↓          ↓
            I/O        Servo       HMI
          Modules      Drive
              │          │
              ↓          ↓
           Sensors      Motor
              │
              ↓
       Machine / Production Line

The PLC may be the "brain" of the system, but the control cabinet is where many of the critical power, signal, and communication connections come together.A failure in any one of these paths can affect equipment operation.

The Connectivity Layers Inside an Automation System

One of the most useful ways to evaluate control cabinet connectivity is to divide it into different connection layers.

1. Power Connections

Power connections supply electricity to:

• PLCs
• Power supplies
• Servo drives
• Motors
• Sensors
• Actuators
• Auxiliary equipment

Power connections must be selected according to current, voltage, temperature, mechanical stress, and environmental requirements.

2. Signal Connections

Signal connections transfer information between:

• Sensors
• I/O modules
• PLCs
• Relays
• Actuators
• Measurement devices

Unlike power connections, signal interfaces often require particular attention to contact stability and electromagnetic interference.

A poor connection can result in unstable sensor readings or intermittent control signals.

3. Communication Connections

Modern control cabinets also contain communication interfaces connecting PLCs with:

• Industrial Ethernet switches
• HMIs
• Remote I/O
• Vision systems
• Robot controllers
• Edge computers

These connections become increasingly important as factories move toward Industrial Ethernet and connected automation.

For more information, see our guide on Industrial Connectors for Industrial Ethernet Networks.

Where Connectivity Problems Usually Occur

A control cabinet may contain hundreds of electrical and communication connection points.

Not all of them present the same level of risk.

Common problems include:

Loose Connections

Mechanical vibration and repeated maintenance can gradually affect connection stability.

Incorrect Termination

Poor wiring or improper termination can increase contact resistance and create intermittent faults.

Electromagnetic Interference

Servo drives, motors, inverters, and high-current equipment can generate electrical noise that affects sensitive signal connections.

Cable Stress

Sharp bends, excessive pulling force, or poor cable routing can transfer mechanical stress to connectors.

Poor Environmental Protection

When connectors extend outside the control cabinet, they may be exposed to:

• Dust
• Water
• Oil
• Humidity
• Temperature changes

This is where the difference between a standard connector and an industrial-grade connector becomes important.

Why PLC Connectivity Matters to the Entire Automation System

A PLC receives information from the production environment and sends commands back to machines and actuators.

For example:

Sensor
   ↓
I/O Module
   ↓
PLC
   ↓
Control Logic
   ↓
Servo Drive
   ↓
Motor
   ↓
Machine Movement

A small connectivity problem at the beginning of this chain can create a much larger operational problem at the end.

For example:

Unstable sensor connection

↓

Incorrect input signal

↓

Incorrect PLC decision

↓

Incorrect machine movement

↓

Production interruption

This is why connector selection should be considered part of the overall automation architecture—not simply a component-level purchasing decision.

Inside vs. Outside the Control Cabinet

One of the most important considerations is whether the connection is installed inside the cabinet or exposed to the production environment.

This distinction helps engineers avoid a common mistake:

Selecting a connector based only on electrical specifications while ignoring the actual installation environment.

How to Select Industrial Connectors for PLC and Control Cabinets

There is no single connector that is ideal for every control cabinet.

Selection should start with the application rather than the product catalog.

1. Determine What the Connector Carries

First identify whether the connector is transmitting:

• Power
• Control signals
• Sensor signals
• Data
• Mixed power and signal

The electrical requirements will be different for each application.

2. Consider Installation Space

Control cabinets are becoming increasingly compact.

A connector that is electrically suitable may still be difficult to install if there is insufficient space for:

• Cable bending
• Connector mating
• Maintenance
• Heat dissipation

Compact circular connectors can be useful where installation space is limited.

3. Evaluate the Locking Mechanism

Different applications may require different coupling methods.

Common options include:

• Threaded
• Push-pull
• Bayonet
• Lever locking

For fixed cabinet installations, threaded connections may provide secure mechanical retention.

For applications requiring frequent service, quick-lock or push-pull designs may improve maintenance efficiency.

4. Check Environmental Protection

If the connection remains completely inside a protected control cabinet, high IP protection may not always be necessary.

However, connectors installed at the machine interface or outside the cabinet may face much harsher conditions.

In those situations, engineers should consider:

• IP rating
• Water exposure
• Dust
• Oil
• Temperature
• Corrosion
• Vibration

5. Think About Maintenance Before Installation

A connector should not only work when the machine is new.

It should also be easy to inspect, disconnect, replace, and reconnect during maintenance.

This is particularly important for automated production lines where downtime can be expensive.

Which Connector Type Should You Use?

Different control cabinet applications can benefit from different connector architectures.

The goal is not simply to select the connector with the highest specification.

The goal is to select the connector that matches the actual operating conditions.

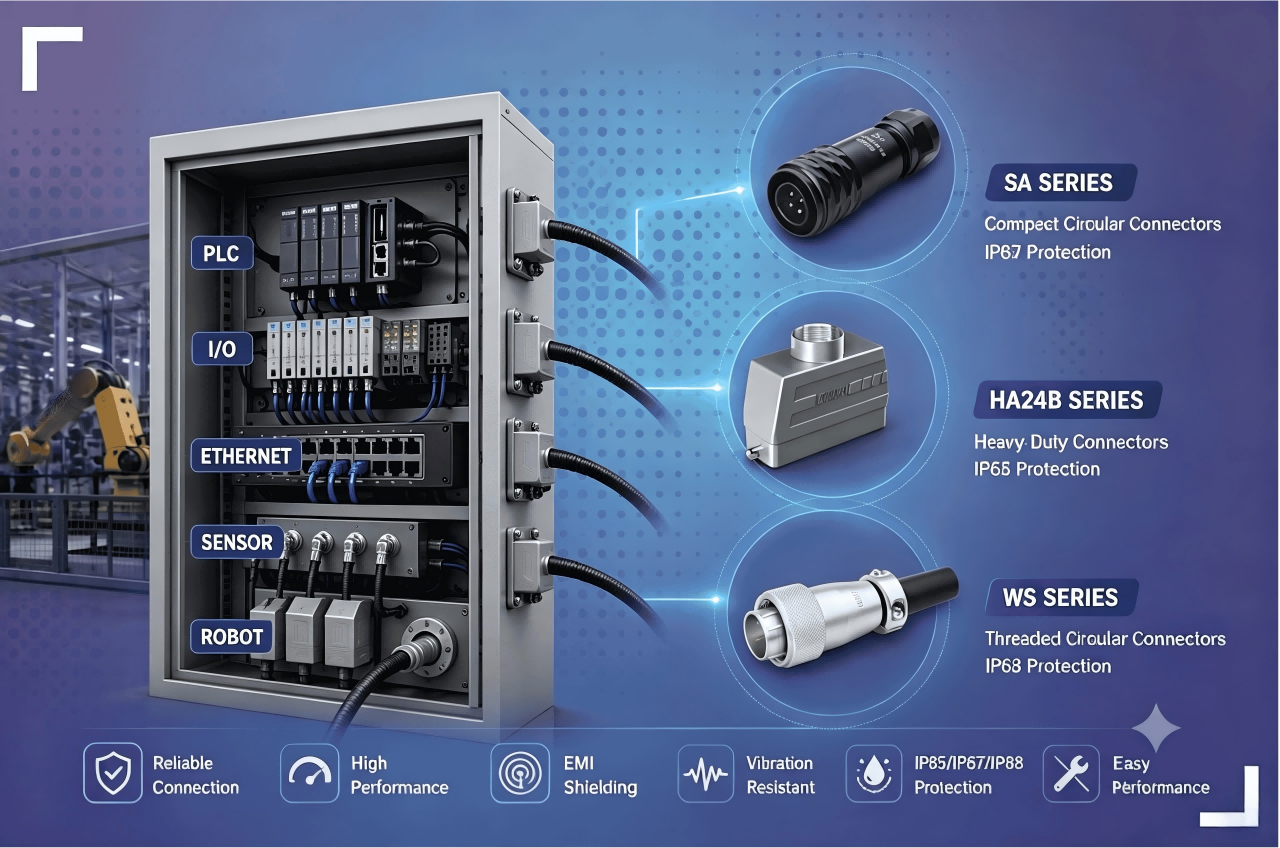

Recommended WEIPU Connectivity Solutions for Control Cabinets

WEIPU provides multiple connector families that can be used across industrial automation and control applications.

The company's current industrial automation portfolio includes circular connectors as well as heavy-duty connection solutions. WEIPU specifically lists HA24B, WS24 and WY24 among its recommended industrial automation connector solutions.

WS Series – Reliable Threaded Connections

The WEIPU WS Series uses a threaded coupling design and offers multiple configurations for industrial equipment.

It can be considered for:

• Control cabinet interfaces
• Industrial machinery
• Sensor and signal connections
• Automation equipment
• Machine interfaces

The series includes multiple connector configurations and cable/receptacle options for different installation requirements.

---

HA24B Heavy-Duty Connectors – Machine and Cabinet Interfaces

For applications requiring a heavier-duty connection architecture, WEIPU's HA24B heavy-duty connector housings provide a different approach from compact circular connectors.

Selected HA24B configurations use metal housings, sealing gaskets, and lever locking, with IP65 protection for coupled assemblies in the referenced configuration.

These connectors can be considered for:

• Industrial machinery
• Control cabinet interfaces
• Machine-to-cabinet connections
• Power and signal interfaces
• Industrial automation equipment

•

---

SA Series – Compact Connections for Space-Constrained Equipment

When installation space is limited, compact circular connectors can simplify equipment design.

The WEIPU SA Series is an IP67 circular connector family with multiple pin-count and termination options, designed for applications including automation.

It can be considered for:

• Compact control equipment
• Sensor interfaces
• Automation devices
• Signal connections
• Space-constrained machinery

---

A Practical Connectivity Architecture for Modern Control Cabinets

A reliable control cabinet should be designed as part of the entire machine rather than as an isolated electrical enclosure.

A practical architecture may look like:

                 Industrial Ethernet
                         │
                         ↓
              ┌──────────────────┐
              │ Ethernet Switch  │
              └────────┬─────────┘
                       │
                       ↓
              ┌──────────────────┐
              │       PLC        │
              └────────┬─────────┘
                       │
          ┌────────────┼────────────┐
          ↓            ↓            ↓
        Remote       Servo        HMI
          I/O        Drive
          │            │
          ↓            ↓
       Sensors       Motor
          │
          ↓
   Machine / Robot / Vision

The key principle is simple:

Every layer of the automation system needs a connection strategy that matches its electrical, mechanical, and environmental requirements.

---

Control Cabinet Connectivity and Industry 4.0

The role of the control cabinet is changing as factories become more connected.

Traditional automation architectures focused primarily on:

PLC → I/O → Machine

Modern systems increasingly add:

PLC → Industrial Ethernet → Edge Computing → Analytics → Cloud

Machine vision systems may also feed inspection data into the control architecture.

Robots may exchange real-time information with PLCs and vision systems.

Remote I/O can move closer to the machine.

As a result, the control cabinet is becoming part of a much larger industrial communication architecture.

This is why connector selection should consider not only today's wiring requirements but also future system expansion.

---

From Control Cabinets to Distributed Automation

One important trend is the movement of automation components away from centralized cabinets.

Instead of placing every I/O module inside one cabinet, manufacturers increasingly use distributed I/O and field-mounted devices closer to machines.

This changes connector requirements.

The connection may now need to withstand:

• Water
• Dust
• Vibration
• Temperature variation
• Mechanical impact

In these applications, environmental protection and mechanical reliability become much more important.

The control cabinet therefore becomes one node in a larger automation ecosystem rather than the only connection center.

---

A Simple Checklist for PLC and Control Cabinet Connectivity

Before selecting a connector, engineers can ask:

Electrical

• What voltage and current are required?
• Is the connection carrying power, signal, or data?
• How many contacts are required?

Mechanical

• Is vibration present?
• Will the connector be frequently mated?
• Is there limited installation space?
• Is cable movement expected?

Environmental

• Is the connection inside or outside the cabinet?
• Is water exposure possible?
• Is oil present?
• What is the operating temperature?
• Is corrosion a concern?

Maintenance

• Can technicians access the connector easily?
• Can it be replaced without rewiring the entire system?
• Is the locking mechanism appropriate for service requirements?

Future Expansion

• Will additional I/O or communication devices be added?
• Does the connector architecture allow modular expansion?
• Can cable assemblies be standardized?

This approach is usually more effective than selecting a connector based on a single specification such as IP rating or current capacity.

---

Building a More Reliable Automation Connectivity Strategy

A reliable industrial automation system is not created by one high-performance component.

It is created by making sure that every connection in the system is appropriate for its role.

From the PLC inside the control cabinet to the sensor on the production line, each connection should be evaluated according to:

Power → Signal → Data → Environment → Mechanics → Maintenance

When these factors are considered together, manufacturers can reduce unnecessary connection failures and create automation systems that are easier to maintain and expand.

---

Conclusion

The PLC may be the brain of an industrial automation system, but connectivity is what allows that brain to communicate with the rest of the machine.

Inside the control cabinet, reliable connections support power distribution, signal transmission, I/O communication, and industrial networking. Outside the cabinet, connectors must often withstand vibration, moisture, dust, oil, and other demanding conditions.

For this reason, selecting industrial connectors should be treated as part of the automation system design—not simply as a component purchasing decision.

As factories move toward distributed automation, Industrial Ethernet, machine vision, robotics, and edge computing, reliable connectivity will become increasingly important across every layer of the control architecture.

The more connected the factory becomes, the more important every connection becomes.
