Prolonging Lifespan: Best Practices for Maintaining Your Multi Pin Circular Connector

The Critical Importance of Multi Pin Circular Connector Maintenance

Because a Multi Pin Circular Connector contains numerous closely spaced pins, even a microscopic amount of debris or a slight physical misalignment can cause cross-talk or short circuits. In sectors like medical imaging or automated manufacturing, maintaining these interconnects ensures that signal integrity remains within strict tolerance levels. Consistent care extends the component's life, ensuring you get the maximum value from your hardware investment.

Routine Inspection Protocols for High-Density Connectors

Regular visual and mechanical inspections are the first line of defense against unexpected failure.

Identifying Mechanical Wear and Physical Damage

Technicians should regularly examine the coupling nut and the threads of Male and Female Circular Connectors. Look for signs of "galling" on the metal threads or cracks in the composite shells. These mechanical defects can prevent the connector from reaching its full mated position, compromising the environmental seal and electrical contact.

Checking for Pin Realignment and Electrical Integrity

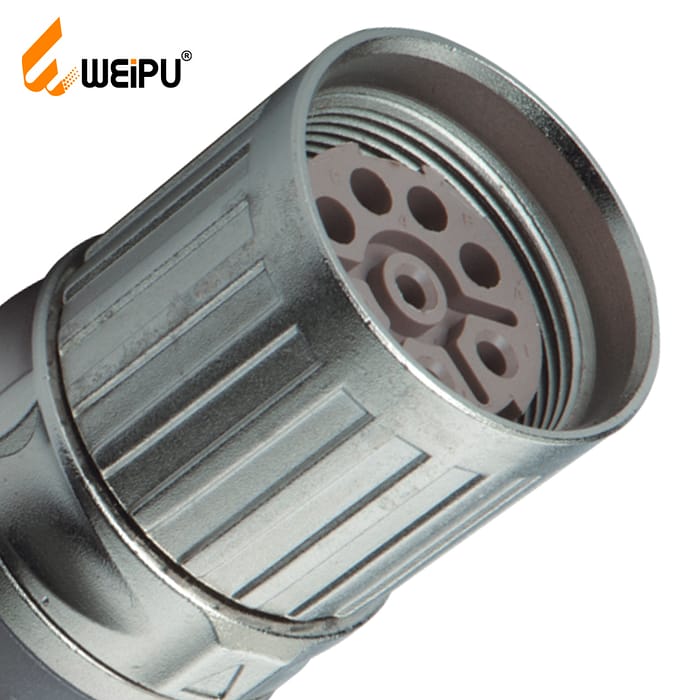

Using a magnifying tool, inspect the internal "face" of the connector. For Multi-Contact Electrical Connectors, pins must be perfectly straight. Even a slightly bent pin can damage the female socket during mating. Additionally, look for signs of fretting corrosion—a fine dark powder—which indicates that vibration is causing micro-movements between the contacts.

Professional Cleaning Techniques for Optimal Signal Performance

Contamination is the leading cause of high contact resistance in a Multi Pin Circular Connector.

Recommended Solvents and Cleaning Tools

Always use specialized electrical contact cleaners or high-purity isopropyl alcohol. Avoid generic lubricants that can attract dust. WEIPU connectors, known for their precision engineering, benefit from the use of non-linting swabs or compressed air to remove particulates from deep within the insulator cavities without leaving fibers behind.

Avoiding Common Cleaning Errors That Lead to Corrosion

One of the most frequent mistakes is over-cleaning or using abrasive materials. Scrubbing the gold-plated pins can strip the protective layer, exposing the base metal to Corrosion Resistance in Interconnects failure. Ensure all solvents have completely evaporated before re-mating to prevent "trapped" moisture.

Environmental Protection Strategies for Industrial Connectors

In harsh settings, the external housing is the primary shield for the delicate internal pins.

The Role of Sealing Gaskets and Dust Caps

When a connector is unmated, the internal pins are vulnerable to the atmosphere. Utilizing high-quality Dust Caps for Multi Pin Connectors is the simplest way to prevent oxidation. Furthermore, check that the internal sealing gaskets are not brittle or flattened, as these maintain the IP68 Waterproof Circular Connectors rating necessary for wet or wash-down environments.

Managing Vibration and Strain Relief in Heavy-Duty Applications

Vibration is a silent killer of electrical connections. Reliable setups utilize Heavy Duty Cable Strain Relief accessories (such as backshells) to ensure that the mechanical tension of the cable is absorbed by the connector shell rather than the soldered or crimped pins. This prevents the wire-to-contact bond from fatiguing over time.

Storage Best Practices to Prevent Long-Term Degradation

If Circular Industrial Connectors are to be stored for extended periods, they should be kept in a temperature-controlled, low-humidity environment. Avoid storing them in bags that can trap moisture. Keeping the connectors mated or capped during storage prevents the delicate pin-and-socket interfaces from being crushed or exposed to sulfur-rich air, which tarnishes silver and copper elements.

Knowing When to Repair vs. When to Replace

While cleaning can solve many issues, some damage is terminal. If the Mating Cycles and Durability limit specified by the manufacturer has been reached, the spring tension in the female sockets may be exhausted. If you notice persistent intermittent signals after cleaning, or if the locking mechanism no longer provides a tactile "click," it is time to source a replacement to avoid a more costly failure during production.

Conclusion

A proactive approach to maintaining your Multi Pin Circular Connector ensures that your industrial systems remain efficient and safe. By focusing on cleanliness, environmental shielding, and regular mechanical checks, you can significantly prolong the lifespan of your interconnects and maintain the highest levels of signal performance.
