Rectangular Connector Hoods: How to Choose Between Top and Side Entry

In industrial electrical design, the protection of connections is just as critical as the electrical specifications themselves. When working with Heavy Duty Connector Hoods & Housings, engineers often face a pivotal decision: should they use a top entry or a side entry hood? This choice significantly impacts cable management, space utilization, and the long-term reliability of your connection points.

Understanding the Role of Rectangular Connector Hoods

Rectangular connectors are the workhorses of modular industrial wiring. The Heavy Duty Connector Hoods & Housings serve as the outer armor, shielding internal inserts from dust, moisture, and mechanical stress. The "entry" refers to where the cable enters the hood, and selecting the wrong orientation can lead to premature cable fatigue or assembly difficulties.

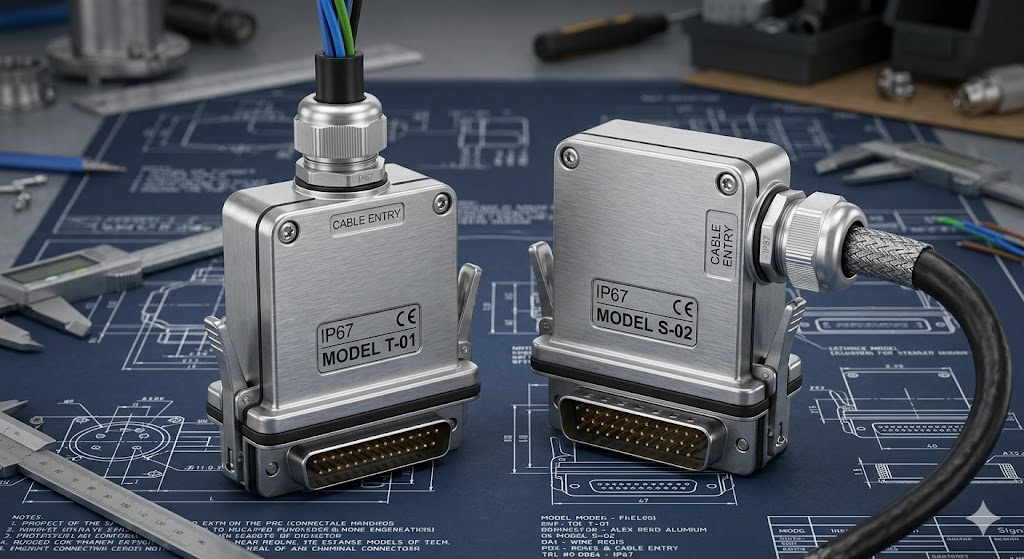

When to Choose Top Entry Hoods

Top entry hoods are designed with the cable gland opening located directly opposite the mating face. This is the most common configuration for Heavy Duty Connector Hoods & Housings when cables are dropped vertically from overhead trays.

Key Advantages of Top Entry:

• Vertical Alignment: Ideal for hanging cables, as the weight of the cable is distributed evenly across the gland.

• Minimal Footprint: If the machine panel has limited horizontal space, a top entry allows for a slim, vertical profile.

• Gravity Drainage: In environments with heavy liquid splashing, vertical cable runs help prevent water from pooling at the entry point of the Heavy Duty Connector Hoods & Housings.

When to Choose Side Entry Hoods

Side entry hoods feature a 90-degree cable exit. This configuration is essential when vertical clearance above the connector is restricted, such as inside small control cabinets or underneath machinery.

Key Advantages of Side Entry:

• Low Clearance: Perfect for tight spaces where a vertical cable loop would be impossible.

• Parallel Routing: If cables must run along the surface of a panel, side entry Heavy Duty Connector Hoods & Housings provide a much cleaner and more organized routing path.

• Reduced Bend Radius Stress: By exiting sideways, the cable naturally follows the horizontal path of the machine, preventing sharp, damaging kinks.

Ensuring Ingress Protection and Durability

Regardless of the entry type, the priority is always maintaining the seal. High-quality Heavy Duty Connector Hoods & Housings must feature robust locking levers—either single or double—to compress the gasket against the housing base.

As a global leader in the interconnect field, Weipu provides an extensive range of these solutions. Their hoods are engineered with precision to ensure that whether you choose top or side entry, the mechanical locking remains secure under heavy vibration, which is common in rail transit and automation industries.

Installation Tips for Heavy Duty Connector Hoods & Housings

1. Check the Gland Size: Ensure your cable diameter matches the gland's sealing range to maintain IP65/IP67 ratings.

2. Verify Locking Compatibility: Ensure the "Housings" (bases) have the same lever configuration (single or double) as the "Hoods" (tops).

3. Consider High-Construction Models: If you are using thick multi-core cables, Heavy Duty Connector Hoods & Housings with "high-construction" profiles provide extra internal room for wiring.

Frequently Asked Questions (FAQs)

Q: Can I convert a top entry hood into a side entry hood? A: No. The entry point is cast into the metal or molded into the plastic of the Heavy Duty Connector Hoods & Housings. You must select the correct orientation at the time of purchase.

Q: Which entry type is better for high-vibration environments? A: Both are effective, but side entry is often preferred if the cable can be secured to the panel immediately after exiting the hood, reducing the "swing" weight of the cable.

Q: What material is best for these hoods? A: Die-cast aluminum is the standard for durability and EMI shielding, while high-grade plastic is suitable for corrosive chemical environments.

Conclusion: Making the Right Connection

Choosing between top and side entry for your rectangular connector hoods is a balance between spatial constraints and cable geometry. By selecting the appropriate Heavy Duty Connector Hoods & Housings, you ensure that your system remains protected, organized, and easy to maintain.

Weipu is dedicated to providing high-performance industrial connector solutions that meet the most demanding international standards. Their products, known for their exceptional sealing and rugged construction, are the ideal choice for ensuring long-term connectivity in harsh industrial settings. To find the perfect interconnect solution for your next project, visit the Weipu official website and explore their comprehensive range of heavy-duty components.
