Guide to Selecting Heavy Duty Connector Hoods for Industry

In the world of industrial automation and mechanical engineering, the stability of electrical connections is paramount. While the internal inserts handle the signal and power, it is the Heavy Duty Connector Hoods that act as the first line of defense. These robust enclosures are designed to protect sensitive connections from the harshest environmental factors, ensuring that your machinery stays operational without costly downtime.

Why Heavy Duty Connector Hoods are Essential

Industrial environments are unforgiving. Dust, moisture, oil, and mechanical vibrations can easily degrade an unprotected electrical terminal. Heavy Duty Connector Hoods provide the necessary shielding to maintain electrical integrity. By encasing the connectors in a die-cast metal or high-performance thermoplastic shell, they prevent physical damage and corrosion.

Protection Against Environmental Elements

Most high-quality hoods are rated by IP (Ingress Protection) codes. Whether it is a standard IP65 rating or a more rigorous IP67/IP68 requirement for submersion, these enclosures ensure that neither fine dust nor high-pressure water jets can penetrate the seal. This is particularly critical in food processing or outdoor energy applications where exposure to elements is a daily occurrence.

Mechanical Integrity and Strain Relief

Beyond environmental sealing, Heavy Duty Connector Hoods provide vital strain relief for cables. Through the use of integrated cable glands, the weight and tension of the wiring are transferred to the hood’s shell rather than the electrical pins, significantly extending the lifespan of the connection.Often used in conjunction with Heavy Duty Rectangular Connectors, these hoods facilitate secure, multi-pin connections in a compact and modular format.

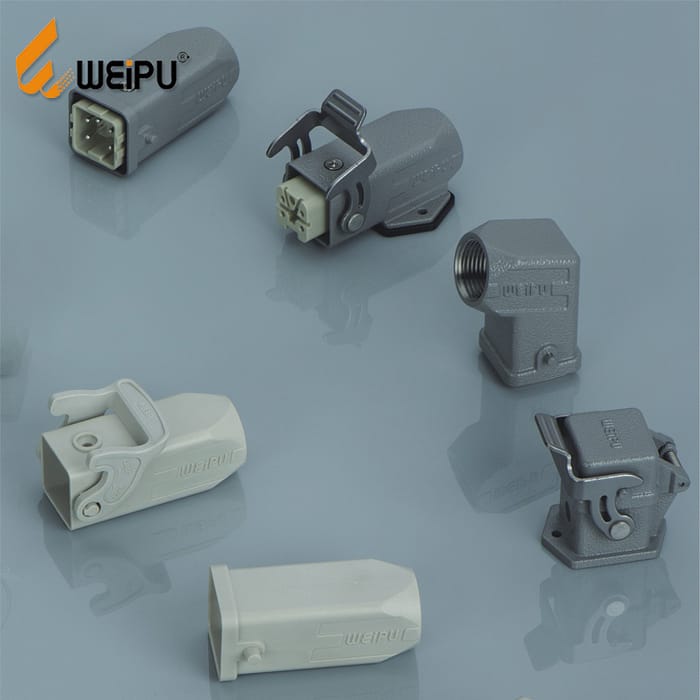

Material Matters: Aluminum vs. Plastic Hoods

Choosing the right material for your Heavy Duty Connector Hoods depends on your specific application. Die-cast aluminum is the industry standard for mechanical strength and EMI shielding, whereas specialized plastic versions offer superior resistance to chemicals and salt-spray corrosion.

As a leading global provider of interconnect solutions, Weipu offers a diverse range of connector housings that cater to these specific needs. Their engineering focuses on precision fitment and high-grade surface treatments, making them a reliable choice for rail transit, renewable energy, and heavy machinery.

Cable Entry Options: Side vs. Top Entry

When designing your system, the orientation of the Heavy Duty Connector Hoods is a key logistical decision.

• Side Entry Hoods: Ideal for low-clearance areas where the cable needs to run parallel to the mounting surface.

• Top Entry Hoods: Preferred for vertical drops where the cable descends directly into the machine interface.

Correct orientation prevents excessive bending of the cable, which is the primary cause of internal wire fatigue.

Frequently Asked Questions (FAQs)

Q: What is the difference between a high-construction and standard-construction hood?

A: High-construction Heavy Duty Connector Hoods offer more internal space, which is necessary for managing thicker cables or multi-core bundles that require a larger bending radius inside the housing.

Q: Can I use different brands of hoods and housings together?

A: While many manufacturers follow the Han-style standard sizing (such as 6B, 10B, 16B, and 24B), it is always recommended to use the same manufacturer for the hood and base to ensure the locking levers and gaskets provide a perfect, airtight seal.

Q: How do I know if my connector hood is EMI protected?

A: Generally, metallic Heavy Duty Connector Hoods provide inherent EMI shielding. For sensitive signal applications, ensure you use conductive gaskets and specialized EMI-shielded cable glands to complete the circuit.

Conclusion: Securing Your Industrial Infrastructure

Selecting the right protective housing is not just a technical detail—it is an insurance policy for your equipment. By prioritizing Heavy Duty Connector Hoods that meet your specific IP rating and mechanical stress requirements, you guarantee a more resilient and maintenance-free system.

Weipu stands at the forefront of this technology, providing high-performance industrial connectors that are trusted by engineers worldwide. Their products are characterized by exceptional durability, ease of assembly, and compliance with the most stringent international standards. To secure your next project with world-class protection, visit Weipu's official website to explore their comprehensive catalog or contact their expert team for a customized solution.
