Medical Circular Connector Selection Guide: Engineering & Procurement Handbook (2026)
Selecting the right medical circular connector is not just a mechanical decision—it is a multidisciplinary engineering process involving electrical safety, sterilization compatibility, regulatory compliance, and lifecycle reliability. In modern medical device design, connector failure is one of the most common causes of system downtime and field maintenance cost.
This guide provides a complete engineering and procurement framework for selecting a medical circular connector, including detailed technical parameters, compliance standards, and real-world application scenarios.

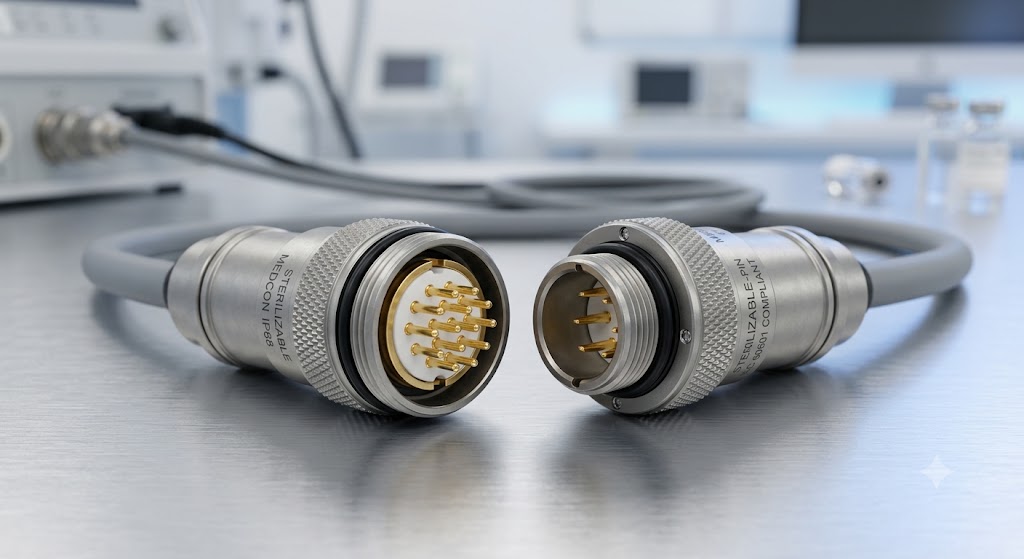

1. Engineering Definition and Functional Role
A medical circular connector is a sealed interconnect system designed for healthcare environments where reliability and hygiene are critical. It is commonly used in patient monitoring systems, surgical devices, imaging systems, and diagnostic equipment.
Unlike industrial connectors, medical-grade connectors must maintain signal integrity under repeated sterilization cycles and electromagnetic interference.
👉 Explore certified solutions:
WEIPU Medical Circular Connector Solutions
2. Key Engineering Parameters (Critical for Selection)
When selecting a medical circular connector, engineers should evaluate the following technical parameters:
- Contact resistance: ≤5 mΩ for stable signal transmission
- Insulation resistance: ≥1000 MΩ under rated voltage
- Dielectric withstand voltage: typically 1500V–5000V depending on application
- Mating cycles: 1,000 to 10,000 cycles depending on usage frequency
- Shielding effectiveness: critical for MRI/CT systems
- Ingress protection: IP67 or IP68 for fluid resistance
These parameters directly impact device safety, reliability, and certification success rate.
3. Sterilization Compatibility Requirements
Medical environments require connectors to withstand repeated sterilization without degradation. Common sterilization methods include:
- Autoclave steam sterilization (121–134°C)
- Ethylene oxide (EtO) sterilization
- Hydrogen peroxide plasma sterilization
- Gamma radiation (25–40 kGy)
Material selection is critical. Engineering plastics such as PPSU, PEEK, and medical-grade silicone are widely used in sealing and insulation systems.
👉 View engineering solutions: Medical Connector Material Systems

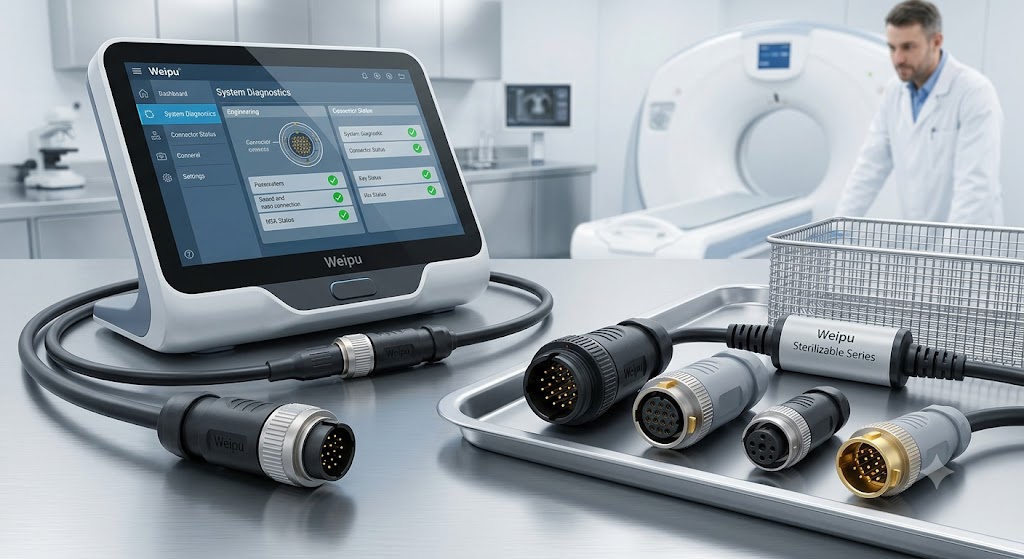

4. Application Scenarios in Medical Systems

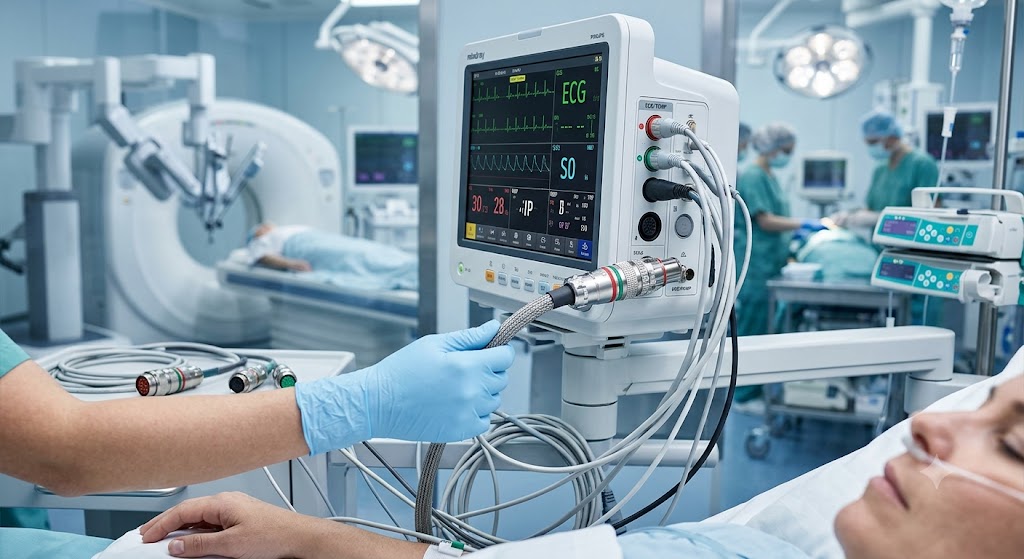

Medical circular connectors are deployed in multiple high-reliability environments:
- ICU monitoring systems: continuous patient signal transmission
- Surgical robotics: precision motion control and feedback
- Medical imaging: high-speed data transmission (CT/MRI)
- Portable devices: compact ruggedized design
- Emergency systems: shock and vibration resistance
👉 Explore application solutions: Medical Device Connector Applications
5. Regulatory Standards and Compliance Requirements
To enter global medical markets, connectors must comply with strict international standards:
- IEC 60601-1: Electrical safety of medical devices
- IEC 60601-1-2: Electromagnetic compatibility (EMC)
- ISO 10993: Biocompatibility testing
- IEC 60529: IP protection classification
- ISO 13485: Medical device quality management system

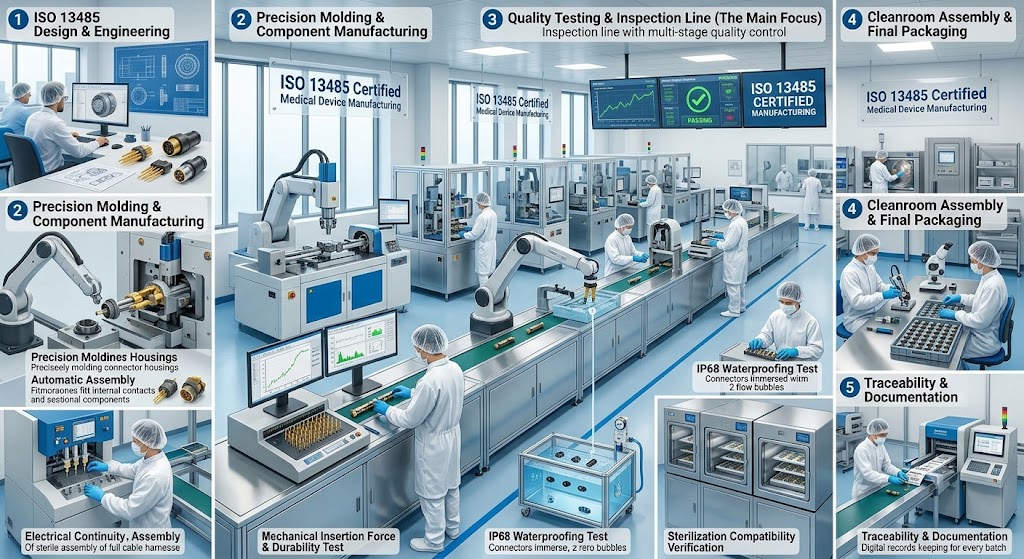

6. Reliability Testing and Validation Process
Validation ensures long-term stability in clinical environments. Key tests include:
- Mechanical lifecycle testing
- Vibration and shock resistance
- Salt spray corrosion testing (ASTM B117)
- Thermal cycling (-40°C to +125°C)
- IP67/IP68 waterproof sealing verification
👉 Engineering support: Request Technical Consultation
7. Procurement and Supplier Selection Strategy
Selecting the right supplier is as important as selecting the connector itself. A qualified medical connector supplier should provide:
- ISO 13485 certified production system
- Full traceability of raw materials
- Engineering customization (OEM/ODM)
- Prototype and sample support
- Regulatory documentation support
8. Common Engineering Mistakes
- Ignoring sterilization early in design phase
- Overlooking EMC shielding requirements
- Selecting connectors only based on cost
- Underestimating mating cycle requirements
- Skipping validation testing before certification
9. Industry Trends and Future Development
The medical connector industry is evolving rapidly due to digital healthcare transformation.
- Miniaturization for wearable medical devices
- High-speed digital data transmission (>10Gbps)
- Smart connectors with embedded sensing
- Hybrid fiber + electrical architectures
- AI-assisted surgical connectivity systems
10. Conclusion
Selecting the right medical circular connector requires a systematic evaluation of electrical, mechanical, environmental, and regulatory factors. A well-designed selection strategy significantly improves device reliability, reduces compliance risk, and accelerates time-to-market.
Visit: www.weipu-group.com
FAQ
When complying with IEC 60601-1, what is the difference between MOPP and MOOP for connectors？
2 × MOPP (Means of Patient Protection) is mandatory for patient-applied parts, requiring a higher dielectric withstand voltage (4000 V AC) and stricter creepage distances. Conversely, MOOP (Means of Operator Protection) applies to clinicians and follows standard IT/industrial safety margins (IEC 62368).
Why do some IP68-rated medical connectors still fail after steam autoclaving?
An IP68 rating only certifies water ingress protection under ambient temperature and pressure. Autoclaving uses superheated steam (121°C-134°C) under high pressure (200kPa), which causes differential thermal expansion between metal shells and plastic insulators, destroying standard seals. You must specify PEEK/PPSU materials.
What are the material requirements for circular connectors undergoing Ethylene Oxide (EtO) sterilization?
Connectors must use housing materials and cable jackets chemically compatible with highly reactive EtO gas to prevent embrittlement. Structurally, the connector geometry must eliminate blind unvented holes or deep crevices to prevent toxic gas entrapment and ensure efficient outgassing during aeration.
How do you solve EMI/EMC issues in connectors for surgical robots and imaging systems?
To meet IEC 60601-1-2, you must implement a 360° continuous metal shielding across the plug and receptacle interface using grounding springs. Additionally, the cable braid must achieve low-impedance termination to the backshell using copper compression bands to eliminate RF leakage and crosstalk.
Why must plastic medical connector housings comply with ISO 10993?
ISO 10993 certifies the biocompatibility of materials in direct or indirect contact with patients or clinicians. Unlike food-grade (FDA) compliance, it strictly mandates in vitro and in vivo testing for cytotoxicity, skin irritation, and dermal sensitization to guarantee the plastic won't cause adverse biological reactions.
