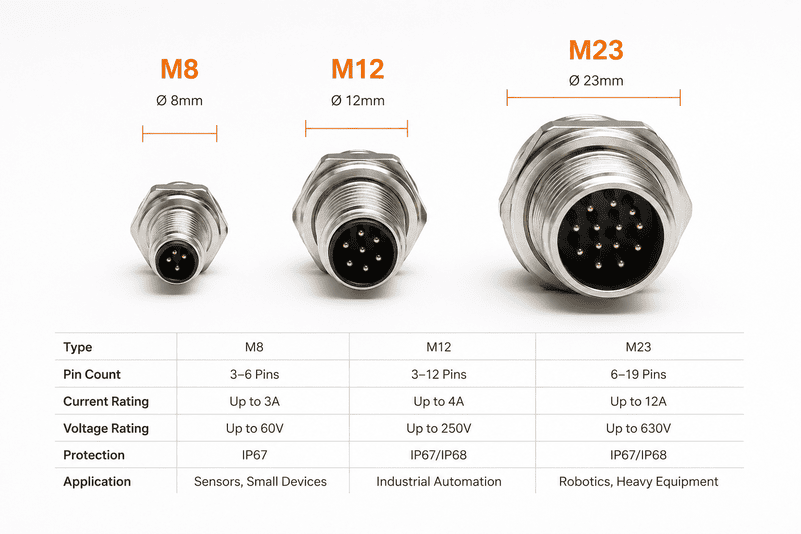

Match each sensor signal to its function and choose the coding to prevent cross-mating: A-code M12: Standard DC sensors and actuators. D-code M12: Industrial single-pair Ethernet. X-code M12: High-speed, multi-pair data. M8: Space-limited, low-current networks. Always verify pin assignments via the PLC I/O documentation rather than assuming standard vendor layouts. Use gold plating for low-level signals to prevent oxidation.

Follow the manufacturer's datasheet for exact hole diameters and tolerances. For front-panel mounts, fit the O-ring or gasket tightly between the connector flange and the panel, then torque the locknut to spec to achieve an IP67/IP68 rating. Use isolation washers on multi-layer surfaces to ensure even compression.

Size conductors based on the connector's maximum current rating and continuous load, factoring in temperature and bundling derating. For standard industrial panel wiring: Signal Circuits: Use AWG 22–18 (suitable for up to a few amps). Power Pins: Use AWG 16–12 or larger depending on the load. Always use specified crimp/solder tooling to ensure low contact resistance and prevent thermal failure.

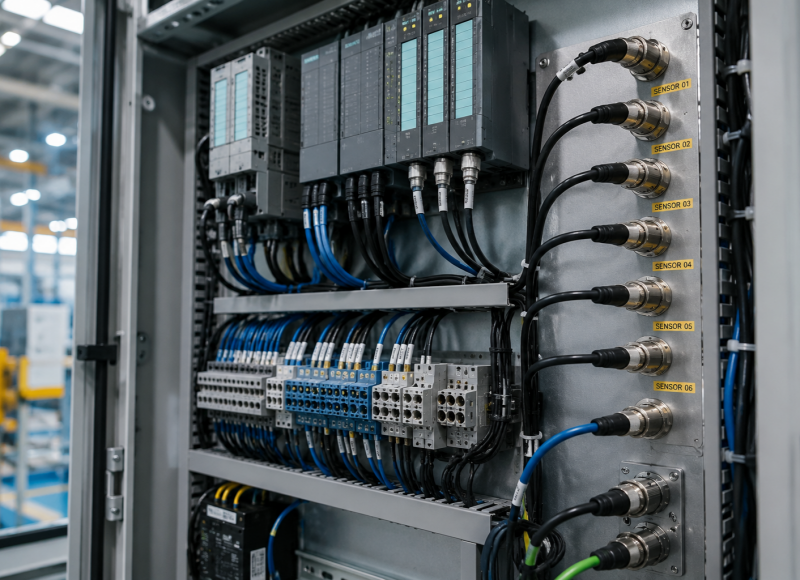

Protect your panel connections by using a cable gland or boot sized precisely to the cable's outer diameter. For reliable routing and maintenance: Bend Radius: Maintain a minimum bend radius of 6x to 8x the cable diameter to prevent conductor fatigue. Support: Secure cables using clamps or ties outside the connector zone; never let the connector body bear the cable's weight. Shielding: Terminate shields at a single ground point or both ends based on EMI requirements.
