How to Specify Circular Connectors for High-Power Applications

Author: Weipu Group technical team. This guide answers six specific beginner pain-point questions about specifying circular electrical connectors and power circular connector systems for demanding industrial, EV, and marine applications. References: IEC 60529 (IP), IEC 61076 series (M12/M16), IEC 60512 (test methods), IEC 62196/SAE J1772 (EV), MIL-DTL-38999 (high-reliability) where relevant.

1. How do I size contacts and select contact arrangement for a 200 A bus in a compact circular connector housing?

Solution steps:

• Start with conductor cross-section (mm²) or AWG-to-current rules: typical continuous current ranges (typical wiring guidelines, validate with manufacturer datasheet): AWG 8 ≈ 40–55 A, AWG 6 ≈ 55–75 A, AWG 4 ≈ 70–95 A; metric: 10 mm² ≈ 40–70 A, 16 mm² ≈ 70–120 A, 25 mm² ≈ 100–160 A. Use these as ballpark values and always confirm with the connector maker.
• For 200 A, avoid relying on a single small pin. Use multiple parallel power contacts or a dedicated large power contact (busbar style). For example, two 100 A rated contacts or one 200 A contact sized to ~25–35 mm² conductor cross section (manufacturer-specific).
• Check contact current density: keep contact temperature rise acceptable (ΔT ≤ 30–40 °C above ambient for long-term reliability). Manufacturers publish allowable current vs. temperature rise. If not available, derive from conductor resistance: R ≈ resistivity × length / area. Use crimp contact resistance (typically a few milliohms) to estimate I²R losses.
• Consider contact arrangement and spacing: maintain sufficient pitch to control heating and ensure creepage/clearance for any voltages present. For combined power + signal, segregate power contacts from signal/PE with insulating partitions or separate shells.
• Mechanical constraints: shell diameter limits the maximum contact cross-section. If housing diameter is constrained, increase number of parallel contacts rather than oversizing single pins.

Checklist: consult connector datasheet for per-contact ampacity, maximum allowable parallel contacts, torque specs for power terminals, and recommended cable AWG or mm². When in doubt, prototype under full load and measure contact temperature and voltage drop.

2. How do I calculate thermal derating and continuous current rating for a circular connector in elevated ambient temperatures?

Answer:

• Thermal derating must include ambient temperature, ventilation, enclosure thermal resistance, and contact heating. Manufacturer datasheets often give a base rating at 20–25 °C; apply the vendor's derating curve if provided.
• If vendor data is absent, use a conservative engineering approach: reduce rated current by 10–20% for each 10 °C above 30 °C, depending on cooling. Example: a contact rated 100 A at 30 °C may be derated to ~80 A at 50 °C (approximate; verify with vendor).
• Estimate connector junction temperature: Tj = Tambient + (I²R × Rth) where Rth is thermal resistance from contact to ambient. Rth is rarely published—measure in prototype or request thermal data. Use thermal imaging during a 1–2 hour soak test at worst-case current to verify steady-state temperature.
• Design margin: specify continuous current ≤ 80% of the current that produces the connector vendor’s maximum allowable temperature rise. This prevents accelerated contact oxidation and insulation aging.

Standards note: verify against IEC 60512 mechanical/thermal endurance tests and any relevant UL or IEC product safety listing that references temperature limits of insulating materials (e.g., UL94 flammability rating and material CTI).

3. Which sealing and materials (IP, gasket, shell) should I choose for high-power circular connectors used in washdown or marine environments?

Answer:

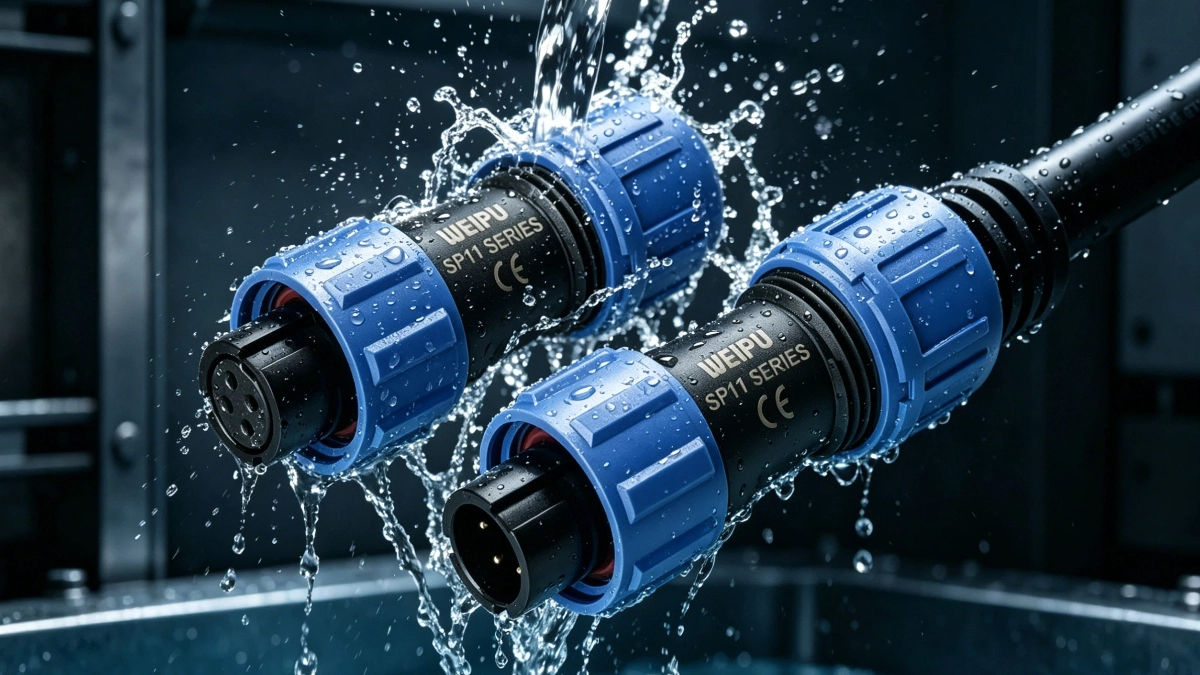

• IP rating: For heavy washdown and high-pressure cleaning choose IP68/IP69K per IEC 60529 for continuous immersion and high-pressure/high-temperature spray resistance. IP67 only covers temporary immersion; IP69K adds high-pressure washdown.
• Material selection: shells—stainless steel (316) or plated brass for corrosion resistance; insulation—high-temperature thermoplastics like PPS, PEEK, or glass-filled nylons rated for operating temperature and chemical exposure; contacts—copper alloys with appropriate plating (silver for high current/low contact resistance; nickel underplate for corrosion resistance). Silver plating can increase conductivity but may tarnish—choose silver or gold per contact function.
• Sealing implementation: use double O-ring seals on mating face and cable entry; use cable glands with strain relief sized to cable outer diameter and chemical-resistant elastomers (EPDM, FKM). For IP69K ensure screw coupling and mating face design eliminate crevices where debris can accumulate.
• Testing: require IP testing certificates and salt-spray/corrosion test results (e.g., ASTM B117) for marine use, and provide evidence of thermal cycling and vibration per IEC 60512.

Practical tip: for power connectors subject to periodic high-current cycles, avoid elastomers that soften at operating temperature—specify high-temp elastomers or silicone alternatives rated above expected peak temperatures.

4. How do I handle EMI, grounding, and shielding when using circular connectors for three-phase motor feeders and variable-frequency drives?

Answer:

• Use a continuous metal shell with conductive mating and proper shell-to-chassis contact (0.5–1.0 mm² of contact area recommended) to ensure low-impedance grounding/EMI return path. Consider knurled locking rings with conductive backing washers for reliable shell contact.
• Provide separate dedicated PE/ground contacts rather than relying on shell-only grounding when safety codes require a positive conductor. Ensure PE conductor cross-section follows local codes (often equal to or larger than phase conductor for high-current).
• For EMI suppression: integrate a 360° braided cable shield terminated under a shield collar or clamp on the connector shell. Use feed-through capacitors or EMI filters upstream/downstream of the connector as needed. Maintain controlled impedance and avoid sudden shield terminations that produce common-mode currents.
• Minimize loop area: route power and return/shield closely together and keep signal wiring separate or use isolated signal connectors. For VFD output, use shielded motor cables with drain wire terminated to connector shell and chassis near the drive.

Standards and practice: follow EMC mitigation guidance in IEC 61800 (drive standards) and vendor application notes. Validate with conducted and radiated emission testing per CISPR/IEC EMC standards in the target installation.

5. What are realistic expectations for mating cycles, contact reliability, and maintenance for high-current circular connectors?

Answer:

• Mating cycles differ by family: industrial M12 sensor connectors are often rated ~100–500 mating cycles (see IEC 61076-2-101), while heavy-duty power circular connectors and military series (e.g., MIL-DTL-38999) can be rated for hundreds to thousands. Always use the connector rating from the vendor.
• High-current contacts are more sensitive to contamination and oxidation. Keep contact resistance low: a fresh crimp/solder termination typically yields contact resistance in the milliohm range. Expect long-term increases if seals fail or galvanic corrosion occurs.
• Maintenance schedule: inspect and torque power terminals at commissioning and then periodically (e.g., after thermal cycles or annually). Use a calibrated torque wrench and follow the torque values in the datasheet—under-torquing raises contact resistance; over-torquing can deform contacts.
• Proactive testing: measure contact resistance and voltage drop under load (Kelvin clamp) during commissioning and after maintenance intervals. Replace contacts or perform re-crimping if resistance rises beyond manufacturer thresholds (commonly a few percent above baseline).

Practical advice: design connectors to be maintenance-friendly—use replaceable contact inserts and ensure accessibility for torque checks.

6. How should I specify circular connectors for combined high-voltage and high-current (e.g., DC fast charging or traction systems) to meet creepage/clearance, safety, and test requirements?

Answer:

• Safety first: separate high-voltage and power conductors with insulating barriers or use distinct connectors. For EV charging and traction systems, reference IEC 62196, IEC 61851 and local standards (and SAE J1772 where applicable).
• Creepage and clearance: determine maximum system voltage and environmental pollution degree (IEC 60664-1). For higher voltages or polluted environments, increase creepage distances and select insulators with higher CTI (Comparative Tracking Index).
• Insulation coordination: specify dielectric withstand (hipot) values typically 2–4 times the operating voltage for design verification. For example, a 1000 VDC system may require a 3–4 kV DC test during type testing—follow the standard called out by the application.
• Partial discharge and corona: for high-voltage DC check whether components have been validated for PD inception. Use gas-tight seals or potting where required.
• Safety interlocks: include interlock contacts or pilot pins that detect proper mating before live power is applied (as used in EV charging interfaces). Reinforce by mechanical interlocks or shutter mechanisms for user safety.

Testing: require dielectric, insulation resistance, temperature rise, mechanical endurance, vibration and shock tests per IEC/MIL standards relevant to the application. For EV and traction, require homologation evidence and type test reports.

Concluding summary

Properly specifying a power circular connector requires matching contact geometry and count to ampacity, applying thermal derating for ambient conditions, choosing corrosion-resistant materials and IP69K-class sealing for washdown/marine, planning EMI/grounding strategies for VFDs, setting realistic maintenance and mating-cycle expectations, and meeting creepage/clearance and safety standards for high-voltage applications. Using manufacturer datasheets, performing thermal and electrical prototype testing, and selecting components with documented IEC/MIL/UL test reports reduces field failures and accelerates certification.

Advantages of well-specified circular connectors: compact power density, robust mechanical coupling, serviceable contacts, integrated sealing and shielding options, and compliance paths to IEC/MIL/UL standards—delivering reliable long-term performance in harsh industrial and transportation environments.
