The Ultimate Guide to Heavy Duty Rectangular Connectors

In the world of industrial automation and harsh environment engineering, the reliability of electrical connections is non-negotiable. Heavy Duty Rectangular Connectors have become the industry standard for providing secure, modular, and rugged interfaces in everything from robotics to CNC machinery.

What are Heavy Duty Rectangular Connectors?

Often referred to as "rectangular power plugs," these connectors are designed to withstand extreme mechanical stress, moisture, and dust. Unlike standard circular connectors, the rectangular design allows for a higher density of contacts and easier modularity.

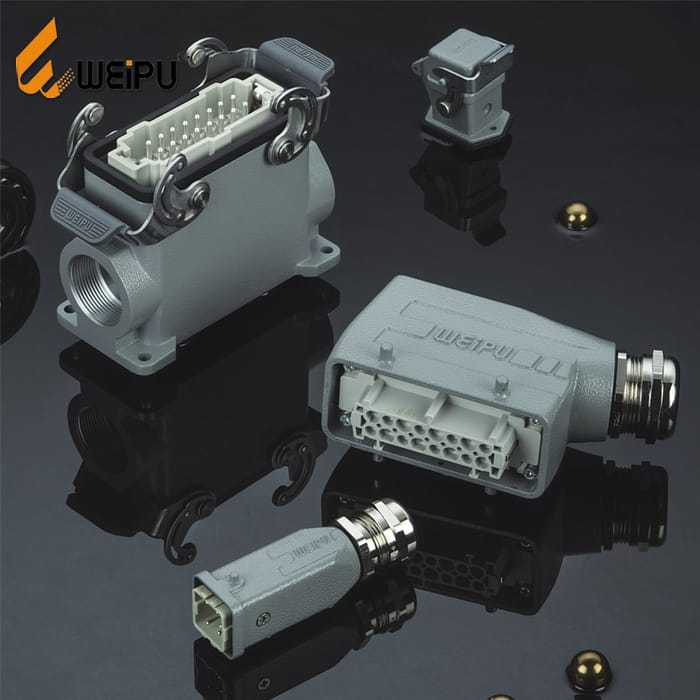

A standard setup typically consists of four main components:

1. The Hood: The top protective housing.

2. The Housing: The base, often panel-mounted.

3. The Insert: The "heart" of the connector where the pins are held.

4. Contacts: The conductive pins (male and female).

Why Choose Rectangular Over Circular?

For many engineers, the Heavy Duty Rectangular Connectors offer a "Lego-like" flexibility. You can combine power, signal, and even pneumatic lines within a single housing. This modularity reduces the footprint on your control cabinet and simplifies maintenance. When searching for an industrial rectangular power plug, most professionals prioritize this modularity to save assembly time.

Key Selection Criteria for Industrial Environments

Choosing the right connector requires more than just matching pin counts. You must consider:

• IP Ratings: For outdoor or wash-down areas, an IP65 Waterproof Industrial Connector is mandatory to prevent ingress.

• Locking Mechanisms: Single or double lever systems ensure the connection stays seated even under heavy vibration.

• Current and Voltage: Ensure the inserts are rated for your specific load to prevent overheating.

Leading manufacturers like Weipu focus on precision engineering to ensure these components meet international safety standards, providing high-performance solutions that endure years of industrial wear and tear.

Step-by-Step: Assembling Your Heavy Duty Connector

1. Prepare the Cable: Strip the outer jacket and individual wires according to the contact specifications.

2. Crimp the Contacts: Use a professional crimping tool to ensure a gas-tight connection.

3. Seat the Inserts: Snap the male and female inserts into their respective hoods and housings.

4. Secure the Gland: Tighten the cable gland to ensure the Heavy Duty Rectangular Connectors maintain their IP rating.

Troubleshooting Common Connection Issues

If you experience signal loss, first check for "contact back-out," where a pin wasn't fully seated in the insert. Secondly, inspect the gasket between the hood and housing; a pinched gasket is the leading cause of moisture ingress in a Heavy Duty Rectangular Connectors setup.

FAQs About Heavy Duty Connectors

Q: Can I mix different brands of inserts and housings?

A: While many follow the "H-series" standard, it is best to use components from a single manufacturer like Weipu to ensure perfect tolerance and sealing.

Q: What is the benefit of an industrial rectangular power plug in robotics?

A: It allows for quick-disconnect capabilities during maintenance, significantly reducing machine downtime compared to hard-wiring.

Q: Are these connectors resistant to chemicals?

A: Yes, most Heavy Duty Rectangular Connectors use powder-coated aluminum or high-grade thermoplastics designed to resist oils and industrial solvents.

Conclusion

Investing in high-quality Heavy Duty Rectangular Connectors is an investment in your facility's uptime. By understanding the modularity, protection ratings, and assembly nuances, you ensure your electrical systems remain robust under the most demanding conditions.

As a leader in industrial interconnect technology, Weipu provides a comprehensive range of rugged, high-performance connectors designed for global industrial standards. With decades of expertise in waterproof and heavy-duty solutions, Weipu ensures your operations stay connected. Contact Weipu today to find the perfect interface for your next project.
