Why Sensor Circular Connector Failures Matter in Industrial Systems

Modern industrial facilities depend on thousands of sensors — measuring pressure, temperature, flow, position, and proximity — to keep automated processes running safely and efficiently. Yet the component that physically connects each sensor to the control network is frequently the weakest point in the chain: the sensor circular connector.

A single connector failure can trigger a cascade of consequences. Unplanned production-line downtime in automotive and semiconductor manufacturing can cost anywhere from $10,000 to over $500,000 per hour. Beyond direct financial impact, intermittent sensor signals create false process readings, leading to off-spec product, equipment damage, or safety incidents.

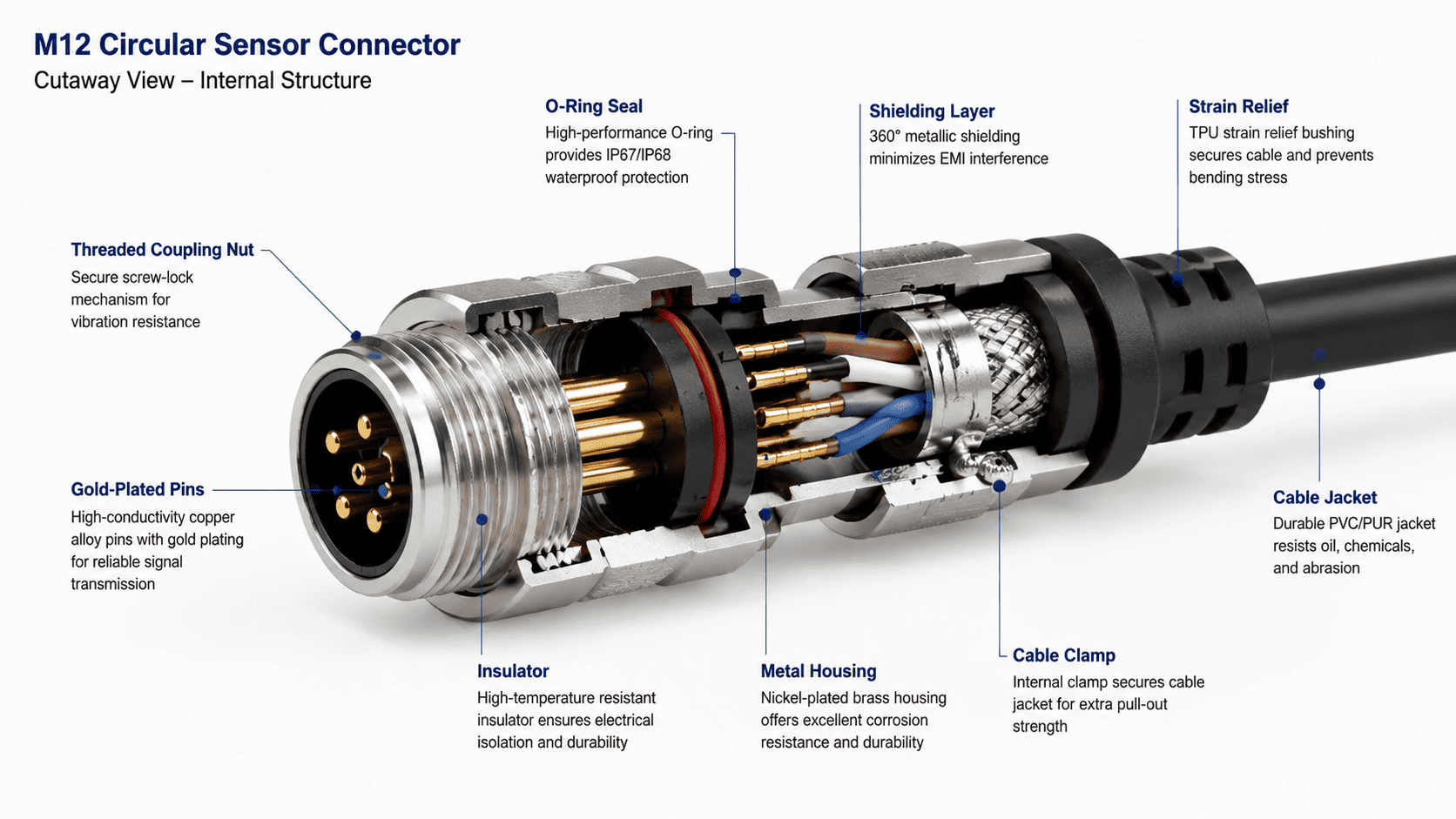

What makes connectors uniquely dangerous as failure sources is their invisibility. Engineers scrutinize sensors, PLCs, and cabling — but the M12, M8, or circular push-pull connector mating the two together rarely receives the same attention. Until it fails.

This guide gives engineers and procurement professionals a structured framework to:

• Diagnose sensor circular connector failure symptoms accurately
• Execute electrical and mechanical verification tests on-site
• Understand the certification standards that define connector quality
• Select and upgrade to connectors proven for harsh industrial environments

Common Symptoms of Sensor Circular Connector Failures

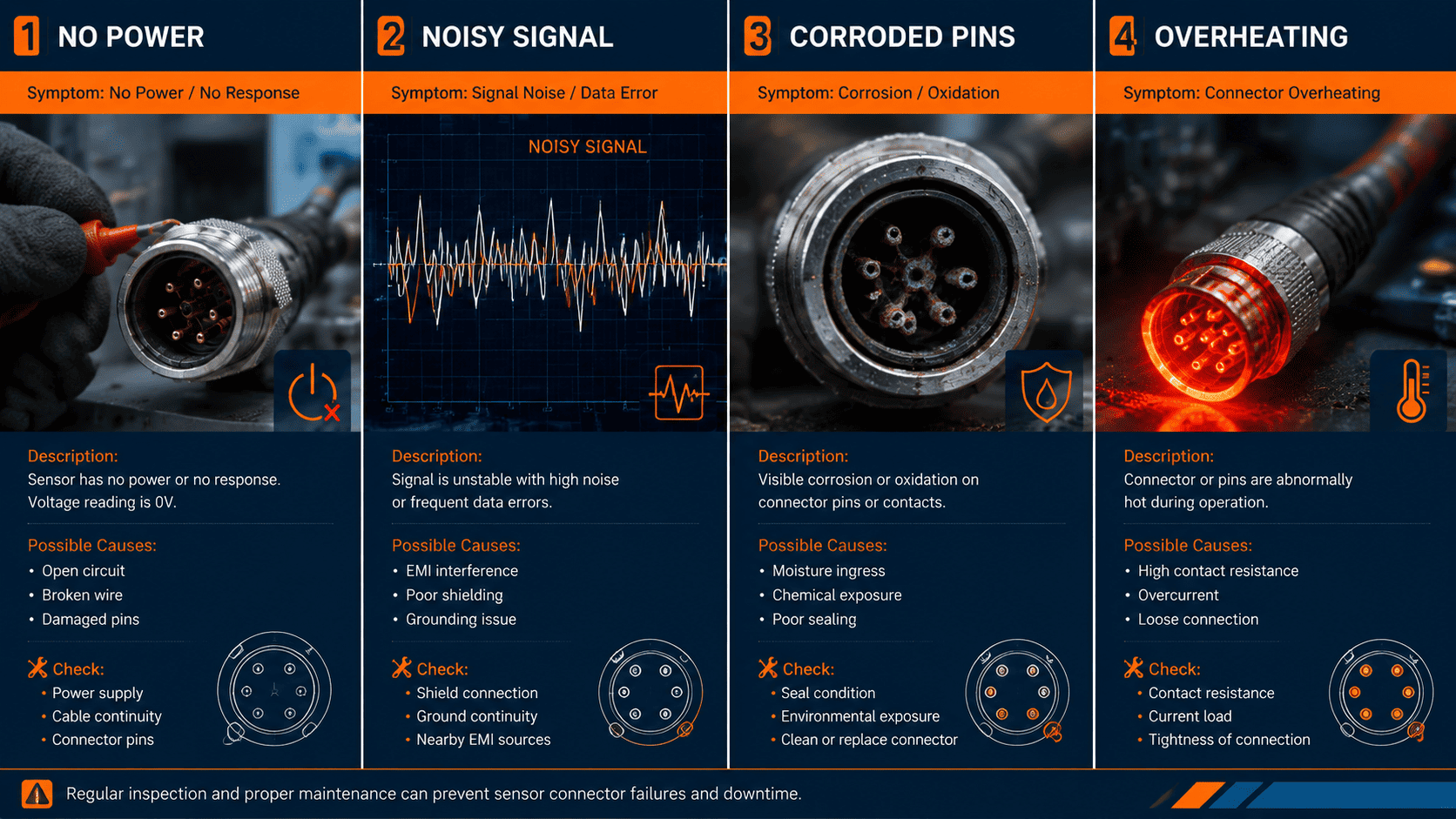

Accurate fault diagnosis starts with pattern recognition. The following symptoms each point toward distinct connector failure mechanisms:

Symptom-to-Cause Reference Table

Step-by-Step Troubleshooting Method for Sensor Circular Connectors

Follow this five-stage process in order. Do not skip stages — a bent pin masked by corrosion is a common finding only visible after cleaning. Each stage narrows the fault domain before the next test is applied.

• 1
  Visual Inspection — Housing, Sealing & O-Ring Condition Examine the connector body under magnification or bright task lighting. Look for cracked housings, deformed or missing O-rings, seal discoloration, and evidence of chemical attack. Check that the locking collar or coupling nut engages fully. A partially mated connector is a common find on maintenance-heavy lines where repeated unmating has caused coupling thread wear.
• 2
  Electrical Test — Contact Resistance Measurement Using a 4-wire milliohm meter, measure contact resistance across each pin pair with the connector fully mated and under normal cable tension. Industrial sensor connectors must achieve ≤5 mΩ per contact at rated current. Values above 10 mΩ indicate fretting corrosion or insufficient contact normal force. Re-test while applying light vibration to the cable — any resistance increase confirms a dynamic intermittent fault.
• 3
  Pin Alignment Check — Bent Pins & Keying Failure Unmate the connector carefully and use a lighted magnifier to inspect each pin. Pins deflected more than 0.2mm from nominal are unreliable even if they appear to make contact. Check that the mechanical key (alignment feature) is intact on both halves — key damage allows 180° mis-mating on symmetric circular connectors, which applies reverse voltage to the sensor and causes immediate damage.
• 4
  Insulation Test — Moisture Intrusion Detection Apply 500V DC between the connector shell and each signal/power pin using an insulation resistance (IR) tester. Acceptable IR values are ≥100 MΩ for standard industrial applications, ≥500 MΩ for signal-sensitive analog sensors. Readings below 1 MΩ confirm moisture ingress into the contact cavity. This test must be conducted with the connector unmated and the cable's far end open-circuit.
• 5
  Shielding Continuity Test — 360° Grounding Verification Using a low-resistance ohmmeter, verify that the cable shield connects with <1 mΩ continuity to the connector's metallic shell, and that the shell in turn connects to the machine frame ground. A break in this grounding path converts the cable into an antenna, coupling EMI directly into sensor signal lines. For plastic-shell connectors, confirm that the internal grounding ring is present and undamaged.

Root Causes Behind Sensor Circular Connector Failures in Harsh Environments

Understanding the mechanisms of failure is essential for selecting replacements that will survive the same operating conditions that destroyed the original connector.

Moisture & Fluid Ingress

Water, cutting fluids, and cleaning chemicals penetrate connectors through three paths: degraded O-ring elastomers, hairline cracks in housing polymer caused by UV exposure or chemical swelling, and wicking along cable jacket material where the overmold seal has failed. Once moisture enters the contact cavity, galvanic corrosion between dissimilar metals and electrolytic migration between adjacent pins begin immediately. Even connectors rated IP67 from the factory can fail if coupling torque is insufficient or if the mating face has debris preventing the O-ring from seating correctly.

Vibration & Mechanical Shock

Industrial machinery — compressors, presses, conveyors, robotic end-effectors — subjects connectors to continuous broadband vibration and periodic shock loads. The primary failure mechanism is fretting corrosion: micro-motion at the contact interface abrades the gold or tin contact plating, exposing the base copper alloy to oxidation. The resulting oxide layer increases contact resistance incrementally until a threshold is crossed and signal integrity collapses. Bayonet-locking connectors without an anti-vibration feature can fully unmate under sustained vibration at resonant frequencies.

Thermal Stress & Chemical Corrosion

Thermal cycling between operating and shutdown states causes differential expansion between the connector's metallic and polymer components, progressively stressing the overmold seal and pin-to-housing interface. Connectors in close proximity to motors or heating elements may see housing temperatures exceeding 85°C continuously — beyond the rated limit of standard PBT thermoplastic housings. In chemical processing environments, aggressive solvents attack standard housing materials and O-ring compounds within weeks.

Poor Shielding / EMI Interference

Variable-frequency drives, servo amplifiers, and inductive welding equipment generate high-frequency electromagnetic fields that couple into sensor cabling through inadequate connector shielding. A single-point shield connection (pigtail grounding) provides significantly less attenuation than a 360° backshell termination that bonds the cable shield uniformly around its circumference to the connector shell. Sensors running low-voltage analog signals (0–10V, 4–20mA) are particularly vulnerable to EMI-induced measurement error.

Low-Grade Material Degradation

Economy connectors often use tin-plated copper alloy contacts with no secondary nickel barrier, PVC overmolds that stiffen and crack below 0°C, and single-lip O-ring seals with limited chemical compatibility. Under the same operating conditions that a precision industrial connector handles for 10+ years, low-grade alternatives commonly fail within 6–18 months — at maintenance costs far exceeding the initial savings.

Early Warning Signs Before Connector Failure Occurs

Proactive monitoring can identify degrading connectors weeks before a hard failure occurs, enabling planned replacement during scheduled maintenance rather than emergency shutdown:

• Increased signal fluctuation — Trending noise floor or peak-to-peak signal variation increasing on a previously stable sensor channel, without process changes
• Rising contact resistance — Periodic milliohm measurements showing an upward trend over successive maintenance intervals, even if still within specification
• Intermittent machine reset or PLC fault — Short-duration communication faults that reset automatically, correlated with vibration cycles or temperature changes
• Seal discoloration or cracking — O-rings turning chalky white (UV degradation), dark brown (thermal attack), or showing surface crazing visible on close visual inspection
• Loose locking mechanism — Increased free-play in coupling nut or bayonet ring detectable by hand-feel during routine cable inspection rounds

Engineering Standards & Certifications for Sensor Circular Connectors

Verified certification is the only objective basis for comparing connectors from different manufacturers. Do not rely on marketing claims — request test reports referencing the specific standard revision and test laboratory.

Why Low-Quality Sensor Circular Connectors Fail Faster

The price difference between a precision industrial connector and an economy alternative is rarely more than a few dollars per unit. Yet the total cost of ownership diverges dramatically within 12–24 months of installation. Understanding the specific design compromises in low-grade connectors explains why.

Beyond individual component failures, low-grade connectors create systemic problems in multi-connector systems: inconsistent contact geometry makes it difficult to achieve correct cable impedance matching, and variable seal dimensions make IP ratings non-reproducible from unit to unit.

How to Upgrade to High-Reliability Sensor Circular Connectors

Upgrading to precision-engineered connectors is an engineering problem, not a purchasing one. The solution must be mapped to the specific failure mechanism identified during troubleshooting. Below are the three most common industrial failure scenarios and the corresponding WEIPU product engineering solutions:

Sensor Circular Connector Procurement Checklist

Use this checklist when evaluating connector suppliers or approving connector specifications for new installations. Every item should be confirmed with documented evidence — not verbal assurance:

• ✓
  IP rating ≥ IP67 minimum (IP68 preferred) — Verified by third-party test report citing IEC 60529:2013, not self-certification.
• ✓
  Contact resistance ≤ 5 mΩ at rated current — Confirmed by production-level electrical test data; batch sampling results preferred.
• ✓
  Material corrosion resistance tested — Salt spray test (96 hours minimum per IEC 60068-2-11) for outdoor or marine applications; chemical resistance data for process environments.
• ✓
  ISO 9001 quality system certified — Current certificate with valid accreditation body and expiry date. Request ISO 13485 if the application touches medical equipment.
• ✓
  Lifecycle testing ≥ 1000 mate/unmate cycles — Test report showing contact resistance <10 mΩ and IP rating maintained after the full cycle count.
• ✓
  EMI shielding test report available — For applications near VFDs, servo drives, or inductive heating equipment; request shielding effectiveness (SE) data above 10 MHz.
• ✓
  RoHS / REACH compliance declaration — Required for EU market compliance; confirm declaration covers the specific product family, not a generic brand-level statement.
• ✓
  Dimensional interchangeability confirmed — If replacing existing connectors, verify mating face dimensions against the installed mating connector specification.

Case Study – Typical Industrial Sensor Connector Failure Scenario

Conclusion – Choosing the Right Sensor Circular Connector for Long-Term Stability

Sensor circular connector failures are preventable. The gap between a connector that lasts 18 months and one that delivers a 10-year service life is not luck — it is engineering specification, verified certification, and material selection appropriate to the operating environment.

The framework in this guide enables a systematic approach: identify the failure symptom, trace it to its root mechanism through structured testing, verify that any replacement connector meets the applicable engineering standards with documented evidence, and map the solution to the specific environmental stressor — moisture, vibration, EMI, or thermal stress.

From a lifecycle cost perspective, the economics are unambiguous. A connector upgrade that costs $5–15 per unit more than the economy alternative eliminates failures that each cost thousands of dollars in downtime, labor, and scrap. The payback period is typically measured in weeks, not years.

For engineers and procurement professionals seeking a supplier with documented certifications (ISO 9001, IP68, RoHS/REACH), verified lifecycle test data, and a product range covering moisture protection, vibration resistance, and EMI shielding in standard M8/M12/M23 formats, WEIPU Group's industrial connector series represent a proven solution deployed across automotive, food processing, semiconductor, and heavy industrial applications globally.
