WEIPU 16A 5-Pin Industrial Plug Socket TYPR175 IP67

WEIPU's 16a 5pin industrial plug socket typr175-ip67 combines compact circular form, five-contact flexibility and robust IP67 protection to meet the needs of modern industrial systems. Designed for repeatable, tool-free mating and secure fastening, this family is ideal where moisture, dust and vibration threaten ordinary connections — from factory automation and outdoor power distribution to rail and renewable installations.

Why this connector category matters

Connectivity is a small component of any system but a critical one: a single failed plug can stop a production line or interrupt a field service. The TYPR175 IP67 series was developed to reduce those risks by delivering predictable performance under real-world conditions. Choosing a proven 16A 5-pin industrial plug socket means fewer service calls, simplified inventory and faster commissioning. For technicians and engineers, that translates to measurable uptime improvements and lower total cost of ownership.

Design philosophy, performance highlights and applications

WEIPU approaches connector design from the system level — balancing electrical performance, mechanical endurance and serviceability. The 16A 5-pin sockets in the TYPR175-IP67 family emphasize:

Sealed protection: IP67 ingress protection against dust and immersion, with gasketed mating surfaces for wet environments.
Durable contacts: Copper alloy contacts with anti-corrosion plating for consistent 16A current handling across thousands of mating cycles.
Vibration resistance: Locking mechanisms and housings engineered to maintain contact integrity on mobile equipment and rail platforms.
Service-friendly installation: Clear wiring windows, color-coding and secure strain relief options to speed field wiring and reduce wiring errors.

Common uses include control cabinet power inputs, motor and actuator connections, outdoor lighting and sensors, and on-board equipment on rail and commercial vehicles. The five-pin layout supports combinations of power plus earth and control/signal conductors, enabling a single, neat cable run rather than multiple connectors.

Ordering, customization and the WEIPU advantage

When buying industrial connectors, reliability and supply continuity are top priorities. Founded in 1996, WEIPU is a principal drafter of GB/T 11918-2014 and supplies over 70,000 specifications to 30,000+ customers in 130 countries. Our vertically integrated manufacturing and independent R&D allow fast OEM/ODM customization and prototype delivery in 7–15 days — backed by 24-hour response support. For customers with stringent requirements, WEIPU maintains IRIS (Rail Transit) and IATF 16949 (Automotive) certifications, and our broader product capabilities include IP69K-rated and 800A high-current solutions for extreme applications.

Practical ordering tips:

Confirm contact layout and mating orientation before ordering replacement sockets to ensure compatibility with existing cables and plugs.
Specify sealing options and strain relief when the connector will be exposed to weather or frequent motion.
Request datasheets and sample parts early when integrating into certified equipment — WEIPU supports documentation for regulatory approvals.

For sales and technical inquiries, reach our global support team at salse01@weipu-group.com or +86-020-80501102, or visit https://www.weipu-group.com/ to explore datasheets and customization options.

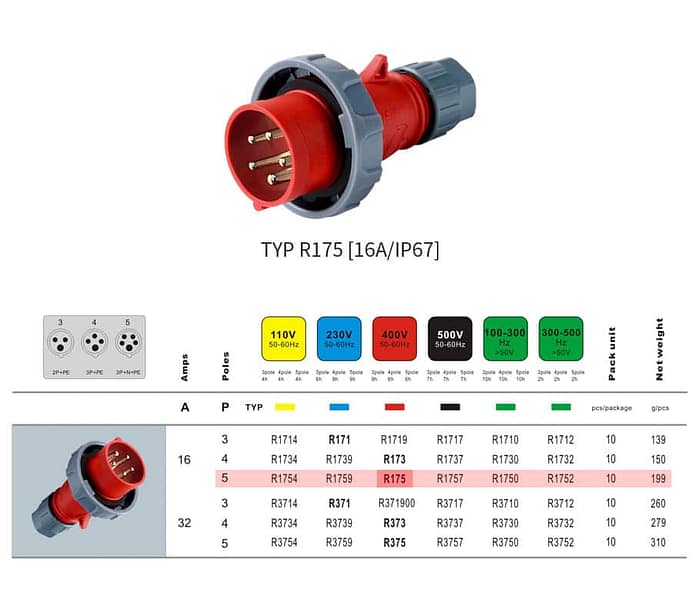

16a 5pin industrial plug socket typr175-ip67 Display

WEIPU 16A 5Pin Industrial Plug Socket TYPR175-IP67 1

FAQ

What does the TYPR175-IP67 designation mean for performance?

TYPR175 refers to the family and mechanical form factor; IP67 describes the ingress protection level — dust-tight and protected against temporary immersion in water. Together they indicate a compact circular connector designed for demanding environments where water and dust resistance are required.

Is the 16A rating safe for motor and power applications?

Yes. The 16A nominal rating indicates the connector's continuous current capacity under specified conditions. For motor inrush or higher-power loads, verify the system's peak current and duty cycle and consider contact size, cable gauge and thermal constraints; WEIPU datasheets provide detailed derating curves and conductor recommendations.

How do I ensure compatibility with existing cables and plugs?

Check five key parameters: contact layout (pin numbering), mating style (male/female), panel or cable mounting, cable OD and strain-relief requirements, and sealing/gasket options. If unsure, provide a sample or photo to WEIPU's technical team for confirmation—customized mating assemblies are available when standard parts don’t match.

What environmental and industry certifications back these connectors?

WEIPU manufacturers adhere to multiple quality and industry standards. The company helped draft GB/T 11918-2014 and holds IRIS (Rail Transit) and IATF 16949 (Automotive) certifications. Product-level protections include IP67 and extended options to IP69K for high-pressure washdown applications; specific certification details are listed on product datasheets.

Can WEIPU provide custom or expedited parts for special projects?

Yes. WEIPU operates a vertically integrated production system with independent R&D and offers OEM/ODM services. Typical prototype turnaround is 7–15 days with rapid-response support; contact salse01@weipu-group.com or +86-020-80501102 to discuss drawings, tooling, and lead times.
