WEIPU Front-Nut-Mount Receptacle — Robust Panel-Mount Industrial Connectors

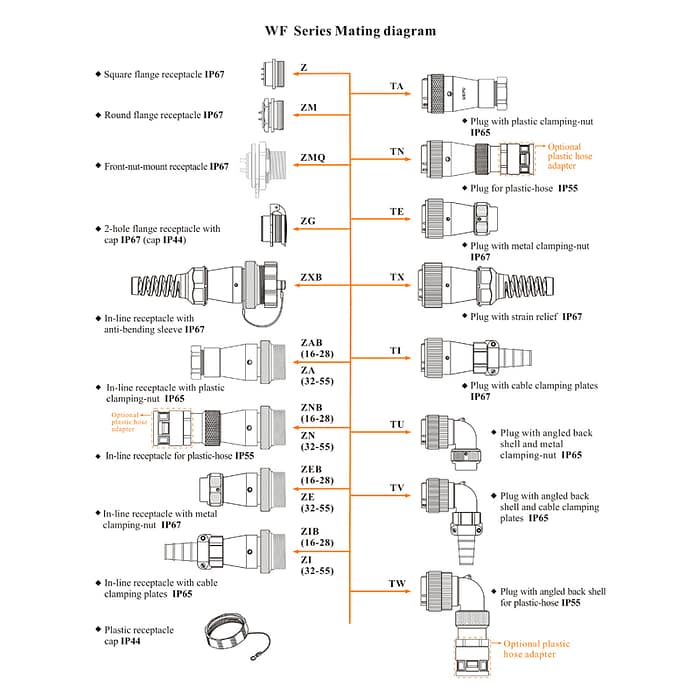

WF-ZMQ Series Front-nut-mount receptacle 4

WEIPU front-nut-mount receptacles provide secure, panel-side connectivity engineered for harsh environments and precision applications. Combining WEIPU’s nearly 30 years of industrial connectors expertise with vertical manufacturing and advanced R&D, this category offers IP-rated sealing, high-current variants, and quick-turn customization—ideal for rail, automotive, medical, renewable energy, and smart-manufacturing use cases.

Explore Our High Quality Front-Nut-Mount Receptacle Collection

Circular and Panel-Mount Variants

Our front-nut-mount receptacles include circular form factors and standardized panel interfaces for quick installation and secure mating. Available in multiple shell sizes and contact arrangements, these receptacles are compatible with common cable harnesses and assembly lines.

High-Performance and Environmental Ratings

IP Protection: Options with IP67–IP69K sealing for water, dust, and high-pressure washdown applications.
High Current & Signal: Versions supporting high-current distribution and mixed power/signal contacts up to industrial ratings.
Temperature & Sterilization: Medical-grade configurations engineered to withstand autoclave conditions where required.

Modular, Locking, and Accessory Options

Choose from front locking nuts, gasketed flanges, strain reliefs, and keying options to prevent mis-mating. Accessories are designed for rapid panel cut-out and simple field serviceability.

Why Choose WEIPU Front-Nut-Mount Receptacles

Proven Quality and Global Certification

Founded in 1996, WEIPU is a principal drafter of the GB/T 11918-2014 national standard and a global leader in industrial connectors. Our products are developed and produced in a vertically integrated facility expanded to 80,000 m² with an annual capacity of 55 million units. WEIPU’s IRIS (Rail Transit) and IATF 16949 (Automotive) certifications substantiate our commitment to the highest industry quality and safety standards.

Industry Applications and Use Cases

Rail & Transit: Durable panel-mounted receptacles for vehicle systems and wayside equipment.
Automotive & EV Charging: High-current front-nut-mount styles for power distribution and charging interfaces.
Medical & Laboratory: Sterilizable connector options and precision signal contacts for diagnostic equipment.
Renewable Energy & Industrial Automation: Weatherproof panel connectors for inverters, controllers, and sensors.

OEM/ODM, Rapid Prototyping and Global Support

WEIPU offers one-stop solutions with 24-hour rapid response, prototype delivery in 7–15 days, and over 70,000 specifications across circular, heavy-duty, and CEE families. We serve 30,000+ customers in 130 countries—backed by dedicated technical support and configurable options to integrate into your panel assemblies seamlessly. For inquiries and samples, visit https://www.weipu-group.com/ or contact salse01@weipu-group.com | +86-020-80501102.

Front-nut-mount receptacle Display

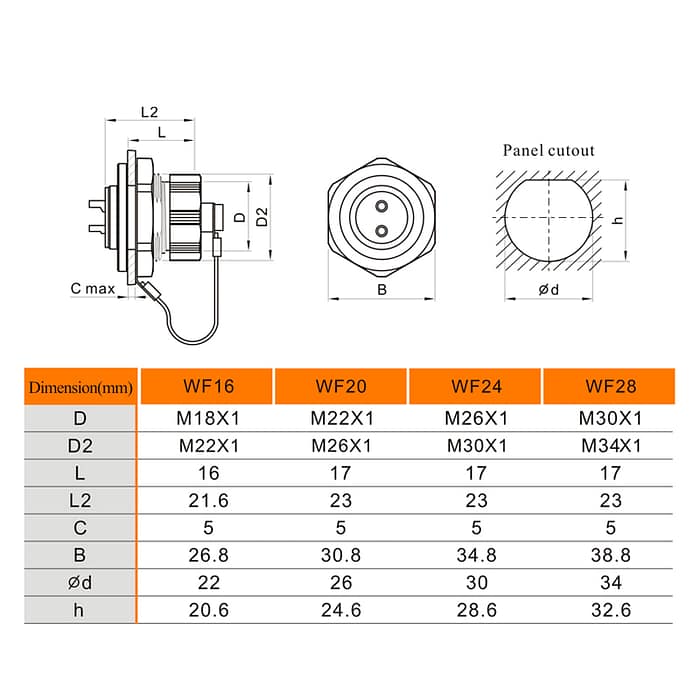

WF-ZMQ Series Front-nut-mount receptacle 3

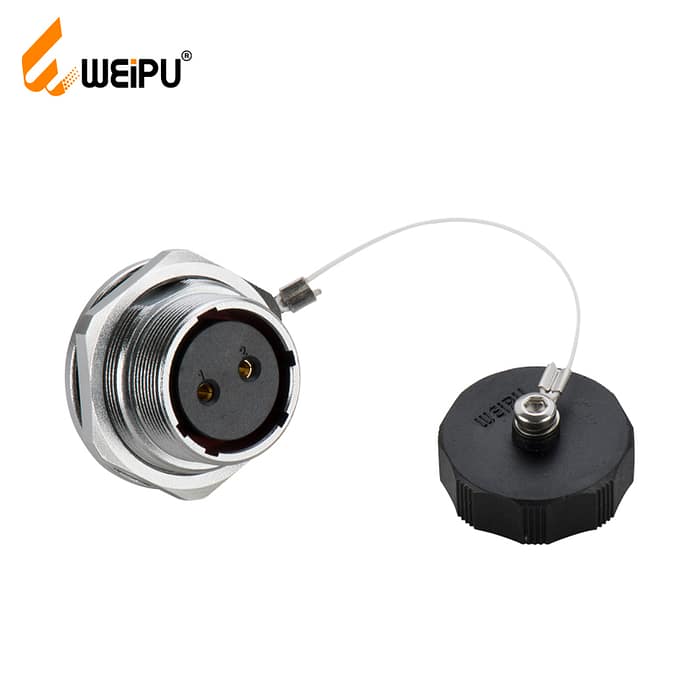

WF-ZMQ Series Front-nut-mount receptacle 1

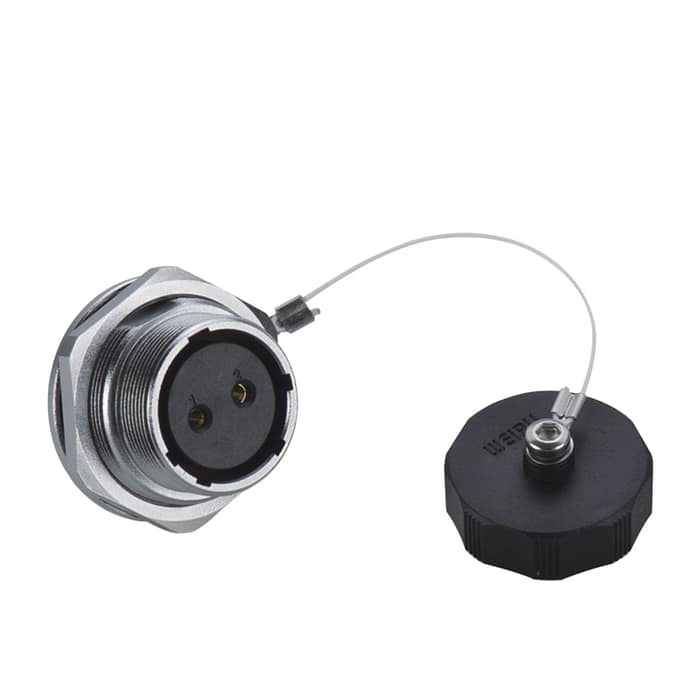

WF-ZMQ Series Front-nut-mount receptacle 2

FAQ:

What are the advantages of black nickel-plated zinc alloy shell compared with ordinary zinc alloy shell?

Compared with ordinary zinc alloy shells, black nickel-plated shells have two core advantages: first, the black nickel plating layer has stronger corrosion resistance, which can better adapt to humid, salty, and other corrosive environments; second, the black nickel appearance is more elegant and textured, which is more suitable for the matching needs of high-end industrial equipment. At the same time, the mechanical strength of the zinc alloy base material is retained, ensuring structural stability.

What precautions should be taken for solder termination of the WD28 series?

When performing solder termination, the following points should be noted: 1. Strip the cable insulation layer according to the specified length to avoid excessive or insufficient stripping affecting the connection effect; 2. Control the soldering temperature and time to prevent high temperature from damaging the PPS insert; 3. After soldering, check whether the connection is firm and whether there is solder residue to avoid short circuits; 4. Use professional soldering tools and solder to ensure the reliability of the soldered joint.

Is there any special attention during on-site installation of the Precast Cable Assembly?

During installation, please ensure that the connector is inserted in place and the locking mechanism is fastened to avoid loose connections. Avoid excessive pulling or bending of the wire harness during installation and use, and keep the harness away from high-temperature heat sources and sharp edges to prevent damage to the insulation layer.

Why is the M23X Series suitable for high-temperature equipment?

The M23X Series has a wide temperature range of -40°C~+125°C, which can adapt to the high-temperature environment of high-temperature equipment. The selected PA66 insert material also has good high-temperature resistance, which can maintain stable performance without deformation or failure in high-temperature working conditions, ensuring the normal operation of the connection system.
