WEIPU Plug with Angled Back Shell — Angled Industrial Plugs for High-Reliability Applications

WF-TV Plug with angled back shell and cable clamping plates 3

Explore Our High Quality Angled Back Shell Plugs

Angled-back-shell plugs solve a practical problem every system integrator faces: how to route cables cleanly in constrained spaces without compromising sealing, strain relief or serviceability. WEIPU's angled plug designs are engineered to move the cable exit point 45° or 90° from the mating axis so that harnesses can follow machine frames, enclosures or medical carts with minimal bend radius. This reduces mechanical stress on conductors and contacts, lowers failure risk in vibration-prone environments, and shortens installation time for maintenance crews.

WEIPU approaches angled plugs with a systems mindset: each connector is more than a housing and contacts. Materials, sealing geometry and back-shell ergonomics are selected to preserve ingress protection, simplify assembly, and support high-current or signal-density demands. That translates to real-world benefits for buyers: reliable uptime, fewer field failures, and cleaner cable management that meets both safety and aesthetic expectations.

Why WEIPU Angled Plugs Matter for Industrial Applications

Choosing the right angled plug affects long-term performance in factory automation, renewable energy, rail transit and medical devices. WEIPU brings demonstrable advantages rooted in manufacturing scale, standards leadership and targeted engineering:

Proven pedigree: Founded in 1996 and a principal drafter of the GB/T 11918-2014 national standard, WEIPU combines nearly 30 years of domain experience with factory capacity that supports global programs.
Certifications and ruggedization: Products meet IRIS and IATF 16949 quality systems and are available with IP69K protection for high-pressure, high-temperature washdowns—critical for food processing, rail, and outdoor equipment.
Performance breadth: From compact signal plugs to heavy-duty high-current solutions, WEIPU offers designs that accommodate demanding electrical loads (including high-current options), autoclave-resistant medical variants and configurations optimized for EMC control.
Manufacturing agility: With a vertically integrated supply chain and 80,000 m² production footprint, WEIPU can deliver prototypes in 7–15 days and support annual volumes up to tens of millions—enabling both rapid development and predictable scaling for OEMs.

Practical considerations included in our angled back shell family: robust gaskets and cable glands for IP protection, modular contact inserts for mixed signal/power needs, and compact flange or panel mounts to fit diverse enclosure geometries. Designers appreciate how a single angled plug can replace complex harness reroutes or bulky right-angle adapters, simplifying BOMs and assembly labor.

Specification Highlights and Custom Solutions

WEIPU offers more than off-the-shelf footprints. Our products are specified across 70,000+ catalog items—circular, heavy-duty and CEE families among them—so you can select an angled solution that matches contact count, current rating and environmental needs. Core highlights include:

Ingress protection up to IP69K for washdown and outdoor exposure.
High-current contact options and robust housings for power distribution.
Medical-grade variants capable of 134°C autoclave resistance for sterilizable equipment.
OEM/ODM support with 24-hour rapid response for technical queries and engineered changes.

Customization is straightforward: from alternative back-shell angles and cable-gland sizes to molded strain reliefs and integrated shielding, WEIPU's independent R&D team can adapt geometries and materials to match industry-specific constraints. For global programs, multi-site manufacturing and consistent quality are supported by our IATF 16949 and IRIS frameworks, ensuring traceability and process control at scale.

For technical inquiries, quotes or rapid prototyping, contact WEIPU at salse01@weipu-group.com or +86-020-80501102. Our product specialists will help match application requirements—mechanical, electrical and environmental—to the right angled plug solution and lead-time profile.

Plug with angled back shell Display

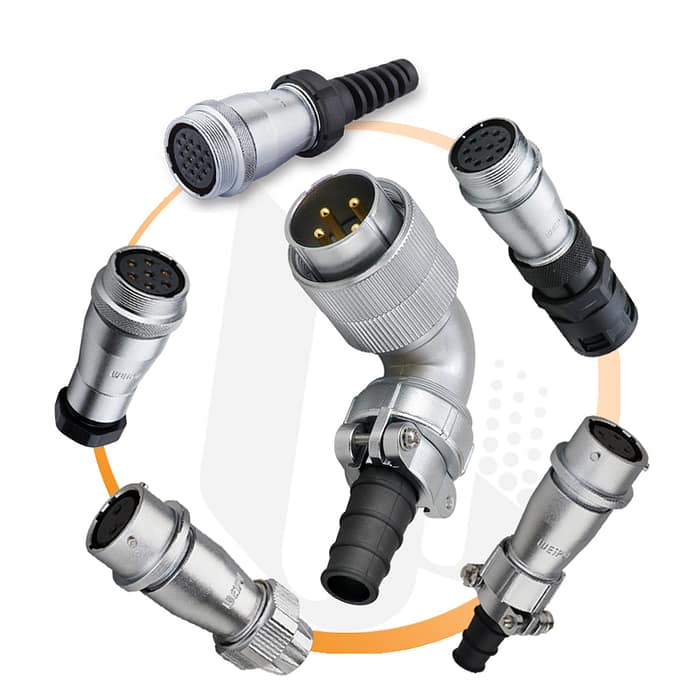

WF-TV Plug with angled back shell and cable clamping plates 1

WF-TV Plug with angled back shell and cable clamping plates 2

WF-TV Plug with angled back shell and cable clamping plates 4

FAQ

What is a plug with angled back shell and when should I use it?

A plug with angled back shell re-directs the cable exit from the mating axis so cables run along the desired plane without sharp bends. Use it when space constraints, chassis orientation or harness routing would otherwise force excessive cable bending, increase strain on contacts, or complicate maintenance access—common in automation cabinets, vehicles, medical carts and rail equipment.

Can WEIPU angled plugs maintain high ingress protection like IP69K?

Yes. WEIPU offers angled back-shell plugs engineered with appropriate gaskets, sealing geometry and cable gland solutions to achieve IP levels up to IP69K when installed per guidelines. These designs withstand pressure washdowns and high-temperature cleaning cycles that many industrial and transportation environments require.

How do I match cable diameter and contact configuration for an angled plug?

Select a model that lists compatible cable jacket diameters and contact insert options. WEIPU provides modular inserts for mixed signal and power needs, and cable glands sized for standard jacket ranges. For unusual gauges or multi-core harnesses, WEIPU’s OEM/ODM team can adjust gland dimensions or provide customized strain reliefs to ensure proper sealing and contact retention.

What customization and lead times does WEIPU offer for angled back-shell plugs?

WEIPU supports both standard catalog parts and customized variants. With an in-house R&D team and vertically integrated production, prototypes are typically available within 7–15 days. WEIPU also offers 24-hour rapid response for technical requests and scalable production capacities to support both low-volume development and large-scale manufacturing programs.

How do angled plugs compare to straight plugs in vibration and high-current applications?

Angled plugs reduce cable bending stress and can improve mechanical fatigue life in vibration-prone environments by guiding the harness along a more favorable path. For high-current needs, WEIPU provides appropriately rated contact sets and robust housings—so selecting an angled version with matching current rating preserves electrical performance while delivering the mechanical benefits of angled cable exit.
