SF824 Single-Ended Cordsets
Mate with SF810,SF820
Description
Specification
Video
Document
| Product model | Patchcord Connector |
| Coupling | Push-pull |
| Shell material | Brass,PVC fire resistance:UL94 V-0 |
| Insert material | PPS max temperature 260℃ |
| Contact material | Brass with gold plating |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | -20°C~+ 85°C |
| Insulation resistance(MΩ) | 2000 |
Tags
Get in Touch
Get Expert Support from Custom Connector Manufacturer
Share your application details, usage environment, or customization needs with a professional, customized supplier connector.
Our engineers will help you confirm compatibility, recommend suitable custom connector solutions, and provide OEM/ODM or distributor support.
You may also like

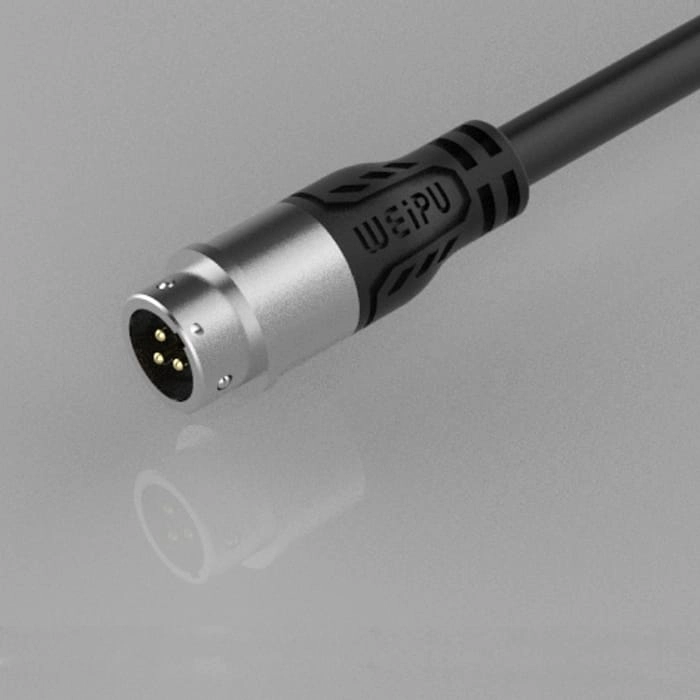

SF821 Single-Ended Cordsets
Mate with SF810,SF820

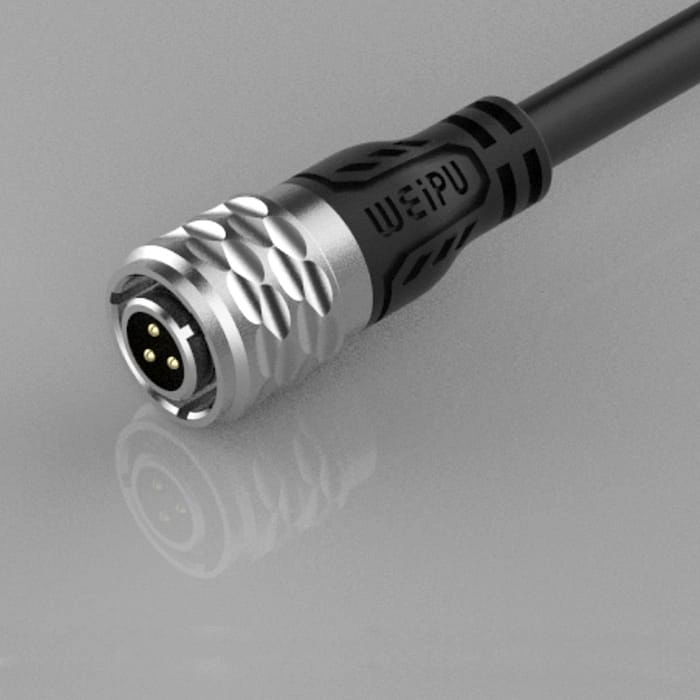

SF820 Single-Ended Cordsets
Mate with SF810,SF820

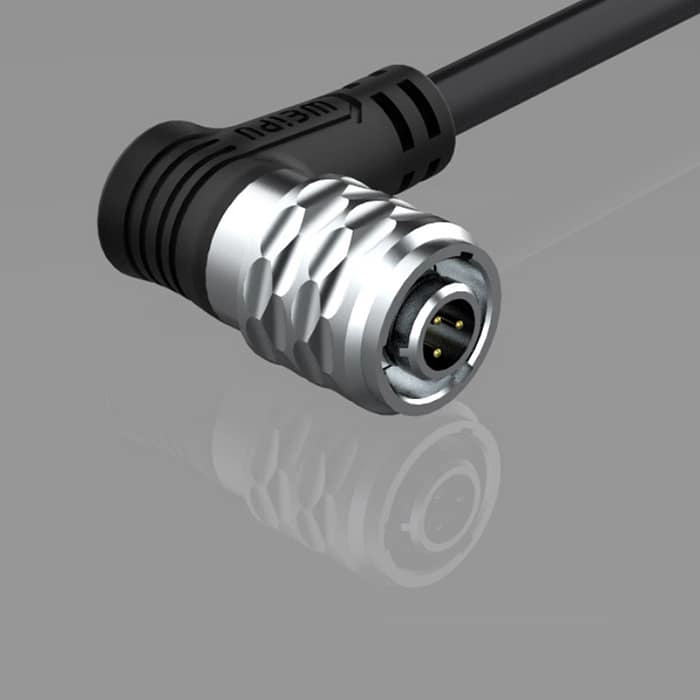

SF624 Single-Ended Cordsets
