Front-nut mount IP67; Mate with WEIPU SA1610

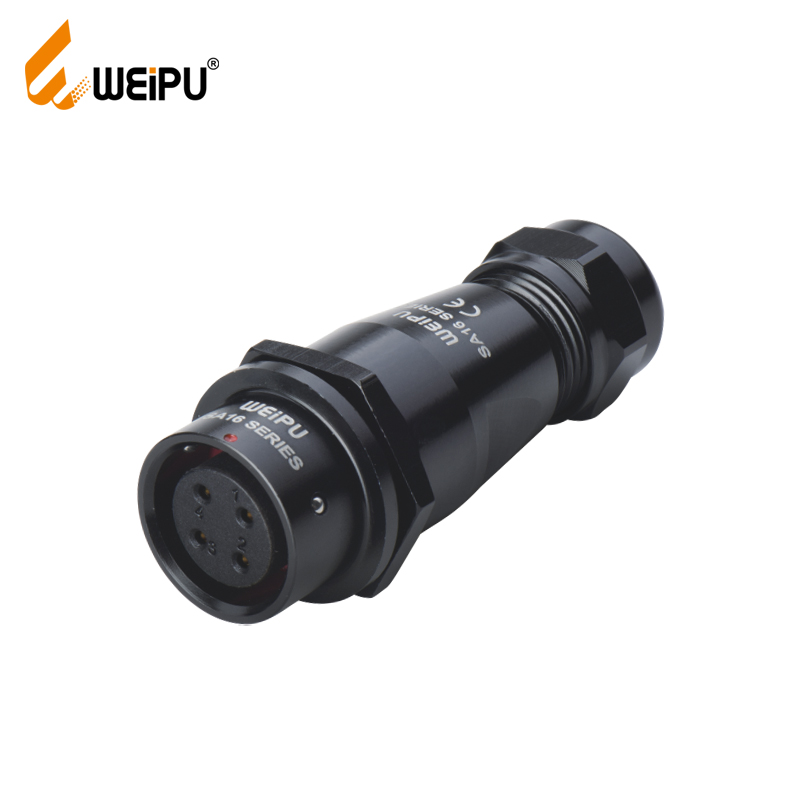

WEIPU SA1615 circular connector is 4 pin round connector with a push-pull design, which is very easy to use and highly convenient to connect your applications. This round electrical connector is made of anodized aluminium and brass with gold plating, helping customers transmit power, data and signal efficiently.

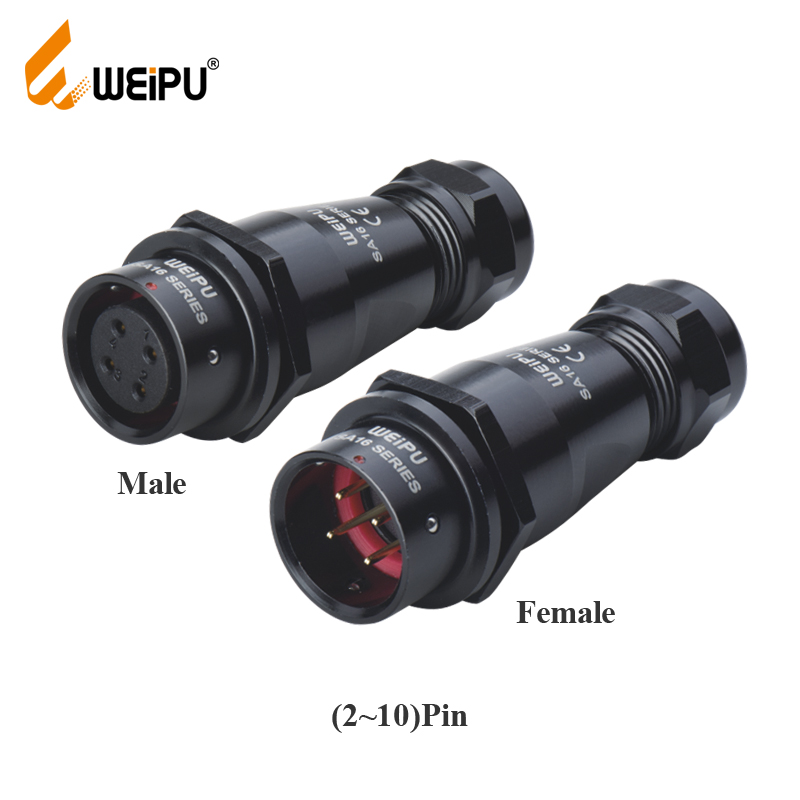

| Coupling | Push-pull |
| Shell material | Anodized aluminium |
| Insert material | PPS, max temperature 260 *C |
| Contact material | Brass with gold plating |
| Termination | Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28 |
| Crimp: SA16,SA20,SA28 | |
| Screw: SA20,SA28 | |
| Cable outer diameter range | SA20: 13・16mm |
| SA6: 3.5-4mm SA12: I: 4-6.5mm（default,no mark），II: 5-8mm | |
| SA8: 4-5mm SA16:1: 5-8mm （default,no mark），II: 8-l2mm | |
| SA10:4-6.5mm SA20: 8-12mm | |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | – 40C~+85C |
| Insulation resistance | 2000 MΩ |
| 01、Insert retainer | ★08、Contact |
| ★02、Contact | 09、Clamping ring |
| 03、Panel connector shell | 10、O ring |
| 04、Inter facial seal | 11、Back shell |
| 05、Insert | 12、Compression nut |
| 06、Coupling spring | 13、Rubber ring |
| 07、Insert | |
| ★Each side can be male or female contact | |
| SA16 IP67 Series configuration table(list) | |
| 01、Cable connector（>SA1610/P_ _-_ >SA1610/S_ _-_） | a、Male contact |
| 02、In-line cable connector（>SA1611/P_ _ _-_ >SA1611/S_ _ _-_） | b、Fmale contact |
| 03、Rear-nut mount（>SA1612/P_ _-_ >SA1612/S_ _-_） | c、Number of contact |

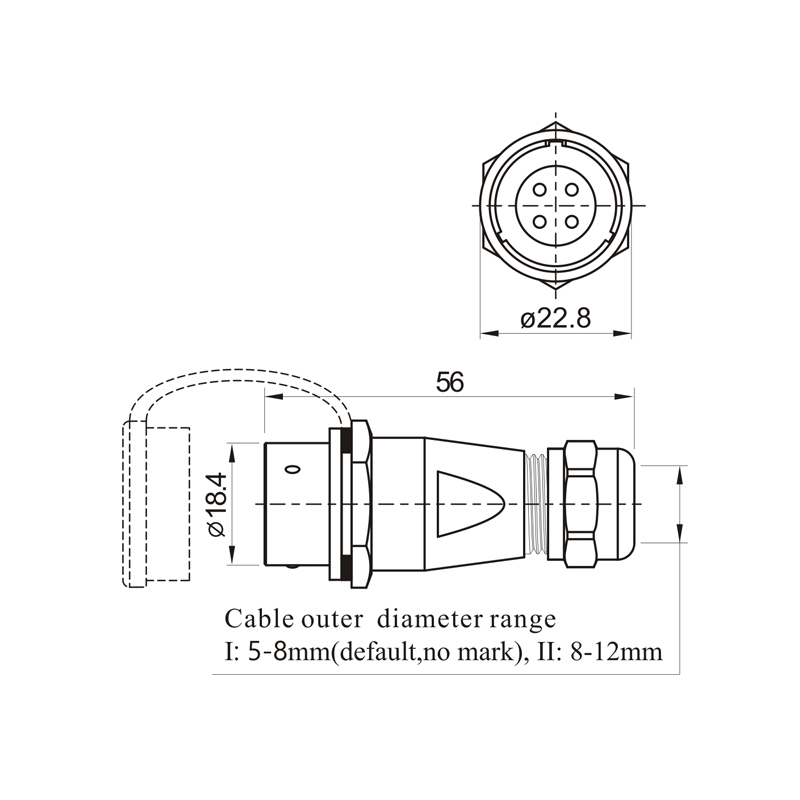

| 04、Square flange（>SA1613/P_ _-_ >SA1613/S_ _-_） | d、Cable outer diameter I: 5-8mm(default, no mark), II: 8-12mm |
| 05、Front-nut mount（>SA1615/P_ _-_ >SA1615/S_ _-_） | e、1: solder(default, no mark), 3: crimp |
| f、Colour：B: Black S: Silver L: Blue(special order) G: Green(special order) R: Red(special order) | |
