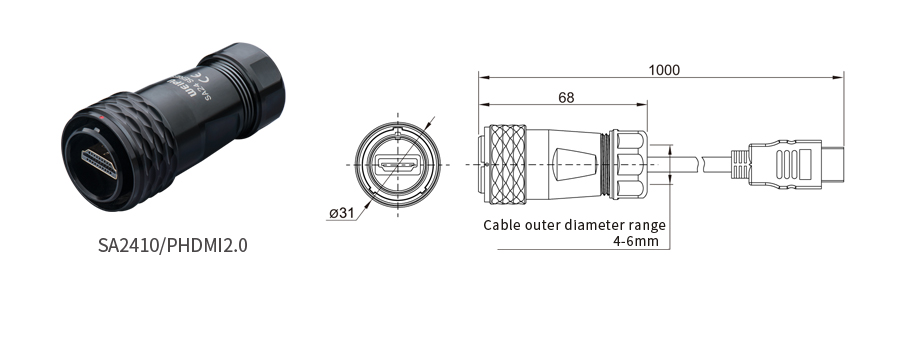

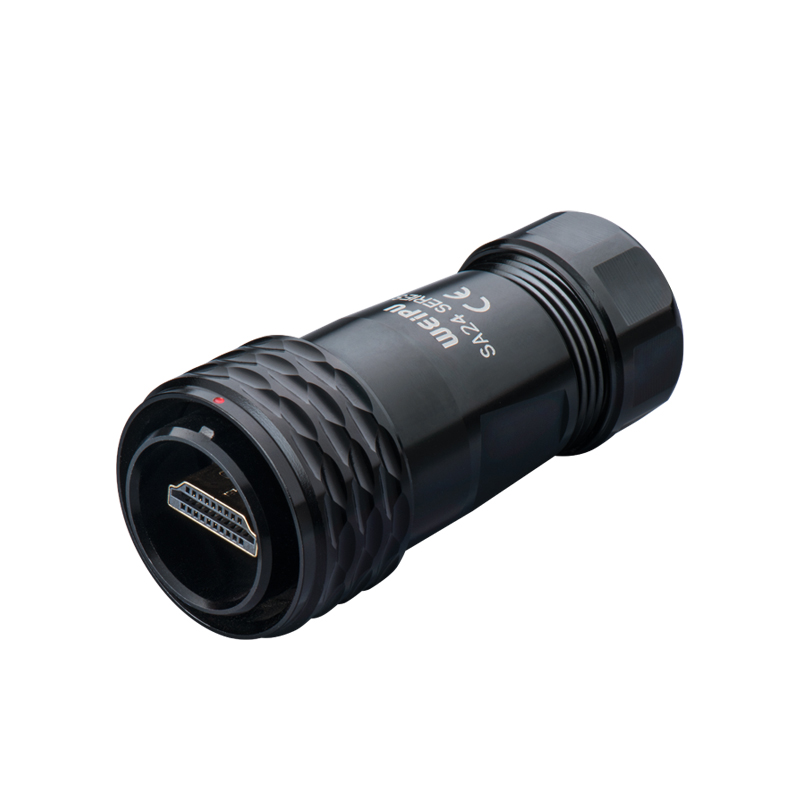

WEIPU HDMI2.0 Plug SA2410/PHDMI2.0
In-line cable connector IP67; Mate with WEIPU SA2810
WEIPU SA2811 male and female electrical connector features a compact and precise design, making it ideal for applications where space is a limiting factor. With an advanced push-pull coupling system for quick installation, WEIPU industrial male female socket ensures positive locking and high retention. Each side of this circular connector can be male or female contact, making it very convenient for all device connection.
| Coupling | Push-pull |
| Shell material | Anodized aluminium |
| Insert material | PPS, max temperature 260 *C |
| Contact material | Brass with gold plating |
| Termination | Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28 |
| Crimp: SA16,SA20,SA28 | |
| Screw: SA20,SA28 | |
| Cable outer diameter range | SA20: 13・16mm |
| SA6: 3.5-4mm SA12: I: 4-6.5mm（default,no mark），II: 5-8mm | |
| SA8: 4-5mm SA16:1: 5-8mm （default,no mark），II: 8-l2mm | |
| SA10:4-6.5mm SA20: 8-12mm | |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | – 40C~+85C |
| Insulation resistance | 2000 MΩ |

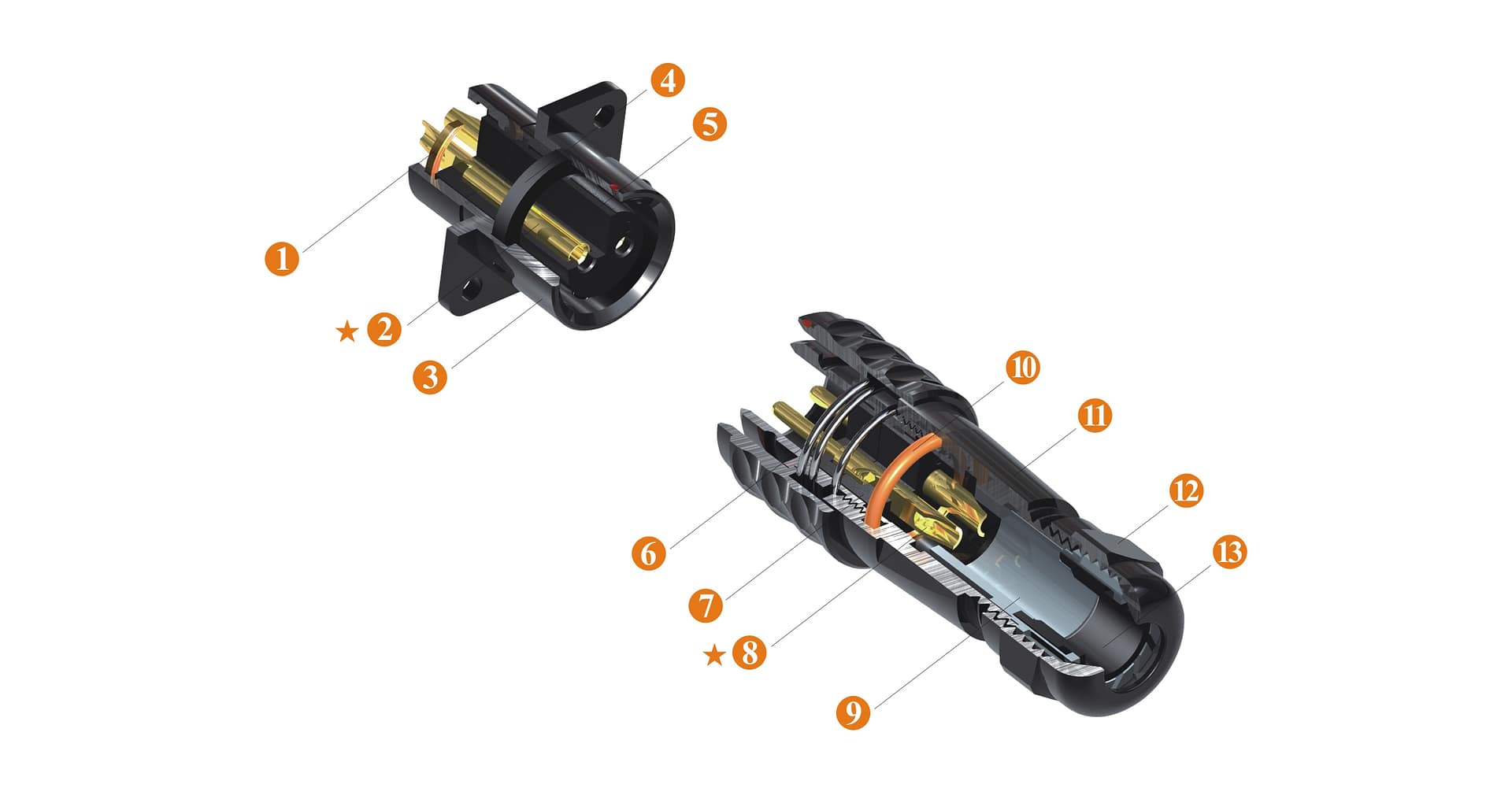

| 01、Insert retainer | ★08、Contact |
| ★02、Contact | 09、Clamping ring |
| 03、Panel connector shell | 10、O ring |
| 04、Inter facial seal | 11、Back shell |
| 05、Insert | 12、Compression nut |
| 06、Coupling spring | 13、Rubber ring |
| 07、Insert | |
| ★Each side can be male or female contact | |

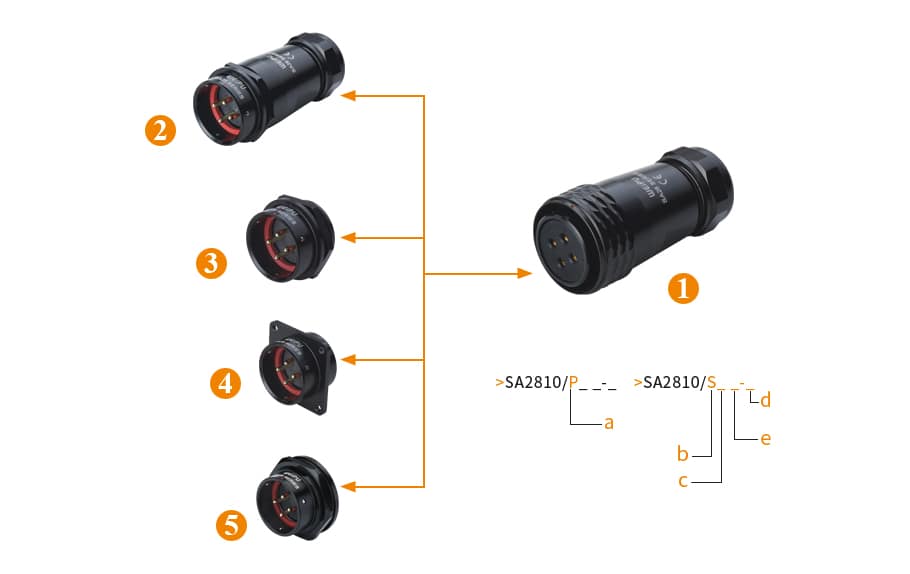

| WEIPU SA28 IP67 Series Male and Female Electrical Connector Configuration Table (List) | |
| 01、Cable connector（>SA2810/P_ _-_ >SA2810/S_ _-_） | a、Male contact |
| 02、In-line cable connector（>SA2811/P_ _-_ >SA2811/S_ _-_） | b、Female contact |
| 03、Rear-nut mount（>SA2812/P_ _-_ >SA2812/S_ _-_） | c、Number of contact |
| 04、Square flange（>SA2813/P_ _-_ >SA2813/S_ _-_） | d、1: solder(default, no mark), 2: screw, 3: crimp |
| 05、Front-nut mount（>SA2815/P_ _-_ >SA2815/S_ _-_） | e、Colour：B: Black S: Silver L: Blue(special order) G: Green(special order) R: Red(special order) |

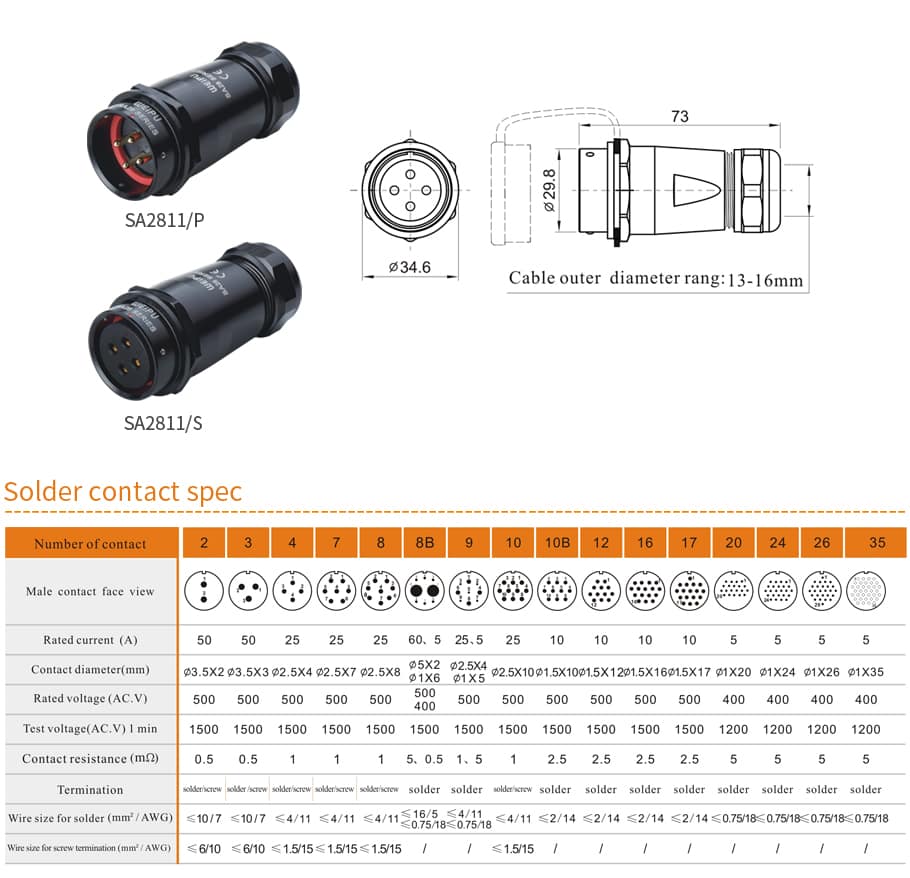

WEIPU SA2811 Male and Female Electrical Connector
Welcome to WEIPU – your premium source for high-performance standard circular connectors, industrial connectors, heavy-duty connectors, distribution box series, and top-notch cable assemblies. Our solutions excel in diverse applications within demanding environments, catering to the distinct needs of every customer.
Industrial Applications
SA28 Series Male and Female Electrical Connector
Engineered for marine, medical, and automation industries, our SA28 series male and female electrical connectors deliver precision in various industrial applications.
Boosting Your Application with WEIPU Industrial Socket Male Female
WEIPU’s SA male and female electrical connectors epitomize maximum efficiency and adaptability. Powered by advanced technology, these connectors facilitate the seamless transmission of power, data, and signals. Designed independently, our connectors and related accessories streamline your procurement process, saving both time and effort.
Customization at Your Service
At WEIPU, customization is our forte. Our male and female connectors provide tailor-made solutions, aligning with unique customer data and requirements.
- Personalized pre-sales and after-sales support
- Comprehensive all-in-one solutions
- Dedicated 24/7 online customer service
Success Stories
With over 25 years of expertise, WEIPU has partnered in several monumental projects, including:
- Beijing Olympic Games Opening Ceremony and Bird’s Nest
- Shanghai World Expo Opening Ceremony
- China Export Commodities Fair Pazhou International Exhibition
- Supporting Beijing, Shanghai, Guangzhou, Shenzhen Subway Networks
- Yangtze Three Gorges Closure Project
WEIPU stands as a trusted manufacturer of industrial connectors, combining excellence with collaboration. Our legacy of success and commitment to innovation make us your definitive choice. Experience the future of connectivity with WEIPU.
Get in Touch
Get Expert Support from Custom Connector Manufacturer
Share your application details, usage environment, or customization needs with a professional, customized supplier connector.
Our engineers will help you confirm compatibility, recommend suitable custom connector solutions, and provide OEM/ODM or distributor support.
