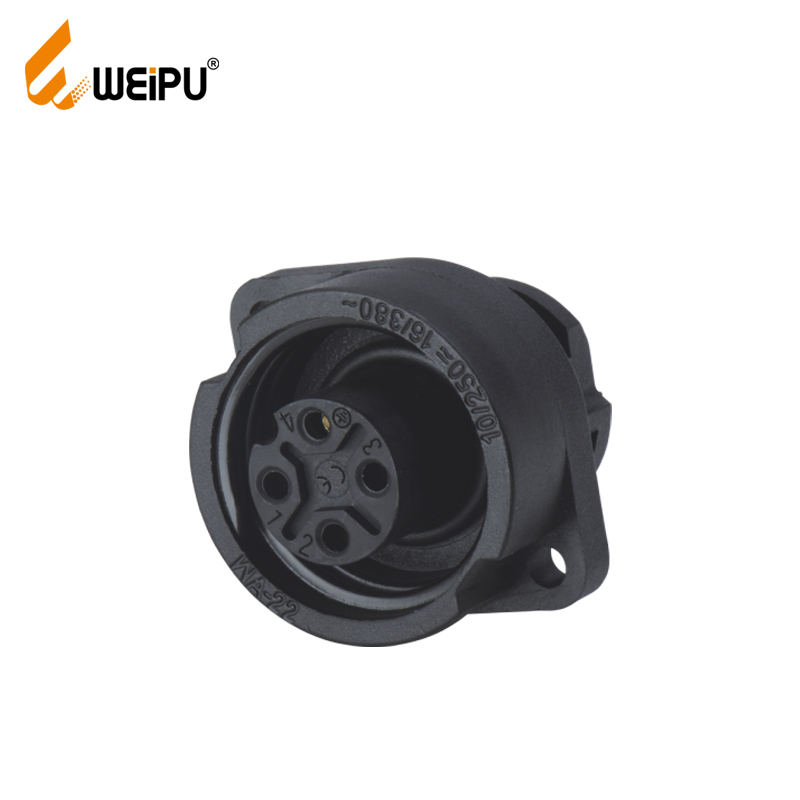

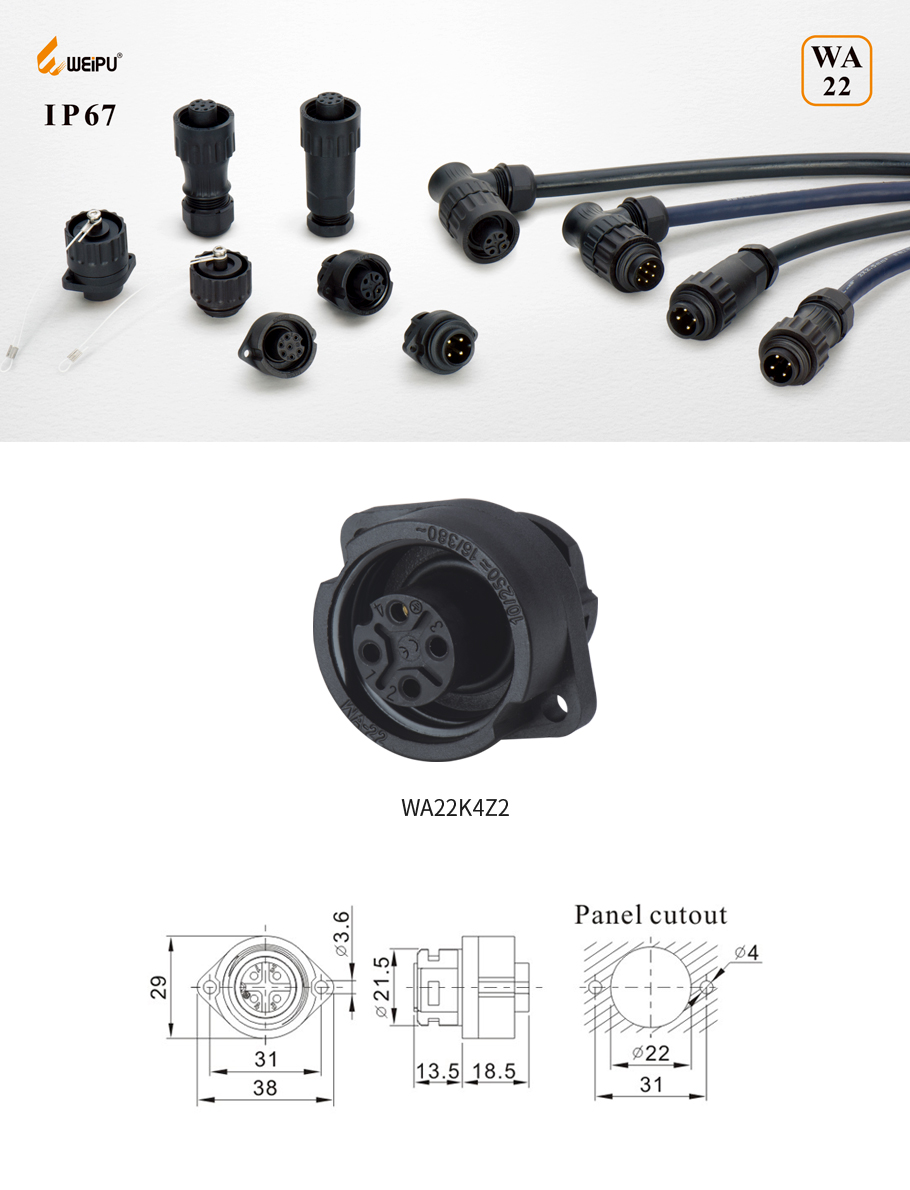

WA22K4Z2 3+PE female panel connector IP67

Home|Screw, Circular Connector|WA22K4Z2 3+PE female panel connector IP67

WA22K4Z2 3+PE female panel connector IP67

Mate with WA22J4TK2,WA22J4TE2,WA22J4TL2

Categories: ,

Description

Number of contact 3+PE 6+PE
Contact diameter (mm) φ2 φ1.5
Rated voltage (AC.V) 400 250
Rated current (A) 16 10
Wire size (mm2/AWG) ≤2.5/14 ≤0.75/18
Termination Screw Solder
Test voltage(AC.V)1min 2000
Insulation resistance (MΩ) 2000
Shell material Nylon66, fire resistance: V-0
Contact material Brass with gold plating
Temperature range -40°C〜 + 85°C
Mating cycle 500

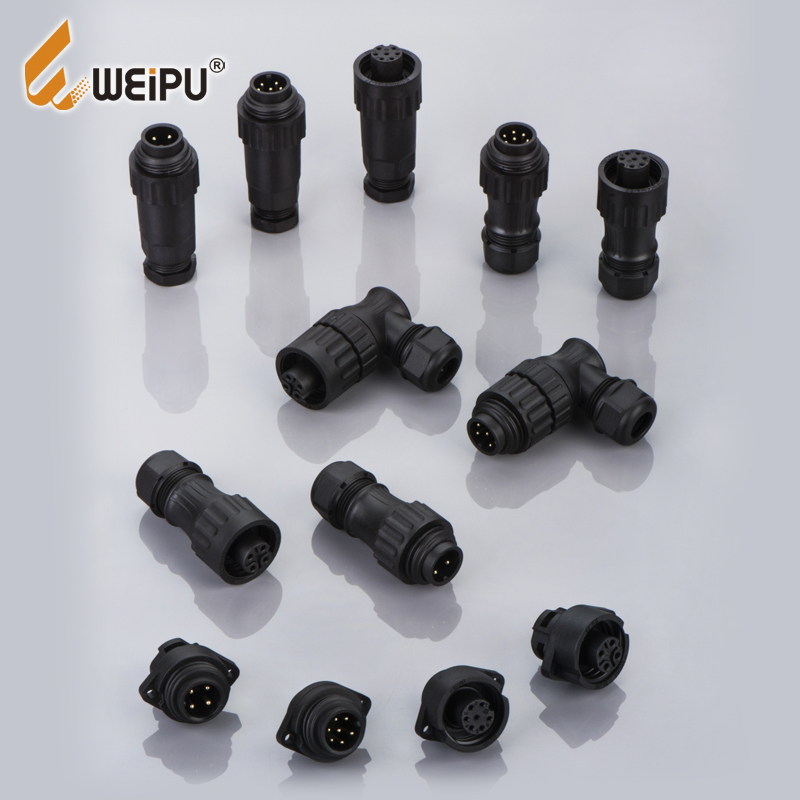

WA22 (3+PEseries) IP67 [Screw]configuration table(list)

01、WA22J4TK2(3+PE male cable connector with short back shell, screw termination)
02、WA22J4TE2(3+PE male cable connector, screw termination)
03、WA22J4TL2 (3+PE male cable connector with angled back shell, screw termination)
04、WA22K4TL2(3+PE female cable connector with angled back shell, screw termination)
05、WA22K4TK2(3+PE female cable connector with short back shell, screw termination)
06、WA22K4ZE2(3+PE female cable connector, screw termination)
07、WA22K4Z2 (3+PE male panel connector, screw termination)
08、WA22J4Z2(3+PE male panel connector, screw termination)
09、WA22 Cap 2
10、WA22 Cap 1
