WD28-Z Receptacle IP65

Mate with WD28-TU,WD28-TW,WD28-TV

Description

Coupling Threaded
Shell material Zinc alloy with black nickel plating
Insert material PPS, max temperature 260°C
Contact material Brass with gold plating
Termination Solder
Mating cycle 500
Temperature range -40C 〜+ 85°C
Insulation resistance 2000 MΩ

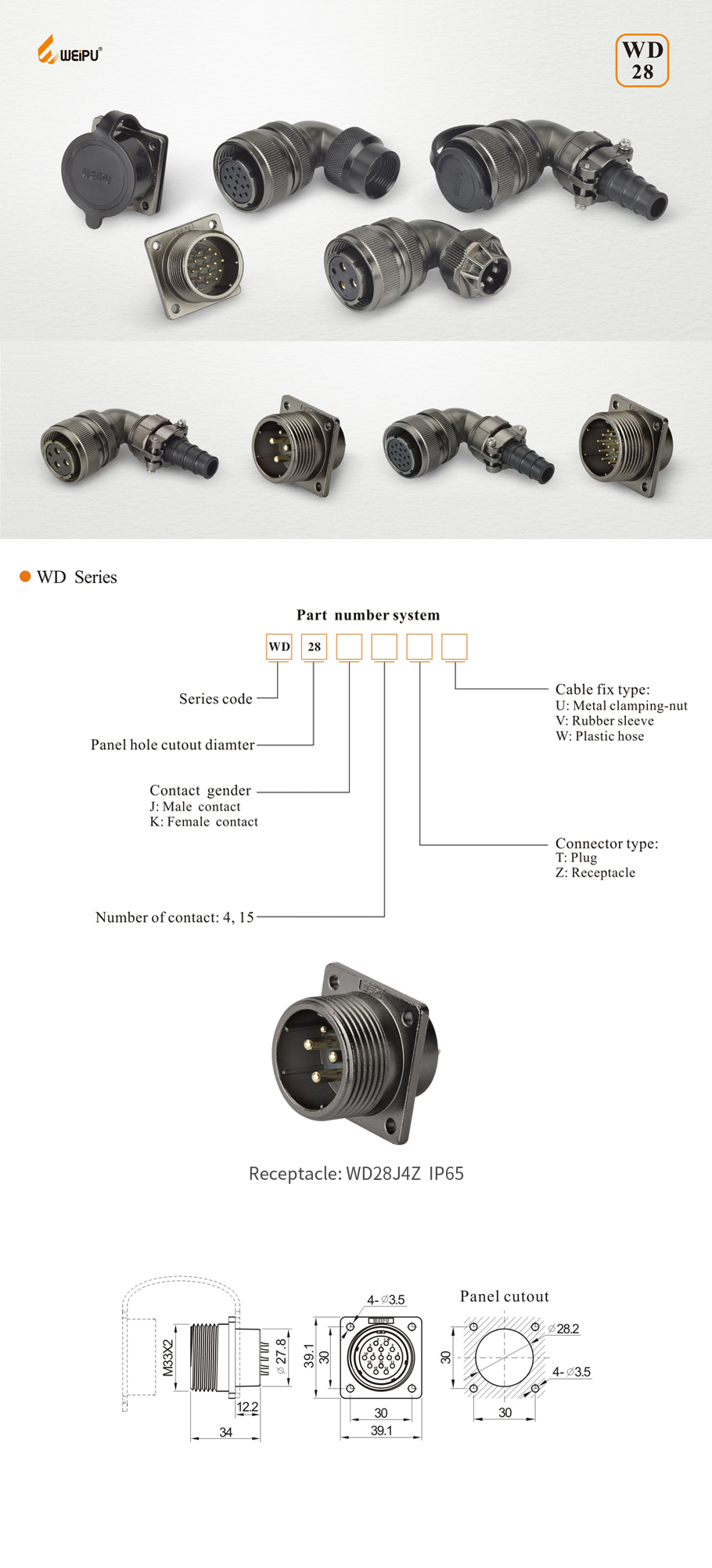

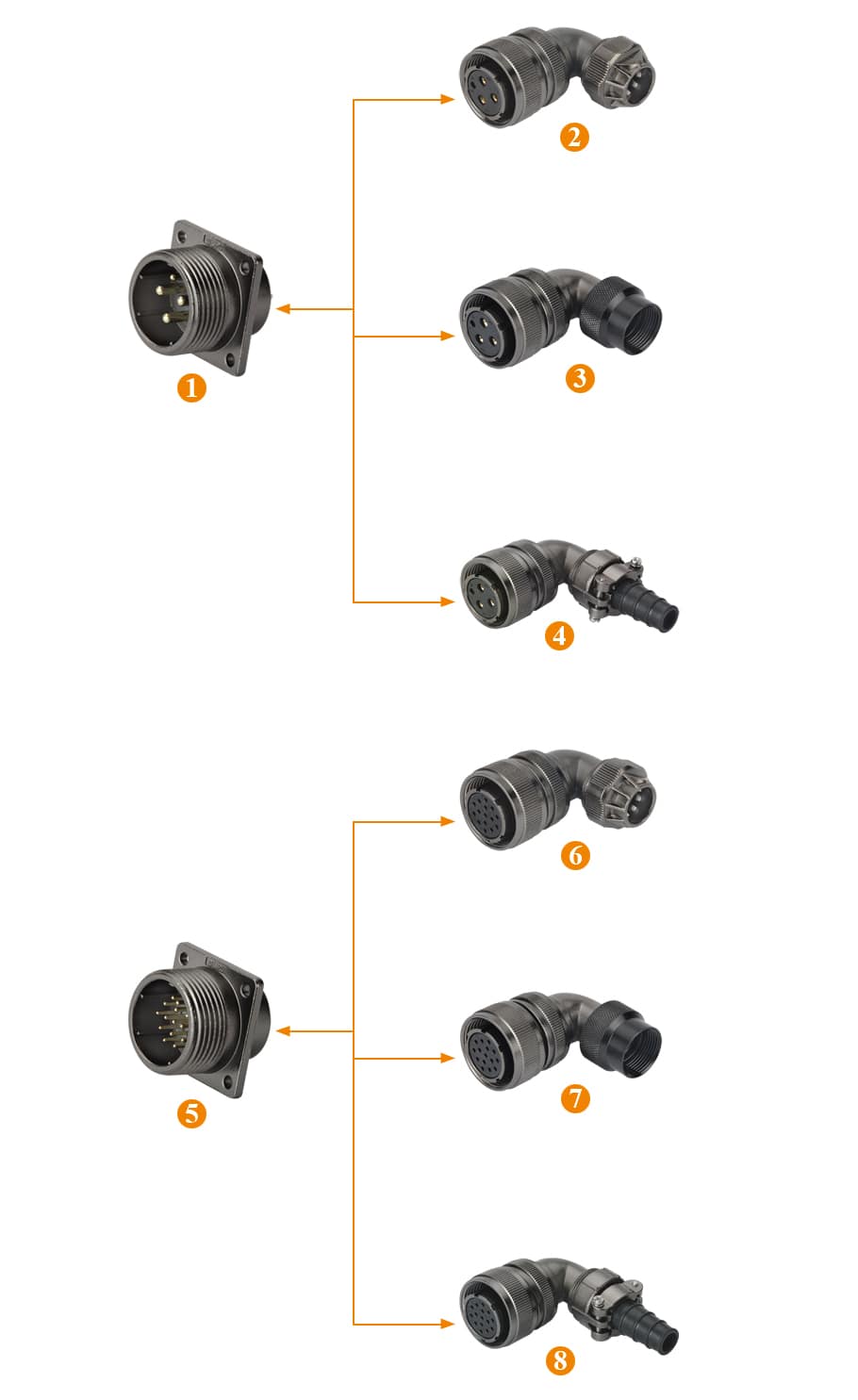

WD28 Series Configuration table(list)

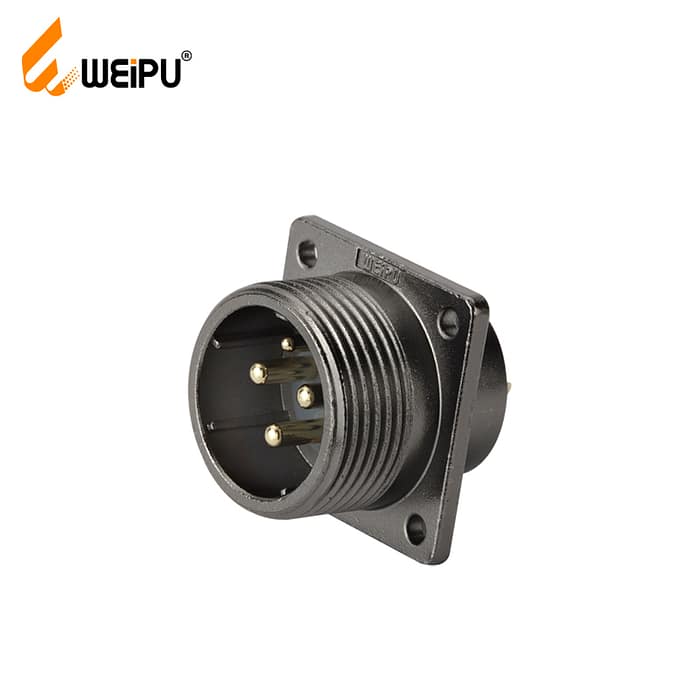

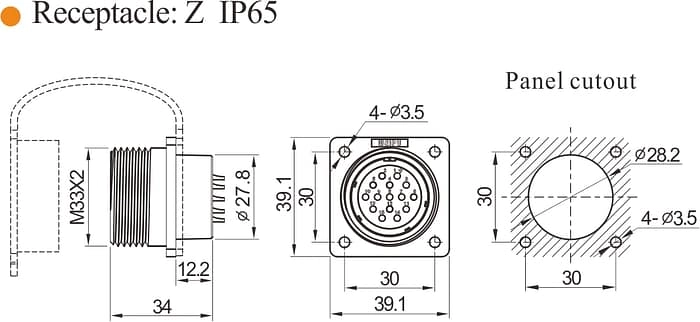

01、Receptacle:WD28J4Z IP65
02、Cable connector with clamping-nut: WD28K4TU IP65
03、Cable connector for plastic hose:WD28K4TW IP55
04、Cable connector with rubber sleeve:WD28K4TV IP65

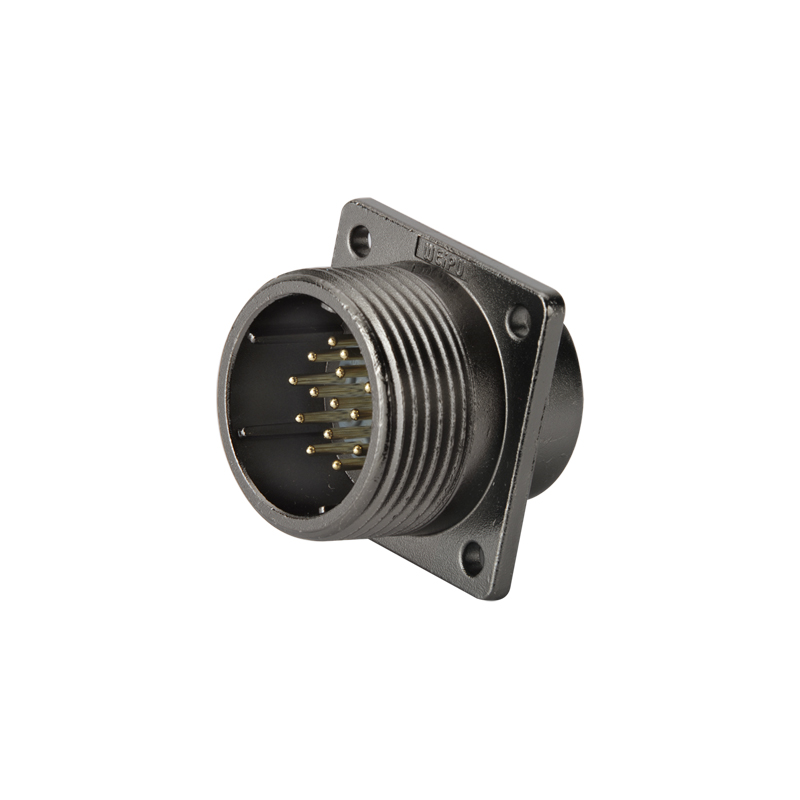

05、Cable connector with rubber sleeve:  WD28J15Z IP65
06、Cable connector with clamping-nut: WD28K15TU IP65
07、Cable connector for plastic hose:WD28K15TW IP55
08、Cable connector with rubber sleeve:WD28K15TV IP65
