Mate with WD28-Z

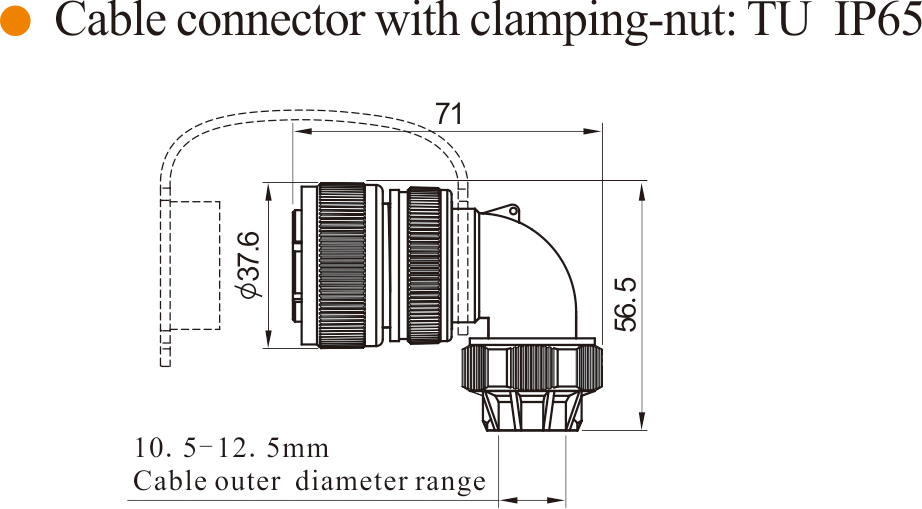

WD28-TU Cable connector with clamping-nut IP65
Description
| Coupling | Threaded |
| Shell material | Zinc alloy with black nickel plating |
| Insert material | PPS, max temperature 260°C |
| Contact material | Brass with gold plating |
| Termination | Solder |
| Mating cycle | 500 |
| Temperature range | -40C 〜+ 85°C |
| Insulation resistance | 2000 MΩ |

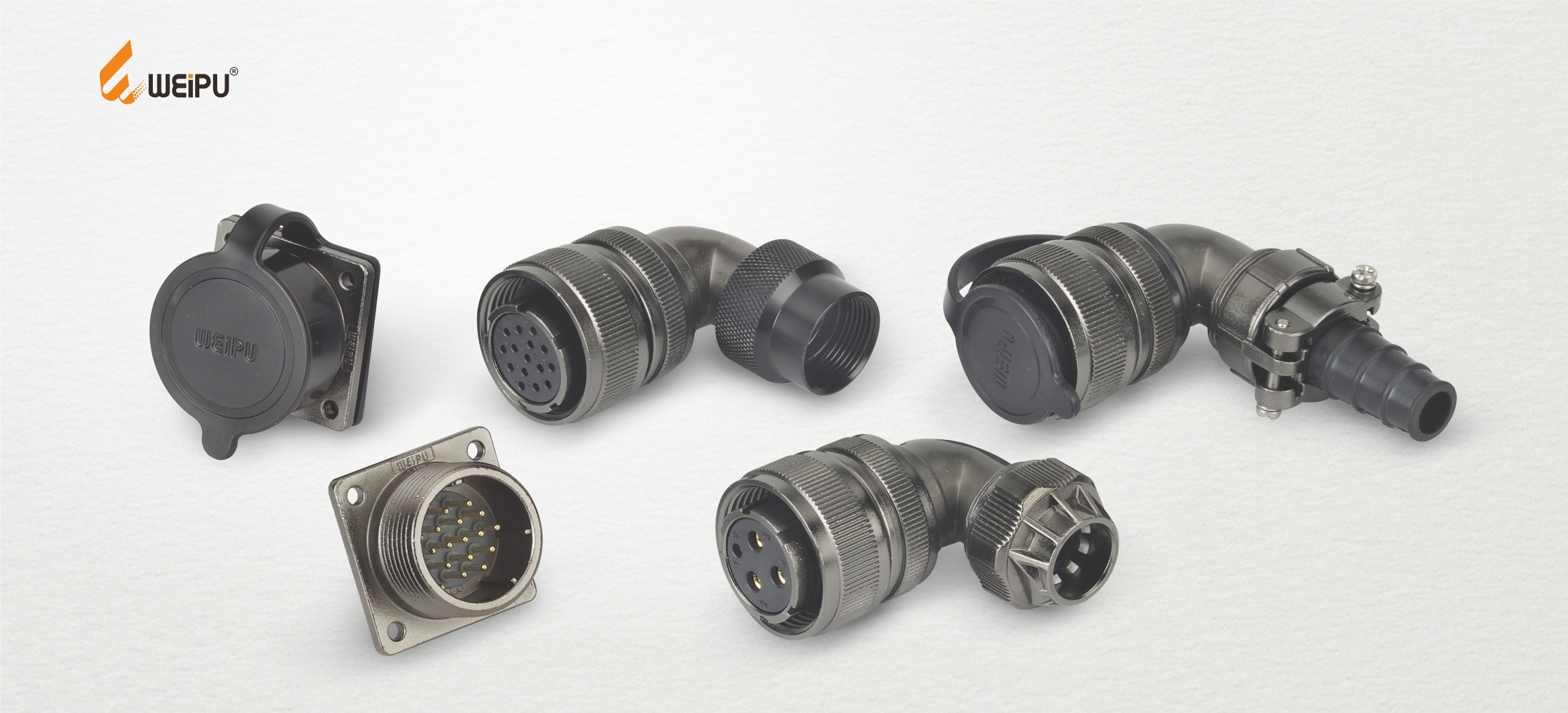

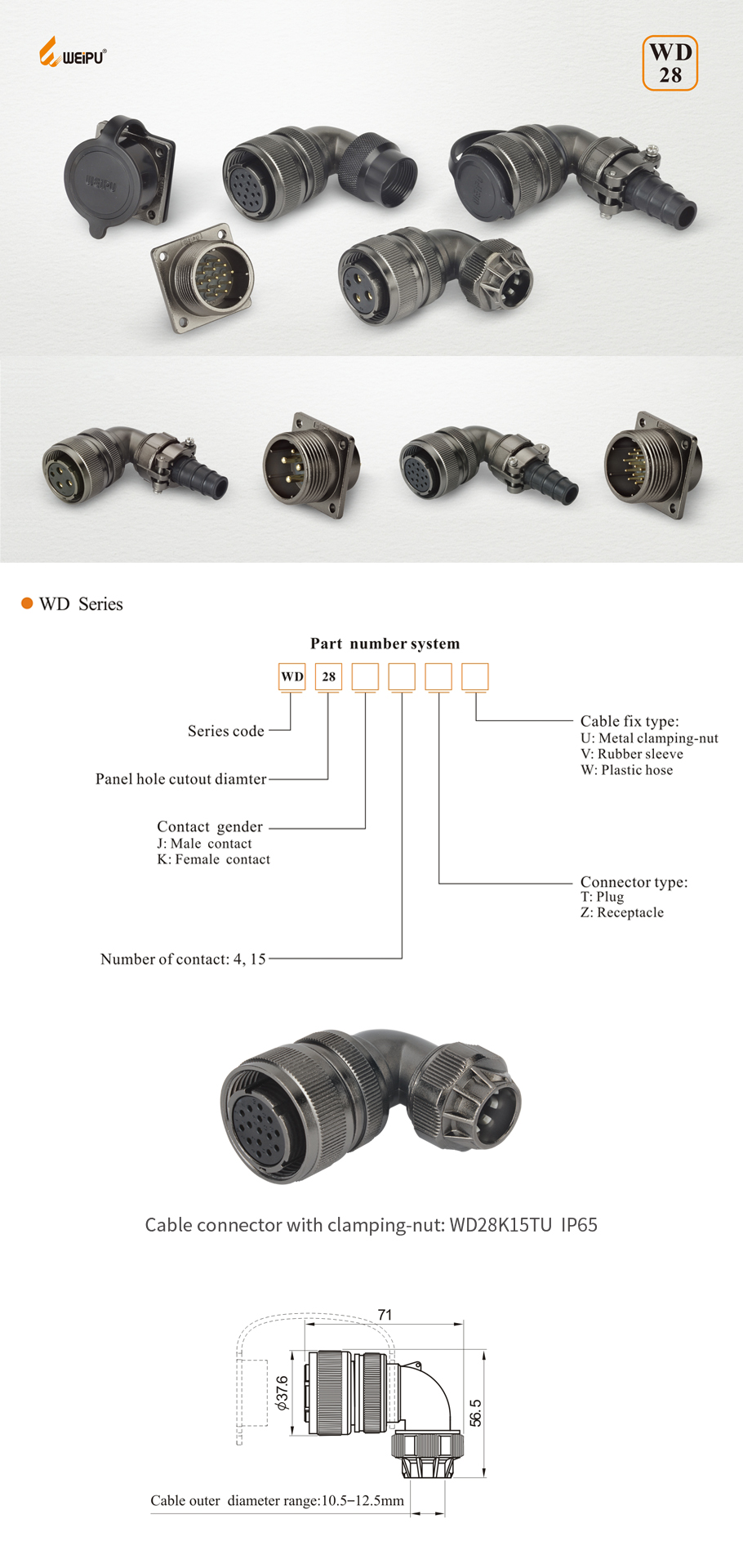

| WD28 Series Configuration table(list) |
| 01、Receptacle：WD28J4Z IP65 |

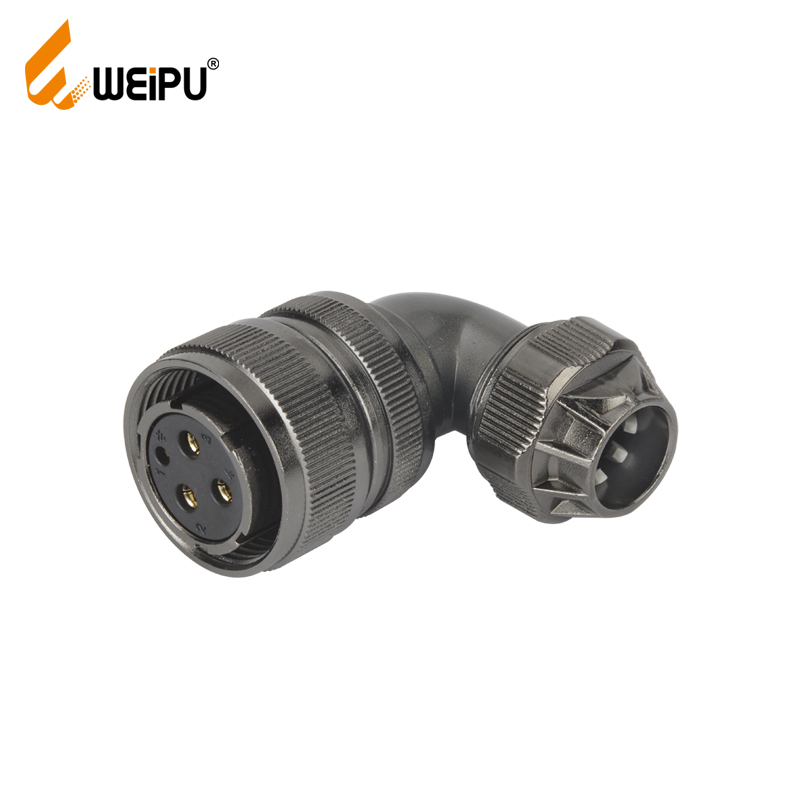

| 02、Cable connector with clamping-nut: WD28K4TU IP65 |
| 03、Cable connector for plastic hose：WD28K4TW IP55 |
| 04、Cable connector with rubber sleeve：WD28K4TV IP65 |
| 05、Cable connector with rubber sleeve: WD28J15Z IP65 |

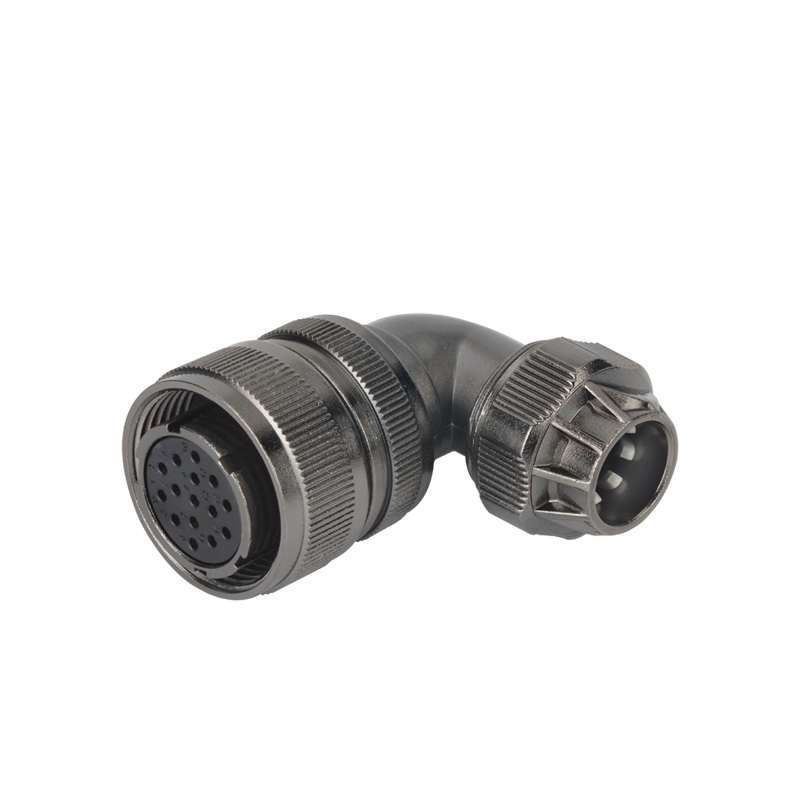

| 06、Cable connector with clamping-nut: WD28K15TU IP65 |
| 07、Cable connector for plastic hose：WD28K15TW IP55 |
| 08、Cable connector with rubber sleeve：WD28K15TV IP65 |
