| Coupling | Bayonet |
| Shell | Nylon 66 / Zinc alloy |
| Insert material | PPS, max temperature 260 °C |
| Contact material | Brass |
| Contact plating | Gold Plating |
| Termination |

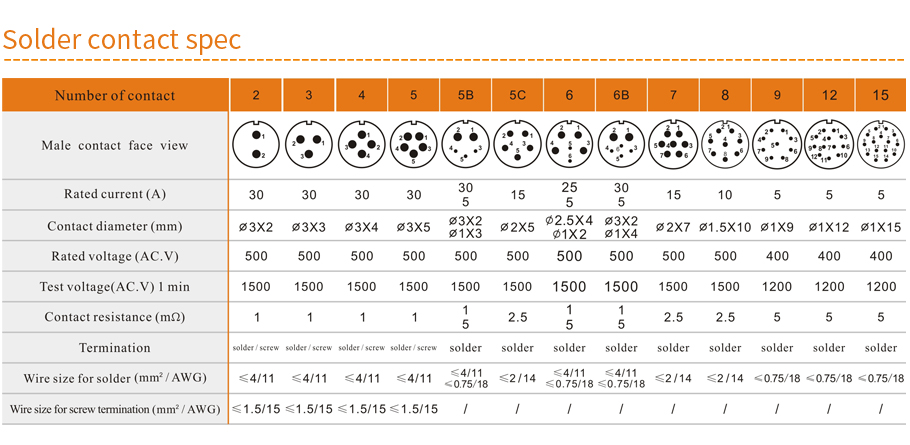

Solder: φ1mm,φ2mm,φ3mm contact
Sccrew: φ3mm contact |
| Mating cycle | 500 |
| Temperature range | -40℃〜+85℃ |

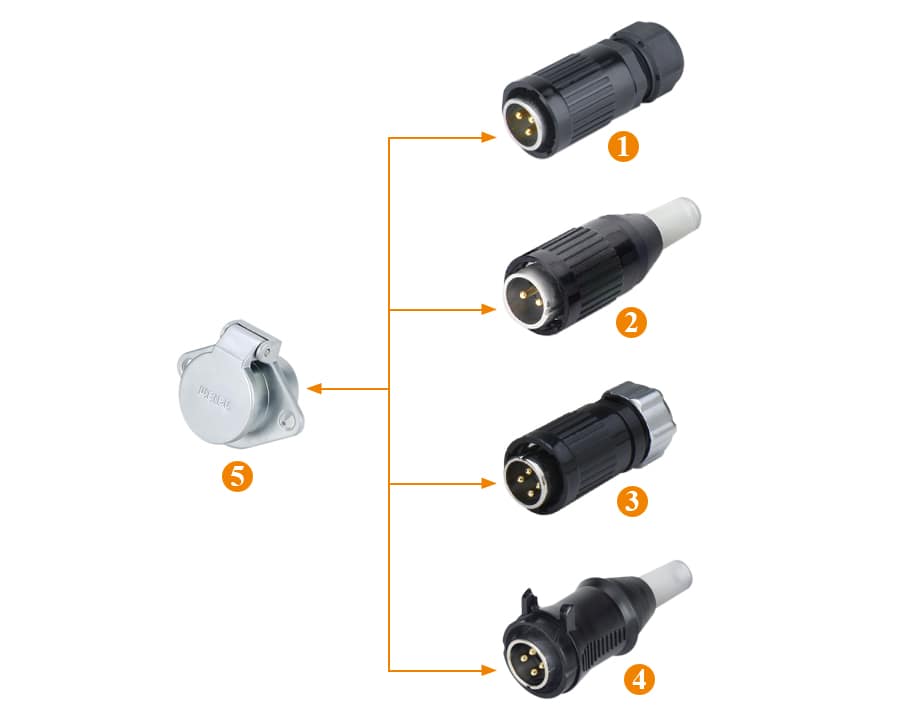

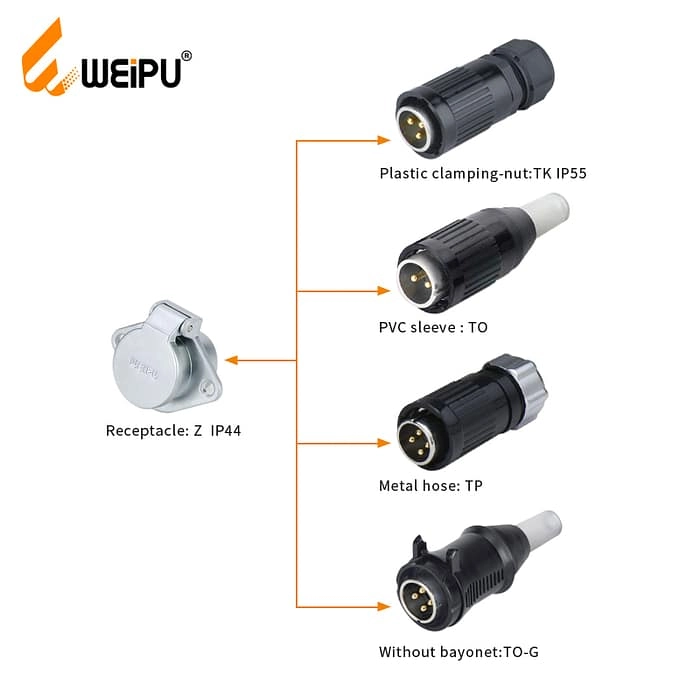

| WP20 Series configuration table(list) |
| 01、Plastic clamping-nut:TK IP55 |
| 02、PVC sleeve : TO |

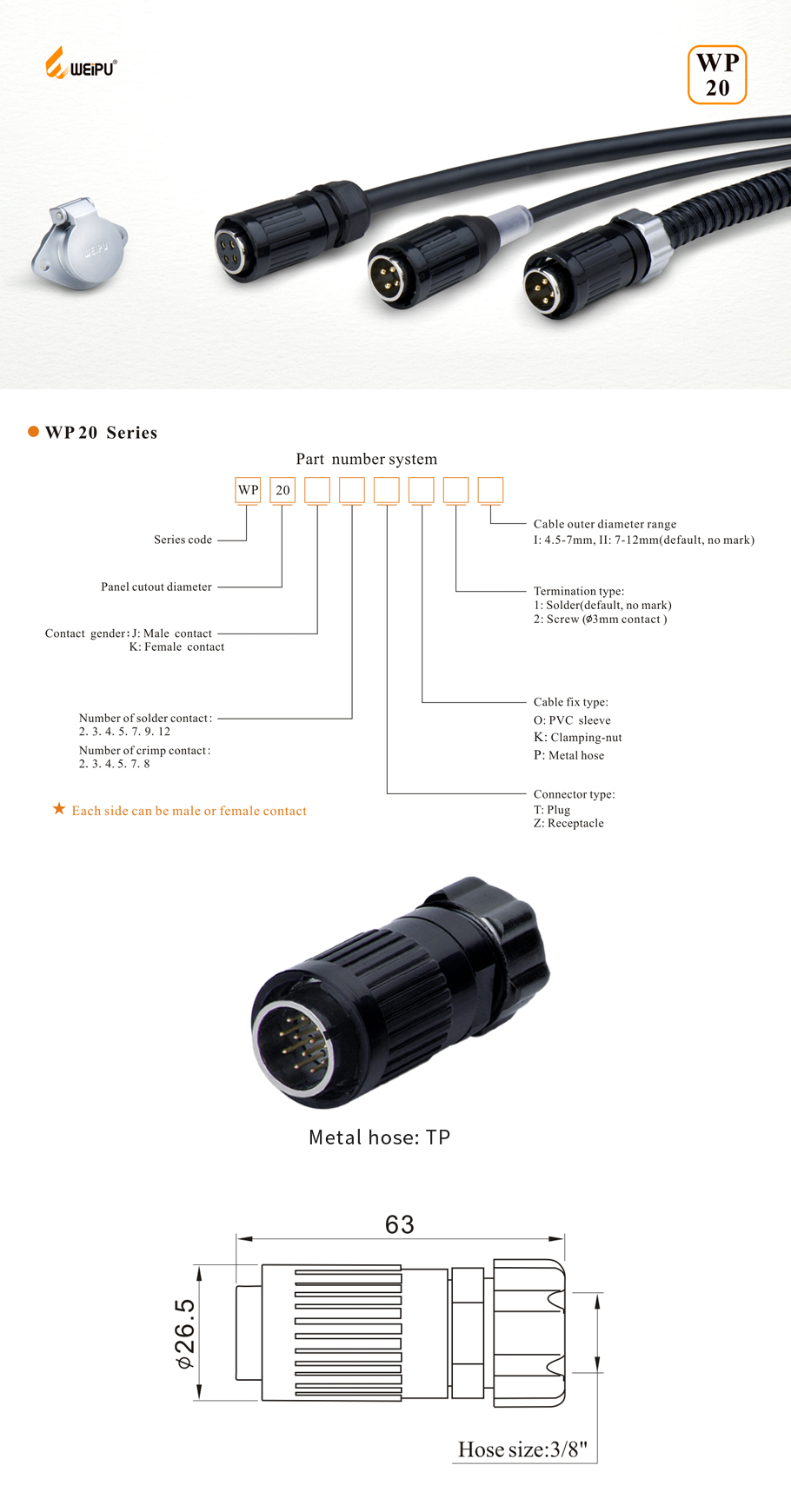

| 03、Metal hose: TP |
| 04、Without bayonet:TO-G |
| 05、Receptacle: Z IP44 |
