Mate with WL52J19Z,WL52J19T,WL52J19TⅡ,WL52J19TADⅠ,WL52J19TADⅡ

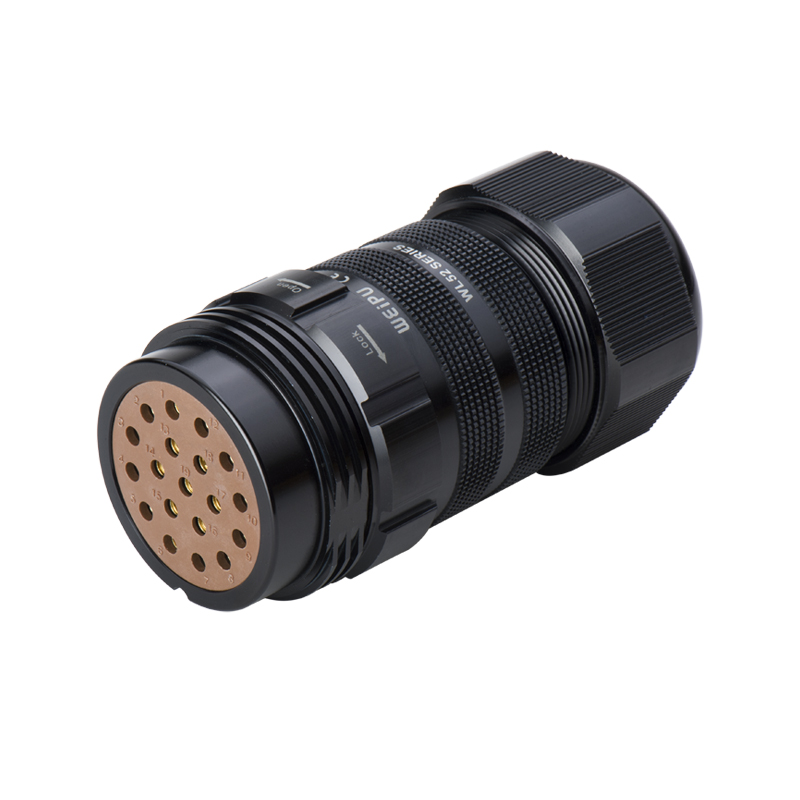

WL52K19T Ⅱ Female-contact connector with clamping-nut IP67
Description
| Coupling | Threaded |
| Shell | Anodized aluminium |
| Insert material | PPS, fire resistance: V-0, max temperature 260°C |
| Contact material | Brass with gold plating |
| IP rating | IP66/67 |
| Termination | Solder |
| Mating cycle | 500 |
| Temperature range | -40°C 〜+ 85°C |
| Insulation resistance | 2000 MQ |
| WL52 Series configuration table(list) |
| 01、Square flange female contact receptacle: WL52K19Z IP67 |
| 02、Male-contact plug with clamping-nut: WL52J19T IP67 |
| 03、Male-contact plug with clamping-nut 2: WL52J19TII IP67 |
| 04、Male-contact plug for PG29 Plastic hose adapter: WL52J19TAD I IP66 |
| 05、Male-contact plug for M40 ×1.5 plastic hose adapter: WL52J19TAD II IP66 |
| 06、Square flange male contact receptacle: WL52J19Z IP67 |
| 07、Female-contact connector with clamping-nut: WL52K19T IP67 |

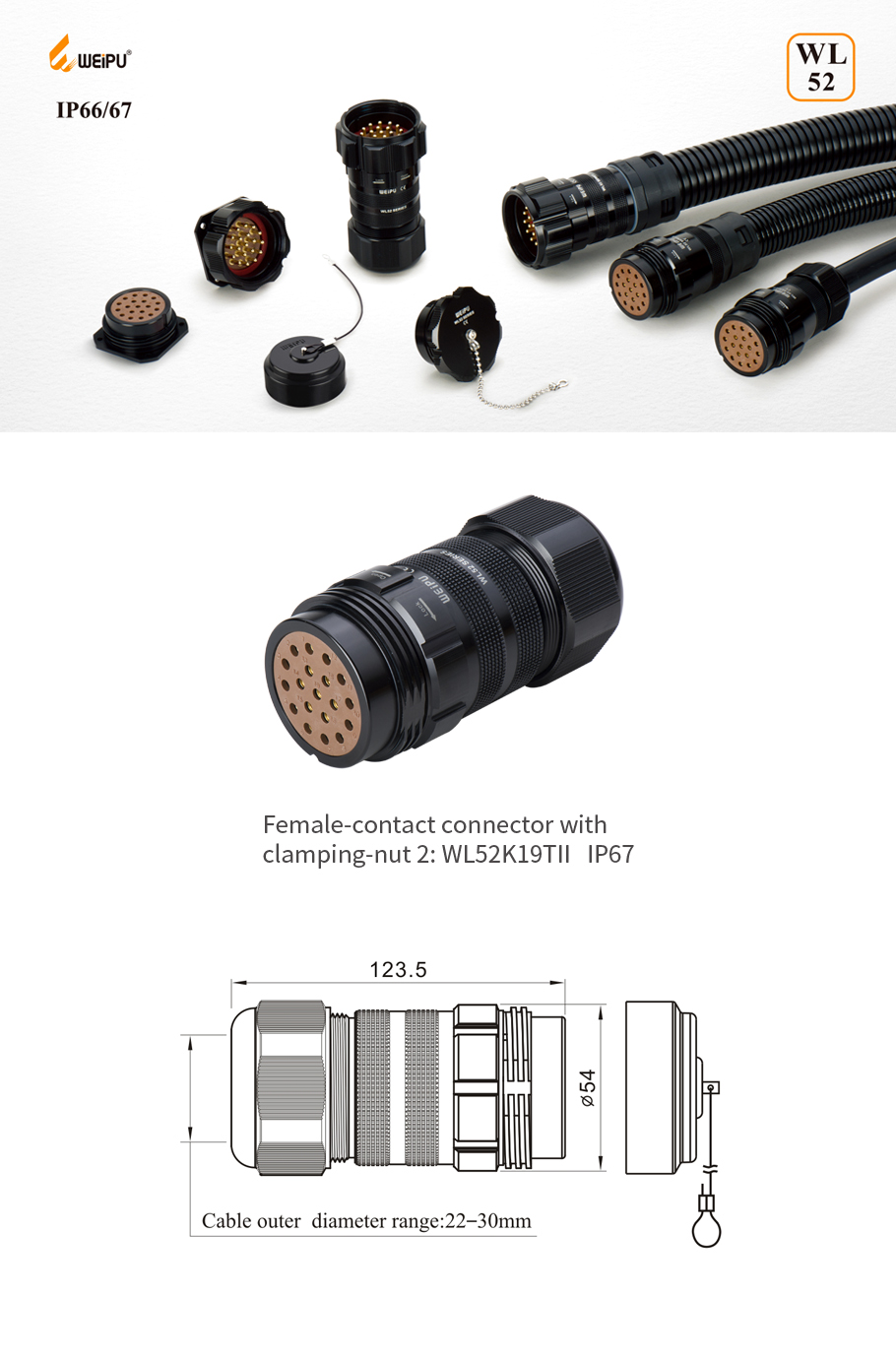

| 08、Female-contact connector with clamping-nut 2: WL52K19TII IP67 |
| 09、Female-contact connector for PG29 Plastic hose adapter: WL52K19TAD I IP66 |
| 10、Female-contact connector for M40 ×1.5 Plastic hose adapter：WL52K19TAD II IP66 |
