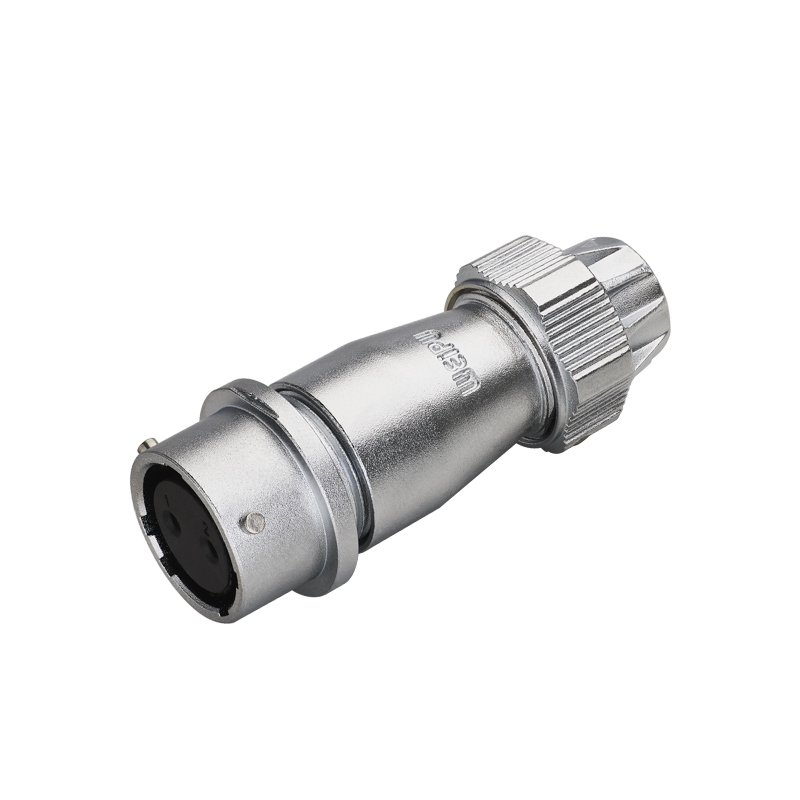

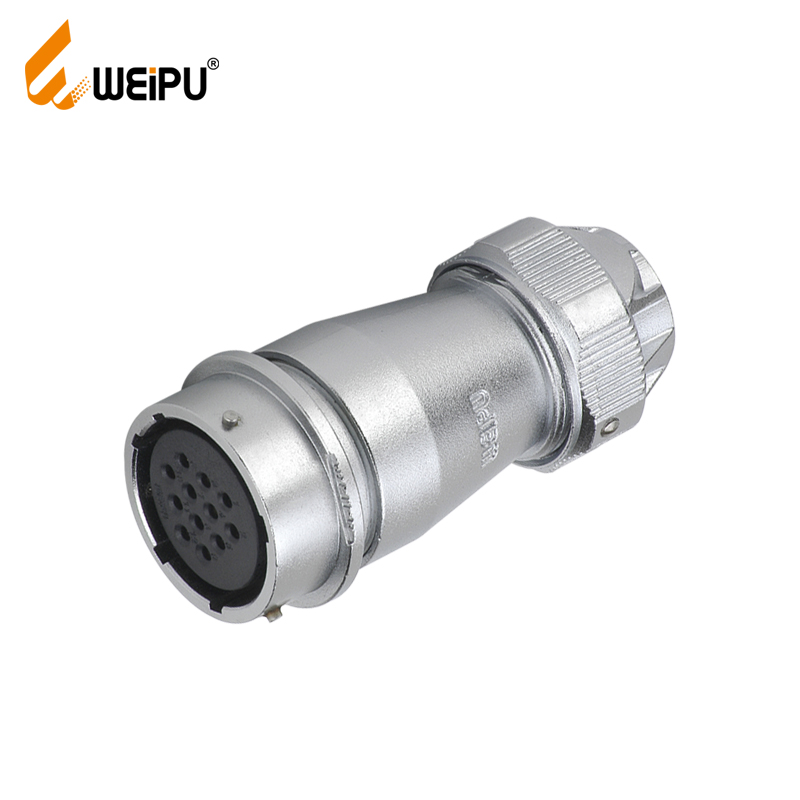

WEIPU WY-ZE Series In-line Receptacle Connector

With metal clamping-nut IP67, Threaded, Zinc alloy with chrome plating

WEIPU WY-ZE series circular power connectors are mainly designed with metal clamping-nut, suitable for aviation, stage lighting, medical industry and other areas. All circular connector types can ensure transmissions efficiently and can be easily installed. Even under adverse conditions, our circular power connectors can also keep working.

Get A Quote

Get Product Catalogs

Description

Specification

Solution

Video

Document

Coupling	Threaded
Shell material	Zinc alloy with chrome plating
Insert material	PPS, max temperature 260 °C
Contact material	Brass with gold plating
Termination	Solder: φ1, φ1.5, φ2.5, φ3.5, φ5.5 mm; Screw: φ2.5, φ3, φ3.5 mm; Crimp: φ1, φ1.5, φ2.5, φ3.5, φ5.5, φ10 mm
Mating cycle	500
Temperature range	-40°C 〜 +85°C

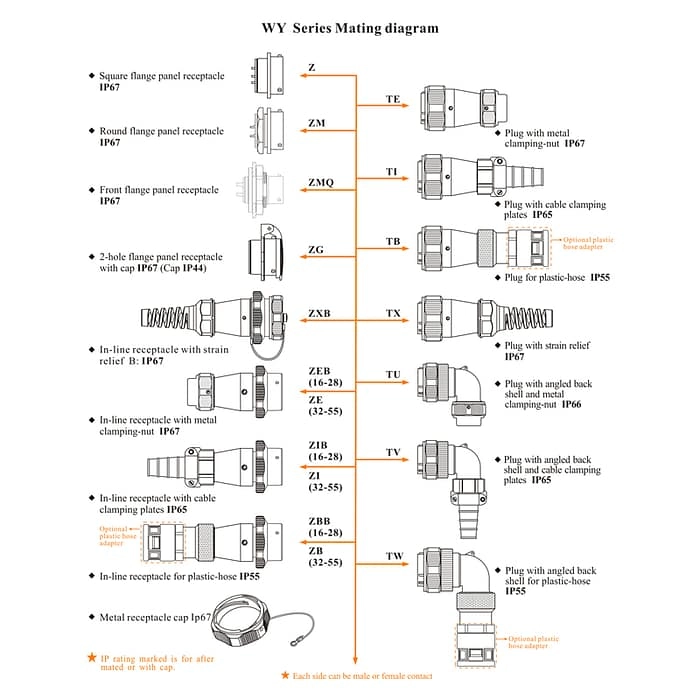

WEIPU WY Series Circular Power Connectors Configuration Table (List)
01. Plug with metal clamping-nut IP67	10. Round flange panel receptacle IP67
02. Plug with cable clamping plates IP65	11. Front flange panel receptacle IP67
03. Plug with cable clamping plates IP65	12. 2-hole flange panel receptacle with cap IP67 (Cap IP44)
04. Plug with strain relief IP67	13. In-line receptacle with metal clamping nut IP67
05. Plug with angled back shell and metal clamping-nut IP66	14. In-line receptacle with cable clamping plates IP65
06. Plug with angled back shell and cable clamping plates IP65	15. In-line receptacle for plastic-hose IP55
07. Plug with angled back shell and cable clamping plates IP65	16. In-line receptacle with anti-bending sleeve IP67
08. Plug with angled back shell for plastic-hose IP55
09. Square flange panel receptacle IP67

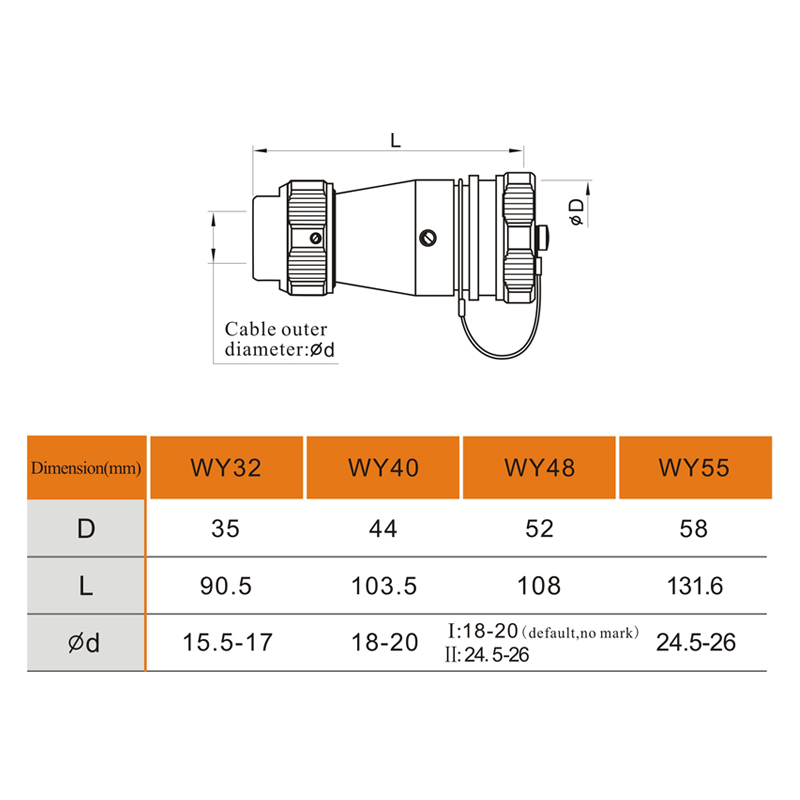

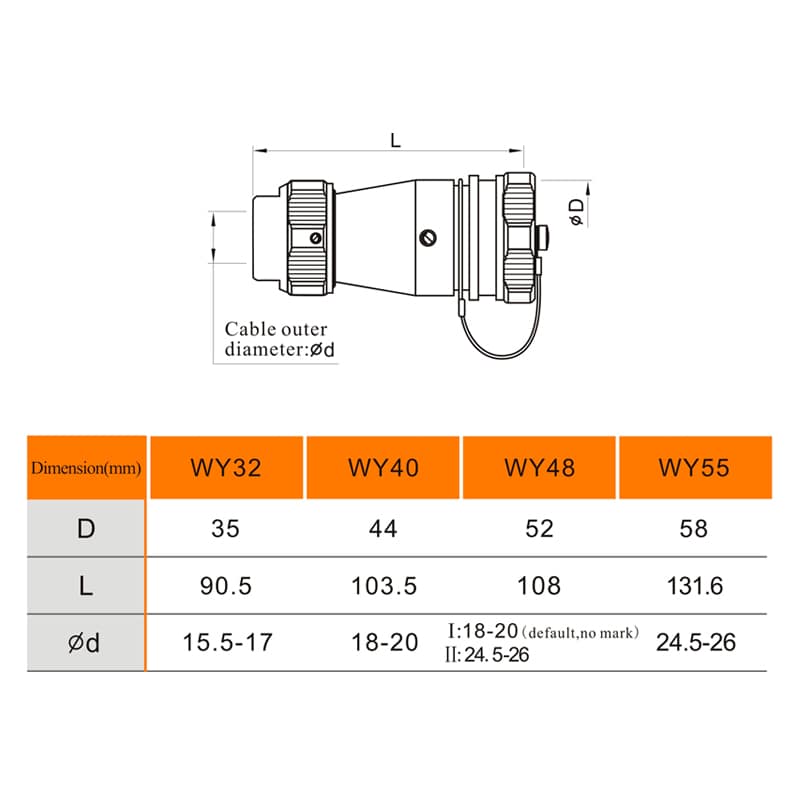

WEIPU WY-ZE Circular Power Connectors Specification

Solder contact spec Crimp contact spec

WEIPU specializes in high performance standard and high-quality circular connectors, industrial connector, heavy duty connector, distribution box series and cable assembly for various applications in harsh environments that meets the unique needs of all customers.

Industrial Application

Model: WY-ZE Series Circular Power Connector

Function: Circular power connectors designed for industrial applications, such as marine, medical, automation industry.

How WEIPU Circular Power Connectors Can Help Your Application

WEIPU WY-ZE circular connectors are designed for the maximum efficiency and versatility. With the latest and advanced technology, this circular power connector can help customers transmit power, data and signal efficiently. We research and develop circular push pull connectors

and related accessories independently, which you can purchase from WEIPU one source to save your sourcing and assembling time.

Customized Services

WEIPU provides customized connector solutions for customers. WEIPU circular connector offers individual solutions based on the data and needs provided by different customers.

One-to-one professional pre-sales and after-sales service
One stop solution to save your time and money
Dedicated 24-hour online customer service group

Cases

WEIPU is a professional manufacturer of industrial connectors and has cooperated with many large-scale supporting projects in the past 25 years. For example:

Beijing Olympic Games Opening Ceremony and Bird’s Nest project supporting projects
Shanghai World Expo Opening Ceremony and supporting projects
China Export Commodities Fair Pazhou International Exhibition
Beijing, Shanghai, Guangzhou, Shenzhen Subway Network supporting projects
Yangtze Three Gorges Closure Project
