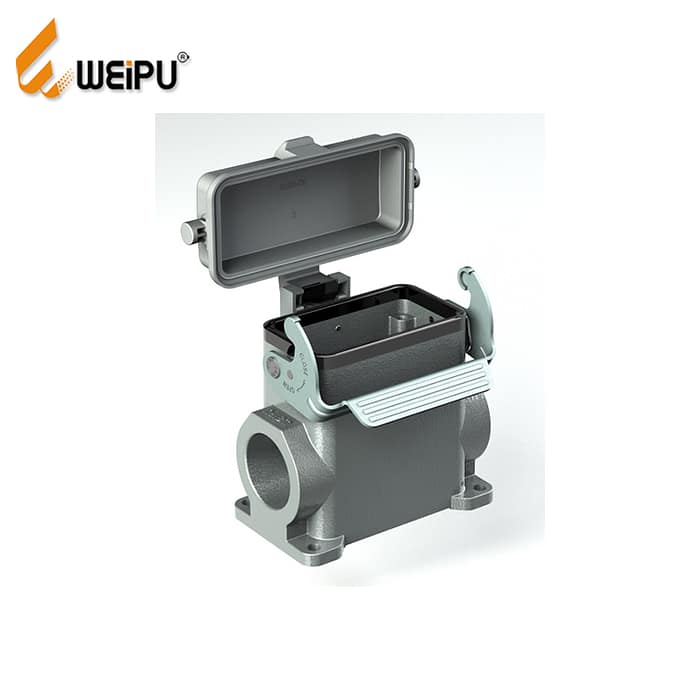

HA10B-SFH-1L/W-MCV standard electrical connection components for Industry 4.0
Heavy duty connector housings are made of cast aluminum or flame retardant thermoplastic materials and are powder coated to withstand impact and mechanical pressure.
SEALANT gasket between housing.
The fire rating is V-0, which the product is for IP65.
All kind of the cable joints and different shell forms are for different installation, provide a variety of different solutions.
| Size 3A Metal Hoods & Housings | IP65 |
| Material | zinc die-cast |
| Colour | grey |
| Locking element | |
| -Lever type | metal elastic pressing |
| -Material | metal galvanized/ |
| nickel plating | |
| Hoods/Housings seal | NBR |
| Limiting temperatures | -40…+125°C |
| Flammability acc. to UL 94 | VO |
| Degree of protection acc.to DIN EN | |
| 60 529 for coupled connector | IP65 |
