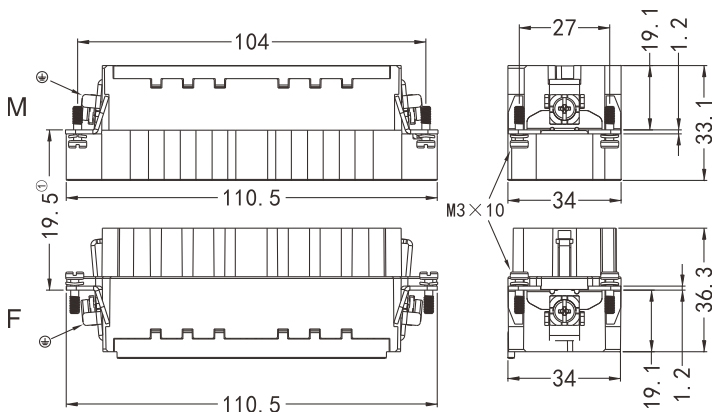

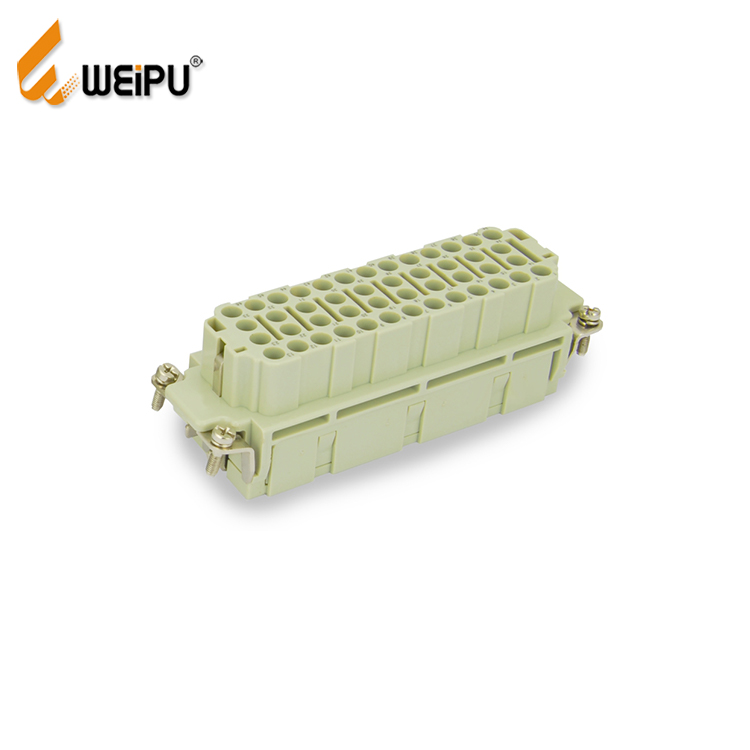

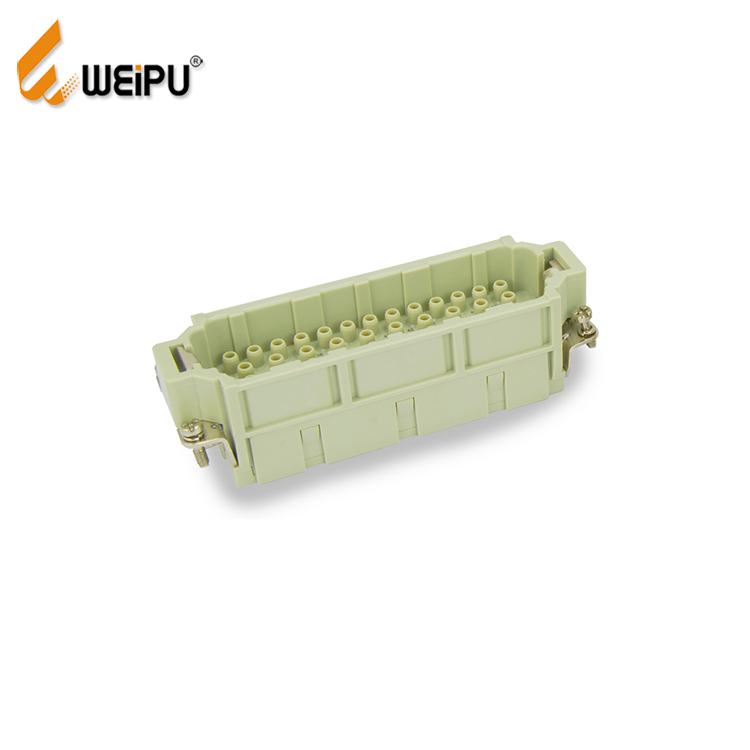

HEE-046-MC/FC Crimp termination Connector 16A 500V 46+PE
Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.
| Applied Range： |
| ◆ Wind Energy |
| ◆ Power Systems |
| ◆ Photovoltaic Industry |
| ◆ Engineering Equipment |
| ◆Other Industry Application |
| Specifications and approvals | |
|
IEC 60664-1、IEC61984

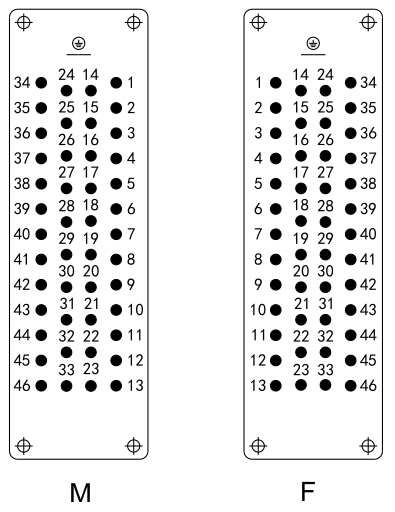

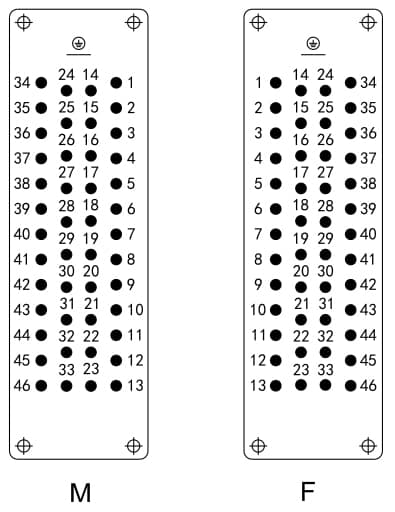

10+PE、18+PE. 32+PE、46+PE、64(2X32)+PE, 92(2 X 46)*PE |
|
| Rated current | 16A |
| Rated voltage | 500V |
| Rated impulse voltage | 6kV |
| Pollution degree | 3 |
| Insulation resistance | ≥10^10Ω |
| Material(insert) | Polycarbonate |
| Limiting temperaures | -40°C~125°C |
| Flammability (insert) acc.to UL 94 | V-0 |
| Rated voltage acc.to UL/CSA | 600V |
| Mating cycles | ≥500次 |
| Material | Copper Alloy |
| Surface | 镀金、镀银Silver or Gold Plated |
| Contact resisance | ≤1mΩ |

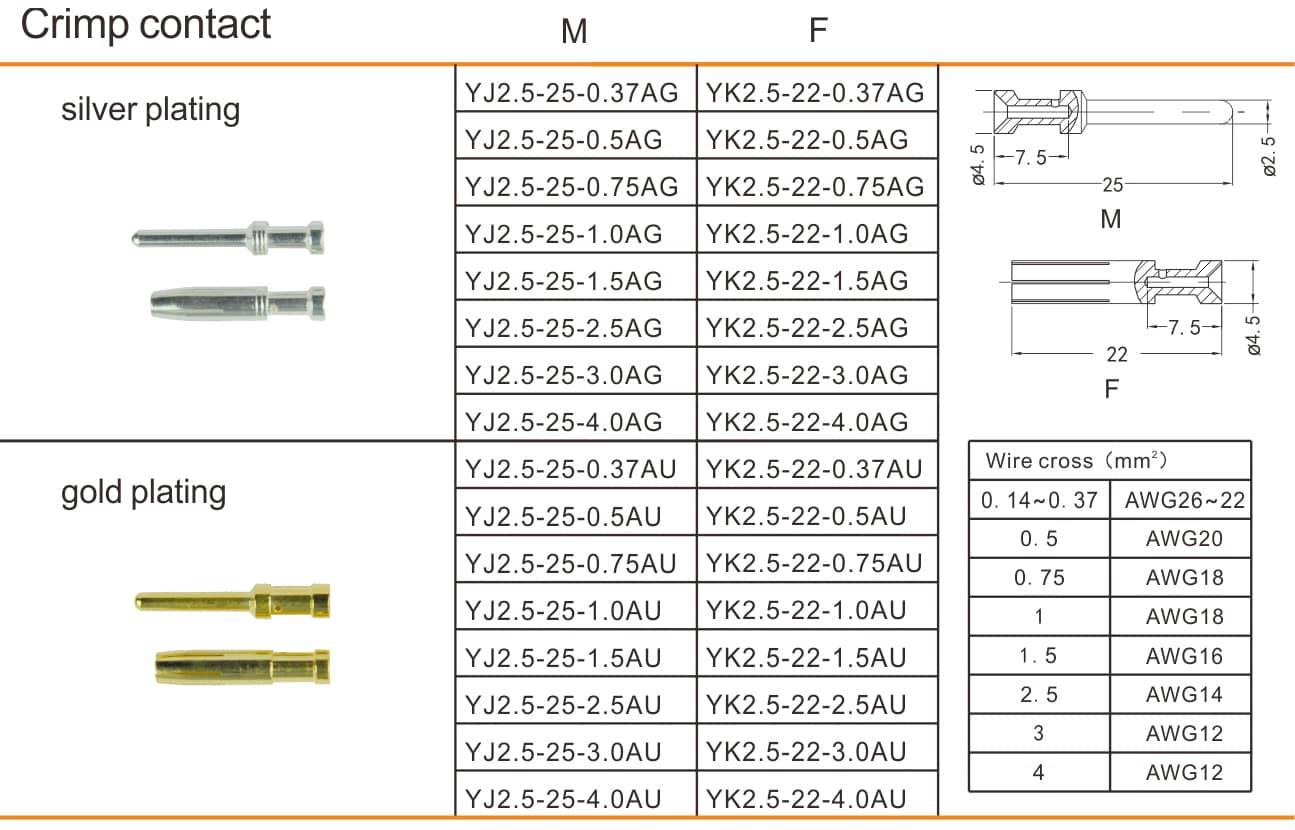

| Terminal | Crimp |
| Wire gauge |
0/14*4mm^2
26-12AWG |
| Stripping length | 7.5mm |
