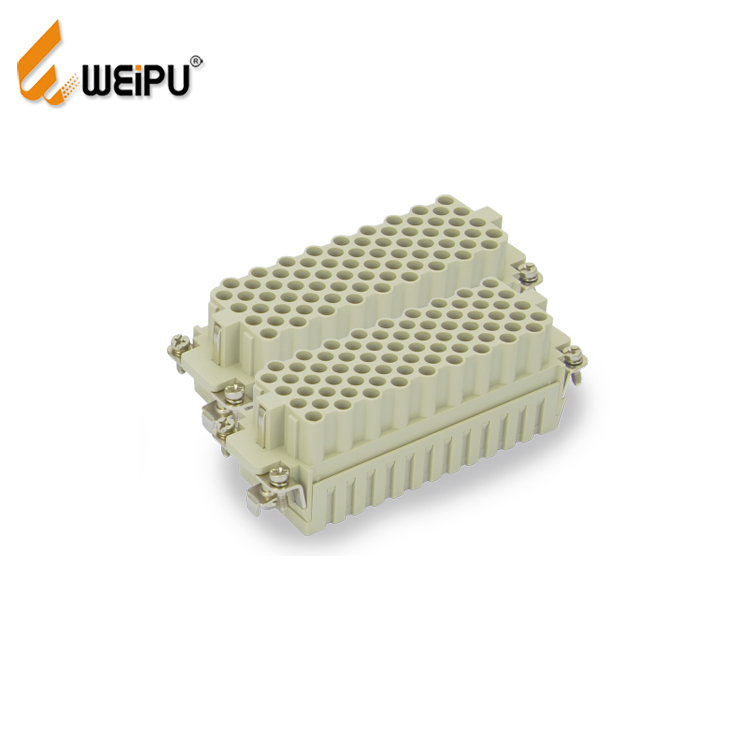

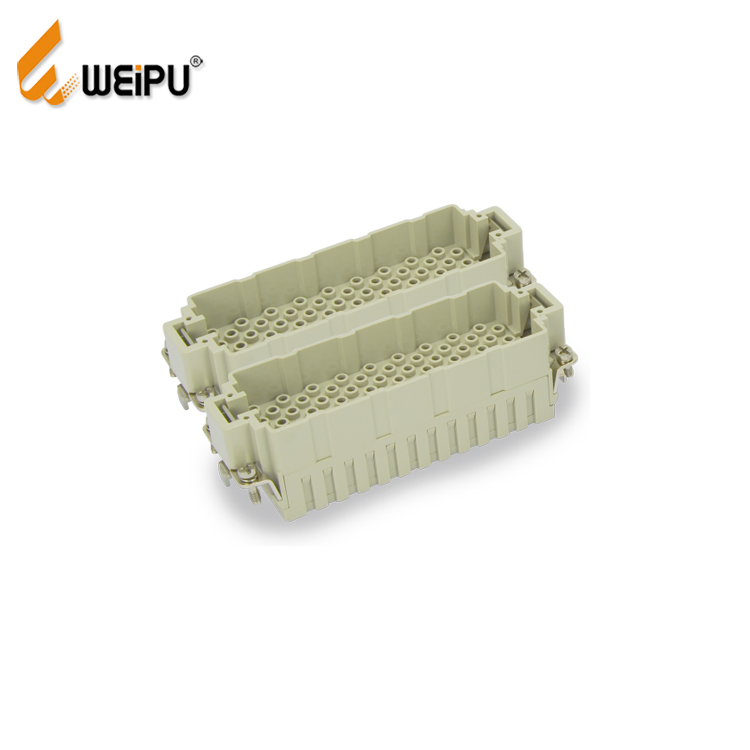

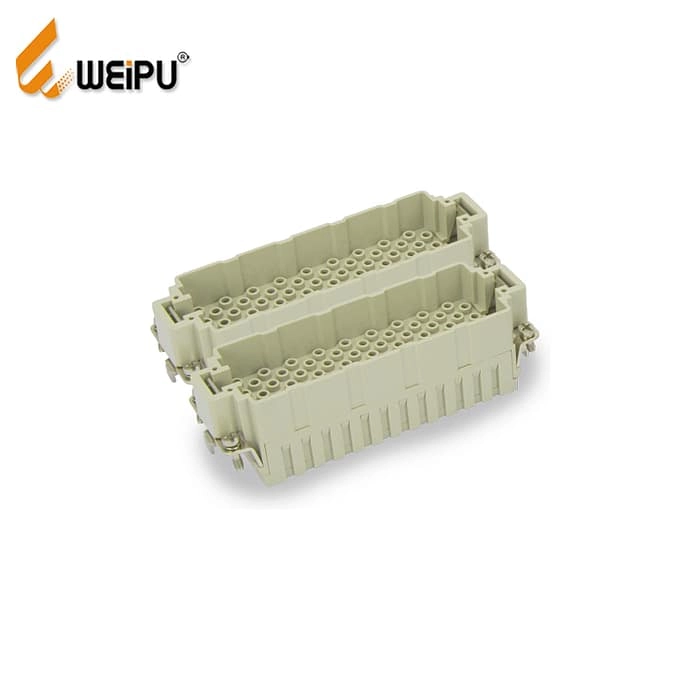

HEEE-128-MC/FC Crimp termination Connector 16A 500V 128+PE
Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.
| Applied Range： |
| ◆ Wind Energy |
| ◆ Power Systems |
| ◆ Photovoltaic Industry |
| ◆ Engineering Equipment |
| ◆Other Industry Application |
Description
Specification
Video
Document
| Specifications and approvals | |
|
IEC60664-1, IEC61984
40+PE、64+PE、80(2X40)+PE, 128(2X64）+PE |
|
| Rated current | 16A |
| Rated voltage | 500V |
| Rated impulse voltage | 6kV |
| Pollution degree | 3 |
| Insulation resistance | ≥10^10Ω |
| Material(insert) | Polycarbonate |
| Limiting temperaures | -40°C~125°C |
| Flammability (insert) acc.to UL 94 | V-0 |
| Mating cycles | ≥500次 |
| Material | Copper Alloy |
| Surface | Silver or Gold Plated |
| Contact resisance | ≤1mΩ |

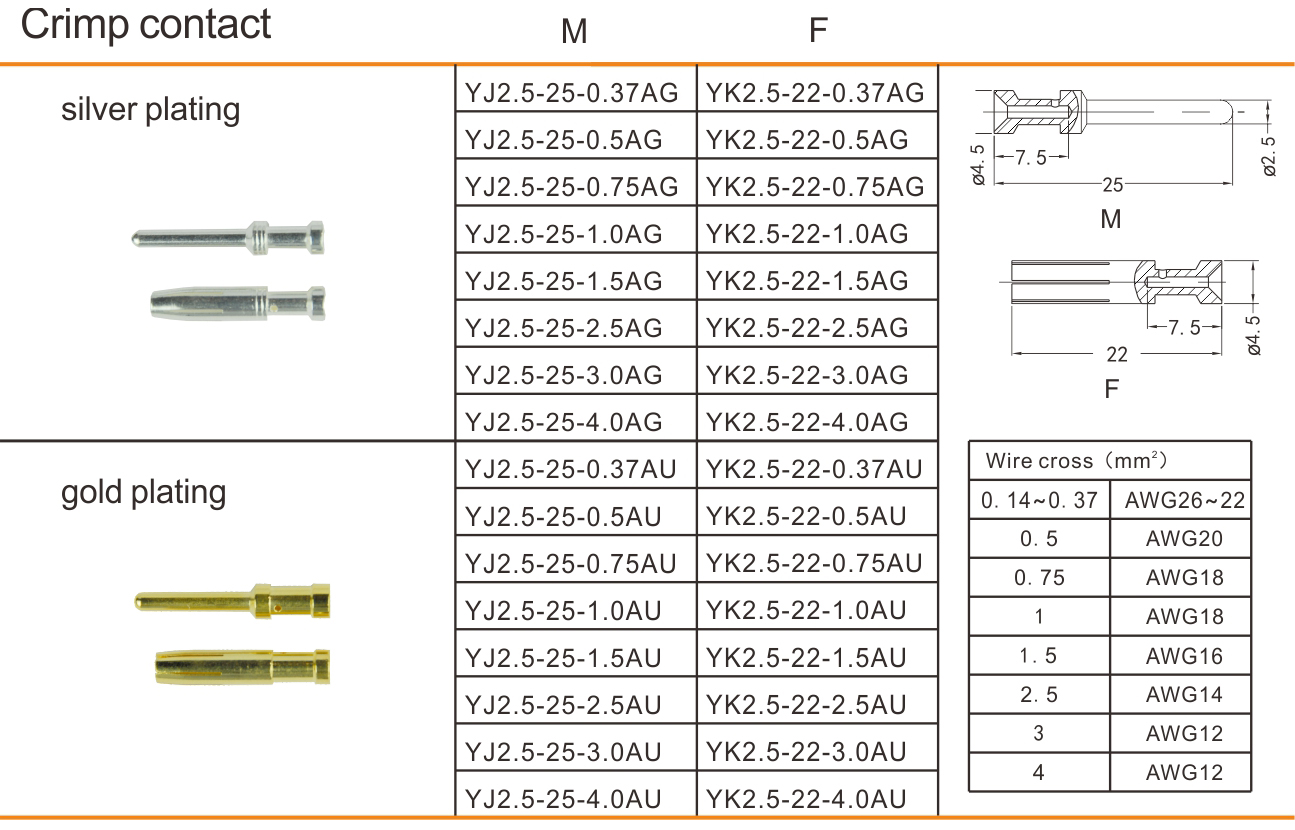

| Terminal | Crimp |
| Wire gauge |
0.14-4 mm^2;
26-12AWG |
| Stripping length | 7.5mm |
