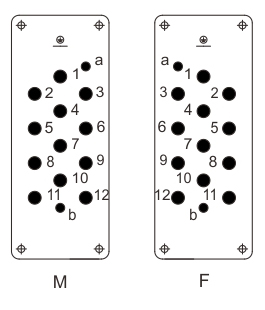

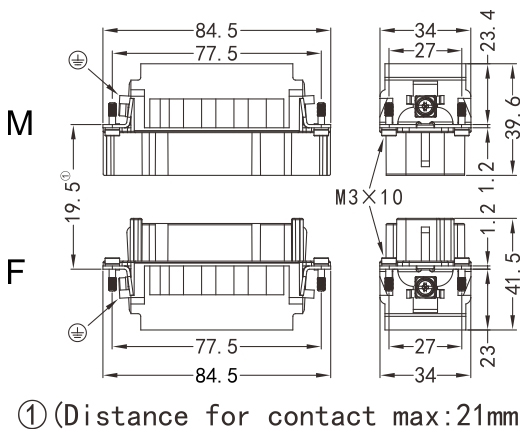

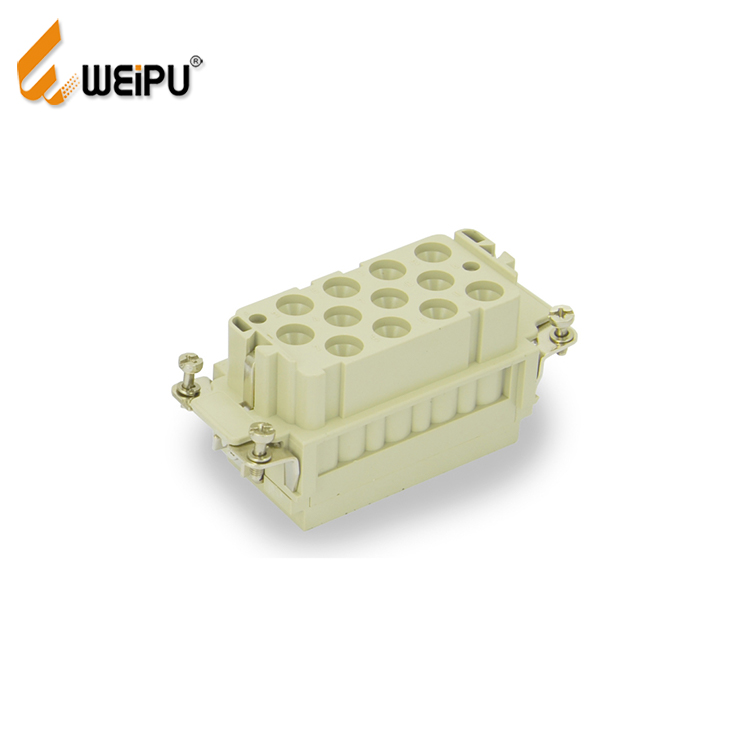

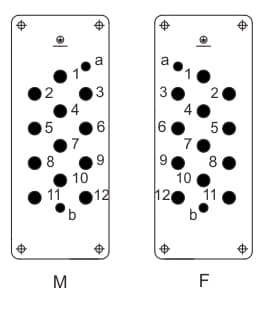

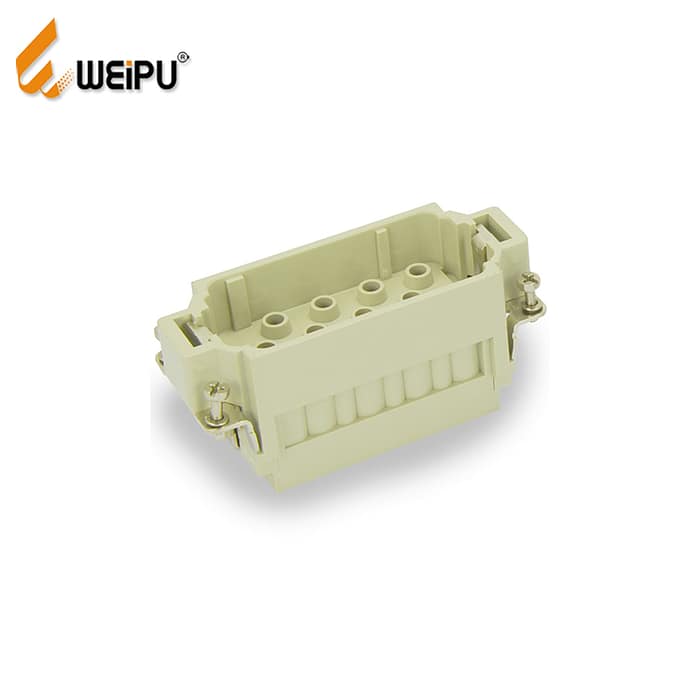

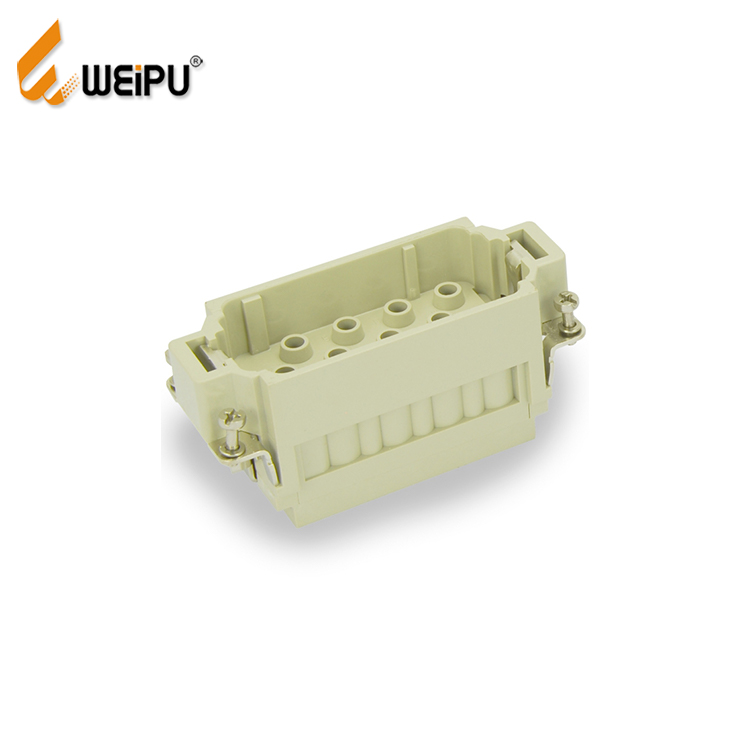

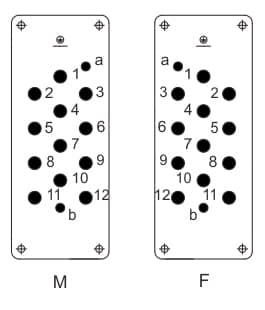

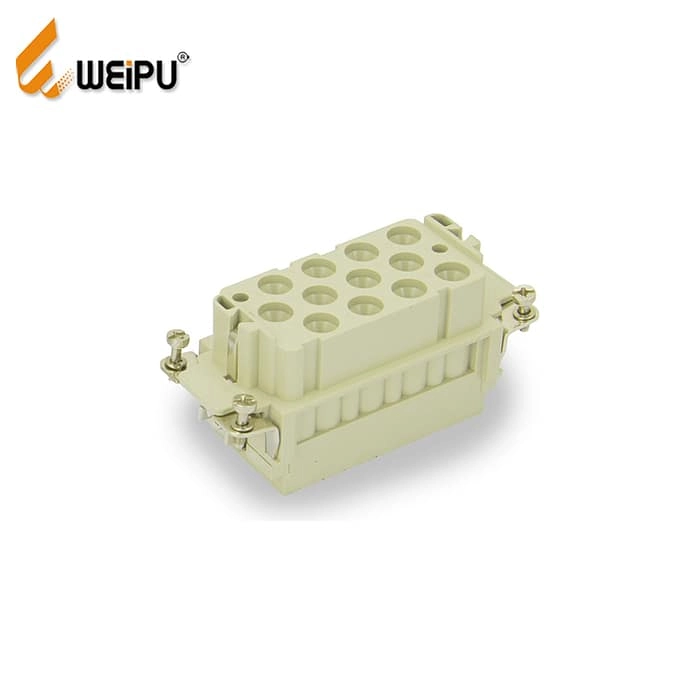

HK-012/2-M/F Crimp termination Connector 40A 690V 12+PE +2 Signal pin 10A 160V
Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.
| Applied Range： |
| ◆ Wind Energy |
| ◆ Power Systems |
| ◆ Photovoltaic Industry |
| ◆ Engineering Equipment |
| ◆Other Industry Application |
Description
Specification
Video
Document
| Technical characteristics | |
| Specifications and approvals |
IEC 60664-1、IEC61984
24+PE、42+PE、72+PE、108+PE、144 (2×72) +PE、216 (2×108) +PE |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated impulse voltage | 4kV |
| Pollution degree | 3 |
| Insulation resistance | ≥10^10 Ω |
| Material(insert) | Polycarbonate |
| Limiting temperaures | -40°C~125°C |
| Flammability (insert) acc.to UL 94 | V-0 |
| Rated voltage acc.to UL/CSA: | 600V |
| Mating cycles | ≥500 次 |

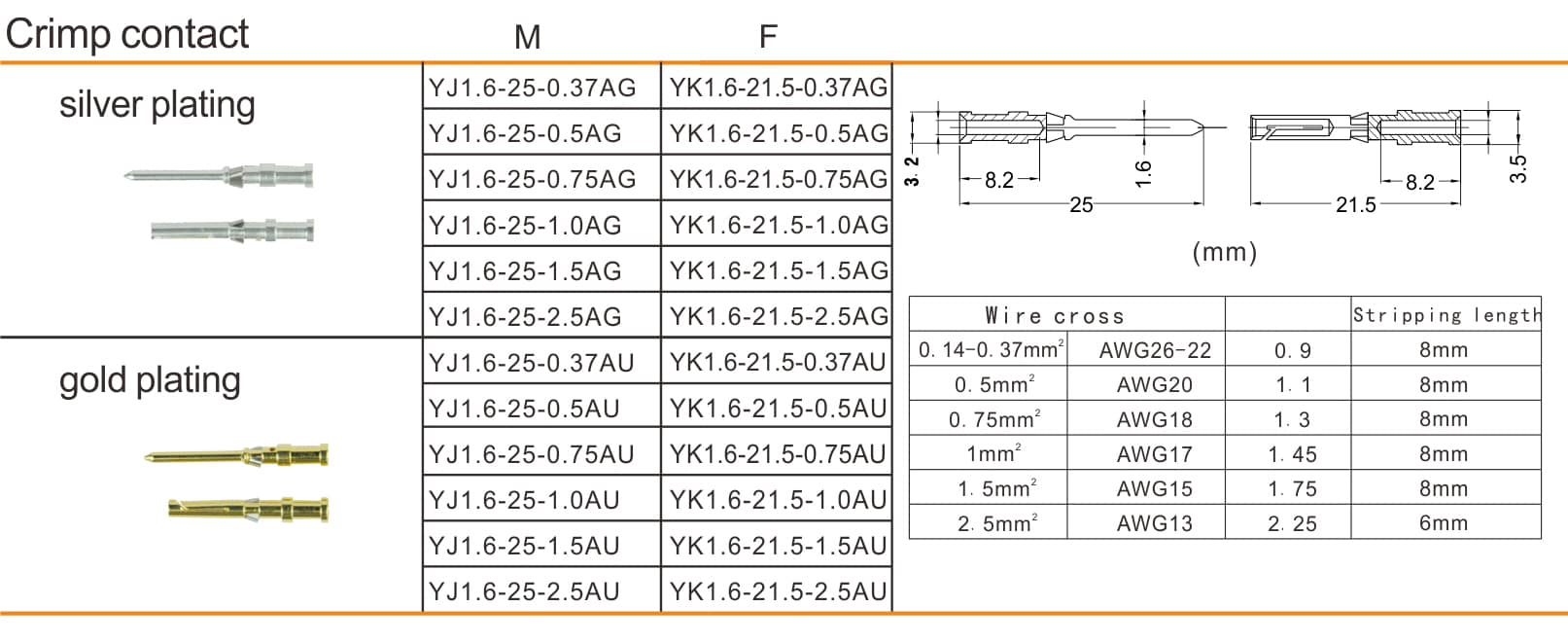

| Material | Copper Alloy |
| Surface | Silver or Gold Plated |
| Contact resisance | ≤3mΩ |

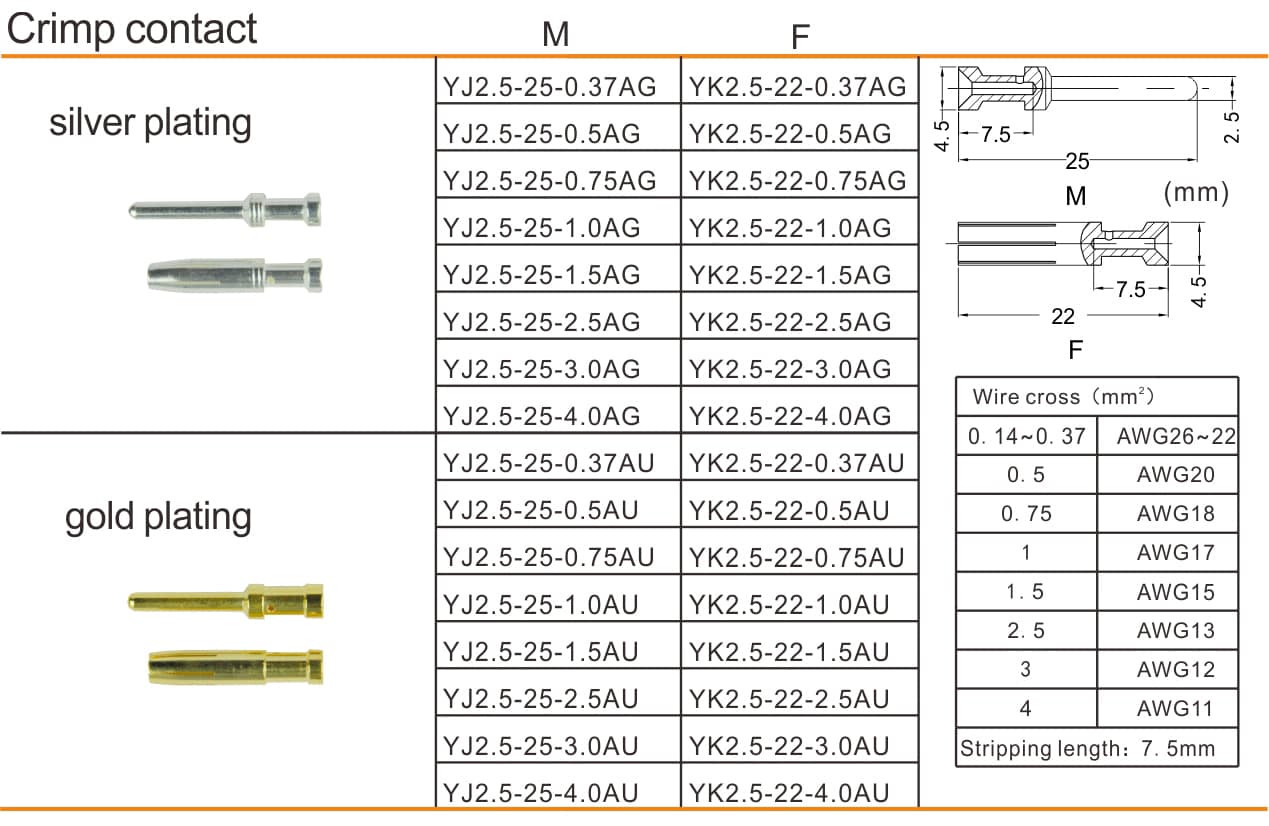

| Terminal | Crimp |
| Wire gauge |
0.14-2.5 mm^2
26-14AWG |
| Stripping length |
0.14-1.5 mm2 :8mm
2.5 mm^2:6mm |
