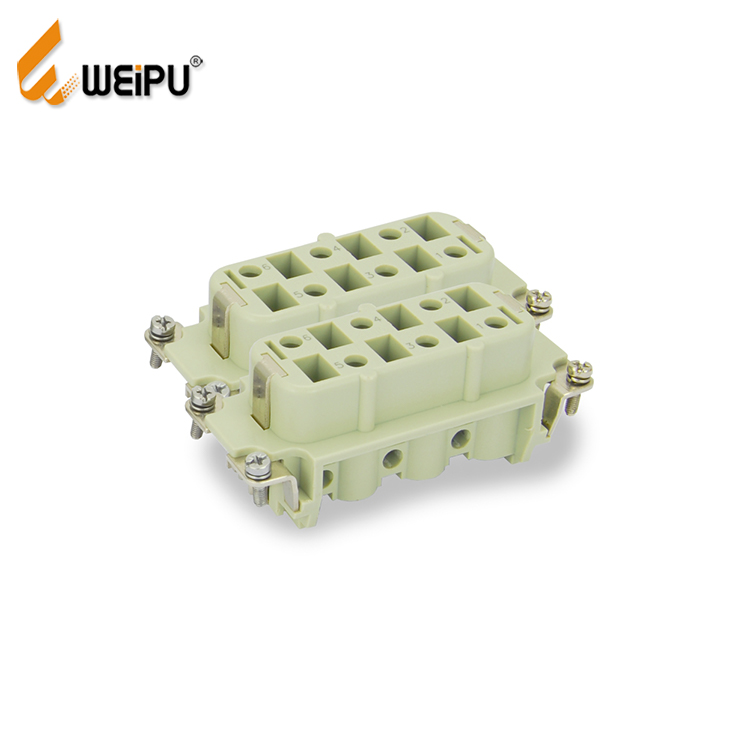

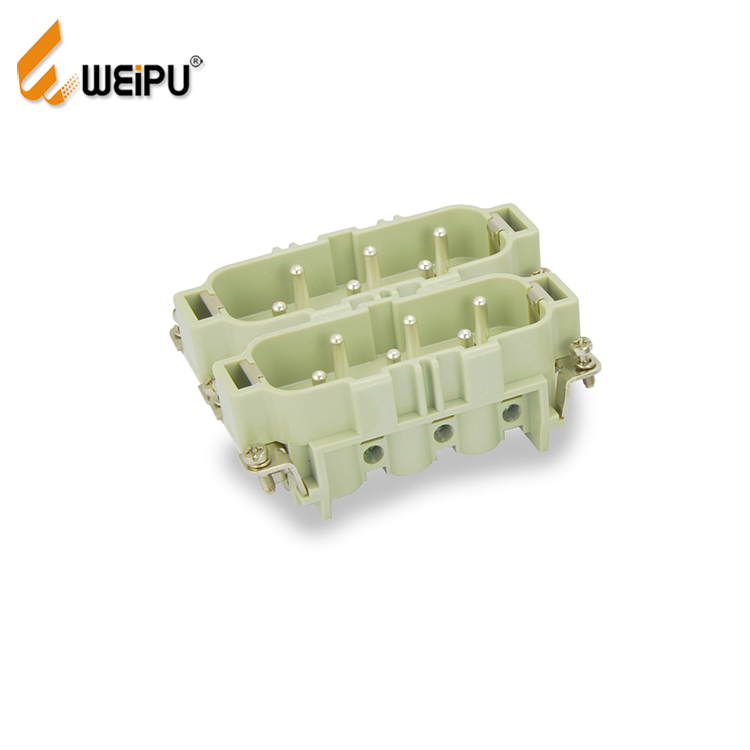

HSB-016-M/F Screw termination Connector 16A 500V 12+PE
Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.
| Applied Range： |
| ◆ Wind Energy |
| ◆ Power Systems |
| ◆ Photovoltaic Industry |
| ◆ Engineering Equipment |
| ◆Other Industry Application |
Description
Specification
Video
Document
| IEC 60664-1、IEC61984 | |

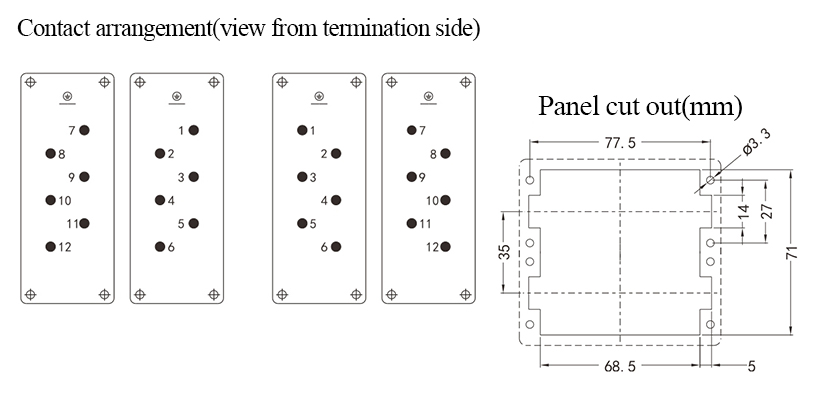

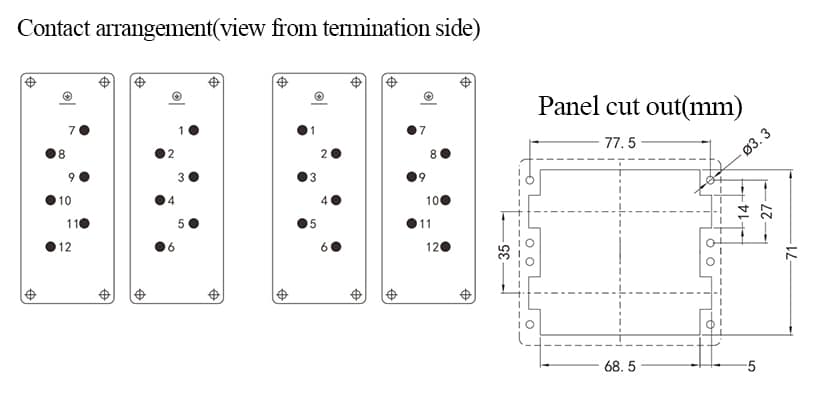

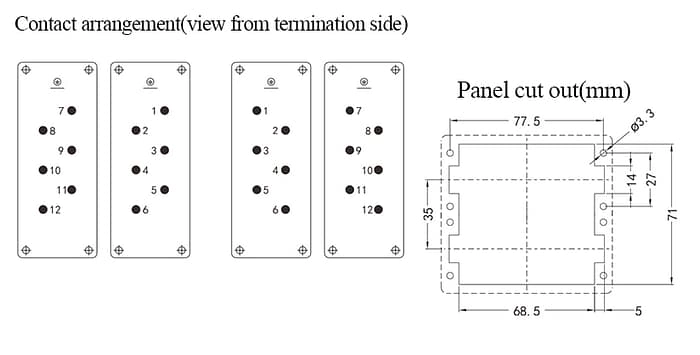

| Contacts | 6+PE、12+PE |
| Rated current | 35A |
| Rated voltage |
Rated voltage conductor-ground 400V
Rated voltage conductor-conductor 690V |
| Rated impulse voltage | 6kV |
| Pollution degree | 3 |
| Insulation resistance | ≥10^10 ohm |
| Material(insert) | polycarbonate |
| Limiting temperaures | -40℃~125℃ |
| Flammability (insert) acc.to UL 94 | V-0 |
| Rated voltage acc.to UL/CSA | 600V |
| Mating cycles | ≥500次 |
| Material(contact) | copper alloy |
| Surface | Silver Plated |
| Contact resisance | ≤1mΩ |
| Terminal | Screw |
| Wire gauge |
1.5-6mm2
15-9AWG |
