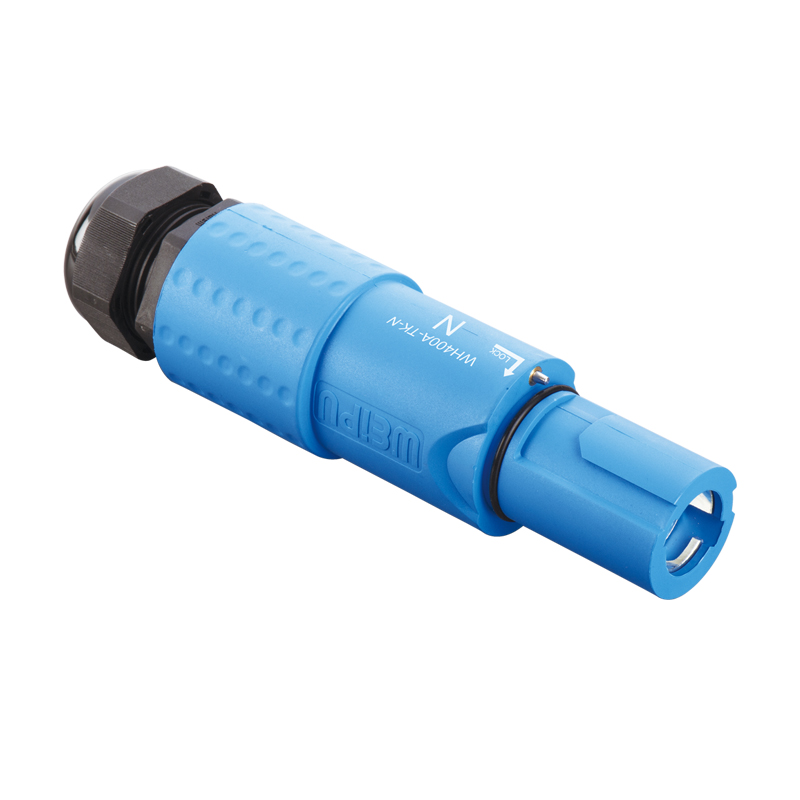

400Amp Female-contact plug WH400A-TK-N IP67
The Weipu 400Amp Connector sets the standard for robust and efficient power delivery in high-current applications. Built to withstand demanding conditions, this connector offers seamless connectivity and secure power transmission for heavy-duty industrial machinery, electric vehicles, renewable energy systems, and more. Trust in the reliability and performance of the Weipu 400Amp Connector to elevate your power distribution capabilities to new heights.

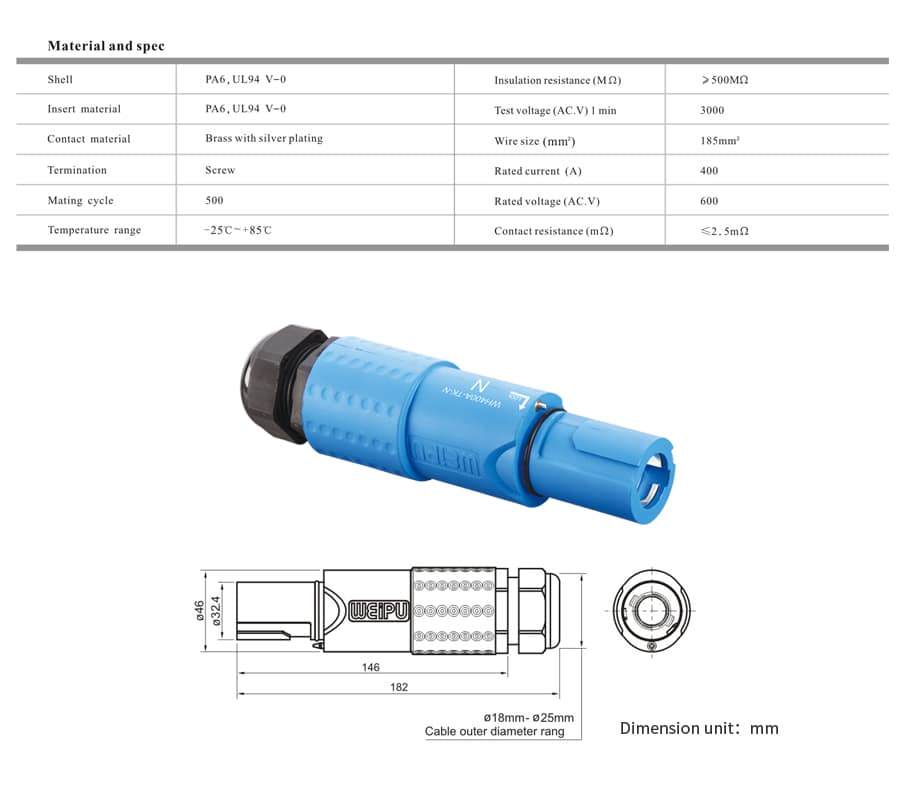

| Materialand spec | |||
| Shell | PA6.UL94 V-0 | Insulation resistance (MΩ) | >500MΩ |
| Insert material | PA6.UL94 V-0 | Test voltage(AC.V) 1min | 3000 |
| Contact material | Brass with silver plating | Wire size (mm²) | 185mm² |
| Termination | Screw | Rated current (A) | 400 |
| Mating cycle | 500 | Rated voltage(AC.V) | 600 |
| Temperature range | -25℃-+85℃ | Contact resistance (mΩ) | <2.5mΩ |
