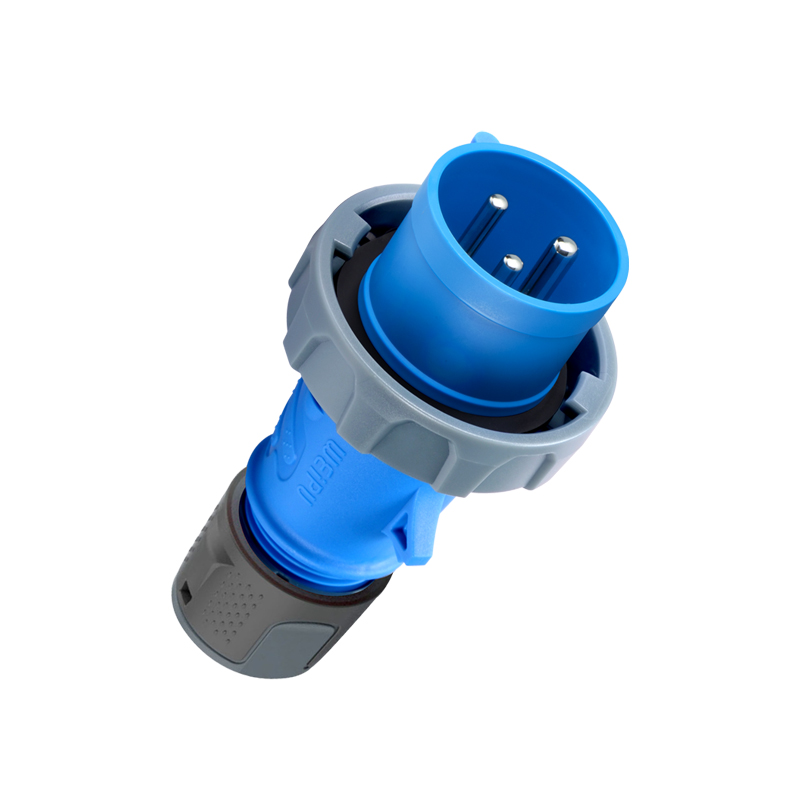

TYPE171 Series Industrial Connector, 3P 16A 230V, IP67 Protection, Screw Termination (CQC & CE Certified)
The WEIPU TYPE171 Series IP67 industrial plug, 3P 16A 230V, provides dependable screw termination and strong IP67 protection. Certified by CQC & CE, it ensures safe, durable connections for demanding industrial environments. Ideal for applications requiring a high-quality IP67 industrial plug.
Technical Specifications of iP67 industrial plug
✔ 3-Pole 16A 230V Configuration – Perfectly matches medium-power equipment's power supply needs, ensuring stable current transmission without overload risks.
✔ IP67 High-Level Protection – Achieves complete dustproof and temporary waterproof (1m depth, 30min immersion) performance, adapting to harsh outdoor and humid environments.
✔ Reliable Screw Termination – Allows tight bonding between cables and contacts, easy to disassemble and maintain, ensuring long-term stable connection without loosening.
✔ 6h Standard Clock Position – Ensures precise mating during installation, avoiding connection errors caused by misalignment, improving on-site construction efficiency.
✔ Wide Frequency Adaptability – Stable operation in 50-60Hz frequency range, compatible with global mainstream power supply systems.
✔ Dual Certification Assurance – Passes CQC and CE certifications, complying with international and domestic safety standards, ensuring safe use in various scenarios.
✔ Lightweight Design – Net weight only 139g, reducing installation load, suitable for equipment with weight restrictions.

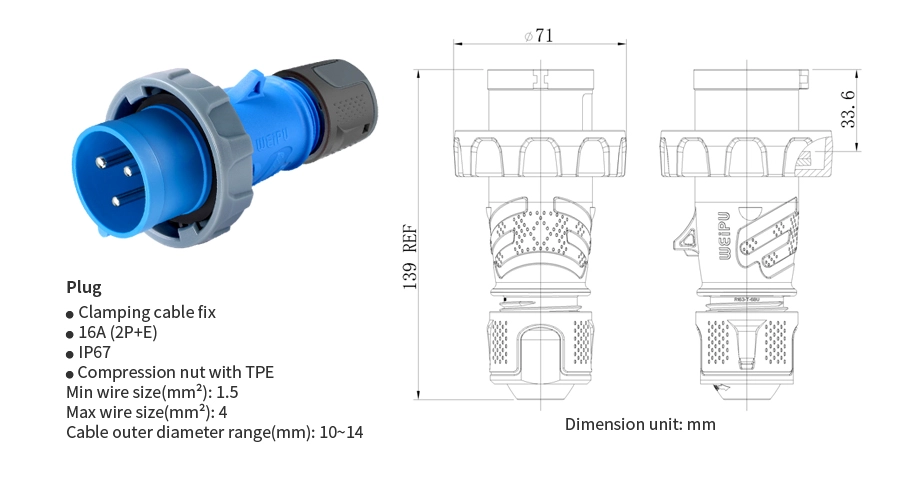

Detailed Specifications of a 3-pin plug iP67
Versatile Applications of the iP67 waterproof plug
| Ampere | 16A |
| Number of Poles | 3p |
| Voltage | 230V |
| Clock position | 6h |
| Hertz | 50-60 Hz |
| Termination | Screw |
| Contact carrier | Standard |
| Protection Type | IP67 |
| Net weight | 139G |
| Certification | CQC、CE |
Superior Advantages of IP67 Plug-in connectors
You may also use industrial plugs:
63A 5PIN Panel Mount Socket TYP5923-IP44
63A 4PIN Panel Mount Socket TYP5918-IP44
63A 3PIN Panel Mount Socket TYP5901-IP44
32A 5PIN Panel Mount Socket TYPR5823-IP44

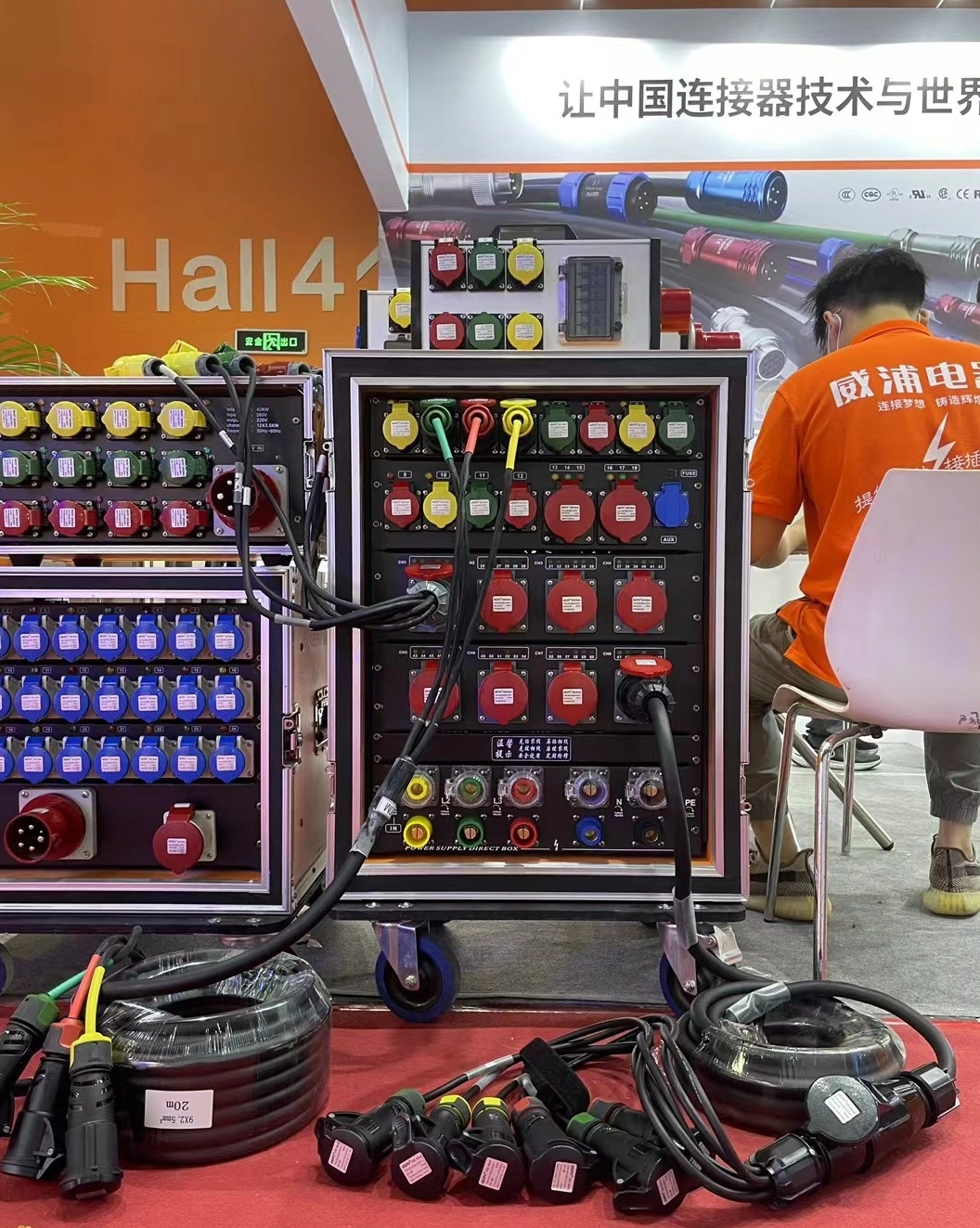

| Applied Range： |
| ◆CNC Machine Tools |
| ◆Metro Power System |
| ◆Distribution Box |
| ◆5G Construction |
| ◆New energy vehicle |
| ◆Other Industry Application |
FAQs about iP67 industrial plug
TYPE171 Series Industrial Connector, 3P 16A 230V, IP67 Protection, Screw Termination (CQC & CE Certified)
What precautions should be taken for screw termination of TYPE171 series?
1. Select screws that match the terminal specifications to avoid sliding wires; 2. Tighten the screws appropriately during wiring, not too loose (easy to loose) or too tight (damage the terminal); 3. Ensure the cable core is fully inserted into the terminal to avoid poor contact.
What is the significance of CQC and CE certifications for TYPE171 series?
CQC certification means the product meets China's national safety standards, and CE certification means it complies with the safety, health, and environmental protection standards of the European Union. The dual certifications ensure that the product can be safely used in both domestic and European markets, enhancing product reliability and market adaptability.
What does IP67 protection of TYPE171 series mean?
IP67 means two levels of protection: 6 represents complete dustproof (no dust can enter the connector), and 7 represents temporary waterproof (can be immersed in 1m deep water for 30 minutes without water entering, affecting performance).
Can TYPE171 series be used for high-power equipment above 16A?
No. The rated current of TYPE171 series is 16A. Using it for high-power equipment above 16A will cause the contacts to overheat, leading to connection failure, and even fire and other safety hazards.
