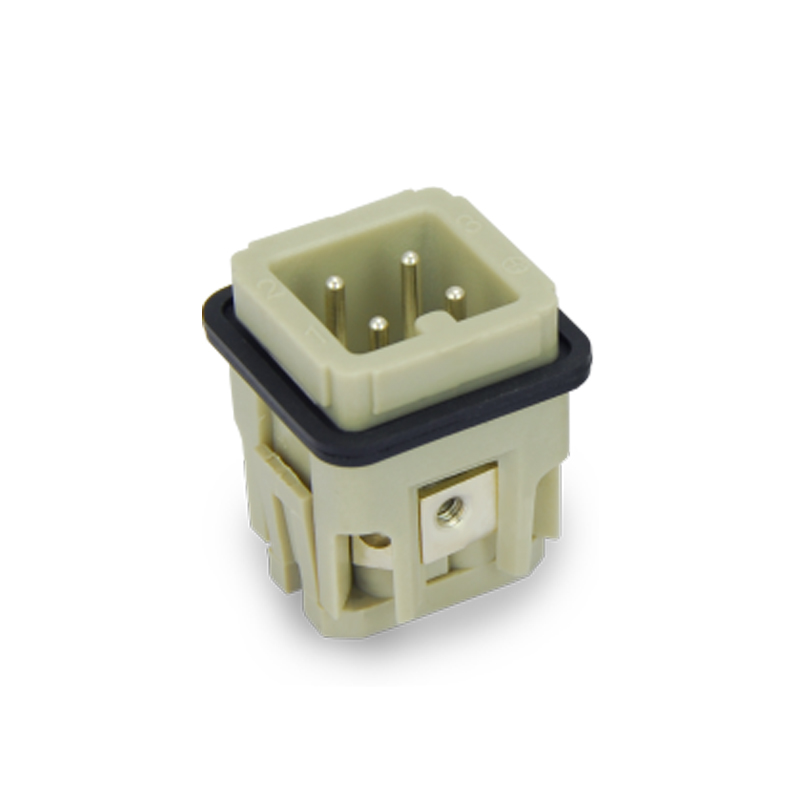

Weipu Heavy-Duty Connector Inserts, Multi-Series (HA/HE/HVE etc.), V-0 Flame-Retardant Material, Multi-Crimping Methods
The WEIPU Heavy-Duty Connector Insert (HA/HE/HVE series) provides flexible multi-crimping techniques and dependable V-0 flame-retardant protection. Engineered for durability and performance, these connector inserts ensure secure, long-lasting connections in demanding industrial applications.
Technical Specifications of Connector Insert
✔ Multi-Series Full Coverage – Includes HA/HE/HVE/HEE/HDD/HSB/HK etc. series, adapting to high-density, high-current, modular and other differentiated needs.
✔ UL94 V-0 Flame-Retardant Material – Made of composite thermoplastic material, self-extinguishes quickly when ignited, enhancing safety in fire-risk environments.
✔ Multiple Crimping Methods – Supports screw crimping, cold crimping, spring clip crimping, matching different wiring operation habits and scenario requirements.
✔ Multi-Spec Crimping Pins – Covers 5A/10A/16A/40A/200A cold crimping pins (with insurance pins), meeting different current-carrying needs.

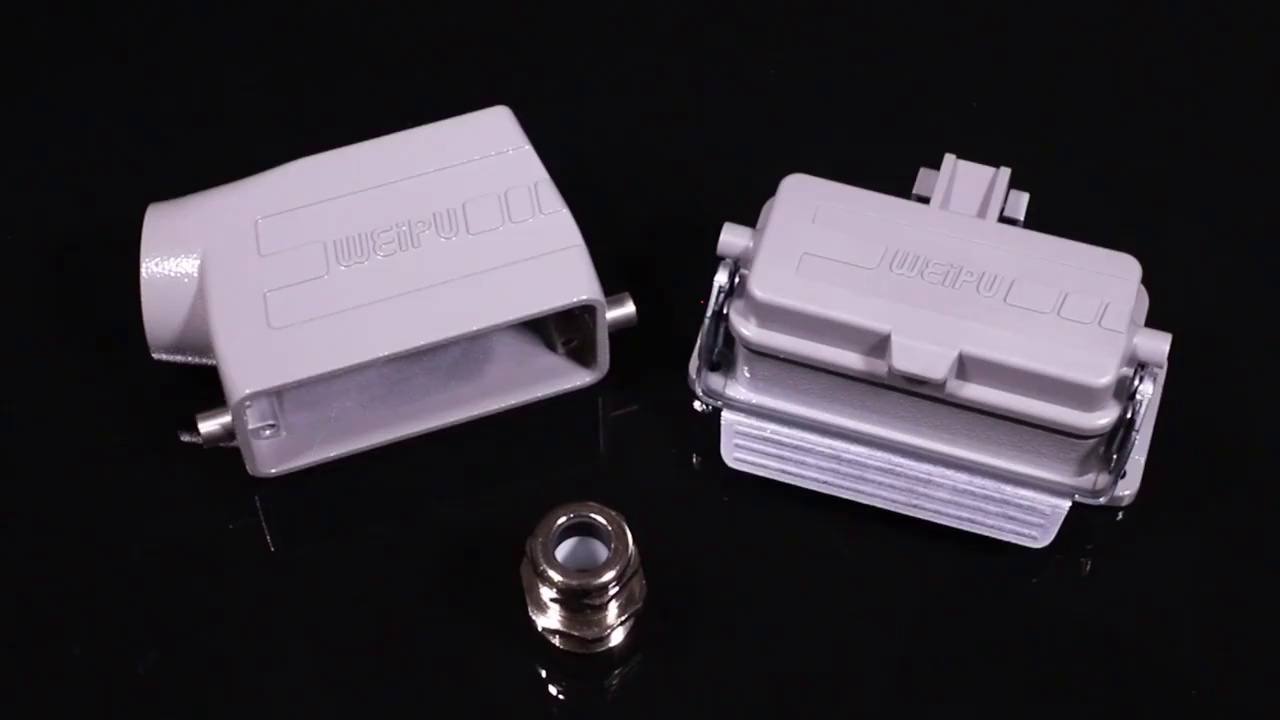

✔ Rich Inserts Accessories – Provides module frames, guide brackets, coding pins, etc., supporting complete assembly of heavy-duty connectors.
✔ Supporting Tools & Cable Joints – Matches dedicated tools and cable joints, improving wiring efficiency and connection tightness.
![HA-003-M [Compatible Housing] - WEIPU](https://static.gooecloud.com/upload/img/GY260581644972/ha-003-m-compatible-housing.png?x-oss-process=image/format,webp/quality,Q_100 "HA-003-M-[Compatible-Housing] - WEIPU")

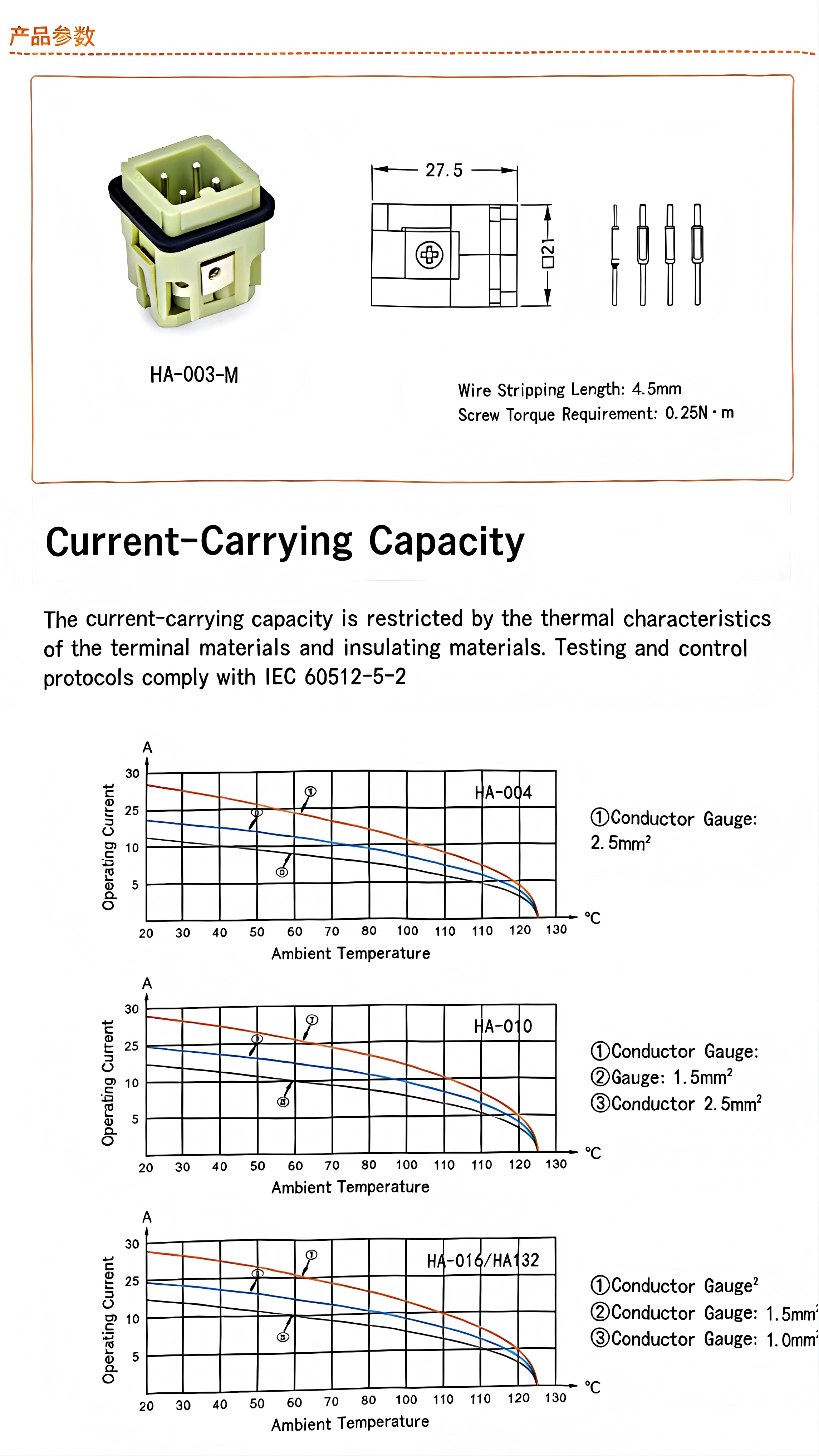

Detailed Specifications of Rectangular Connector Inserts
Versatile Applications of Connector Insert
| Technical special | |
| Product standard： | IEC60664-1、IEC61984 |
| Number of contacts： | 32+PE |
| Connect Contact Spec | |
| Rated current | 16A |
| Rated voltage | 16A |
| Rated voltage conductor | 250V |
| Rated impulse voltage | 4kV |
| Pollution degree | 3 |
| Insulation resistance | ≥10^10Ω |
| Material(insert) | polycarbonate |
| Limiting temperaures | -40°C~125°C |
| Flammability(insert)acc.to UL 94 | V-0 |
| Rated voltage acc.to UL/CSA | 600V |
| Mating cycles | ≥500 |
| Contact | |
| Material | copper alloy |
| Surface | hard-gold plated、hard-silver plated |
| Contact resistance | ≤1mΩ |
| Termination | Screw |
| Wrie gauge/AWG | 0.75-2.5mm^2 |
| 18-14AWG | |
| Strip length | 7.5mm^2 |
| Crimp | |
| Wrie gauge/AWG | 0.14-4mm^2 |
| 26-12AWG | |
| Strip length | 7.5mm^2 |
Superior Advantages of Rectangular Connector Inserts
You may also like industrial connectivity solutions:
HSB-006-M/F Screw termination Connector 16A 500V 6+PE
Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.
| Applied Range： |
| ◆ Wind Energy |
| ◆ Power Systems |
| ◆ Photovoltaic Industry |
| ◆ Engineering Equipment |
| ◆Other Industry Application |
HVE-012-M/F Screw termination Connector 16A 500V 12+PE
Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.
| Applied Range： |
| ◆ Wind Energy |
| ◆ Power Systems |
| ◆ Photovoltaic Industry |
| ◆ Engineering Equipment |
| ◆Other Industry Application |
HDD-144-MC/FC Crimp termination Connector 16A 500V 144+PE
Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.
| Applied Range： |
| ◆ Wind Energy |
| ◆ Power Systems |
| ◆ Photovoltaic Industry |
| ◆ Engineering Equipment |
| ◆Other Industry Application |
HEE-064-MC/FC Crimp termination Connector 16A 500V 64+PE
Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.
| Applied Range： |
| ◆ Wind Energy |
| ◆ Power Systems |
| ◆ Photovoltaic Industry |
| ◆ Engineering Equipment |
| ◆Other Industry Application |
FAQs about Connector Insert
Weipu Heavy-Duty Connector Inserts (Bilingual Version)
Is it difficult to select inserts series?
Yes, inserts series selection needs to match connector models, scenarios and current needs. If you have selection needs, you can contact our staff for assistance.
What's the difference between different crimping methods?
Screw crimping: easy to adjust; Cold crimping: high connection tightness; Spring clip crimping: quick operation, suitable for frequent disassembly.
What does UL94 V-0 flame-retardant of the inserts mean?
It means the material self-extinguishes within 10 seconds when ignited (no burning droplets), meeting high fire safety standards.
