Weipu Industrial Cable Glands Hoses & Accessories - Metric/PG/NPT Thread Metal/Plastic Waterproof Connection Solutions
Weipu Cable Glands, Hoses & Accessories are professional industrial connection solutions designed for reliable cable sealing, fixing and protection. Covering Metric, PG and NPT global mainstream thread standards, available in metal (nickel-plated brass/304 stainless steel) and plastic (nylon PA66) materials, matched with a full range of locking heads and corrugated hoses, they feature IP68 high-level waterproof and dustproof performance. Ideal for industrial automation, new energy, rail transit and marine engineering, these products ensure stable cable connection in harsh environments while enhancing installation efficiency and equipment service life.
Features
✔ Multi-Thread Compatibility – Supports Metric (M16-M110), PG (PG7-PG48) and NPT (1/4"-2") threads, matching global industrial equipment interface requirements without additional adapters.
✔ Dual-Material Option – Metal series (nickel-plated brass/304 stainless steel) for corrosion/impact/high-temperature resistance; plastic series (nylon PA66) for lightweight, cost-effectiveness and excellent insulation, meeting diverse working conditions.
✔ IP68 High-Level Protection – Achieves complete dustproof and long-term immersion waterproof (30 minutes under 5bar pressure), effectively isolating moisture, dust and oil.
✔ EMC Electromagnetic Shielding – Optional double-locking spring-type locking heads with EMC function, shielding electromagnetic interference (EMI) for stable signal transmission.
✔ Wide Cable Diameter Adaptation – Clamps cables of 3mm-72mm, with firm clamping force and stress relief function, avoiding cable damage from pulling or vibration.
✔ Tool-Free Quick Installation – Quick-locking heads adopt snap-on design; matching hoses and accessories enable one-stop assembly, improving construction efficiency.
✔ Excellent Environmental Adaptability – Resists UV, vibration and corrosion, working stably in -40℃~+100℃ temperature range.

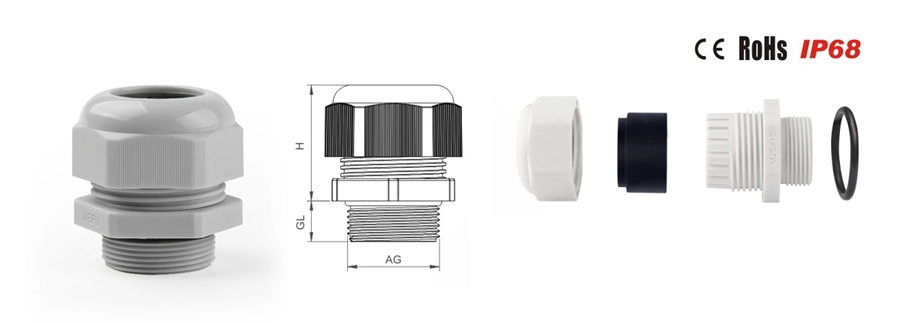

Product dimensions & welding specifications

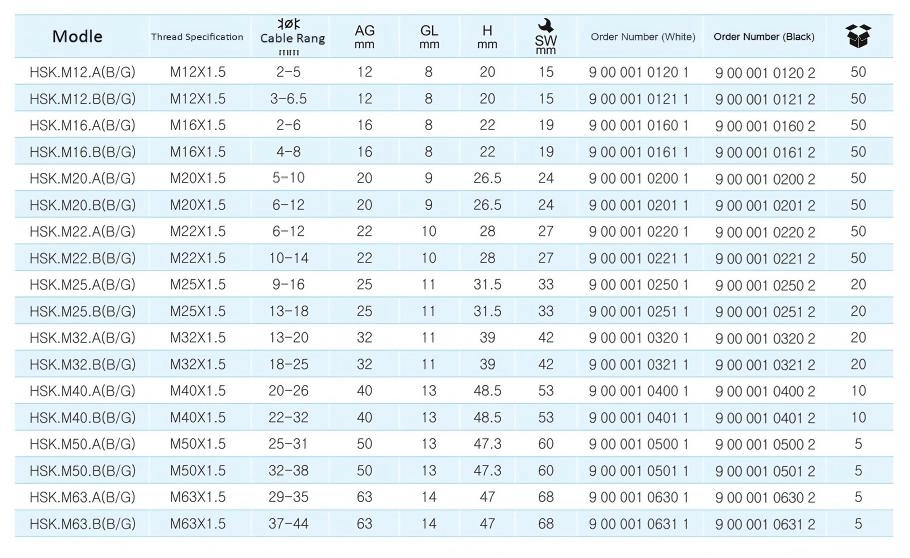

![Metric Nylon Cable Gland [Product Specifications] - WEIPU](https://static.gooecloud.com/upload/img/GY260581644972/metric-nylon-cable-gland-product-specifications.jpg?x-oss-process=image/format,webp/quality,Q_100 "Metric-Nylon-Cable-Gland-[Product-Specifications] - WEIPU")
Applications
| Modelnumber | Thread Dimension | Clamping(mm) | AG(mm) | GL(mm) | H(mm) | Wrench Size (mm) | （White）Article No. | （Black）Article No. | Packet Units |
| HSK-M12-A(B/G) | M12X1.5 | 2-5 | 12 | 8 | 20 | 15 | 10000101201 | 10000101202 | 50 |
| HSK-M12-B(B/G) | M12X1.5 | 3-6.5 | 12 | 8 | 20 | 15 | 10000101211 | 10000101212 | 50 |
| HSK-M16-A(B/G) | M16X1.5 | 2-6 | 16 | 8 | 22 | 19 | 10000101601 | 10000101602 | 50 |
| HSK-M16-B(B/G) | M16X1.5 | 4-8 | 16 | 8 | 22 | 19 | 10000101611 | 10000101612 | 50 |
| HSK-M20-A(B/G) | M20X1.5 | 5-10 | 20 | 9 | 26.5 | 24 | 10000102001 | 10000102002 | 50 |
| HSK-M20-B(B/G) | M20X1.5 | 6-12 | 20 | 9 | 26.5 | 24 | 10000102011 | 10000102012 | 50 |
| HSK-M22-A(B/G) | M22X1.5 | 6-12 | 22 | 10 | 28 | 27 | 10000102201 | 10000102202 | 50 |
| HSK-M22-B(B/G) | M22X1.5 | 10-14 | 22 | 10 | 28 | 27 | 10000102211 | 10000102212 | 50 |
| HSK-M25-A(B/G) | M25X1.5 | 10-14 | 25 | 11 | 31.5 | 33 | 10000102501 | 10000102502 | 20 |
| HSK-M25-B(B/G) | M25X1.5 | 13-18 | 25 | 11 | 31.5 | 33 | 10000102511 | 10000102512 | 20 |
| HSK-M32-A(B/G) | M32X1.5 | 13-20 | 32 | 11 | 39 | 42 | 10000103201 | 10000103202 | 20 |
| HSK-M32-B(B/G) | M32X1.5 | 18-25 | 32 | 11 | 39 | 42 | 10000103211 | 10000103212 | 20 |
| HSK-M40-A(B/G) | M40X1.5 | 20-26 | 40 | 13 | 48.5 | 53 | 10000104001 | 10000104002 | 10 |
| HSK-M40-B(B/G) | M40X1.5 | 22-32 | 40 | 13 | 48.5 | 53 | 10000104011 | 10000104012 | 10 |
| HSK-M50-A(B/G) | M50X1.5 | 25-31 | 50 | 13 | 47.3 | 60 | 10000105001 | 10000105002 | 5 |
| HSK-M50-B(B/G) | M50X1.5 | 32-38 | 50 | 13 | 47.3 | 60 | 10000105011 | 10000105012 | 5 |
| HSK-M63-A(B/G) | M63X1.5 | 29-35 | 63 | 14 | 47 | 68 | 10000106301 | 10000106302 | 5 |
| HSK-M63-B(B/G) | M63X1.5 | 37-44 | 63 | 14 | 47 | 68 | 10000106311 | 10000106312 | 5 |
Advantages

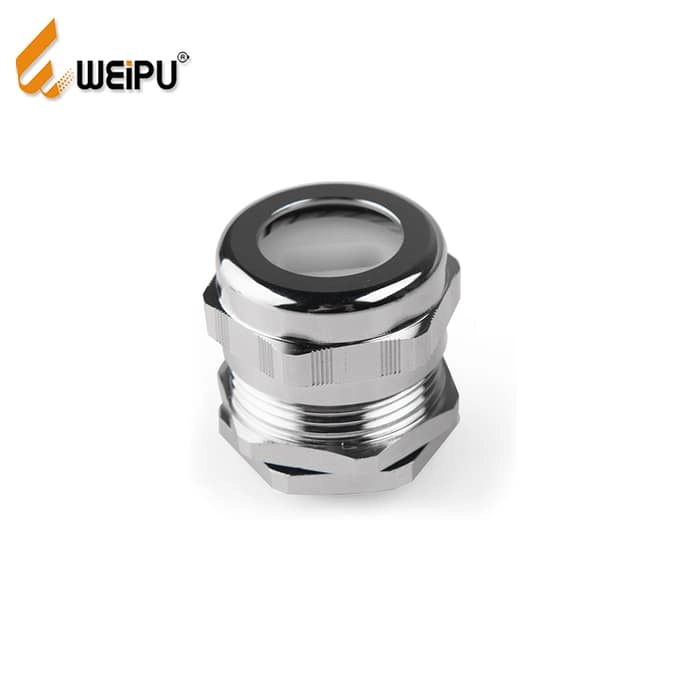

Customization Nicke-plated brass/304 stainless steel cable gland
Cable Gland is a crucial component for effective cable management. We offer a wide range of specifications and models for the Cable Gland, designed to ensure the safety and reliability of cables while effectively protecting them from dust, moisture, and other environmental factors.
Our Cable Gland is crafted from premium materials and carefully engineered to operate steadily in various demanding environments. Whether you are in the industrial machinery, outdoor equipment, or marine sector, our Cable Gland delivers exceptional performance and long-lasting protection, effectively reducing the risks of cable damage or signal interference.
In addition to our existing range, we also provide customization services, tailoring the Cable Gland to meet your specific requirements. Whether it’s special dimensions, materials, or other specific needs, our team is ready to provide you with the best solutions.
For more detailed information or customization inquiries, please feel free to contact us. We look forward to offering you high-quality Cable Gland and excellent service.

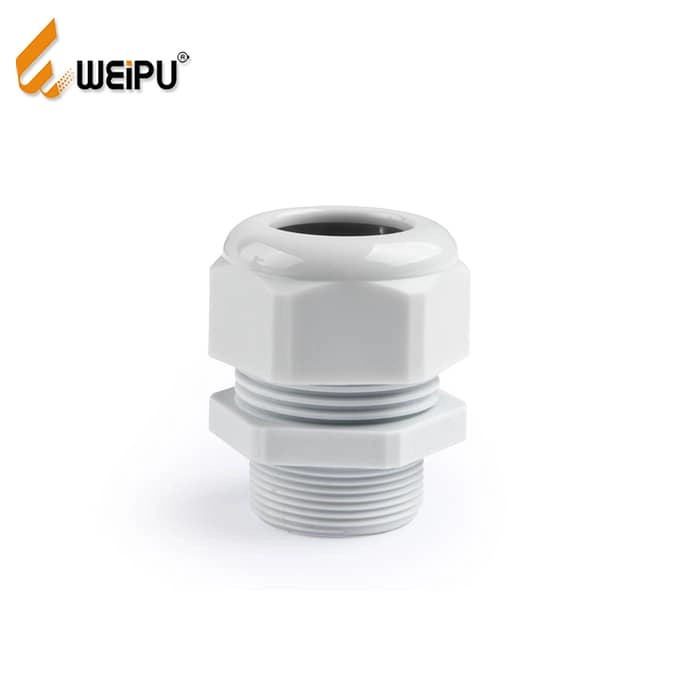

Customization Silicone Rubber/Chloroprene Rubber Cable Gland
Cable Gland is a crucial component for effective cable management. We offer a wide range of specifications and models for the Cable Gland, designed to ensure the safety and reliability of cables while effectively protecting them from dust, moisture, and other environmental factors.
Our Cable Gland is crafted from premium materials and carefully engineered to operate steadily in various demanding environments. Whether you are in the industrial machinery, outdoor equipment, or marine sector, our Cable Gland delivers exceptional performance and long-lasting protection, effectively reducing the risks of cable damage or signal interference.
In addition to our existing range, we also provide customization services, tailoring the Cable Gland to meet your specific requirements. Whether it’s special dimensions, materials, or other specific needs, our team is ready to provide you with the best solutions.
For more detailed information or customization inquiries, please feel free to contact us. We look forward to offering you high-quality Cable Gland and excellent service.
SA610/P SA610/S Cable Connector IP67
Weipu’s SA series connectors are meticulously crafted for demanding industrial applications. From marine to medical and automation industries, these connectors excel with their robust aluminum alloy construction and IP67 waterproof rating. With Weipu SA series connectors, you can count on reliable performance and seamless connectivity, ensuring uninterrupted operations in harsh environments.Mate with SA611,SA612,SA615
16A 3PIN Panel mount socket TYP5101-IP44
FAQs

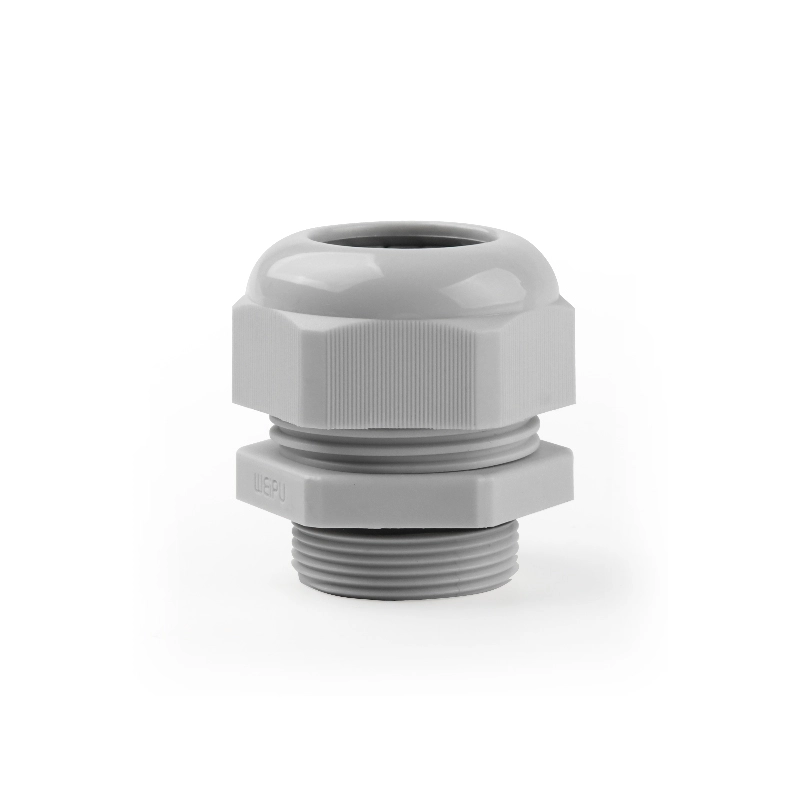

HSK-Metric Nylon Cable Gland
What is the service life of Weipu cable glands and how to maintain them?
Under standard working conditions, the service life is more than 5 years. Daily maintenance only needs to regularly check the sealing ring wear and cable clamping status, keep the product clean, and avoid collision damage to the thread and locking structure. It is not recommended to disassemble frequently without necessity.
Can I get samples before placing a bulk order?
Yes. We provide free samples of standard products (you only need to bear the shipping cost). For customized products, sample fees and shipping costs need to be borne, and the sample fee can be deducted from the bulk order payment.
Which thread standard should I choose for my equipment?
It is recommended to confirm the equipment's origin and interface specification first. Metric thread is suitable for European equipment, PG thread for German standard motors/control cabinets, and NPT thread for American standard high-pressure equipment. Our technical team can also provide matching suggestions based on your equipment parameters.
What is the difference between 304 stainless steel and nickel-plated brass materials?
304 stainless steel has better corrosion resistance, especially suitable for marine salt spray and chemical environments; nickel-plated brass has excellent conductivity and cost-effectiveness, suitable for general industrial environments. Choose according to the corrosion level and budget of the working environment.
