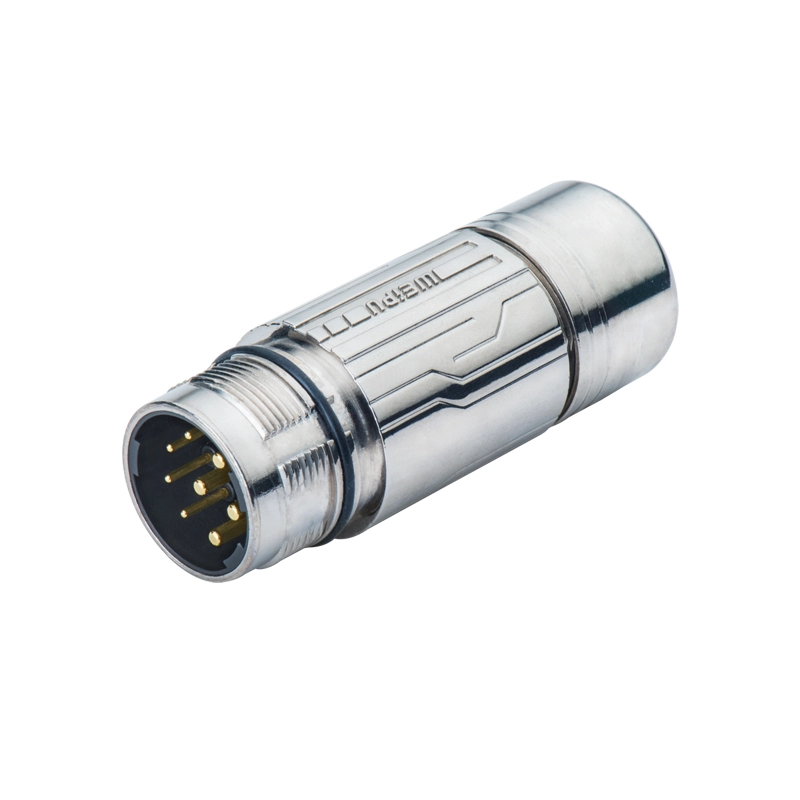

Weipu M23X Series Industrial Threaded Connectors with IP67 Protection
Technical Specifications of m23 circular connectors
✔ Secure Threaded Coupling – Enables tight locking and excellent anti-loosening performance, effectively resisting vibration and impact in complex industrial environments, ensuring long-term stable connection without disconnection.
✔ Superior Corrosion Resistance – Nickel-plated zinc alloy shell forms a dense protective film, which has strong resistance to moisture, dust and mild corrosive media, extending product service life in harsh environments.
✔ IP67 Protection Rating – Achieves complete waterproof and dustproof performance, effectively preventing water immersion and dust ingress, adapting to outdoor, wet and dusty working conditions.
✔ Ultra-High Insulation Performance – Insulation resistance greater than 10¹³mΩ, effectively isolating electrical signals, preventing leakage and short circuit, and ensuring safe operation of equipment in high-precision and high-voltage scenarios.
✔ Dedicated Crimp Termination – Professional crimp design ensures firm connection between contacts and cables, with low contact resistance and high connection reliability, suitable for large-scale and efficient installation scenarios.
✔ Multiple Cable Diameter Adaptation – Three types of cable outer diameter ranges (I:4-8mm, II:8-13mm, III:12-15mm) are available, precisely matching different cable sizes and meeting diverse wiring needs of equipment.
✔ Wide Temperature Adaptability – Stable operation at -40°C~+125°C, which can adapt to extreme low-temperature and high-temperature working environments, and is suitable for high-temperature equipment and outdoor low-temperature scenarios.
✔ Extended Mating Service Life – 1000 mating cycles after strict durability testing, which is twice that of ordinary connectors, ensuring stable performance during long-term frequent plugging and use.
✔ High-Performance Insert Material – PA66 insert has excellent mechanical strength, wear resistance and flame retardancy, ensuring the overall structural stability and safety of the connector.

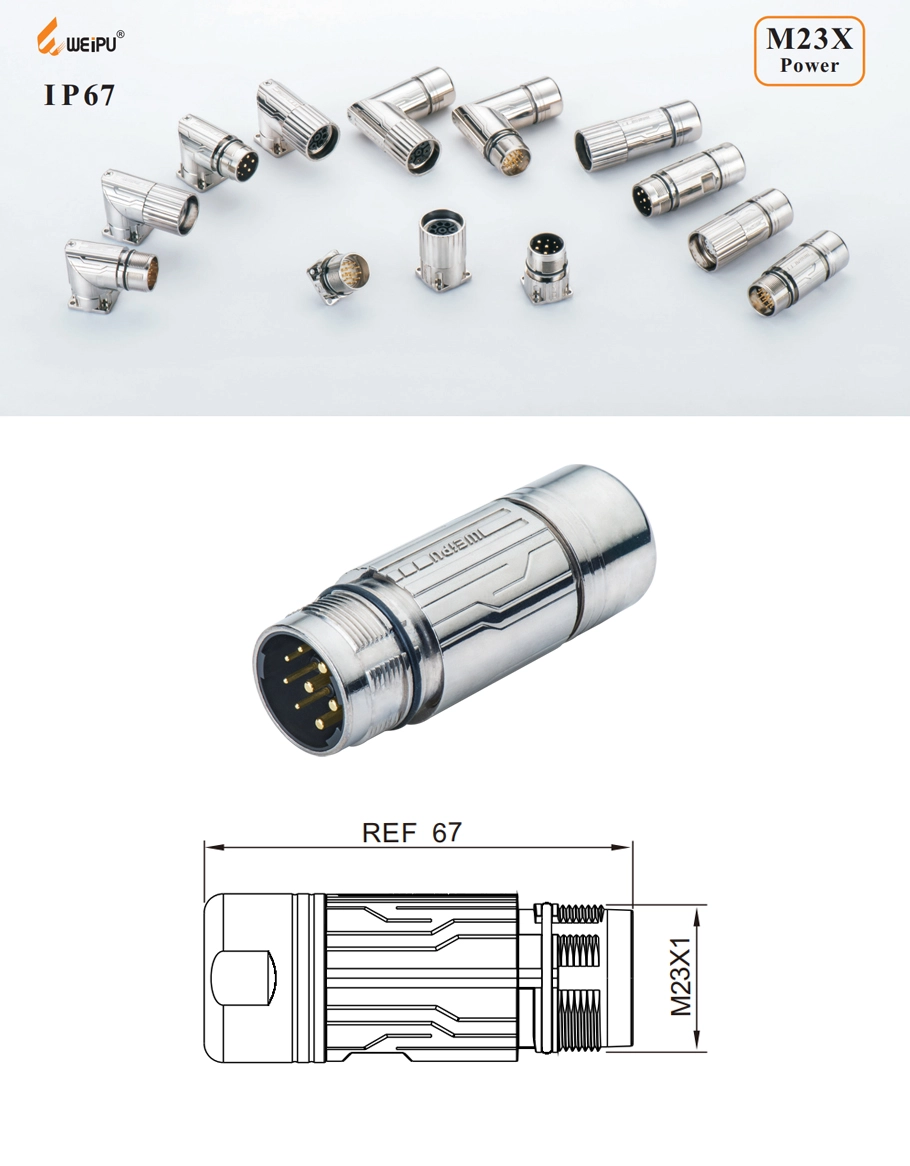

![M23XDJ＿TK [Features] - WEIPU](https://static.gooecloud.com/upload/img/GY260581644972/423c943bf72f79fe4ae8f5ed133a50ba.jpg?x-oss-process=image/format,webp/quality,Q_100 "M23XDJ＿TK-[Features] - WEIPU")

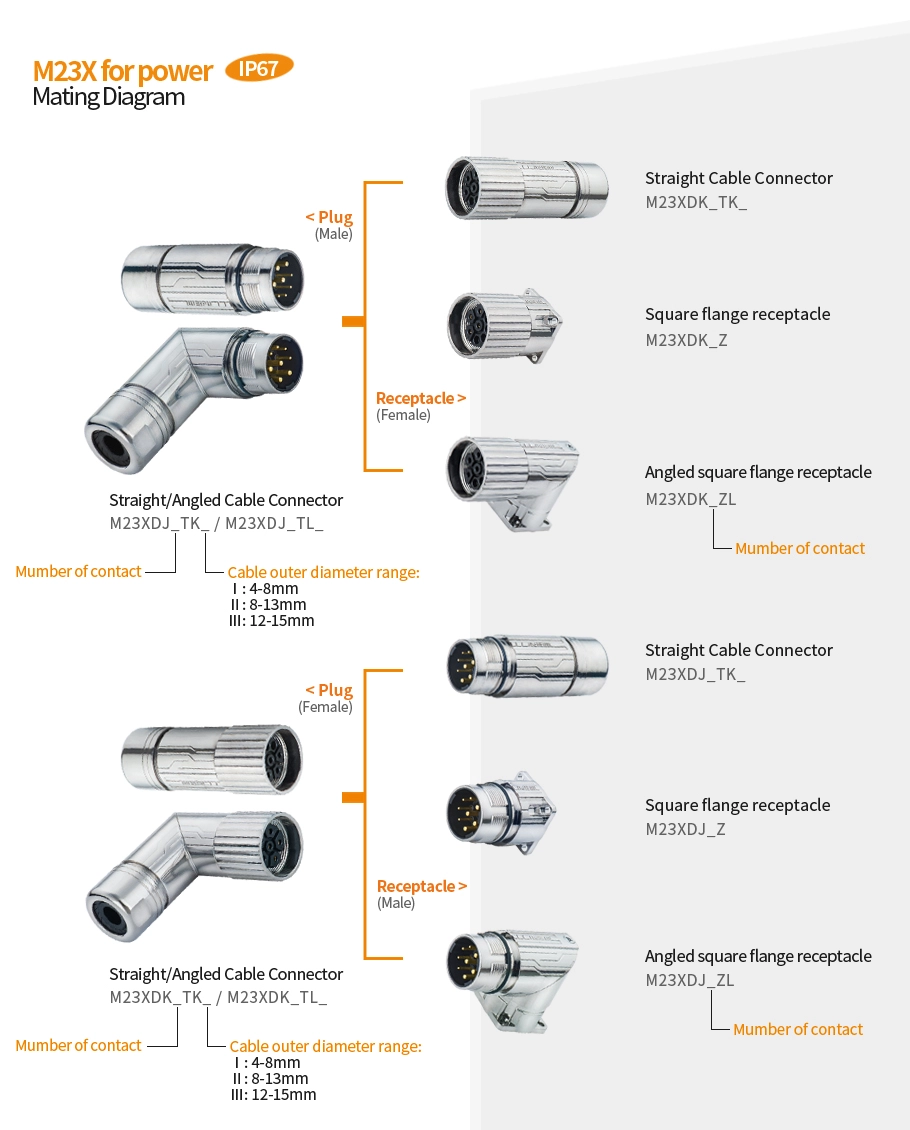

Detailed Specifications of threaded connectors

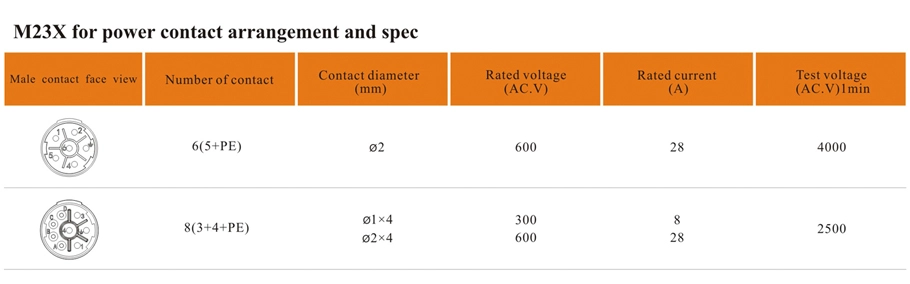

![M23XDJ＿TK [Power Insert Specifications] - WEIPU](https://static.gooecloud.com/upload/img/GY260581644972/fe8691f1468af5ff2817e4ad6de37b36.jpg?x-oss-process=image/format,webp/quality,Q_100 "M23XDJ＿TK-[Power-Insert-Specifications] - WEIPU")

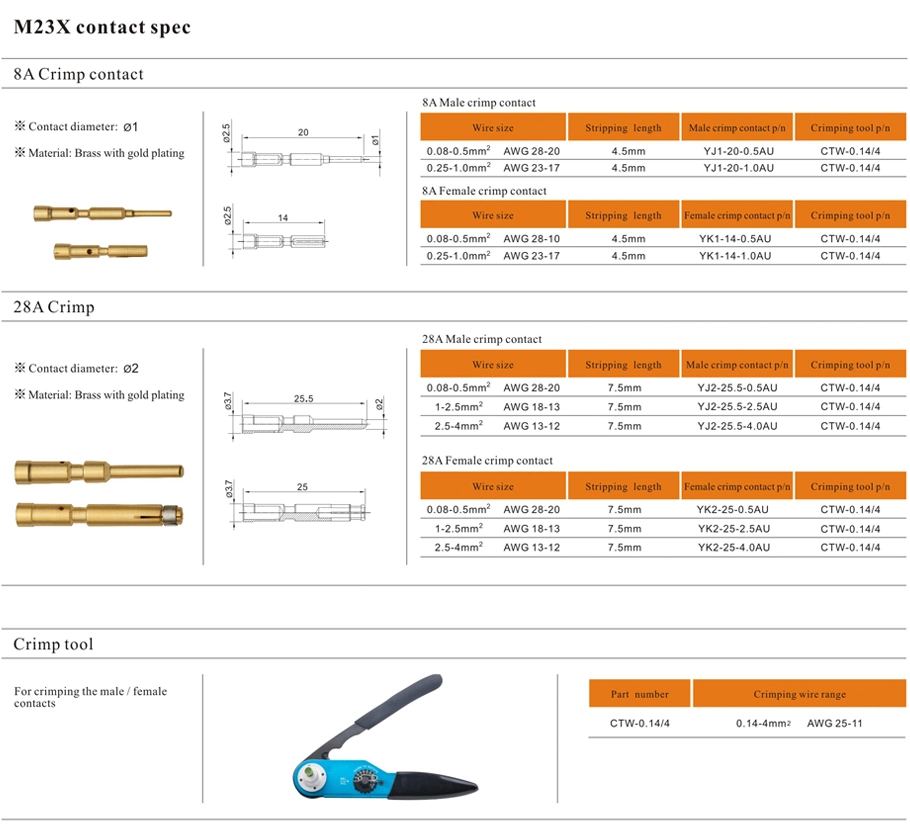

![M23XDJ＿TK [Power Pin Specifications] - WEIPU](https://static.gooecloud.com/upload/img/GY260581644972/012d4c4e58252662200596a4c0413d61.jpg?x-oss-process=image/format,webp/quality,Q_100 "M23XDJ＿TK-[Power-Pin-Specifications] - WEIPU")
Versatile Applications of m23 connectors
| Parameter | Specification |
|---|---|
| Coupling | Threaded coupling |
| Shell Material | Zinc alloy with nickel plating |
| Contact Material | Brass with gold plating |
| Insert Material | PA66 |
| Insulation Resistance | >10¹³mΩ |
| Termination | Crimp |
| Temperature Range | -40°C~+125°C |
| Mating Cycle | 1000 times |
| Cable Outer Diameter | I: 4-8mm; II: 8-13mm; III: 12-15mm |
| IP Rating | IP67 |
| Brand | Weipu (Established in 1996, with nearly 30 years of R&D and manufacturing experience) |
Superior Advantages of m23 connector
You may also use industrial connectors:
SY1110/P SY1110/S Cable connector IP67
Mate with SP1111,SP1112
WEIPU SP1110P/S Cable Connector IP68
Mate with SP1111, SP1112
WEIPU SA610/P SA610/S IP67 Push Pull Circular Cable Connector
WEIPU SA610/P plug & SA610/S socket are miniature push-pull circular connectors with IP67 waterproof rating after mating. Built with anodized aluminum shell and gold-plated solder contacts, this SA series supports 2-5 pins, rated 3A 30V, certified CE & RoHS. Ideal for medical diagnostic devices, lab automation and precision sensors, fully compatible with SA611, SA612 and SA615 panel receptacles. WEIPU holds IATF16949 certification and supplies industrial connectors to 130+ countries.
WA22J4TK2 3+PE male cable connector with short back shell
Mate with WA22K4TK2,WA22J4TL2,WA22K4Z2,WA22K4ZE2,WA224JZ2
FAQs about m23 circular connectors
M23XDJ_TK
What is the advantage of the M23X Series' ultra-high insulation resistance (>10¹³mΩ)?
The ultra-high insulation resistance can effectively isolate electrical signals between different circuits, avoid mutual interference, and ensure the accuracy of signal transmission in precision control scenarios. At the same time, it can greatly reduce the risk of electrical leakage and short circuit, improving the safety of equipment operation and protecting the personal safety of operators.
What are the precautions for crimp termination of the M23X Series?
When performing crimp termination, it is necessary to use a professional crimping tool matching the connector model to ensure the crimping force is appropriate; at the same time, it is necessary to strip the cable insulation layer according to the specified length to avoid excessive or insufficient stripping affecting the connection quality. It is recommended to follow the official installation manual for standardized operation.
Why is the M23X Series suitable for high-temperature equipment?
The M23X Series has a wide temperature range of -40°C~+125°C, which can adapt to the high-temperature environment of high-temperature equipment. The selected PA66 insert material also has good high-temperature resistance, which can maintain stable performance without deformation or failure in high-temperature working conditions, ensuring the normal operation of the connection system.
Can the M23X Series be used in coastal salt spray environments?
The nickel-plated zinc alloy shell of the M23X Series has certain corrosion resistance, but it is not suitable for long-term use in coastal salt spray environments with strong corrosiveness. If it is necessary to use it in such environments, it is recommended to select the customized enhanced corrosion-resistant alloy shell to ensure the service life and performance of the product.
