Weipu Precast Cable Assembly - Industrial Plug-and-Play Connector Assembled Cable for Automation & Heavy Machinery
WEIPU precast cable assemblies offer robust, plug-and-play connectors designed for automation and heavy machinery. Engineered for durability and easy installation, these cable assemblies ensure reliable industrial performance. Trust WEIPU for efficient, high-quality connectivity solutions.
Technical Specifications of cable assemblies
✔ Factory-Prefabricated Welding – All connector-wire harness welding and assembly are completed in our professional engineering facility, adhering to strict quality control standards for consistent craftsmanship.
✔ On-Site Plug-and-Play – Ready for immediate use upon arrival at the construction site, no on-site wiring or welding required, greatly shortening installation cycles.
✔ Anti-Cold Soldering & Wrong Wiring – Professional factory welding avoids cold soldering, loose connections and wrong wiring caused by on-site manual operations.
✔ Precise Connector Matching – Pre-assembled with Weipu original connectors, ensuring perfect compatibility between connectors and plugs, eliminating mismatch risks.
✔ High-Reliability Transmission – Adopts high-quality copper conductors and insulation materials, combined with secure welding points, ensuring stable power and signal transmission even in harsh vibration environments.
✔ Excellent Environmental Adaptability – Resists oil, dust, moisture and UV radiation, working stably in -40℃~+125℃ temperature range, adapting to diverse industrial harsh conditions.
✔ Standardized & Traceable Quality – Each Precast Cable Assembly undergoes strict performance testing before delivery, with complete quality traceability records.
Detailed Specifications of cable assembly

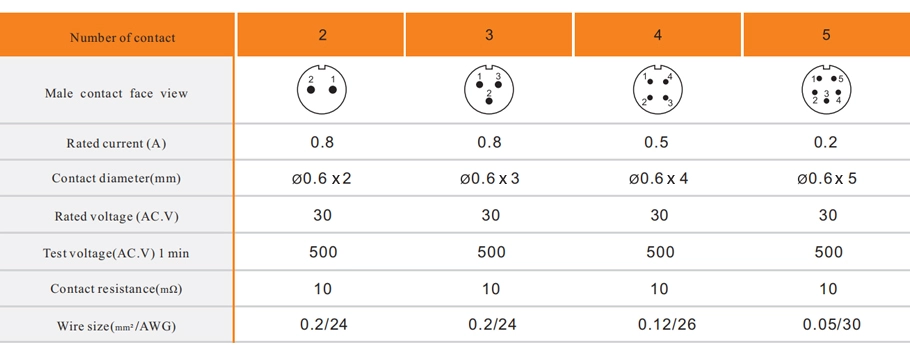

![SF6 [Core Count Table] - WEIPU](https://static.gooecloud.com/upload/img/GY260581644972/sf6-core-count-table.jpg?x-oss-process=image/format,webp/quality,Q_100 "SF6-[Core-Count-Table] - WEIPU")
Versatile Applications of industrial cable assemblies
| Product model | Patchcord Connector |
| Coupling | Push-pull |
| Shell material | Brass,PVC fire resistance:UL94 V-0 |
| Insert material | PPS max temperature 260℃ |
| Contact material | Brass with gold plating |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | -20°C~+ 85°C |
| Insulation resistance(MΩ) | 2000 |
Superior Advantages of cable assemblies
You may also like industrial connectivity solutions:
Cable customization
Weipu connector provides harness customization service, offering tailored connector solutions to meet customers’ specific needs. Through harness customization service, customers can get connectors and harnesses that meet their requirements and improve the reliability and efficiency of their equipment.
The harness customization service of Weipu connector mainly includes the following aspects:
- Engineering design support: Weipu connector’s professional engineering team can provide support in connector design and selection, helping customers optimize the design of connectors and harnesses to improve their performance and reliability while meeting their specific needs.
- Customized processing: Weipu connector can customize the processing of connectors and harnesses according to customers’ specific requirements, including length, connector types, wire colors, and identification. Meanwhile, Weipu connector can offer customized solutions that comply with relevant standards and specifications for different application scenarios.
- Quality assurance: Weipu connector provides quality assurance for its harness customization products, ensuring their performance and reliability. Weipu connector’s harness customization products are certified by ISO9001 quality system and are strictly tested according to IPC/WHMA-A-620 standards.
In summary, Weipu connector’s harness customization service can provide professional engineering design support, customized processing, and quality assurance to offer customers connector and harness solutions that meet their specific needs, improving the reliability and efficiency of their equipment.

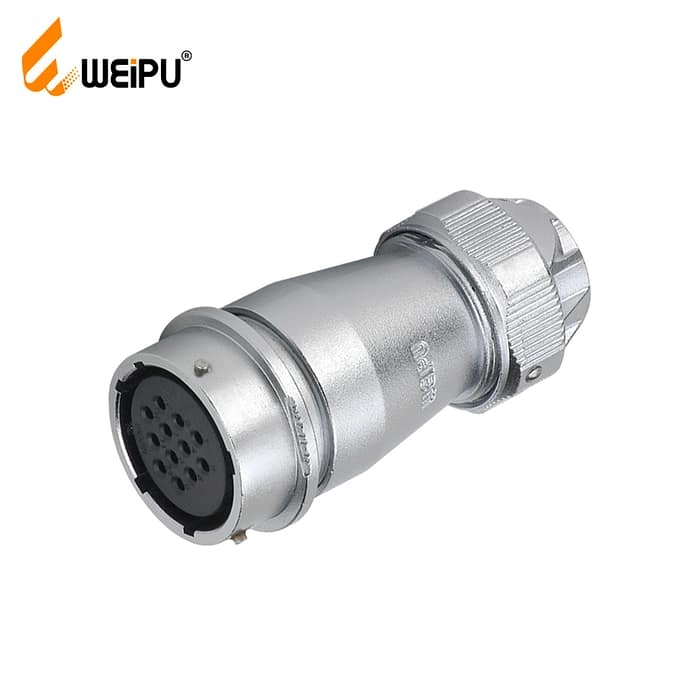

WEIPU WY-ZE Series In-line Receptacle Connector
With metal clamping-nut IP67, Threaded, Zinc alloy with chrome plating
WEIPU WY-ZE series circular power connectors are mainly designed with metal clamping-nut, suitable for aviation, stage lighting, medical industry and other areas. All circular connector types can ensure transmissions efficiently and can be easily installed. Even under adverse conditions, our circular power connectors can also keep working.
WL52K19TADⅡ Female-contact connector for M40 ×1.5 Plastic hose adapter IP67
Mate with WL52J19Z,WL52J19T,WL52J19TⅡ,WL52J19TADⅠ,WL52J19TADⅡ
WL52K19TADⅠ Female-contact connector for PG29 Plastic hose adapter IP67
Mate with WL52J19Z,WL52J19T,WL52J19TⅡ,WL52J19TADⅠ,WL52J19TADⅡ
FAQs about custom cable assemblies

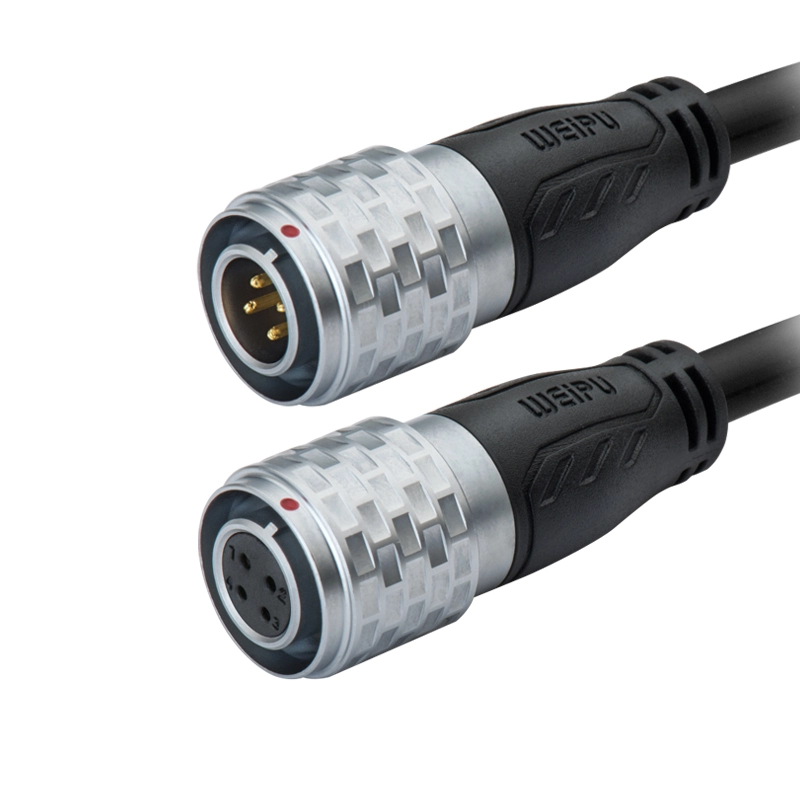

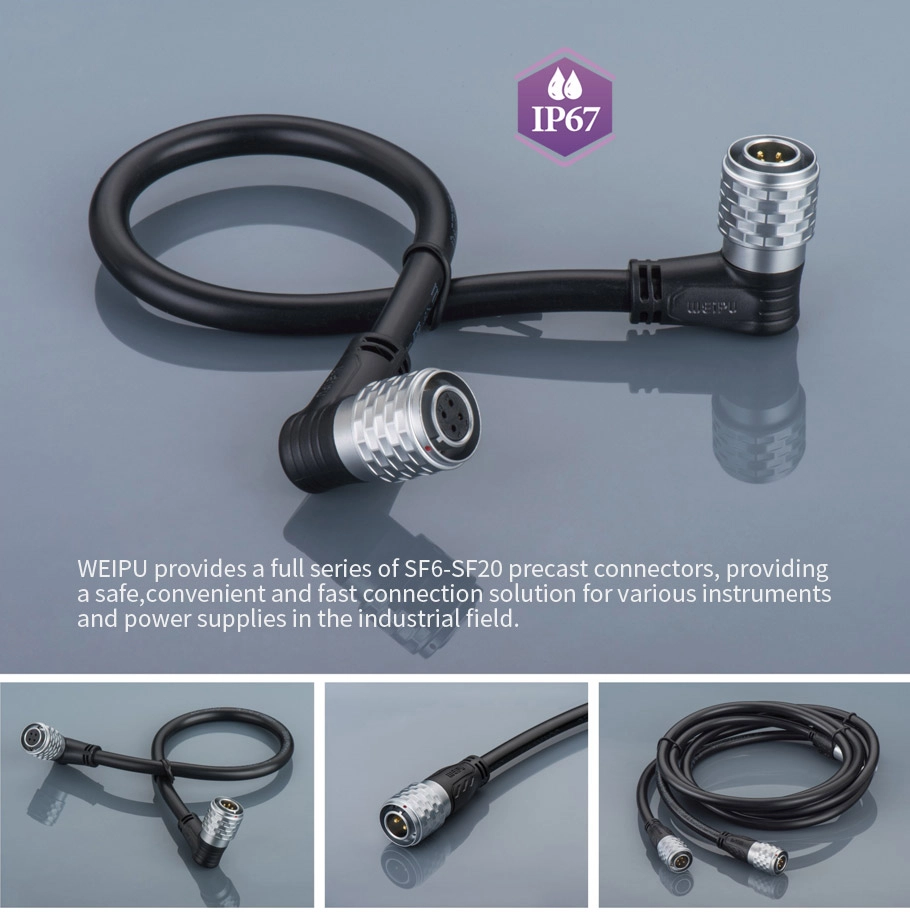

SF Precast Cable Assembly SERIES
Is there any special attention during on-site installation of the Precast Cable Assembly?
During installation, please ensure that the connector is inserted in place and the locking mechanism is fastened to avoid loose connections. Avoid excessive pulling or bending of the wire harness during installation and use, and keep the harness away from high-temperature heat sources and sharp edges to prevent damage to the insulation layer.
What types of connectors are compatible with Weipu Precast Cable Assembly?
Our Precast Cable Assembly is pre-assembled with Weipu original connectors, covering SF series, SP series, SY series connectors and other mainstream models. We also provide customized precast solutions according to customer-specified connector models to meet personalized needs.
How to ensure the welding quality of the Precast Cable Assembly?
We adopt automatic welding equipment and strict quality control processes in the factory. Each welding point undergoes resistance testing and pull-out force testing. The finished wire harness also undergoes overall insulation and continuity testing to ensure welding quality and connection reliability.
Can the length and specification of the Precast Cable Assembly be customized?
Yes. We offer customized services for wire harness length, conductor cross-sectional area, number of cores and connector types according to customer equipment and application requirements, meeting personalized connection needs.
