Weipu RJ45 Series Industrial Bayonet Connectors with IP67 Protection

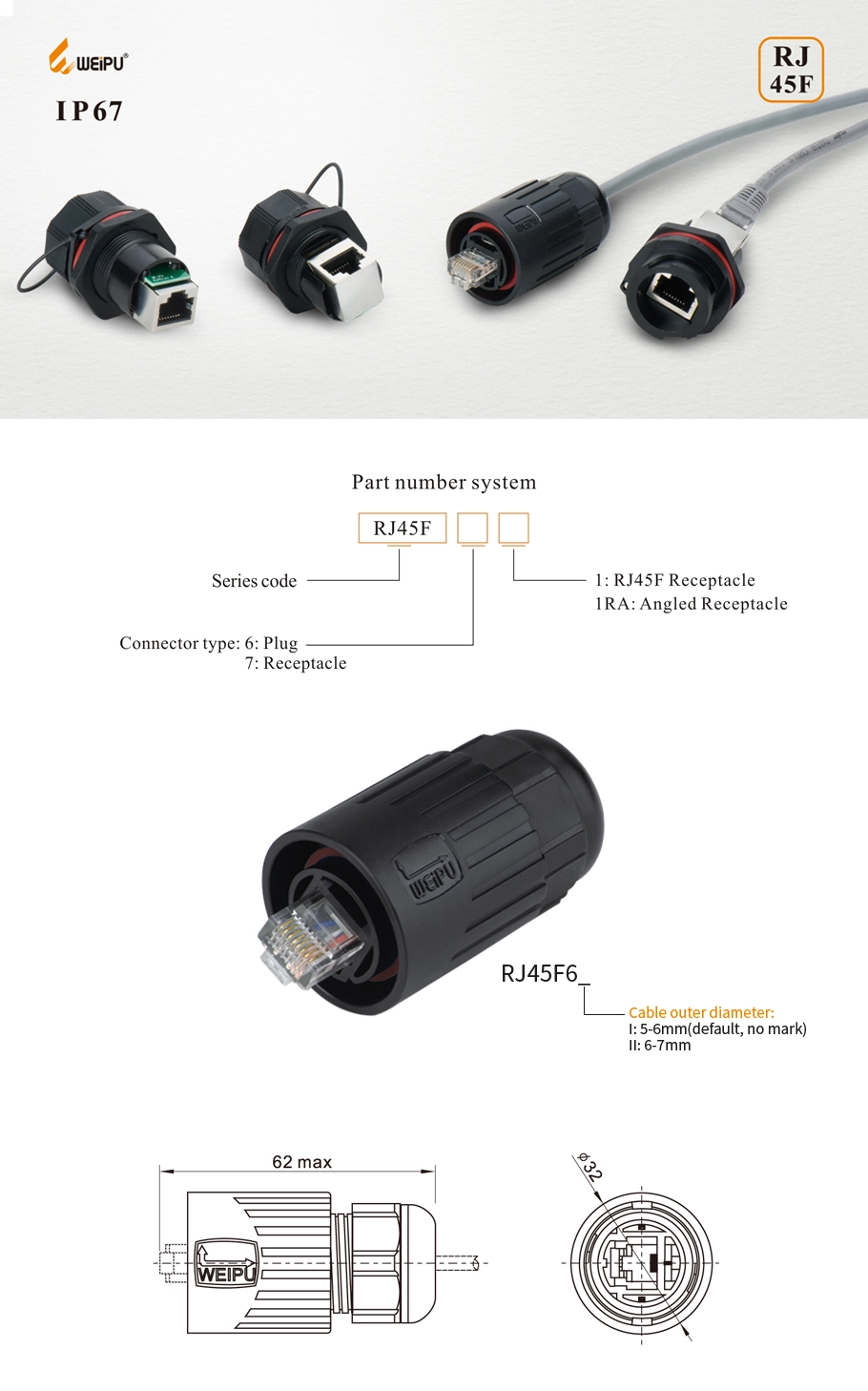

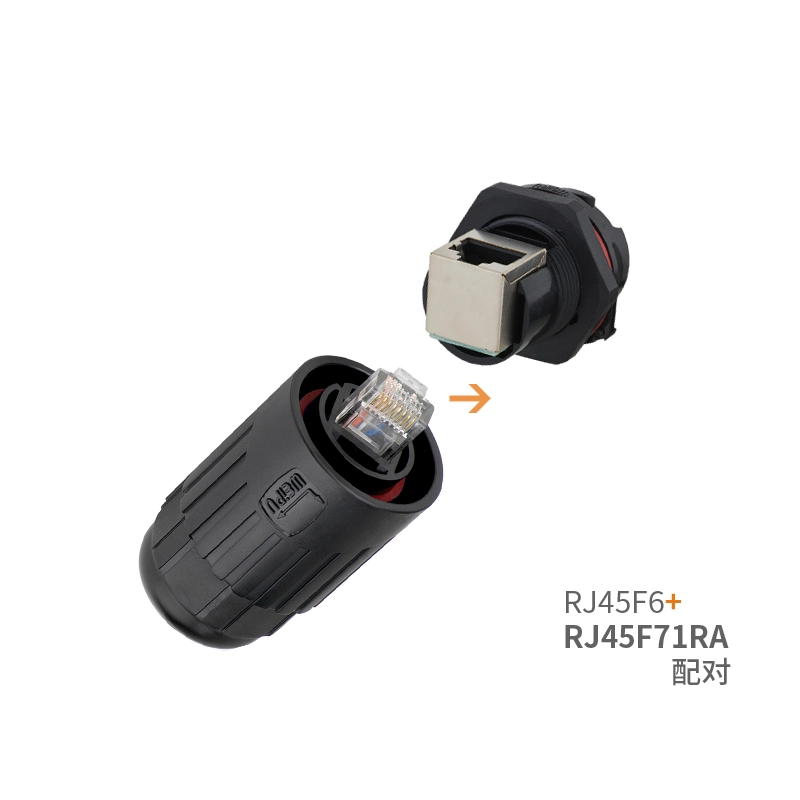

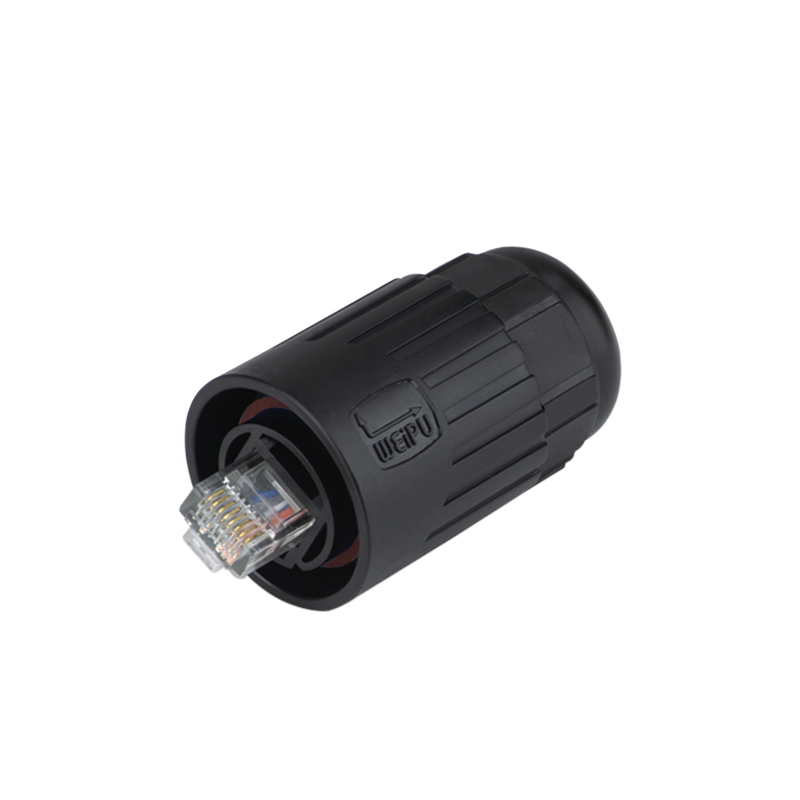

Technical Specification of rj45 circular connector
✔ Efficient Bayonet Coupling – Tool-free quick locking and disconnection with one hand, the bayonet structure ensures firm connection without loosening, improving on-site installation and maintenance efficiency, suitable for scenarios requiring frequent mating.
✔ Flame-Retardant Safety Protection – PC shell with fire resistance grade V-0 has excellent flame-retardant performance, effectively inhibiting flame spread, reducing fire risks, and meeting industrial safety standards.
✔ IP67 High-Level Protection – Achieves complete waterproof and dustproof performance, effectively resisting rain, dust, and humidity erosion, ensuring stable network transmission in outdoor, wet and dusty industrial environments.
✔ Stable Network Signal Transmission – Optimized internal structure is compatible with RJ45 Ethernet protocol, supporting stable transmission of high-speed network signals, no packet loss or signal attenuation.
✔ Dedicated Cable Adaptation – Provides Type II (6-7mm) cable outer diameter adaptation (Type I: 5-6mm omit), precisely matching mainstream network cables, ensuring tight fitting and maintaining protection performance.
✔ Wide Temperature Adaptability – Stable operation at -40°C~+85°C, suitable for extreme low-temperature and high-temperature working conditions, with strong environmental adaptability.
✔ Extended Mating Service Life – 500 mating cycles after strict durability testing, ensuring stable performance during long-term frequent plugging and use.

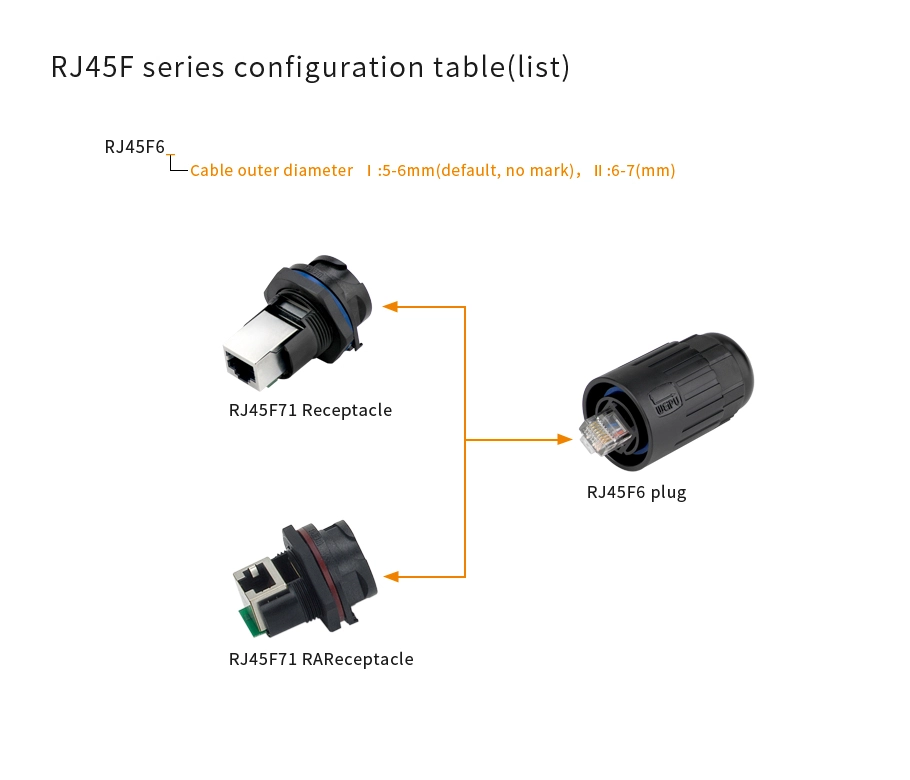

Detailed Specifications of the RJ45 Waterproof Connector

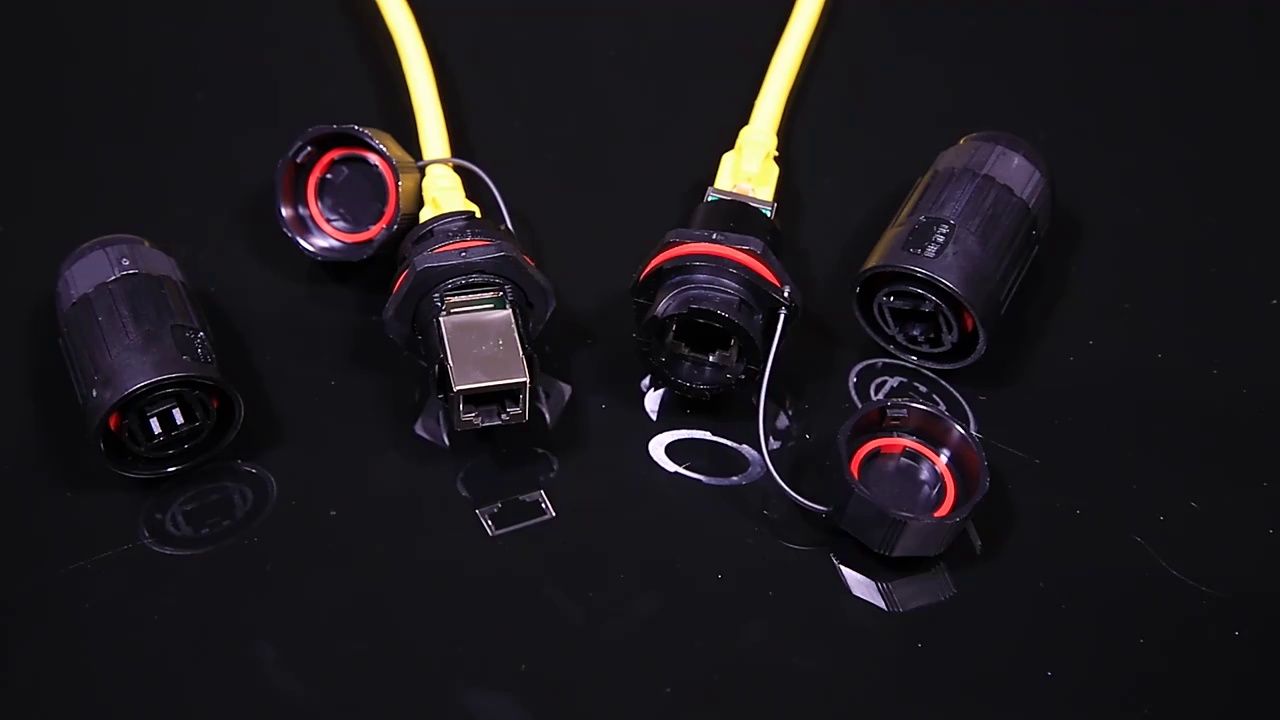

Versatile Application of rj45 power connector
| Coupling | Bayonet |
| Shell material | PC, fire resistance: V-0 |
| IP rating | I: 5-6mm(omit), II: 6-7mm |
| Cable out diameter range | IP67 |
| Mating cycle | 500 |
| Temperature range | -40°C~ + 85°C |
| Termination | Crimp |
| Temperature Range | -40°C~+125°C |
| Mating Cycle | 1000 times |
| Cable Outer Diameter | I: 4-8mm; II: 8-13mm; III: 12-15mm |
| IP Rating | IP67 |
| Brand | Weipu (Established in 1996, with nearly 30 years of R&D and manufacturing experience) |
