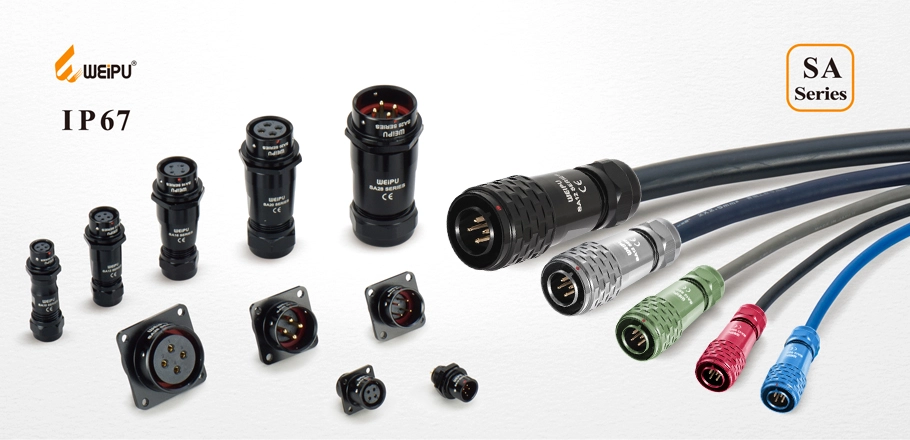

WEIPU SA Series Push-Pull Industrial Connector - IP67 Waterproof Anodized Aluminium Connector
The WEIPU SA Series Push-Pull Industrial Connector offers robust IP67 waterproof protection with durable anodized aluminum housing. This circular connector ensures secure, reliable connections in harsh environments, making it ideal for demanding industrial applications. Trusted quality by WEIPU.
Technical Specifications of Circular Connectors
✔ Push-Pull Quick Operation — Enables rapid one-step mating and release for efficient installation and servicing.
✔ IP67 Environmental Sealing — Effective water and dust resistance after coupling, suitable for demanding industrial conditions.
✔ Reinforced Anodized Housing — Provides enhanced durability and resistance to wear and oxidation.
✔ High-Temperature PPS Inserts — Maintains structural integrity under heat, supporting temperatures up to 260°C.
✔ Gold-Plated Contacts — Ensures stable conductivity and reduces long-term contact degradation.
✔ Flexible Termination Options — Compatible with soldering, crimping, and screw terminations to suit different wiring requirements.
✔ Comprehensive Model Coverage — SA6–SA28 specifications and matching cable ranges support a wide integration spectrum.
Detailed Specifications of Circular Electrical Connectors
Industrial Connections Solutions: Recommended For You
| Coupling | Push-pull |
| Shell material | Anodized aluminium |
| Insert material | PPS,max temperature 260 ℃ |
| Contact material | Brass with gold plating |
| Termination | Solder: SA6, SA8, SA10, SA12, SA16, SA20, SA24, SA28 |
| Crimp: SA16, SA20, SA24, SA28 | |
| Screw: SA20, SA24, SA28 | |

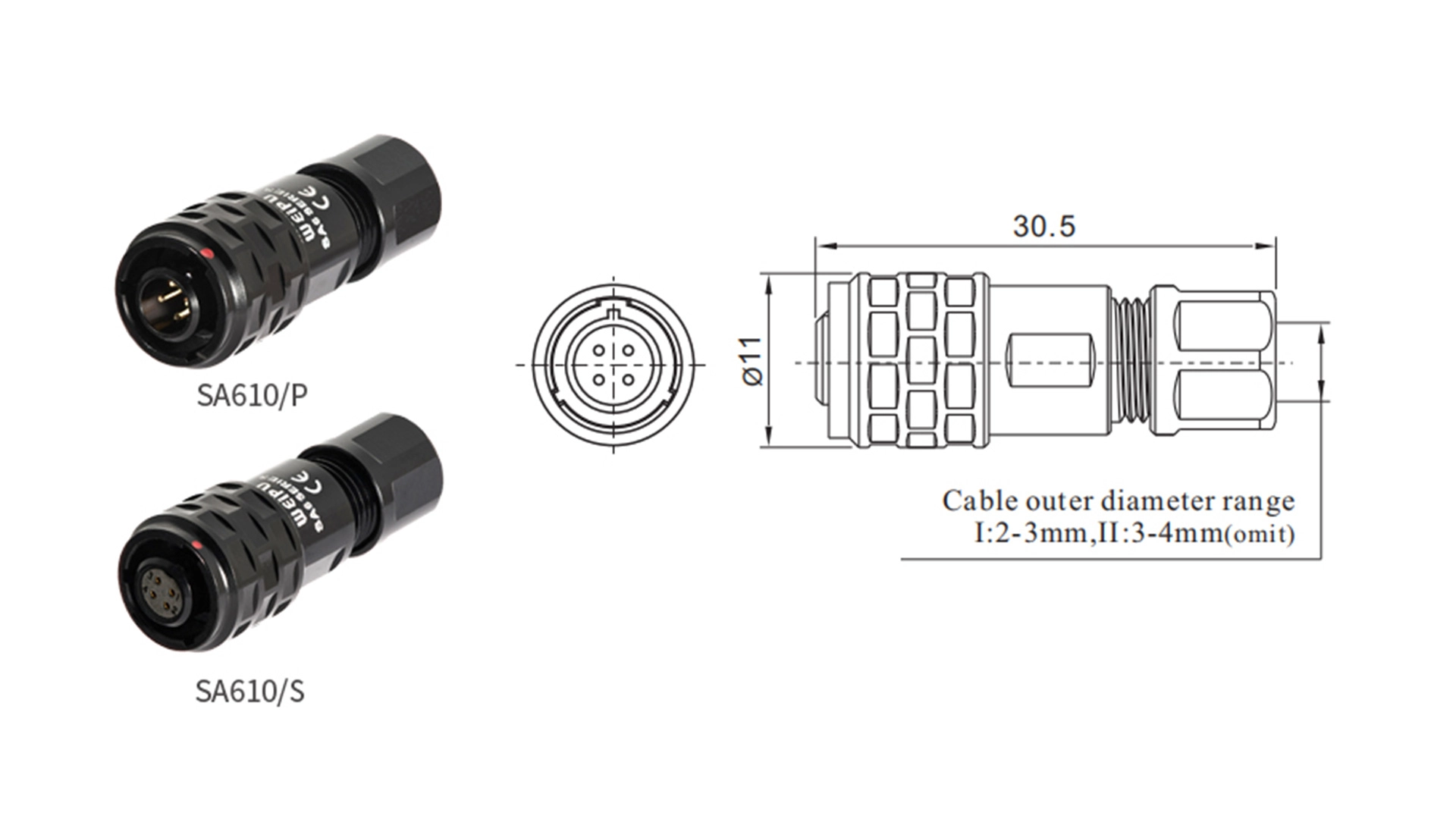

| Cable outer diameter range | SA6: I: 2-3mm, II:3-4mm(omit) |
| SA8: I: 3-4mm, II:4-5mm(omit) | |
| SA10: I: 3-4mm, II:4-6.5mm(omit) | |
| SA12: I: 4-6.5mm(omit), II: 5-8mm | |
| SA16: I: 5-8mm(omit), II: 8-12mm | |
| SA20: I: 5-9mm, II: 8-12mm(omit) | |
| SA24: 10-14mm | |
| SA28: I: 9-13mm, II: 13-16mm(omit) | |
| IP rating | IP67 |
| Mating cycle | 500 USB: 1000 |
| Temperature range | -40°C~+ 85°C |
| Insulation resistance | 2000MΩ |
Superior Advantages of Circular Push Pull Connectors
You may also use industrial connectors:

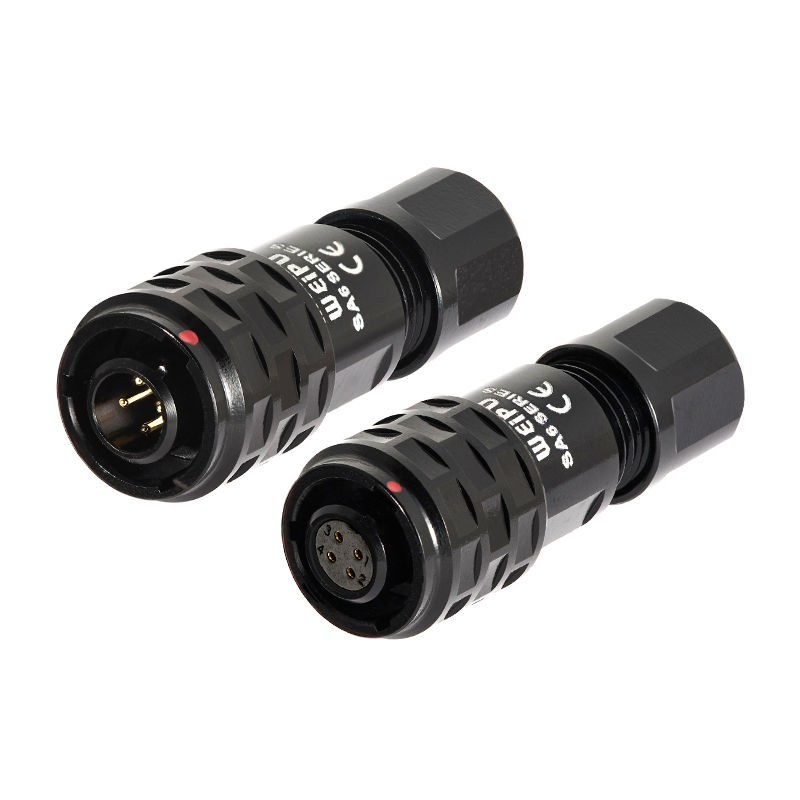

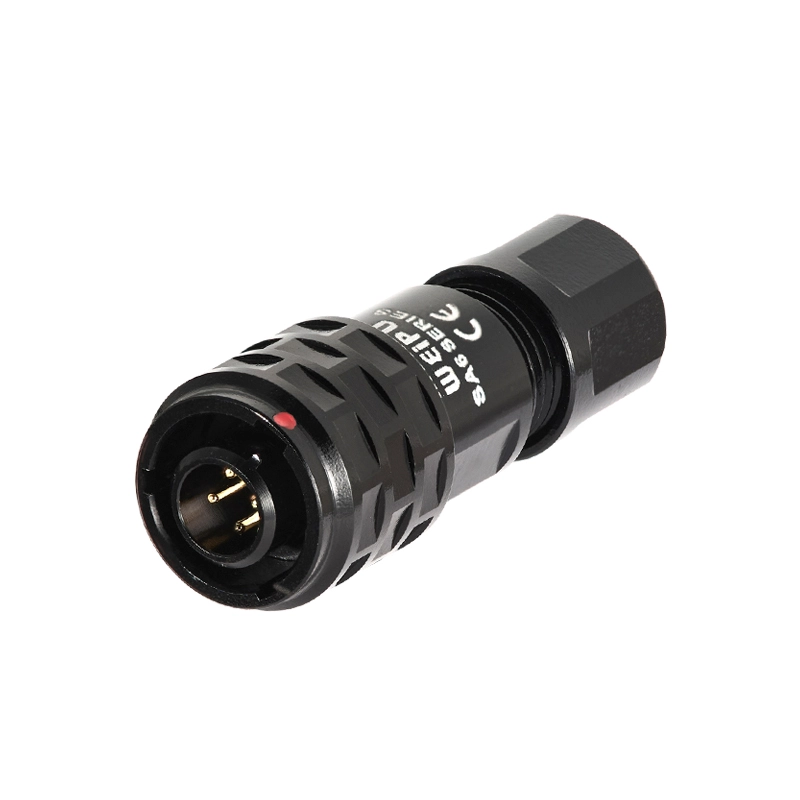

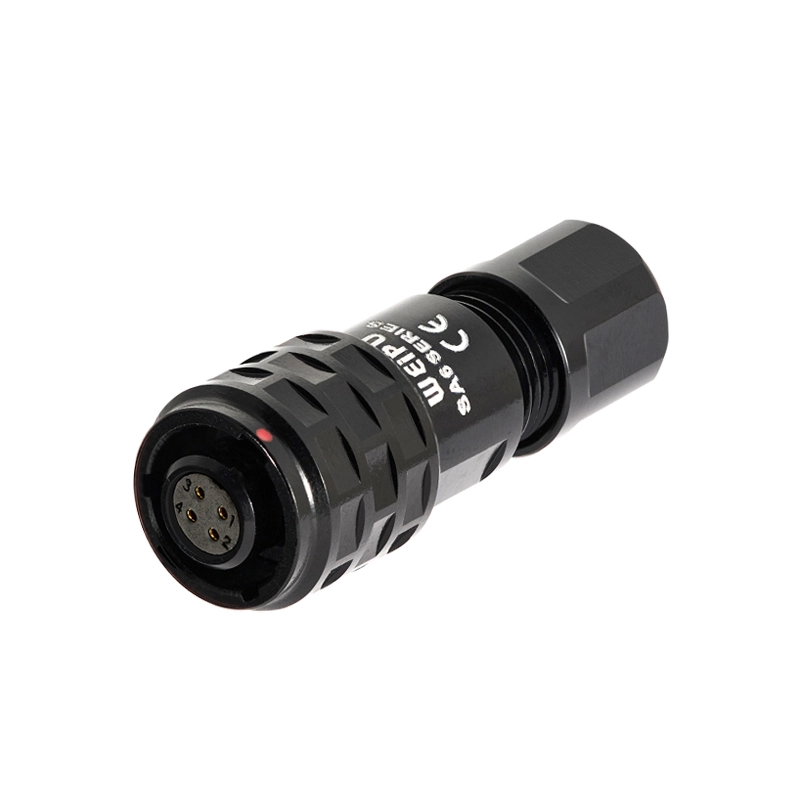

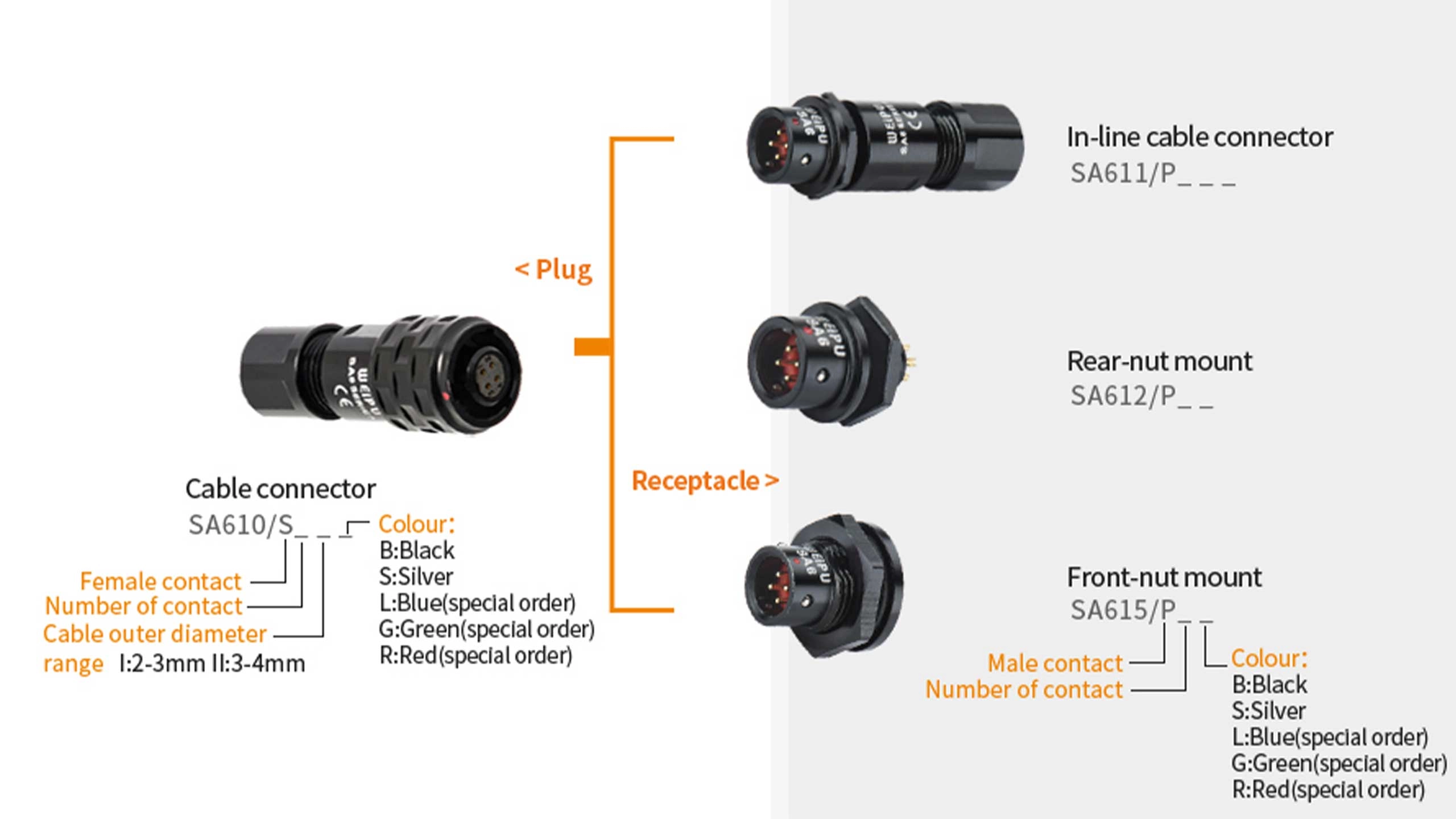

SA610/P SA610/S Cable Connector IP67

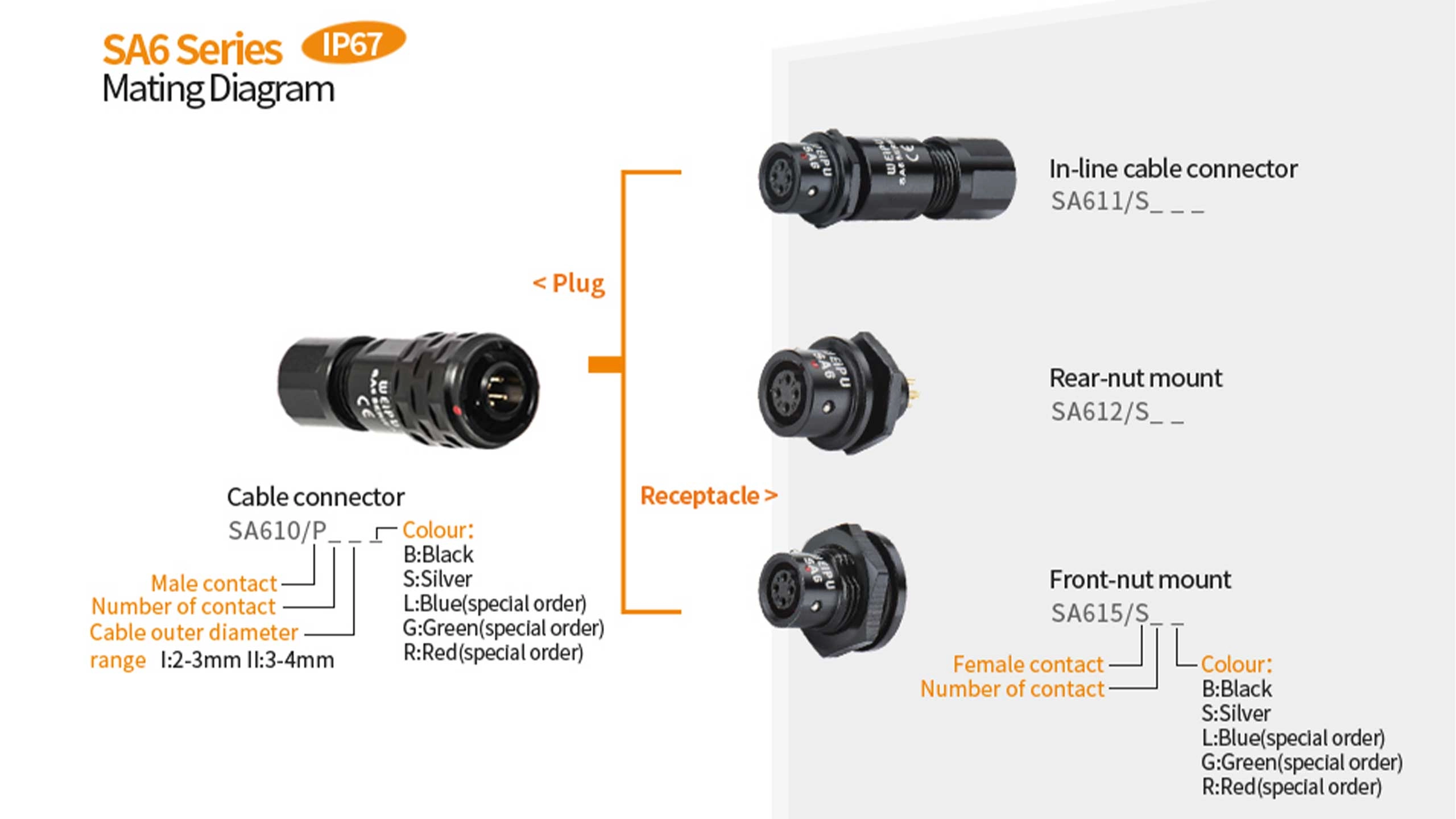

Weipu’s SA series connectors are meticulously crafted for demanding industrial applications. From marine to medical and automation industries, these connectors excel with their robust aluminum alloy construction and IP67 waterproof rating. With Weipu SA series connectors, you can count on reliable performance and seamless connectivity, ensuring uninterrupted operations in harsh environments.Mate with SA611,SA612,SA615
WA22J4TK2 3+PE male cable connector with short back shell
Mate with WA22K4TK2,WA22J4TL2,WA22K4Z2,WA22K4ZE2,WA224JZ2
SF610B/P SF610B/S Cable connector IP67
Mate with SF611B, SF612B, SF615B
WEIPU WY-TE Series Waterproof Electrical Plug
With metal clamping-nut IP67, Threaded, Zinc alloy with chrome plating, PPS
WEIPU WY-TE IP67 circular connectors are waterproof electrical plugs with metal clamping-nut, which are durable, safe and easy to assemble with your all devices.With the metal clamping-nut and threaded design, these waterproof electrical plugs ensure high security and super stable connection. It’s an ideal waterproof connector for your applications.
FAQs about Circular Connector
Products
Can SA series connectors be used in high-temperature equipment?
Yes, the PPS insert can withstand up to 260℃, and the overall operating temperature range is -40℃~+85℃, suitable for general high-temperature industrial scenarios.
What is the difference between version I and II of SA series in cable outer diameter?
Version I and II correspond to different cable outer diameter ranges, which are designed to match cables of various thicknesses for more flexible installation.
Is there a USB-compatible model in the SA series?
Yes, the USB version of SA series has a mating cycle of 1000 times, which is suitable for high-frequency data transmission scenarios.
What termination methods are available for SA16 model?
SA16 supports both solder and crimp termination, which can be selected according to actual installation needs.
